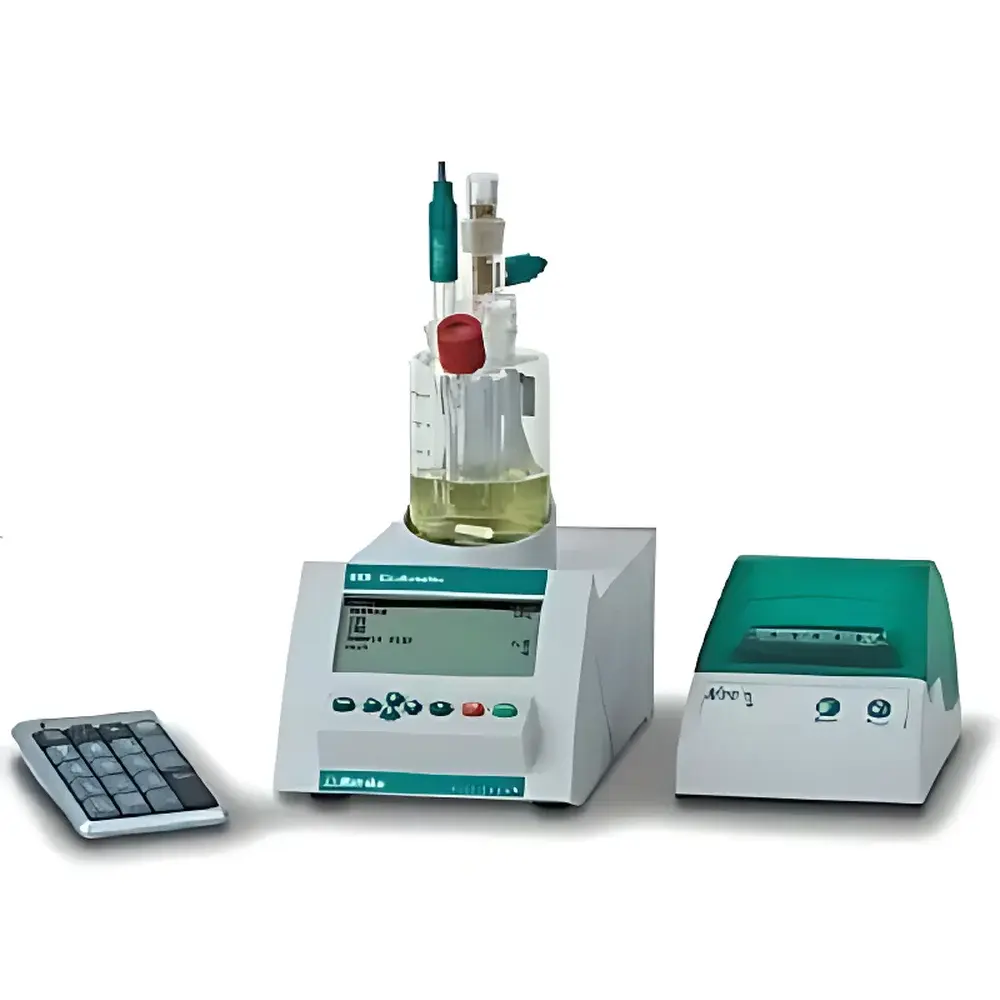

Metrohm 899 Coulometric Karl Fischer Moisture Titrator

Overview

The Metrohm 899 Coulometric Karl Fischer Moisture Titrator is a compact, field-deployable analytical instrument engineered for high-precision coulometric determination of trace water content in diverse chemical, petrochemical, pharmaceutical, and polymer matrices. Based on the electrochemical generation of iodine at the anode according to the Karl Fischer reaction stoichiometry (I₂ + SO₂ + H₂O + CH₃OH → 2HI + CH₃OSO₂CH₃), the system quantifies water by measuring the total charge passed during electrolysis—ensuring direct proportionality between coulombs consumed and water mass (1 mole e⁻ ≡ 1/2 mole I₂ ≡ 1 mole H₂O). Its coulometric architecture eliminates reagent consumption variability inherent in volumetric systems, delivering superior accuracy and reproducibility for samples containing ≤200 mg water per analysis. Designed for both laboratory and on-site applications, the 899 integrates a sealed, self-contained titration cell, real-time titration curve monitoring, and automatic sample detection—enabling unattended initiation upon sample introduction.

Key Features

• Portable Coulometric Architecture: Rechargeable power pack option supports continuous operation for several hours without AC mains—ideal for field testing, production line QC, or mobile labs.
• Automatic Sample Recognition: Integrated sensor detects sample insertion into the titration cell and triggers measurement automatically—minimizing operator intervention and reducing procedural error.
• Modular Expansion Capability: Compatible with Metrohm 860 and 885 KF Sample Heaters and KF ovens, enabling moisture release from difficult matrices via headspace heating under inert gas flow.
• Dual-Mode Operation: Supports both operator and expert user modes—allowing configurable access levels for method editing, calibration, and system diagnostics.
• Real-Time Titration Curve Display: Onboard graphical interface renders current, potential, and endpoint progression during analysis—facilitating immediate assessment of reaction kinetics and endpoint stability.
• Integrated Stirring & Expandable Peripherals: Built-in magnetic stirrer ensures homogeneous mixing; optional external 801 or 803 stirrers accommodate viscous or heterogeneous samples. Single USB port enables connection to balances, keyboards, or data loggers.

Sample Compatibility & Compliance

The 899 is validated for use across analytes where direct injection is impractical or chemically incompatible with classical KF reagents—including polymers (e.g., PET chips, polyolefin pellets), lubricants with reactive additives, aldehyde/ketone-containing formulations, thermally stable solids requiring elevated temperature desorption, and hydrophobic oils prone to cell contamination. When coupled with a KF oven (e.g., 860 or 885), samples are sealed in inert vials, heated to controlled temperatures (up to 250 °C), and swept with dry carrier gas to transfer liberated moisture quantitatively into the titration cell—eliminating manual transfer errors and cross-contamination. The system complies with over 20 internationally recognized standards, including ASTM E1064 (organic liquids), ASTM D6304 (petroleum products), ISO 15512 (plastics), ISO 10337 (crude oil), and multiple Chinese national standards (GB/T series) as well as the Chinese Pharmacopoeia General Chapter 0832—supporting audit-ready workflows in GLP, GMP, and regulated QA environments.

Software & Data Management

While the 899 operates autonomously via its embedded firmware, it supports seamless integration with Metrohm’s tiamo™ software suite (via optional RS-232/USB converter) for advanced method development, multi-parameter sequence programming, electronic signature-enabled reporting, and 21 CFR Part 11-compliant audit trails. Up to 100 user-defined methods can be stored onboard—including custom titration parameters, endpoint criteria, blank correction protocols, and post-analysis calculations. All results include timestamp, operator ID, method name, sample ID, water mass (µg), concentration (ppm or %), relative standard deviation (if replicate enabled), and raw titration curve metadata—exportable in CSV or PDF formats. Data integrity is reinforced through password-protected method modification, electronic logging of all critical events (e.g., cell cleaning, reagent replacement, calibration), and non-volatile memory retention during power loss.

Applications

• Quantification of residual moisture in hygroscopic pharmaceutical excipients (e.g., lactose, microcrystalline cellulose) per USP & Ph. Eur. requirements.
• Trace water analysis in lithium battery electrolytes (LiPF₆ in carbonate solvents) where sub-10 ppm sensitivity is critical for cell longevity.
• Moisture content verification in polymer granules prior to extrusion—preventing hydrolytic degradation during melt processing.
• Water determination in crude oil and refined fuels per ASTM D6304, ensuring compliance with pipeline and refinery specifications.
• Quality control of transformer insulating oils (IEC 60814 / GB/T 7600) where >10 ppm water compromises dielectric strength.
• Release testing of industrial gases (e.g., SF₆, HFC-134a) per GB/T 7376 and ISO 8573-8 for purity certification.

FAQ

What sample types require coupling with a KF oven?
Samples that are insoluble in methanol-based KF reagents (e.g., polyesters, elastomers), chemically reactive (aldehydes, ketones, strong bases/acids), thermally stable only above 100 °C, or viscous enough to foul the electrode surface (e.g., greases, heavy fuel oils) benefit from oven-assisted headspace analysis.
Does the 899 support GLP/GMP-compliant data handling?
Yes—when used with tiamo™ software and appropriate hardware (e.g., biometric reader, networked server), it meets 21 CFR Part 11 requirements for electronic records and signatures, including role-based access control, immutable audit trails, and secure data archiving.
How is calibration verified on the 899?
Calibration is confirmed using certified water standards (e.g., 1.00 mg H₂O, 10.0 mg H₂O ampoules per ISO 15512 Annex B); system performance is validated by measuring repeatability (RSD ≤ 0.3% for ≥1000 µg) and recovery (97–103%) across three concentrations.
Can the 899 be operated without a PC?
Yes—the instrument functions fully standalone with onboard method storage, real-time curve display, and result calculation; PC connectivity is optional for advanced reporting and remote diagnostics.
What maintenance is required for long-term reliability?
Routine maintenance includes daily cell rinsing with dry methanol, periodic drying of the cathode compartment, annual verification of electrode impedance, and replacement of molecular sieve desiccant in the drying tube every 3–6 months depending on ambient humidity exposure.
