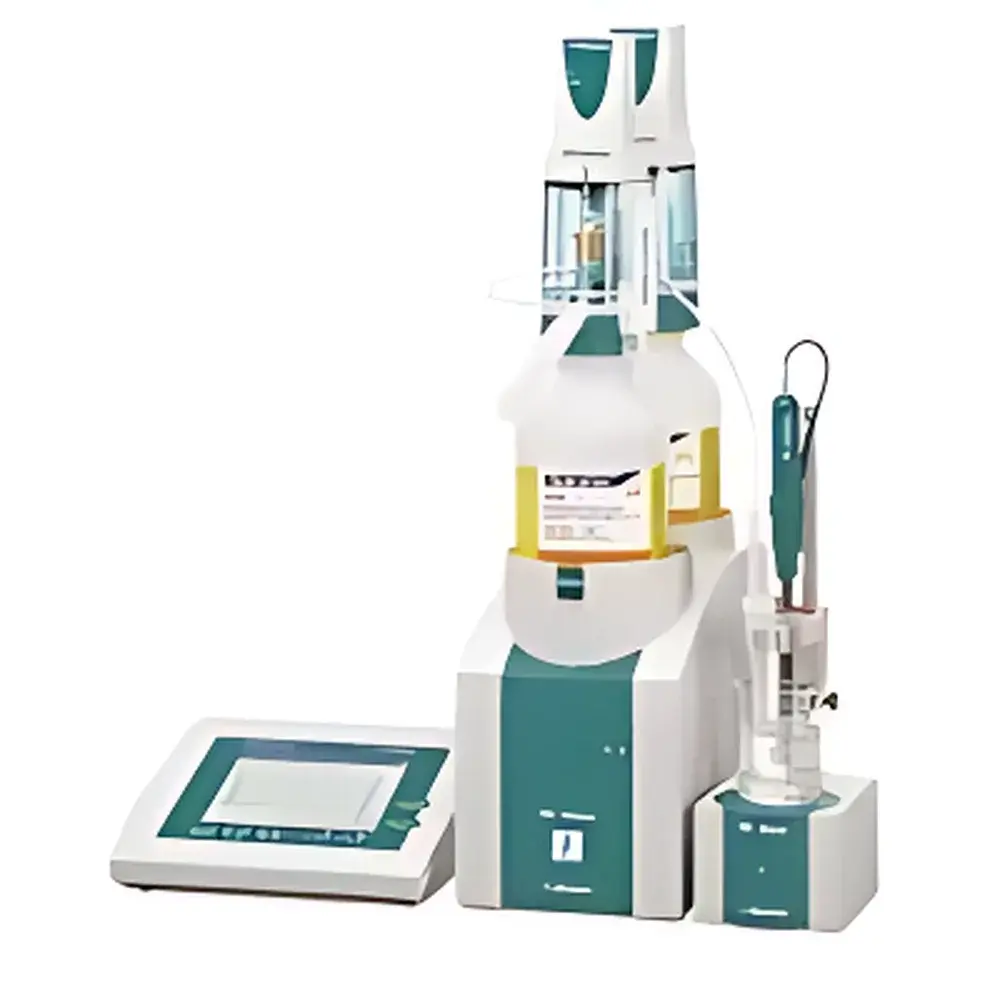

Metrohm 902 Titrando Advanced pH-Stat & Controlled-Dosage Potentiometric Titrator

Overview

The Metrohm 902 Titrando is a specialized, high-precision potentiometric titrator engineered for dynamic pH-stat control and programmable reagent dosing in synthetic chemistry and kinetic studies. Unlike conventional titrators optimized solely for endpoint detection, the 902 Titrando implements real-time closed-loop feedback control based on continuous electrochemical monitoring (pH, mV, or redox potential) and temperature. Its core architecture integrates Metrohm’s proprietary Dosino liquid handling system—capable of precise, chemically inert, multi-channel reagent delivery—to enable true process automation in reaction monitoring, enzyme kinetics, dissolution testing, and controlled synthesis. Designed and manufactured in Herisau, Switzerland, the instrument complies with fundamental principles of electrochemical measurement traceability per ISO/IEC 17025 and supports GLP/GMP-aligned data integrity when paired with tiamo™ software.

Key Features

• Advanced pH-stat (pH-STAT) mode: Maintains user-defined pH setpoints with sub-second response time and sustained stability over hours—critical for acid-neutralization kinetics, antacid release profiling, and enzymatic activity assays.
• Dual-Dosino configuration: Two independent, chemically resistant Dosino dispensers mounted directly on the titrator chassis; expandable to four Dosinos via modular interface—enabling seamless sequential or parallel reagent addition without interruption.
• “One-after-another” dosing: Automatic handover between Dosinos during refill cycles ensures uninterrupted titration continuity, preserving temporal resolution in fast reactions and high-consumption protocols.
• Programmable process control: Real-time monitoring of pH/mV/temperature triggers user-defined logic actions—including conditional pause/resume, external TTL signal output (e.g., to heaters, chillers, or peristaltic pumps), and RS232-driven peripheral coordination.
• Multi-mode operational flexibility: Supports not only pH-stat and controlled-dosage (DOS) modes but also fixed-endpoint (SET), direct measurement (MEAS), and custom script-based sequences via tiamo™ method editor.

Sample Compatibility & Compliance

The 902 Titrando accommodates aqueous and non-aqueous samples compatible with standard Metrohm electrodes (e.g., glass pH, redox, ion-selective, and temperature sensors). Its sealed Dosino design resists corrosion from aggressive reagents (e.g., concentrated acids, bases, halogenated solvents), enabling long-term use in synthetic organic and pharmaceutical development workflows. The system meets essential requirements for regulated environments: raw data immutability, audit trail generation (per FDA 21 CFR Part 11 when used with validated tiamo™ configurations), and electronic signature support. It aligns with ASTM E2028 (Standard Guide for Potentiometric Titration), ISO 8655-6 (Piston burettes), and USP (pH measurements) where applicable.

Software & Data Management

Controlled exclusively by Metrohm’s tiamo™ software (v3.3 or later), the 902 Titrando provides full method development, execution, and reporting capabilities. tiamo™ enforces ALCOA+ data principles: attributable, legible, contemporaneous, original, accurate, complete, consistent, enduring, and available. All sensor readings, Dosino actuation events, timing stamps, and user interventions are logged with cryptographic hashing. Batch reports include metadata (operator ID, instrument serial, calibration history), statistical summaries (RSD, slope, equivalence point uncertainty), and export-ready CSV/PDF outputs compliant with LIMS integration standards.

Applications

• Pharmaceutical dissolution kinetics: Monitoring pH-dependent drug release profiles under USP Apparatus II conditions with automated buffer replenishment.
• Enzyme kinetics: Real-time tracking of catalytic activity via pH-stat–controlled substrate addition during hydrolysis or esterification.
• Organometallic synthesis: Precise stoichiometric addition of pyrophoric or moisture-sensitive reagents under inert atmosphere using dual-Dosino gas-tight delivery.
• Water treatment analysis: Sequential determination of alkalinity species (OH⁻, CO₃²⁻, HCO₃⁻) with automatic switching between acid and base titrants.
• Materials science: Controlled precipitation of metal hydroxides with simultaneous pH and temperature logging for nucleation studies.

FAQ

What distinguishes the 902 Titrando from standard potentiometric titrators?
It uniquely combines closed-loop pH-stat control, multi-Dosino programmable dosing, and external device orchestration—functions absent in endpoint-only instruments.
Can the 902 Titrando be integrated into an automated laboratory workflow?
Yes—via RS232, USB, or Ethernet (with optional interface module), it supports SCADA-level integration and responds to LIMS-initiated run requests.
Is validation documentation available for GMP environments?
Metrohm provides IQ/OQ protocols, risk assessments, and 21 CFR Part 11 readiness guides; full validation support requires site-specific PQ execution.
What electrode types are natively supported?
All Metrohm smart electrodes with digital ID chips (e.g., pH, redox, ion-selective, temperature, and combination sensors); analog electrodes require compatible Metrohm interface modules.
Does the system support non-aqueous titrations?
Yes—provided appropriate solvent-compatible electrodes and Dosino tubing (e.g., FEP, PFA) are selected; tiamo™ allows custom solvent dielectric correction tables.
