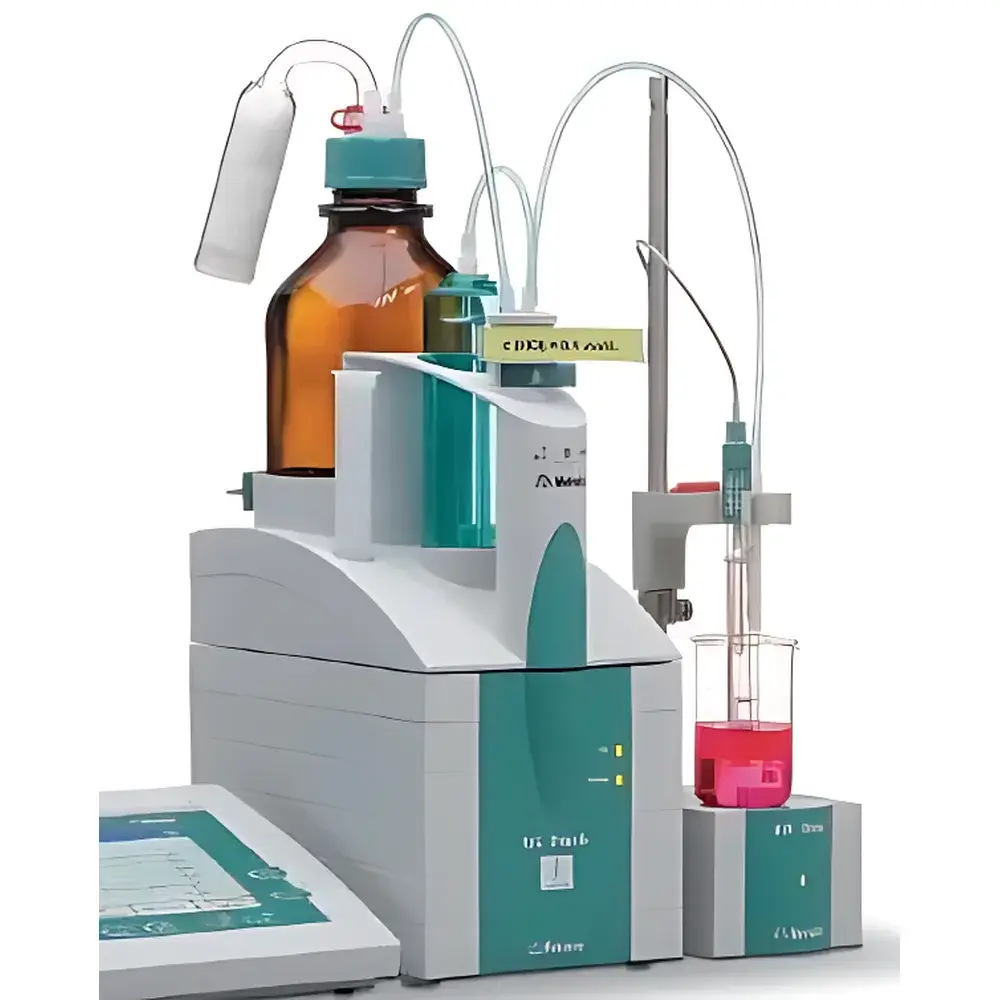

Metrohm 904/906 Aquatro™ Series Automatic Potentiometric Titrator

Overview

The Metrohm 904/906 Aquatro™ Series Automatic Potentiometric Titrator represents a foundational platform in modern electrochemical analysis—engineered for precision, traceability, and laboratory-wide integration. Based on Metrohm’s proprietary Aquatro™ (‘Aqua’ + ‘Trotter’) intelligent architecture, the system implements digital communication across all critical subsystems: electrodes, dosing units, cables, and measurement modules operate as networked nodes within a unified control environment. This architecture eliminates analog signal degradation, ensures automatic calibration data retention, and enables full hardware self-identification upon connection. The instrument operates on classical potentiometric principle—measuring potential difference between indicator and reference electrodes as a function of titrant volume—to determine equivalence points in acid-base, redox, precipitation, complexometric, and non-aqueous titrations. Its dual-model configuration (904 for method-editable workflows; 906 for preconfigured, validation-ready methods) supports both routine QC and regulated R&D environments under GxP frameworks.

Key Features

• Digital Smart Ecosystem: All electrodes feature embedded memory chips storing serial number, calibration history, and GLP-compliant performance logs; cables transmit metadata—not just analog signals—enabling automatic configuration recognition.
• Dosino™ Dosing Technology: Integrated Dosino™ pump modules deliver sub-microliter precision via ceramic piston design and real-time pressure monitoring; the 806 Exchange Unit achieves 1/20,000 burette resolution (e.g., 0.005 mL per step on a 10 mL burette).
• Multi-Mode Titration Engine: Supports DET (adaptive sampling near endpoint), MET (fixed incremental addition), and SET (target-pH or target-potential hold); compatible with ISE-based concentration calculations, dynamic pK determination (HNP algorithm), and inflection-point detection in photometric/conductometric modes.
• Regulatory-Ready Architecture: Built-in audit trail, electronic signatures, user-role management, method locking, and secure PCMCIA-based backup ensure compliance with FDA 21 CFR Part 11, EU Annex 11, and ISO/IEC 17025 requirements.
• Modular Expansion: Four MSB (Metrohm Serial Bus) interfaces allow daisy-chaining of up to nine 805 dosing units, four 801 magnetic stirrers, or mixed configurations of 804/803 titration stands with 802 rod stirrers—enabling fully automated multi-parameter sequences.

Sample Compatibility & Compliance

The 904/906 platform accommodates aqueous and non-aqueous matrices—including viscous oils, suspensions, and low-conductivity solvents—via interchangeable electrode types (glass pH, Ag/AgCl, Pt, ISE, double-junction, and KF-specific electrodes). It meets international standard requirements for volumetric water determination (ASTM E203, USP , EP 2.5.12), acid number (ASTM D974), saponification value (ISO 3657), and chloride content (ISO 9297). All firmware and tiamo™ software versions undergo formal validation documentation packages aligned with ICH Q2(R2) and GAMP 5 guidelines. Data integrity is enforced through cryptographic hashing of raw measurement files, immutable timestamping, and segregated storage paths for methods, results, and audit logs.

Software & Data Management

tiamo™ software serves as the central analytical hub—providing method development, sequence scheduling, real-time curve visualization, and statistical reporting. Its database server architecture supports concurrent multi-user access with granular permission controls. Parallel titration mode allows simultaneous execution of up to eight independent samples using synchronized dosing units and stirrers. LabLink enables secure remote monitoring over LAN or internet (TLS 1.2 encrypted), while PC Control offers direct instrument-level command scripting via ASCII protocol. All data exports comply with ASTM E1384 and ISO/IEC 11179 metadata standards. Backup and restore operations utilize PCMCIA cards certified for long-term archival (IEC 60750).

Applications

• Pharmaceutical QC: Assay of active ingredients (e.g., amine HCl salts), residual solvent quantification, excipient acidity testing, and KF water content in lyophilized products.
• Food & Beverage: Total acidity (TA), free SO₂ in wine, salt content in dairy, peroxide value in edible oils, and citric acid in soft drinks.
• Chemical Manufacturing: Acid/base number of lubricants, chloride in caustic soda, cyanide in electroplating baths, and catalyst metal content via complexometric back-titration.
• Environmental Labs: Alkalinity profiling of wastewater, fluoride in drinking water (ISE), and sulfide in sediment extracts.
• Academic Research: Kinetic endpoint modeling, multi-step redox mechanisms, and thermodynamic pK determination in synthetic intermediates.

FAQ

What distinguishes the 904 from the 906 model?
The 904 supports full method editing—including custom KF and STAT protocols—while the 906 ships with factory-validated, locked methods for KF volumetric water determination and STAT titration, reducing qualification effort in regulated labs.
Is tiamo™ software included with purchase?
Yes—both models ship with tiamo™ v3.x perpetual license, including database server, audit trail, and electronic signature modules.
Can the system integrate with LIMS?
Via tiamo™’s ODBC-compliant database schema and configurable XML export templates, seamless bidirectional LIMS interfacing is supported without middleware.
How is electrode calibration managed?
Smart electrodes store calibration coefficients and validity dates; tiamo™ enforces GLP-compliant calibration reminders, drift checks, and automatic pass/fail evaluation against user-defined thresholds.
What temperature sensing options are available?
Standard support for Pt1000 or NTC probes; optional differential amplifier enables high-impedance reference electrode compensation in low-conductivity media.
