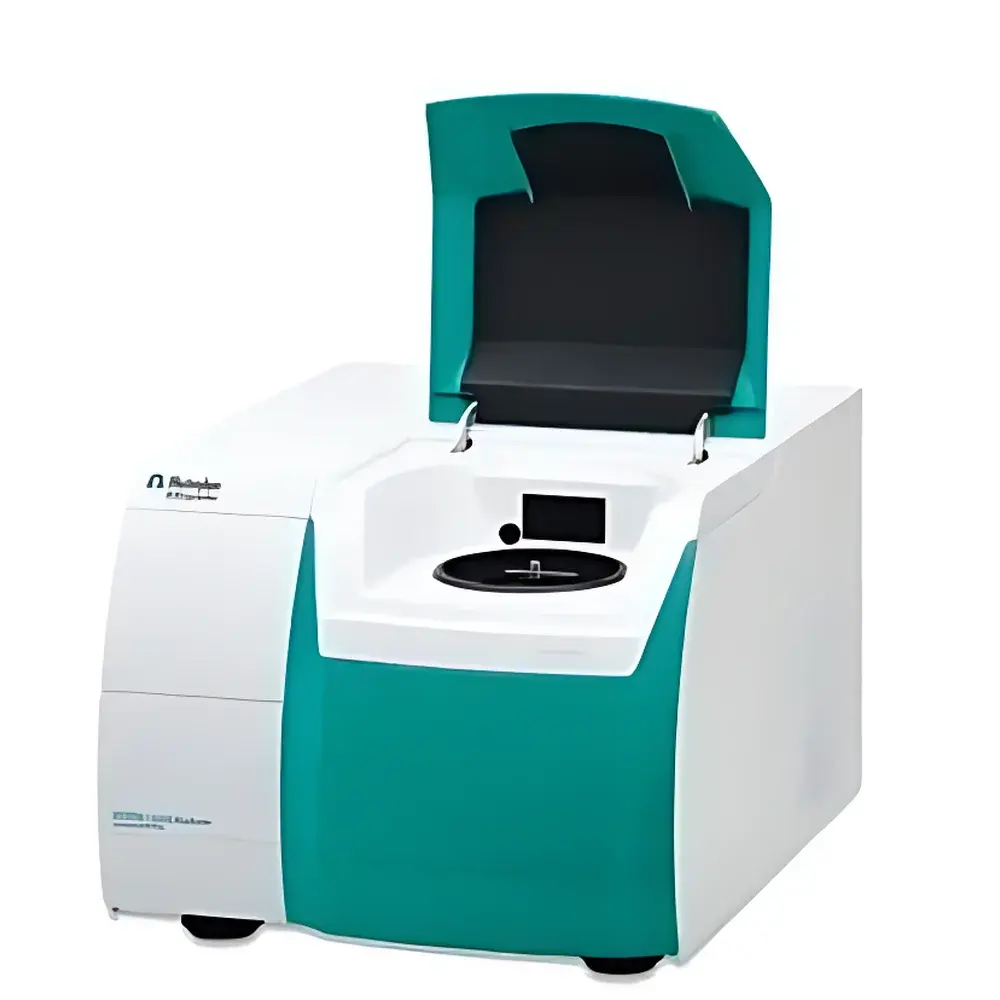

Metrohm DS2500 L Near Infrared Spectrometer for Liquid Analysis

Overview

The Metrohm DS2500 L Near Infrared Spectrometer is a robust, laboratory-grade grating-scanning NIR instrument engineered for precise, routine liquid analysis across pharmaceutical, chemical, food & beverage, and academic research settings. Operating on the principle of dispersive grating-based scanning spectroscopy, the DS2500 L captures high-fidelity absorbance spectra across the full visible-to-NIR range (400–2500 nm), enabling quantitative and qualitative characterization of complex liquid matrices without sample derivatization. Its optical architecture features thermally stabilized optics and a sealed, purged monochromator compartment to minimize baseline drift and ensure long-term photometric stability. Designed for operational continuity in both controlled lab environments and semi-industrial settings—such as pilot plants or QC labs adjacent to production lines—the DS2500 L integrates mechanical damping, IP54-rated enclosure protection, and shock-resistant mounting to maintain spectral fidelity under ambient vibration and particulate exposure.

Key Features

• Full-spectrum coverage from 400 nm (visible) to 2500 nm (short-wave NIR), supporting multi-analyte calibration models for moisture, ethanol, active pharmaceutical ingredients (APIs), fatty acid profiles, and solvent composition.
• High-speed acquisition at 32 scans per second with 0.5 nm data sampling resolution, enabling rapid averaging for improved signal-to-noise ratio and statistical robustness in low-concentration measurements.
• Transmission-mode optical path optimized for cuvette- and flow-cell-based configurations; compatible with standard 10 mm quartz cuvettes, disposable plastic vials (e.g., 12 × 75 mm), and temperature-controlled flow cells (up to 80 °C).
• Integrated sample holder recognition system automatically detects cuvette type and orientation, reducing operator error and ensuring consistent pathlength application during method execution.
• Ruggedized chassis with reinforced aluminum housing, anti-vibration feet, and dust/moisture-resistant seals compliant with IEC 60529 IP54 specifications for use in non-classified industrial zones.

Sample Compatibility & Compliance

The DS2500 L supports a broad range of liquid samples—including aqueous solutions, organic solvents, suspensions, and viscous formulations—without requiring dilution or filtration in most cases. Its transmission geometry accommodates optical pathlengths from 0.1 mm to 50 mm via interchangeable cuvettes and flow cells. The instrument meets essential regulatory design expectations for analytical instrumentation used in GLP and GMP environments: hardware-level audit trail logging (via Vision Air), electronic signature support per FDA 21 CFR Part 11, and full traceability of calibration history, measurement parameters, and user actions. All optical components are certified to ISO/IEC 17025-relevant performance criteria, and spectral accuracy is verified annually using NIST-traceable reference standards (e.g., SRM 2036 for wavelength and SRM 2035 for photometric linearity).

Software & Data Management

Vision Air software serves as the native chemometrics and instrument control platform for the DS2500 L. It provides intuitive method development workflows—including PLS, PCR, and PCA model building—with built-in cross-validation, outlier detection, and residual analysis tools. All raw spectra, processed results, and metadata are stored in an encrypted, relational SQLite database with automatic versioning and rollback capability. Vision Air supports seamless integration with LIMS systems via ASTM E1384-compliant export formats (e.g., .csv, .jdx, .spc) and includes configurable report templates compliant with ISO 17025 clause 7.8. Audit trails record every user login, parameter change, calibration event, and result export with timestamp, operator ID, and reason-for-change annotation—fully satisfying requirements for regulated QA/QC laboratories.

Applications

• Pharmaceutical: Real-time assay verification of liquid dosage forms (syrups, injectables), excipient quantification, and blend uniformity monitoring during manufacturing.
• Chemical Industry: In-process concentration tracking of monomers, catalysts, and reaction intermediates in batch and continuous reactors.
• Food & Agriculture: Rapid determination of fat, protein, lactose, and water activity in dairy products, juices, and plant extracts.
• Academic Research: Development of novel NIR calibration models for emerging biomarkers, microplastic suspension characterization, and solvent polarity index mapping.
• Environmental Labs: Quantitative analysis of hydrocarbon contaminants in water extracts and leachates without GC-MS sample preparation.

FAQ

What sample containers are supported for routine transmission measurements?
Standard 10 mm quartz cuvettes, disposable polystyrene vials (12 × 75 mm), and custom-machined sapphire flow cells—all with defined optical pathlengths and thermal management options.
Can the DS2500 L operate unattended for extended periods?
Yes—when coupled with Metrohm’s 815 Robotic Sample Processor or third-party autosamplers via RS-232/USB-serial interface, it supports fully automated sequence execution with status monitoring and error recovery protocols.
Is Vision Air software validated for use in FDA-regulated environments?
Vision Air 3.2+ includes IQ/OQ documentation packages, configurable electronic signatures, and 21 CFR Part 11 compliance mode with role-based access control and immutable audit logs.
How often does the instrument require wavelength calibration verification?
NIST-traceable holmium oxide and didymium filters are recommended for quarterly verification; annual full recalibration by Metrohm Service Engineers is advised for GMP applications.
Does the DS2500 L support reflectance or diffuse reflectance accessories?
No—the DS2500 L is exclusively configured for transmission geometry; for reflectance applications, Metrohm recommends the DS2500 R variant with integrated integrating sphere and fiber-optic probe interface.
