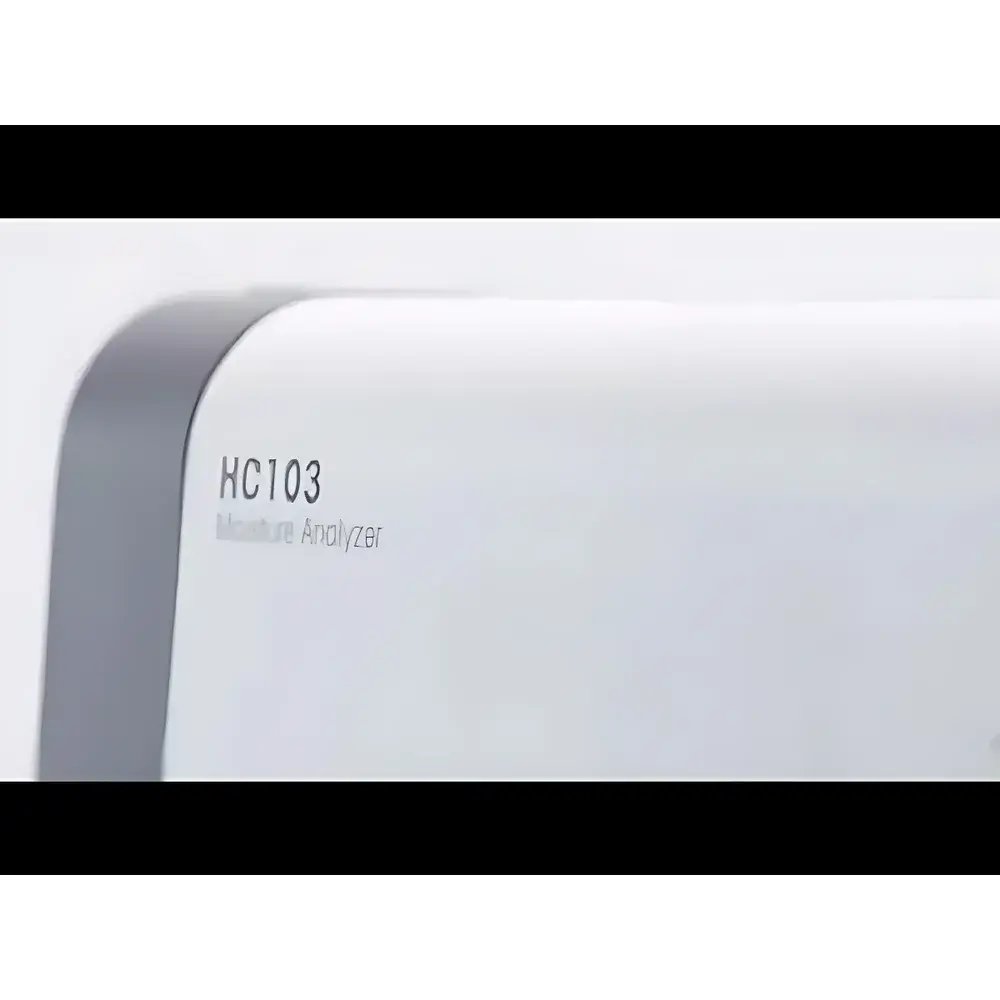

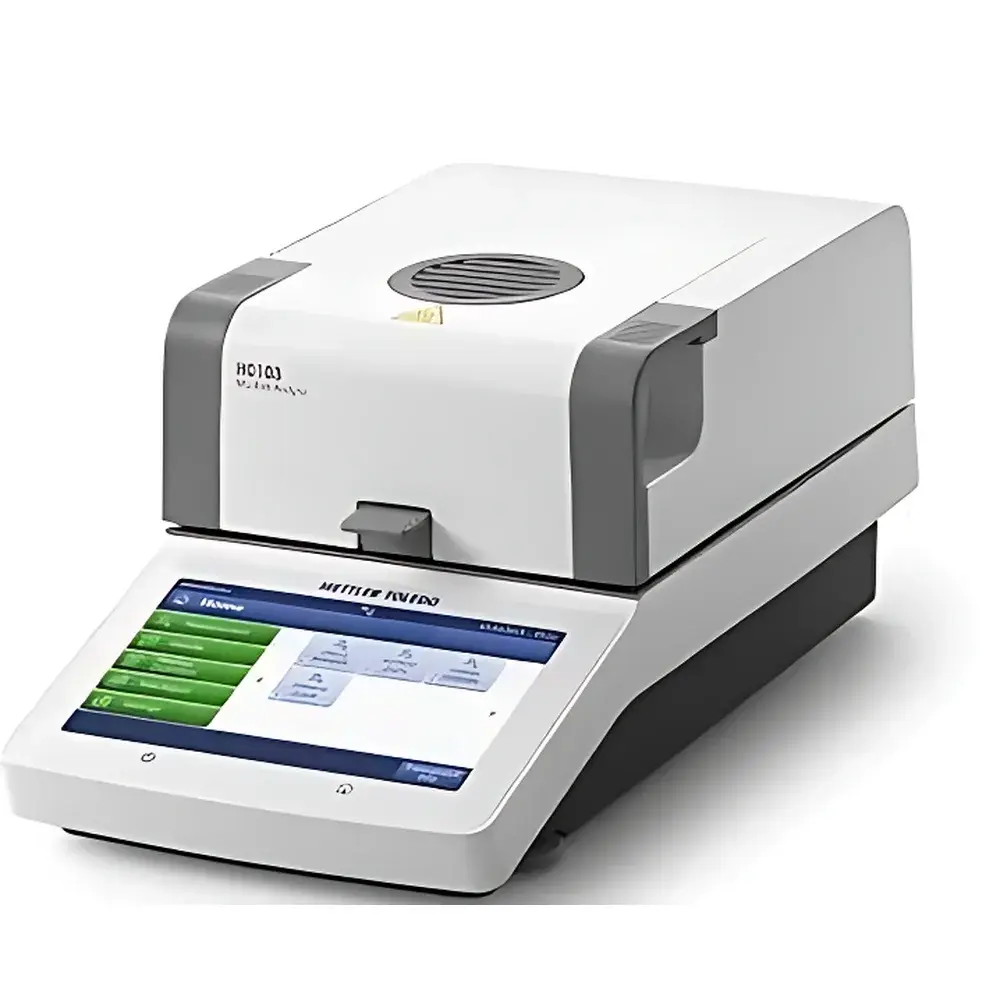

METTLER TOLEDO Classic Series HC103 Halogen Moisture Analyzer

Overview

The METTLER TOLEDO Classic Series HC103 Halogen Moisture Analyzer is a precision thermal gravimetric instrument engineered for rapid, reproducible moisture content determination across pharmaceutical, food, chemical, plastics, and materials science laboratories. It operates on the principle of loss-on-drying (LOD), wherein a sample is heated uniformly by a high-intensity halogen lamp, and real-time mass loss is continuously monitored via an integrated analytical balance until a predefined drying endpoint is reached. Unlike traditional infrared or convection ovens, the HC103’s optimized halogen heating system delivers rapid thermal response, precise temperature control (up to 230 °C in 1 °C increments), and homogeneous sample heating—minimizing thermal degradation risks for heat-sensitive matrices. Its compact footprint, robust stainless-steel construction, and intuitive interface make it suitable for both regulated quality control environments and high-throughput production floor applications where space, durability, and operational consistency are critical.

Key Features

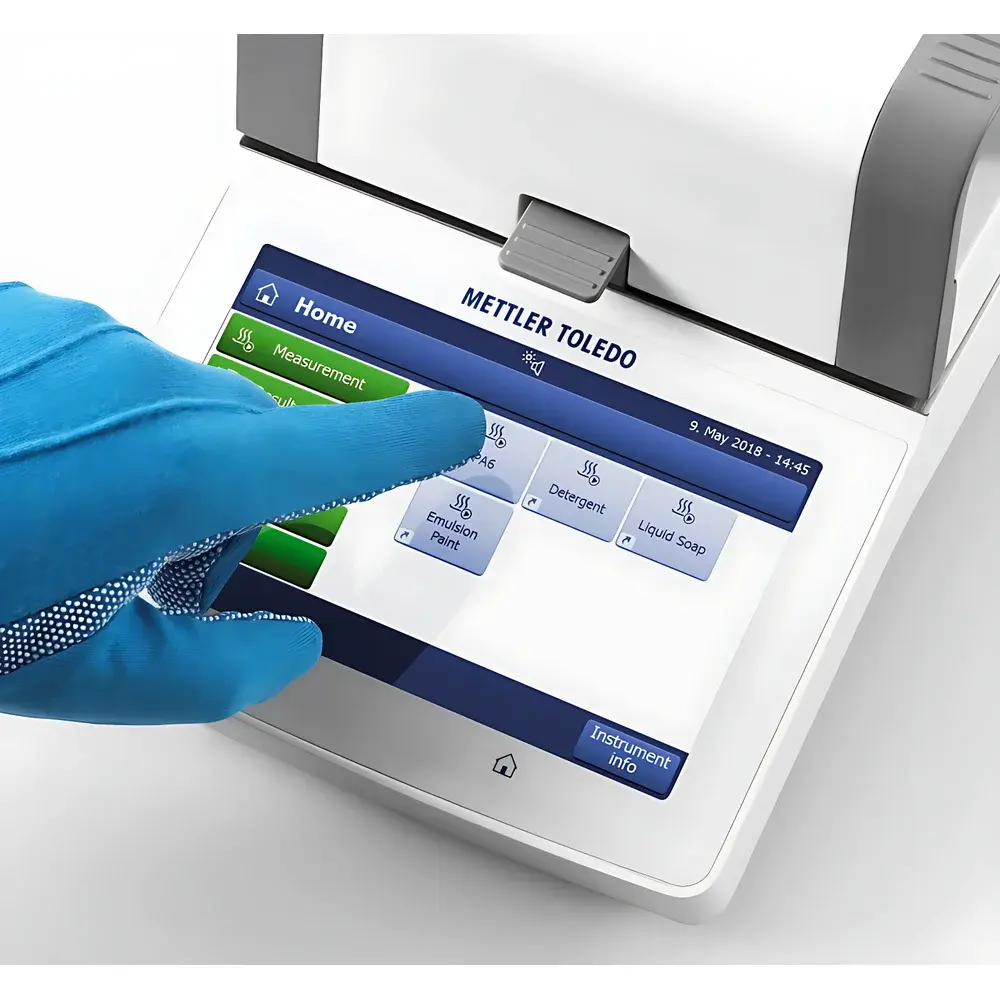

• Capacitive touchscreen interface with graphical user guidance, method shortcuts, and multilingual support (English, Chinese, Spanish, German, French)
• Integrated method wizard enabling step-by-step creation of validated drying protocols—including ramp, hold, and automatic endpoint detection modes
• Halogen lamp heating system offering fast thermal stabilization (<60 s to 105 °C), narrow temperature tolerance (±1 °C), and uniform energy distribution across the sample pan
• High-precision monolithic weighing cell with 0.001 g readability and <0.01 g repeatability (standard deviation) under ISO 9001-controlled calibration conditions
• Stainless-steel housing with smooth, non-porous surfaces for rapid decontamination and compliance with hygiene-critical workflows (e.g., FDA-regulated manufacturing)
• Auto-calibration function with internal weight verification; optional external calibration traceable to NIST or national metrology institutes

Sample Compatibility & Compliance

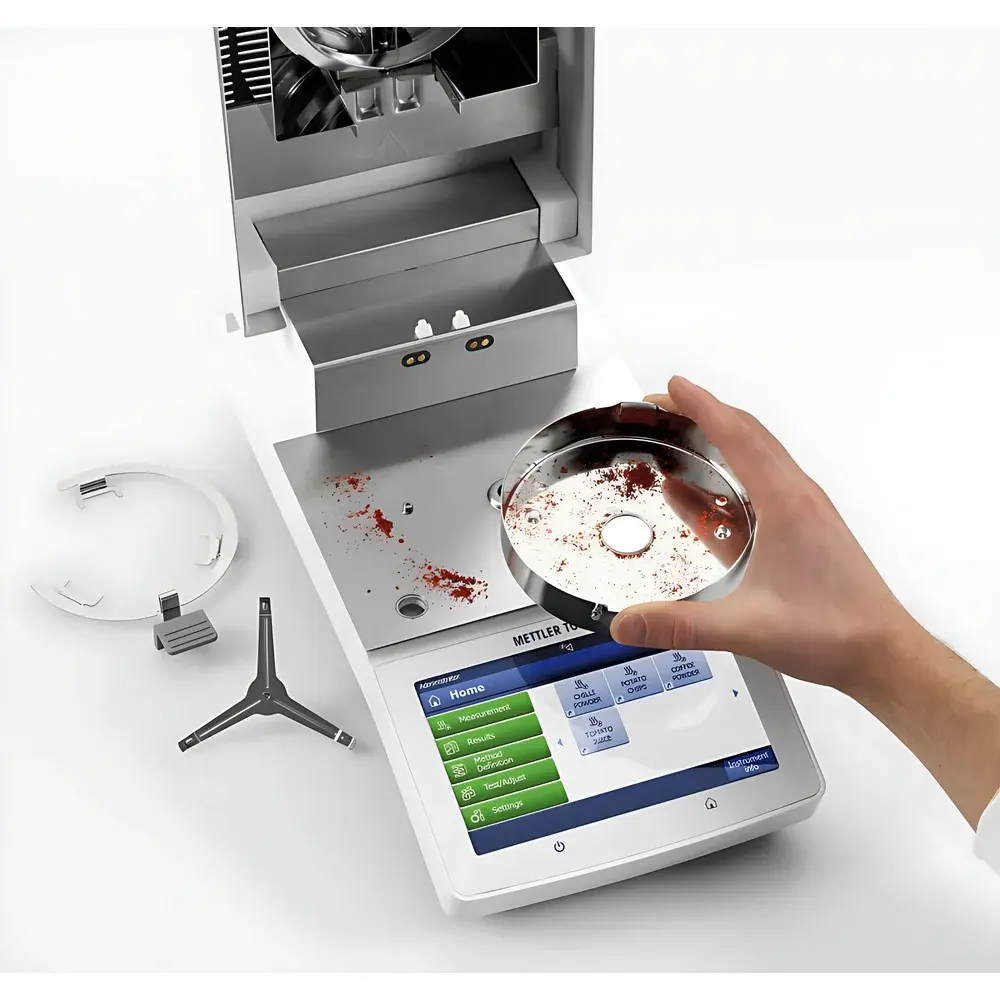

The HC103 accommodates solid, semi-solid, and powdered samples ranging from 0.1 g to 100 g (depending on required accuracy and moisture level). It supports standard aluminum or ceramic sample pans (diameter: 90 mm) and is compatible with optional sample covers for volatile compound retention. Method development aligns with internationally recognized standards including ASTM D4442 (wood moisture), ISO 712 (cereals), USP (moisture content), and AOAC Official Methods. The instrument meets electromagnetic compatibility (EMC) requirements per IEC 61326-1 and safety standards per IEC 61010-1. While the HC103 itself does not include built-in 21 CFR Part 11 audit trail functionality, its methods and results can be exported in CSV or PDF format for integration into validated LIMS or ELN systems supporting ALCOA+ data integrity principles.

Software & Data Management

Data acquisition and reporting are managed directly through the onboard firmware without external PC dependency. Each measurement logs timestamp, operator ID (configurable), method name, initial/final mass, drying curve, moisture %, dry residue %, and statistical deviation. Results are exportable via USB flash drive in comma-separated (.csv) or printable PDF formats. Optional METTLER TOLEDO LabX™ software (sold separately) enables centralized method deployment, electronic signature, automated report generation, and full audit trail compliance—including user access control, change history, and electronic record retention per GMP/GLP guidelines. SmartCal performance verification kits provide documented, traceable validation of heating uniformity, temperature accuracy, and mass stability over time—supporting routine IQ/OQ/PQ activities.

Applications

The HC103 is routinely deployed for moisture quantification in active pharmaceutical ingredients (APIs), excipients, granules, tablets, and lyophilized powders during formulation and release testing. In food manufacturing, it verifies moisture specifications for flour, dairy powders, coffee, spices, and pet food to ensure shelf-life stability and microbial safety. Industrial users apply it to polymers (e.g., PET, PA6), catalysts, ceramics, and battery electrode materials where residual solvent or hydration water impacts processing behavior and final product performance. Its reliability in harsh environments also supports in-line QC checks in continuous manufacturing lines subject to vibration, dust, or ambient temperature fluctuations.

FAQ

What is the typical drying time for most samples using the HC103?
Drying duration varies by sample type and moisture content but typically ranges from 3 to 15 minutes for routine QC analyses—significantly faster than conventional oven methods requiring 1–24 hours.
Can the HC103 be used for volatile organic compound (VOC) analysis?
No—the HC103 measures total volatile loss as “moisture” and cannot distinguish water from solvents or other volatiles. For selective water quantification in solvent-rich matrices, Karl Fischer titration remains the reference method.
Is SmartCal validation mandatory for regulatory compliance?
While not mandated by regulation, SmartCal provides documented evidence of instrument performance consistency between scheduled maintenance intervals—supporting ISO/IEC 17025 accreditation and FDA inspection readiness.
Does the HC103 support GLP-compliant electronic signatures?
Not natively—the device lacks embedded digital signature capability. However, when paired with LabX software, full electronic signature workflows—including role-based authentication and biometric or token-based signing—are fully supported.
How often should the halogen lamp be replaced?
Under normal usage (≤8 hrs/day), the halogen lamp maintains stable output for ≥5,000 operating hours. METTLER TOLEDO recommends lamp replacement only upon observed drift in drying kinetics or failure to reach setpoint temperature within specification.
