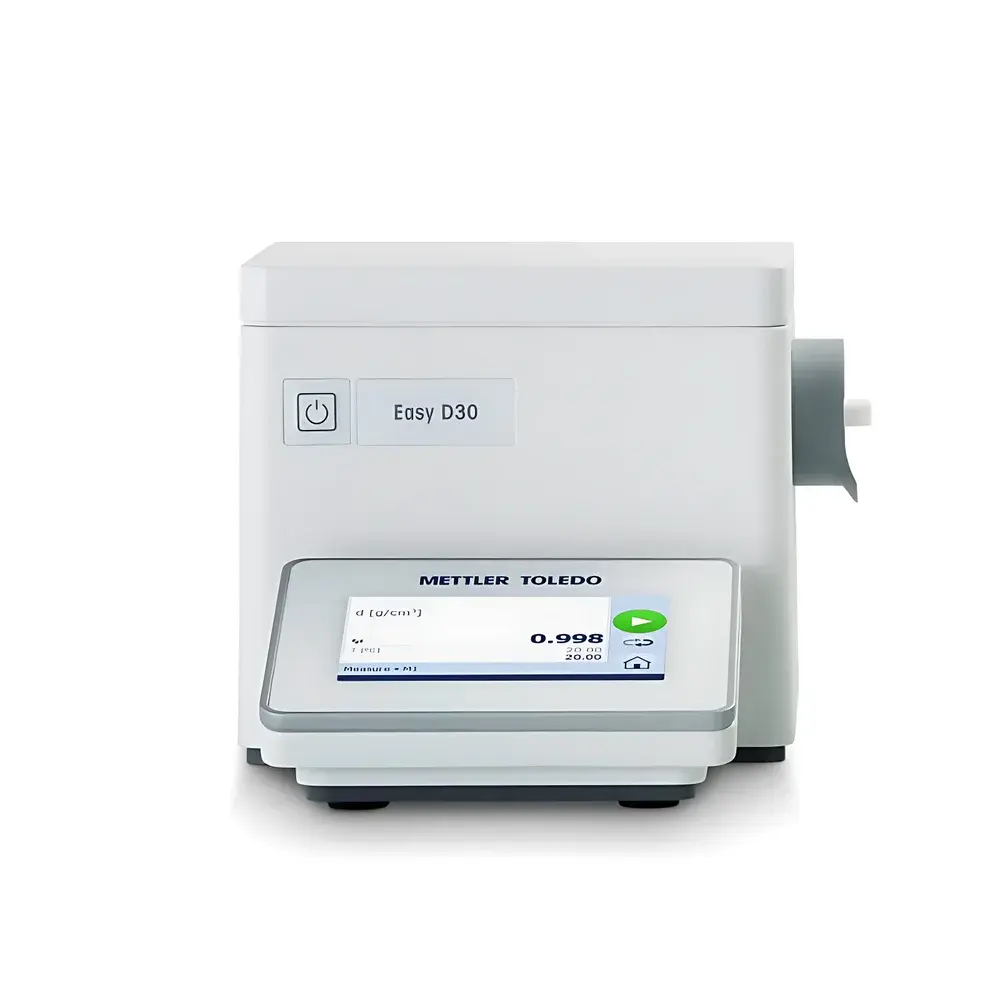

METTLER TOLEDO EasyPlus D30/D40 Digital Density Meter

Overview

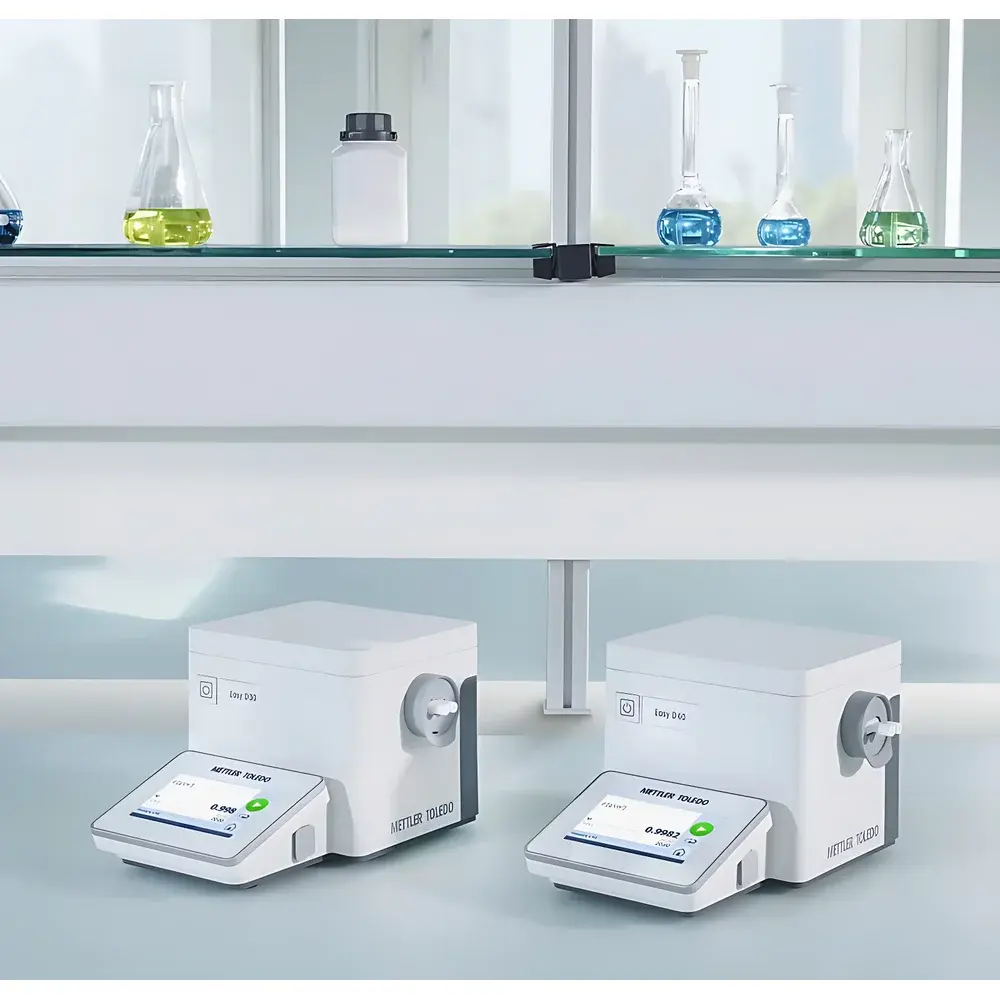

The METTLER TOLEDO EasyPlus D30/D40 Digital Density Meter is an oscillating U-tube density analyzer engineered for high-precision liquid density measurement in regulated laboratory and near-line quality control environments. Based on the fundamental physical principle of resonant frequency shift in a vibrating U-shaped glass tube filled with sample, the instrument delivers traceable, temperature-compensated density values with exceptional repeatability and long-term stability. Its compact benchtop architecture integrates a thermostatically controlled Peltier element, high-resolution digital transducer, and vibration-damping mechanical design—enabling operation in non-ideal settings such as production floors or shared analytical labs without compromising metrological integrity. The system meets internationally recognized standards including ASTM D4052 (Standard Test Method for Density, Relative Density, and API Gravity of Crude Petroleum and Liquid Petroleum Products by Digital Density Meter), ISO 12185 (Petroleum products — Determination of density of petroleum liquids — Automatic digital density meters), and pharmacopeial requirements under USP . Designed for routine compliance-driven workflows, it supports both standalone operation and full integration into enterprise-level quality management systems.

Key Features

• Oscillating U-tube measurement technology with built-in temperature stabilization (0–91.0 °C, ±0.01 °C stability) ensuring thermodynamic equilibrium prior to each reading
• Density resolution of 0.00001 g/cm³ and certified accuracy of ±0.00002 g/cm³ across the full 0–3 g/cm³ range
• Minimal sample requirement of only 1 mL, reducing reagent consumption and waste generation
• Real-time video monitoring of the measuring cell via integrated optical window for visual confirmation of fill level, bubble presence, and meniscus position
• Automated BubbleCheck™ algorithm that detects and flags air entrapment during filling, preventing erroneous results from incomplete cell filling
• Viscosity correction function compensating for damping effects in high-viscosity samples (e.g., syrups, oils, polymer solutions)
• LongClick™ user interface protocol enabling single-action initiation of measurement sequences without menu navigation

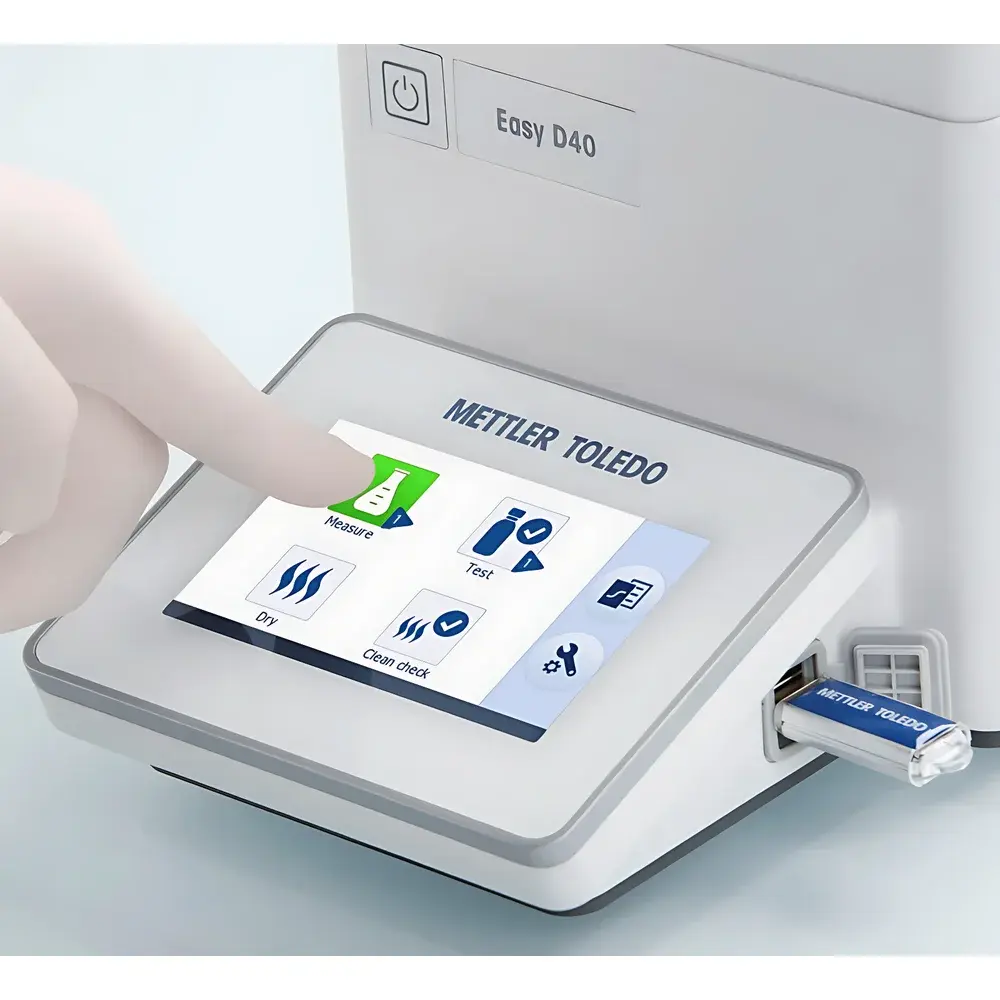

• Onboard touchscreen display with context-sensitive help text and multilingual UI (English, German, French, Spanish, Chinese, Japanese)

Sample Compatibility & Compliance

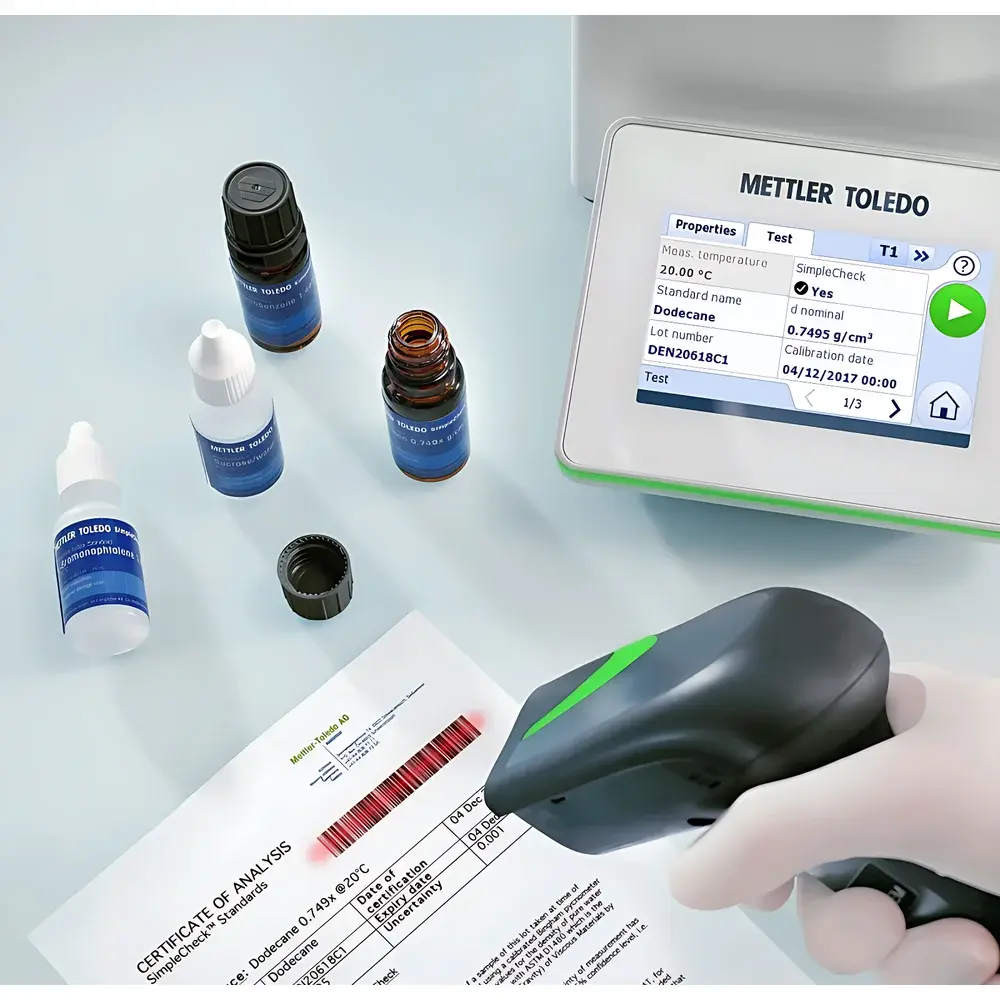

The EasyPlus D30/D40 is validated for aqueous solutions, organic solvents, hydrocarbons, alcohols, acids, bases, pharmaceutical formulations, food-grade liquids (e.g., juices, dairy concentrates), and industrial process streams. It accommodates samples with viscosities up to 25,000 mPa·s when used with optional low-flow injection kits. All measurements are traceable to NIST-certified reference materials and comply with regulatory documentation requirements under GLP and GMP frameworks. Built-in SimpleCheck™ functionality allows rapid performance verification using certified density standards (e.g., water, air, and binary mixtures), generating printable verification reports with timestamped metadata. The instrument’s firmware and hardware design conform to IEC 61326-1 (EMC for laboratory equipment) and IEC 61010-1 (safety requirements for electrical equipment).

Software & Data Management

EasyDirect™ PC software provides secure, centralized data handling with full 21 CFR Part 11 compliance—including electronic signatures, role-based access control, and immutable audit trails for all measurement events, parameter changes, and calibration logs. Users can generate time-series density plots, batch trend analyses, and customizable PDF/CSV reports directly from historical datasets. Barcode scanning via USB-connected readers enables zero-typing sample ID entry, eliminating transcription errors. Data export supports LIMS integration through standard protocols (ODBC, HL7, CSV). Optional instrument firmware updates maintain alignment with evolving pharmacopeial revisions and industry-specific validation templates (e.g., IQ/OQ/PQ documentation packages).

Applications

• Pharmaceutical QC: Density-based assay verification of active ingredient concentrations, excipient blends, and sterile solutions per USP monographs
• Fuel & Lubricant Testing: API gravity, biodiesel blend verification (B5–B20), and distillation cut analysis in refinery QA labs
• Food & Beverage: Alcohol content determination (ethanol/water), sugar concentration (°Brix conversion), vinegar acidity titration support, and juice adulteration screening
• Chemical Manufacturing: Reaction endpoint monitoring, solvent recovery efficiency, and polymer solution concentration tracking
• Academic Research: Thermophysical property studies requiring precise density–temperature coefficient (α_ρ) derivation

FAQ

What density standards are recommended for routine verification?
NIST-traceable water (at 20 °C), dry air, and certified binary ethanol–water mixtures are supported; SimpleCheck™ guides users through automated pass/fail assessment against defined tolerance bands.
Can the instrument measure samples above 91 °C?
No—the maximum operational temperature is strictly limited to 91.0 °C to preserve sensor longevity and measurement cell integrity; external thermostatted baths are required for higher-temperature applications.
Is calibration required before every use?
Not necessarily; daily verification with SimpleCheck™ is sufficient for most regulated environments, while full two-point calibration (air/water or air/reference liquid) is performed weekly or after maintenance.
How does the system handle volatile or evaporative samples?
A sealed filling adapter and optional drying tube accessory minimize evaporation during injection and measurement; temperature-controlled measurement chamber further suppresses vapor-phase interference.
Does the EasyPlus D30/D40 support automatic unit conversion?
Yes—single-measurement input yields simultaneous output in g/cm³, kg/m³, °API, specific gravity (20/20 °C), alcohol % v/v, and other industry-standard units without manual recalculation.
