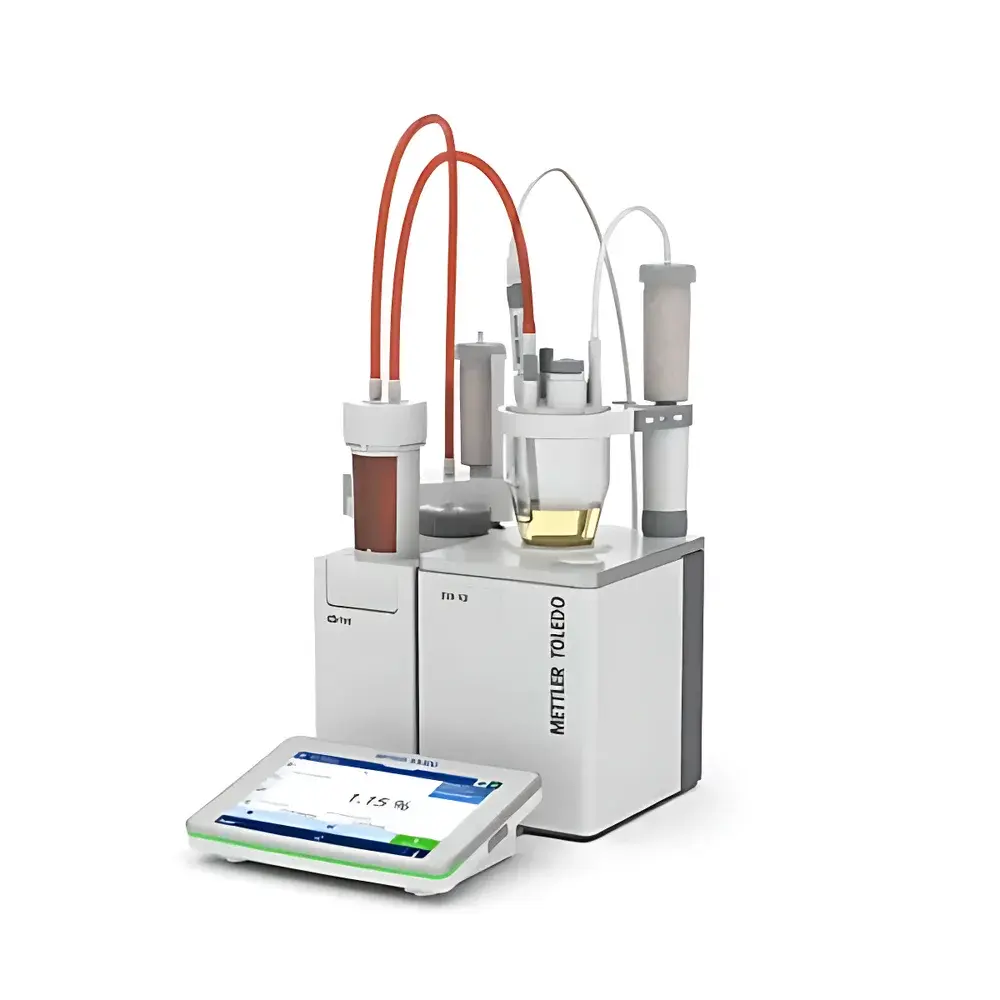

METTLER TOLEDO EVA Karl Fischer Moisture Analyzer

Overview

The METTLER TOLEDO EVA Karl Fischer Moisture Analyzer is a high-precision volumetric titration system engineered for trace- to bulk-level water quantification in diverse chemical, pharmaceutical, and materials science applications. It operates on the classical Karl Fischer (KF) reaction principle—where iodine, sulfur dioxide, methanol, and a base react stoichiometrically with water—and implements it via a digitally controlled, dual-electrode potentiometric endpoint detection system. Unlike coulometric systems limited to sub-microgram ranges, the EVA series is optimized for routine volumetric analysis across an exceptionally broad dynamic range—from 10 ppm (0.001 wt%) to 100% water content—making it suitable for solvents, APIs, polymers, excipients, oils, and heterogeneous solids. Its architecture integrates real-time current-controlled feedback (FFA algorithm), enabling dynamic reagent dosing that maintains optimal iodine concentration throughout titration, thereby accelerating reaction kinetics without compromising stoichiometric fidelity or endpoint reproducibility.

Key Features

• Advanced FFA (Fast Feedback Algorithm): Dynamically adjusts titrant delivery rate based on real-time polarization current, minimizing overshoot and ensuring sharp, repeatable endpoints—even for slow-reacting or matrix-inhibited samples.
• 120,000-step precision burette drive: Delivers sub-microliter accuracy in titrant dispensing, supporting robust quantification down to 0.1 µg absolute water mass with RSD ≤ 1% at 0.2 mg water level.
• Dual-potentiometric endpoint detection: Uses a high-stability digital polarizable electrode pair for noise-immune, drift-resistant endpoint recognition across variable conductivity matrices.
• Integrated balance communication: Direct bidirectional data exchange with METTLER TOLEDO XPR/XSE analytical balances enables automatic sample weight import, eliminating manual entry errors and streamlining GLP-compliant workflow execution.
• Automated solvent handling module: Supports unattended solvent exchange, drying, and purge cycles—reducing operator exposure to toxic KF reagents (e.g., pyridine-free imidazole-based solutions) and improving lab safety compliance.
• Modular accessory ecosystem: Includes micro-titration cells (10 mL), homogenizers for insoluble solids, oven samplers for volatile matrices, and gas-diffusion interfaces for gaseous or headspace moisture analysis.

Sample Compatibility & Compliance

The EVA analyzer accommodates liquid, paste, powder, granular, and thermally labile samples—including hygroscopic APIs, lithium battery electrolytes, silicone elastomers, and catalysts—via optional sample preparation modules. All hardware and firmware are validated per ICH Q2(R2) guidelines for analytical instrument qualification (AIQ). Data integrity is ensured through full audit trail logging, electronic signatures, and role-based access control—fully compliant with FDA 21 CFR Part 11, EU Annex 11, and WHO TRS 996 requirements. Method validation templates align with USP , EP 2.5.12, and ASTM E203 for both volumetric and coulometric KF methodologies.

Software & Data Management

LabX™ PC software serves as the central platform for method development, instrument control, and regulated data management. It supports structured protocol definition with parameter constraints, automated calibration verification, and customizable report generation—including raw titration curves, derivative plots, and statistical summaries (mean, SD, RSD, recovery %). All user actions, data modifications, and instrument events are timestamped and cryptographically signed within an immutable audit trail. LabX also facilitates seamless integration with LIMS and ERP systems via ODBC and RESTful API interfaces, enabling end-to-end traceability from sample intake to certificate of analysis issuance.

Applications

• Pharmaceutical QC: Water content verification of active pharmaceutical ingredients (APIs), excipients (e.g., lactose, microcrystalline cellulose), and final dosage forms per USP monographs.
• Chemical manufacturing: Moisture specification testing of solvents (acetonitrile, THF), monomers (vinyl chloride, ethylene oxide), and catalysts (e.g., TiCl₄ complexes).
• Polymers & composites: Residual moisture assessment in PET, nylon, and epoxy resins prior to extrusion or molding—critical for preventing hydrolytic degradation.
• Battery materials: Quantification of trace water in LiPF₆ electrolyte solutions and cathode precursors (NMC, LFP), where ppm-level H₂O directly impacts cell cycle life and safety.
• Food & feed: Validation of drying efficiency in milk powders, starches, and pet food formulations under AOAC 992.18 and ISO 13734 protocols.

FAQ

What distinguishes volumetric from coulometric Karl Fischer titration in the EVA platform?

Volumetric KF (EVA’s primary mode) uses standardized iodine-containing titrant delivered via high-precision burette—ideal for samples containing >100 µg water. Coulometric mode is not supported; EVA is purpose-built for volumetric analysis with extended linear dynamic range and superior throughput for routine QC labs.
Can the EVA system validate methods per ICH Q2(R2) requirements?

Yes—LabX provides built-in tools for specificity, linearity, accuracy, precision, LOD/LOQ, and robustness assessments, with automated calculation templates aligned to ICH Q2(R2) parameters and reporting formats.
Is remote monitoring and troubleshooting supported?

LabX Remote Access enables secure, encrypted browser-based supervision of instrument status, live titration progress, and diagnostic logs—without requiring local network exposure or VPN configuration.
How often does the system require recalibration?

Burette calibration is recommended annually or after 10,000 titrations; electrode verification using certified water standards (e.g., 1.00 mg H₂O ampoules) is advised before each analytical batch per GLP practice.
Does the EVA comply with GMP Annex 11 for computerized systems?

Yes—LabX v3.5+ includes full ALCOA+ (Attributable, Legible, Contemporaneous, Original, Accurate) data governance, electronic signature enforcement, and change control workflows validated to EU GMP Annex 11 and PIC/S PI 011-3 standards.
