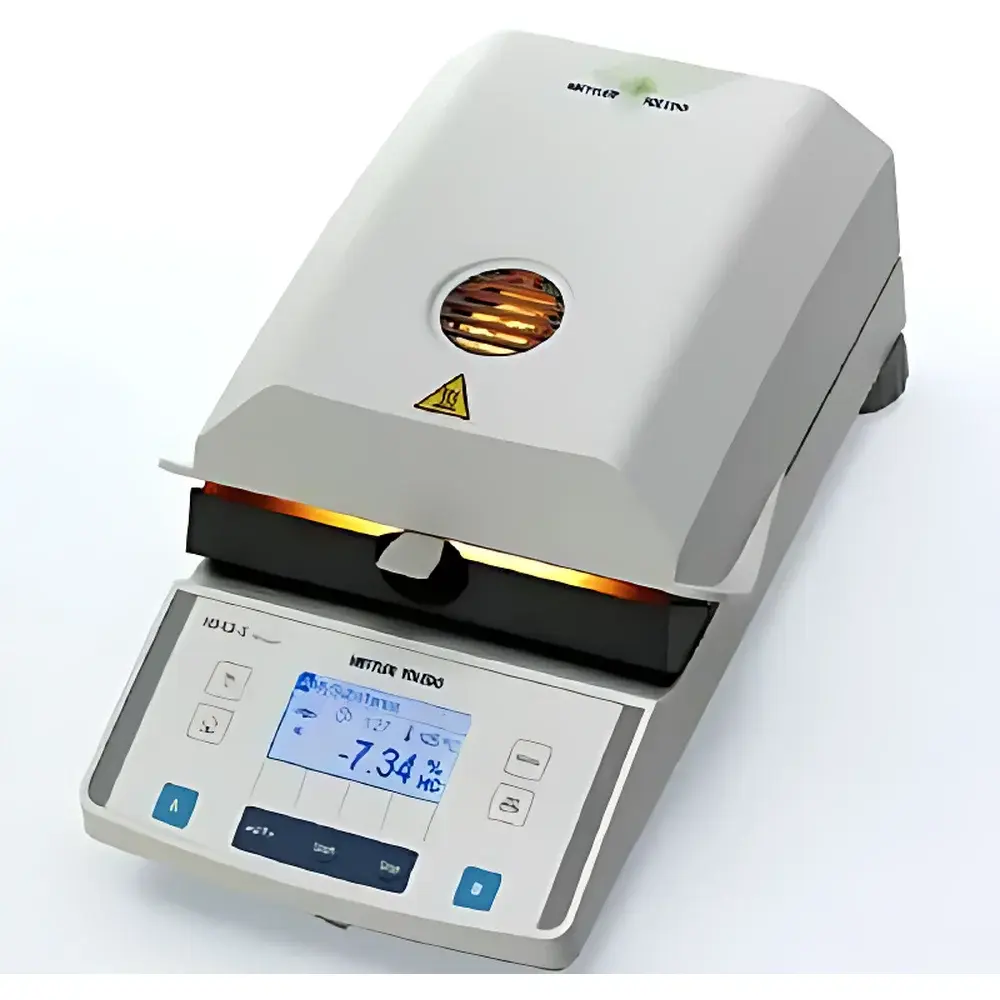

METTLER TOLEDO HX204 Excellence Series Halogen Moisture Analyzer

Overview

The METTLER TOLEDO HX204 Excellence Series Halogen Moisture Analyzer is a precision thermal gravimetric instrument engineered for regulatory-compliant moisture determination in R&D, quality control (QC), and production environments. It operates on the principle of loss-on-drying (LOD), where a sample is heated under controlled halogen radiation, and mass loss—attributed to volatiles, primarily water—is continuously monitored by a high-stability MonoBloc® weighing cell. Unlike conventional oven-drying methods, the HX204 delivers rapid, reproducible results without manual intervention or post-drying cooling steps. Its design integrates metrological rigor with operational robustness, making it suitable for laboratories subject to GLP, GMP, and FDA 21 CFR Part 11 requirements. The suspended pan architecture minimizes thermal conduction to the weighing mechanism, directly addressing a key source of drift in thermal moisture analysis.

Key Features

• MonoBloc® Weighing Cell: A single-piece, stress-free load cell structure ensures long-term stability, minimal creep, and high sensitivity—critical for detecting sub-milligram mass changes during dynamic drying.
• Suspended Sample Pan: Mechanically isolated from the heating chamber, this configuration reduces thermal interference on the weighing unit, improving accuracy—especially during extended drying cycles at elevated temperatures.
• Second-Generation Halogen Heating: Provides rapid, uniform radiant heating with precise digital temperature control (±1 °C), enabling method reproducibility across batches and operators.
• One Click™ Moisture Interface: A role-based, password-protected graphical UI displays only context-relevant functions. Predefined methods—including SOPs with user-defined endpoints (e.g., time-based, slope-based, or final mass stabilization)—are launched via dedicated soft keys.
• Real-Time Drying Curve & Control Chart: Visualized on a high-resolution color touchscreen, these plots track mass loss rate, residual moisture trend, and endpoint convergence—supporting method development, troubleshooting, and audit readiness.
• FACT™ Automatic Calibration: Compensates for temperature-induced drift in both weighing and heating systems without interrupting workflow—performed automatically before each measurement or on scheduled intervals.
• Integrated Level Sensor: Detects instrument inclination beyond ±2° and triggers an audible/visual warning, ensuring measurement validity per ISO 17025 and USP <921> alignment requirements.
• Sealed, Flat-Bottom Cavity: Eliminates crevices beneath the pan; cleaning requires only a lint-free wipe—completed in under 30 seconds—reducing cross-contamination risk in multi-product labs.

Sample Compatibility & Compliance

The HX204 accommodates solid, granular, and powdered samples ranging from 0.1 g to 200 g, including pharmaceutical actives, excipients, polymer pellets, cement clinker, gypsum, food ingredients, and catalyst carriers. Its method flexibility supports both standardized protocols (e.g., ASTM D4442, ISO 1183-2, USP <921>) and internally validated procedures. Data integrity features—including electronic signatures, audit trail logging, and user-access tiers—align with FDA 21 CFR Part 11 and EU Annex 11 expectations. All firmware and software updates are version-controlled and documented per ICH Q5A and GAMP5 guidelines.

Software & Data Management

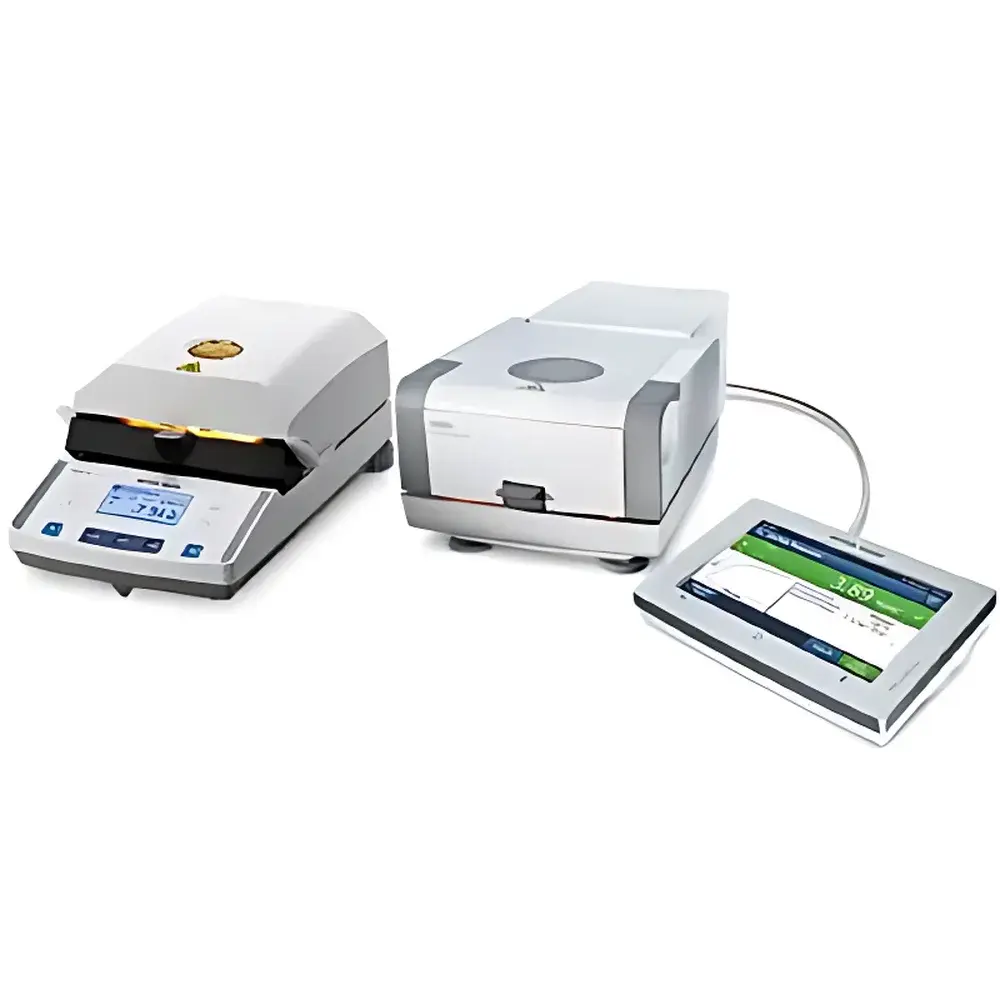

Data export is supported via USB, RS232, and Ethernet interfaces to LIMS or ERP systems. The built-in memory stores up to 1,000 measurement records with timestamps, operator IDs, method parameters, raw mass vs. time data points, and endpoint flags. Optional LabX™ software enables centralized method deployment, remote monitoring, statistical process control (SPC) charting, and automated report generation compliant with ISO/IEC 17025 clause 7.8. Audit trails record all user actions—including method edits, calibration events, and result deletions—with immutable timestamps and operator attribution.

Applications

The HX204 serves as a primary or confirmatory moisture analyzer across regulated and industrial sectors. In pharmaceutical manufacturing, it supports raw material release (IPC), blend uniformity assessment, and lyophilized product residual moisture verification. In fine chemicals and polymers, it quantifies hygroscopicity of intermediates and validates drying efficiency prior to extrusion or compaction. Food labs apply it for shelf-life modeling and compliance with Codex Alimentarius moisture limits. Cement and mineral processing facilities use it for consistency control of clinker and additives. Its speed and repeatability also make it ideal for high-throughput QC in contract testing laboratories.

FAQ

How does the HX204 ensure compliance with FDA 21 CFR Part 11?
It provides electronic signature capability, secure user authentication, full audit trail with tamper-proof timestamps, and configurable access rights—all enabled by default in standard firmware.
Can the HX204 replace traditional oven-drying methods?
Yes—when properly validated per USP <921> or ASTM D4442, its LOD results demonstrate equivalence or superior precision and turnaround time compared to 105 °C forced-air ovens.
What maintenance is required to sustain accuracy over time?

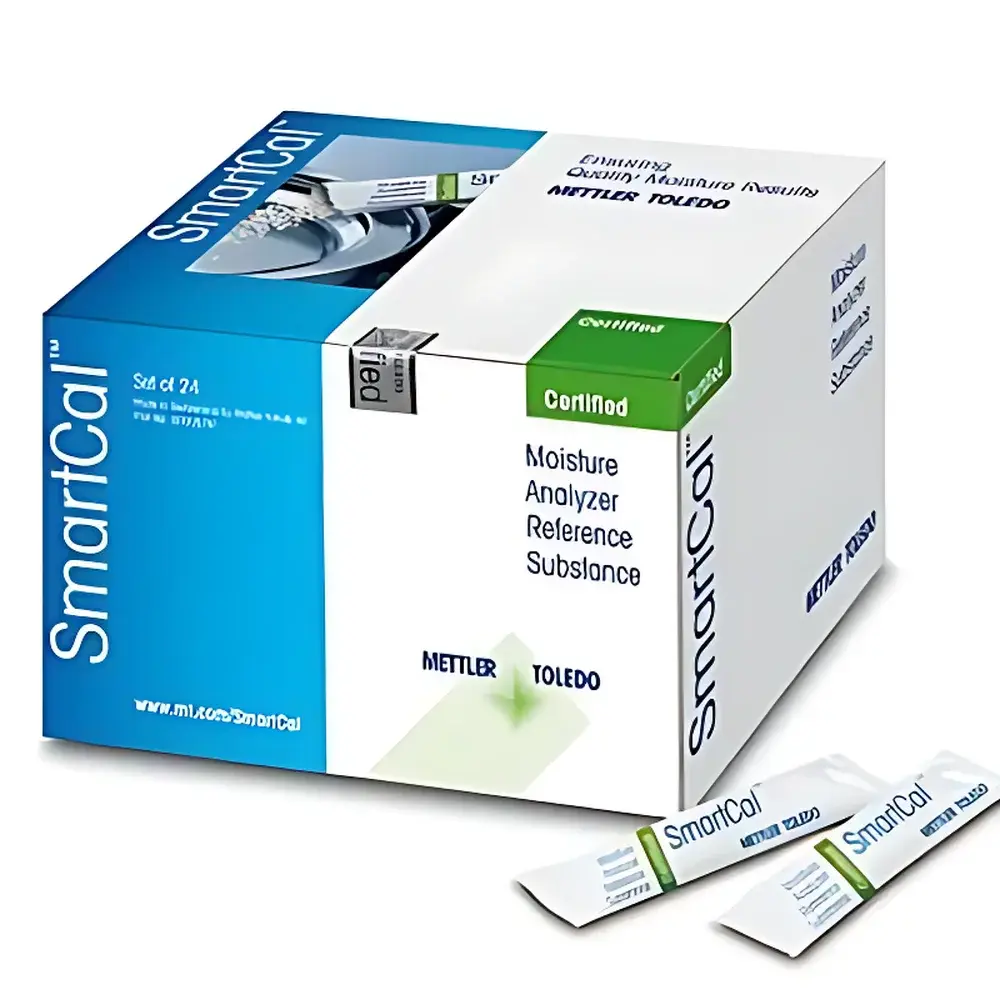

Daily pan cleaning, periodic FACT™ calibration verification using certified weights, and annual performance qualification (PQ) using NIST-traceable reference standards are recommended.
Is method transfer between HX204 units straightforward?
Yes—methods, including drying profiles, endpoint criteria, and display settings, are fully exportable/importable via USB, ensuring consistent operation across multiple instruments in multi-site networks.
Does the HX204 support non-aqueous volatile analysis?
While optimized for water, its LOD principle allows quantification of other volatiles (e.g., solvents, ethanol); however, interpretation requires complementary techniques (e.g., GC or Karl Fischer) for speciation confirmation.
