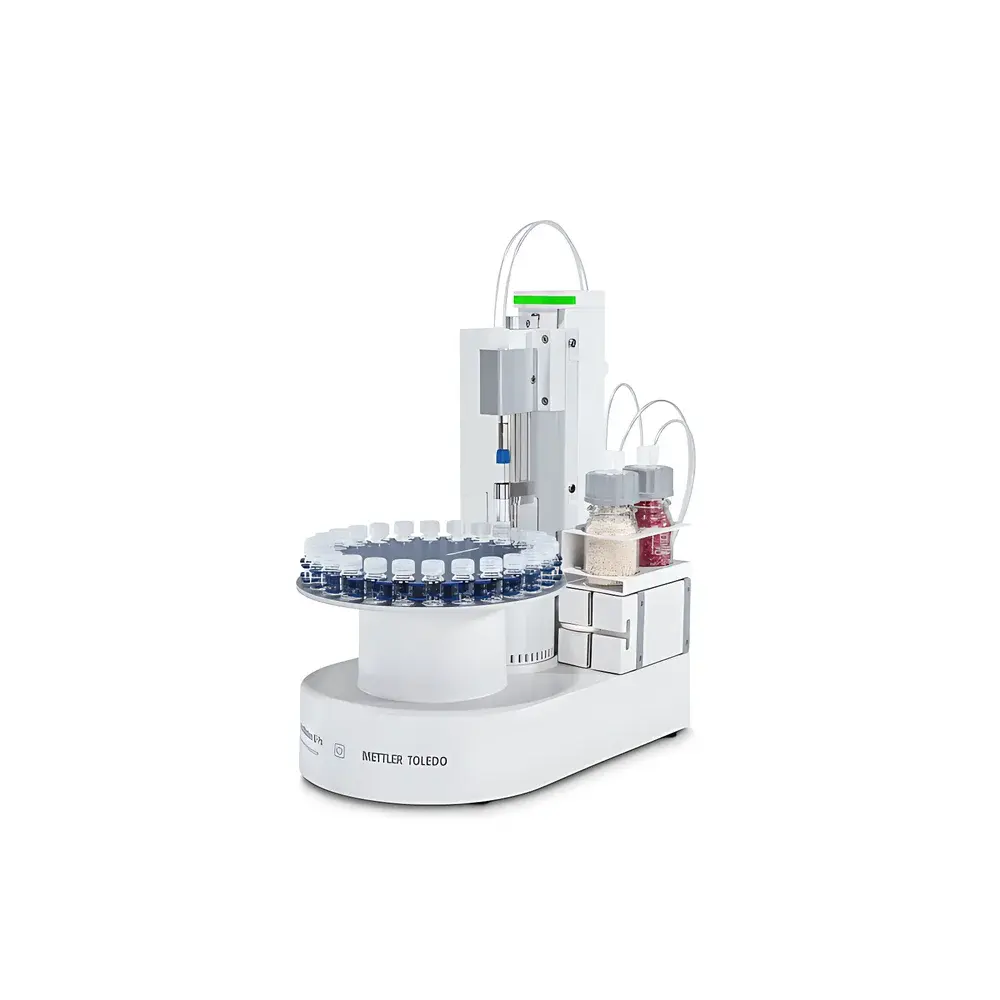

METTLER TOLEDO InMotion KF Flex/Pro Automated Karl Fischer Oven Sampler

Overview

The METTLER TOLEDO InMotion KF Flex/Pro Automated Karl Fischer Oven Sampler is an integrated thermal sample introduction system engineered for precise, reproducible, and fully automated Karl Fischer (KF) coulometric or volumetric titration of moisture in thermally labile or low-volatility samples. Unlike conventional direct-injection KF systems, the InMotion KF employs controlled thermal extraction: solid or viscous samples are heated under inert or dried air atmosphere within sealed glass vials, releasing bound or occluded water vapor quantitatively into a dry carrier gas stream. This vapor is then swept directly into the KF titration cell—ensuring complete transfer, minimal adsorption loss, and high stoichiometric fidelity. The system operates on the principle of dynamic headspace transfer coupled with real-time gas flow regulation and programmable thermal profiles, making it particularly suited for pharmaceutical actives, polymers, excipients, battery materials, and hygroscopic chemicals where residual solvent or crystalline water must be differentiated from surface moisture.

Key Features

• Compact 24-position carousel design occupying only 25 cm of bench space—optimized for high-throughput labs with constrained footprint.
• Programmable temperature ramping and isothermal heating modes, supporting both linear升温 (0.1–20 °C/min) and multi-step temperature scans up to 300 °C.
• Digital mass flow controller with factory-calibrated, tamper-resistant gas flow settings (range: 20–200 mL/min); flow verification via built-in diagnostic readout.
• Modular gas supply interface: compatible with lab-grade compressed air or external nitrogen/argon lines via pressure-regulated switching valve.
• Ergonomic front-access vial loading with integrated vial detection sensors and automatic position indexing—reducing manual handling and operator error.
• Integrated safety interlocks including overtemperature cutoff, lid-open detection, and gas flow failure monitoring per IEC 61010-1.

Sample Compatibility & Compliance

The InMotion KF Flex/Pro accommodates standard 8–10 mL crimp-top or screw-cap glass vials (including USP/Ph. Eur.-compliant amber vials), as well as custom aluminum-sealed sample containers for volatile or oxygen-sensitive matrices. It supports solids (powders, granules, tablets), semi-solids (gels, ointments), and high-boiling liquids (e.g., silicones, resins, lubricants) that cannot be reliably analyzed by direct KF injection. All thermal protocols and instrument logs comply with regulatory data integrity requirements: time-stamped method parameters, user ID authentication, electronic signatures, and full audit trail generation meet FDA 21 CFR Part 11 and EU Annex 11 expectations when operated with tiamo™ software under validated SOPs. The system is routinely deployed in QC laboratories adhering to USP , EP 2.5.12, and ASTM E203 methodologies.

Software & Data Management

Fully integrated with METTLER TOLEDO’s tiamo™ titration software (v3.3+), the InMotion KF enables method-driven automation—including auto-selection of heating profile, gas flow rate, titration mode (coulometric/volumetric), endpoint criteria, and post-run calculation templates (e.g., % moisture, ppm H₂O, absolute µg H₂O). All raw thermal curves, gas flow logs, titration curves, and metadata are stored in encrypted .tia project files with SHA-256 hash integrity verification. Export options include PDF reports compliant with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate), CSV for LIMS integration, and XML for enterprise data lakes. Remote monitoring and firmware updates are supported via secure HTTPS-based device management.

Applications

• Pharmaceutical: Quantification of residual solvents and hydrate water in APIs and finished dosage forms per ICH Q5C guidelines.
• Chemicals: Moisture determination in catalysts, metal-organic frameworks (MOFs), and lithium-ion battery cathode/anode materials.
• Polymers & Plastics: Detection of hydrolytic degradation precursors in polyamides, polyesters, and polyurethanes.
• Food & Agriculture: Water activity correlation studies in dried fruits, dairy powders, and grain storage samples.
• Electronics: Low-level moisture screening in encapsulation resins and solder paste flux carriers.

FAQ

Can the InMotion KF be used with non-METTLER TOLEDO titrators?
Yes—via analog voltage output (0–10 V) and TTL trigger signals; however, full method synchronization, audit trail linkage, and thermal curve overlay require tiamo™ software and METTLER TOLEDO-compatible KF titrators (e.g., DL series, V20S).

What is the minimum detectable water mass using this oven sampler?
Detection limit depends on titrator sensitivity and sample mass; with a coulometric titrator (e.g., DL58), typical LOD is ≤1 µg H₂O at optimal thermal transfer efficiency and carrier gas purity.

Is calibration traceable to NIST standards?
Yes—temperature calibration is performed using NIST-traceable Pt100 reference probes; gas flow calibration is certified per ISO/IEC 17025-accredited procedures at METTLER TOLEDO service centers.

How is method validation supported for regulated environments?
The system includes IQ/OQ documentation templates, performance qualification (PQ) test scripts for temperature uniformity, gas flow accuracy, and moisture recovery across matrix types—all aligned with USP and ASTM E2655.
