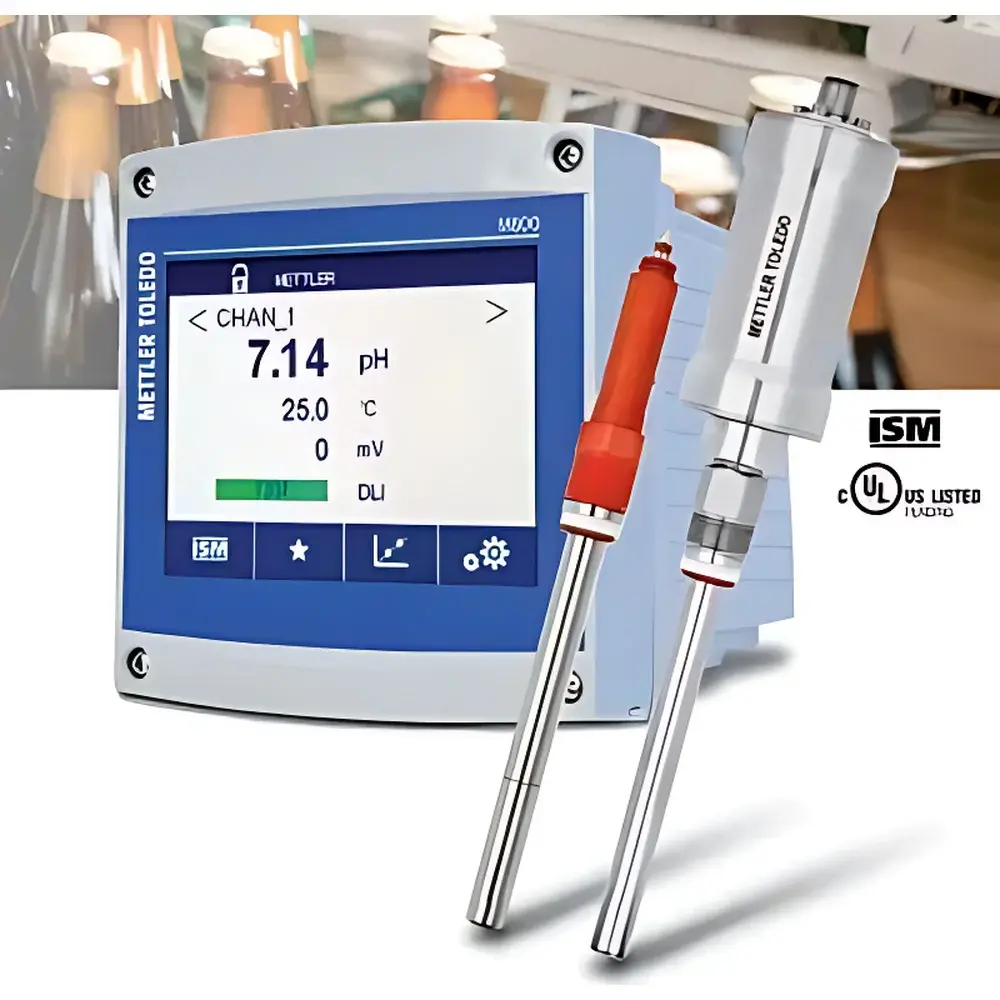

METTLER TOLEDO M800 Multi-Parameter, Multi-Channel Intelligent Transmitter

Overview

The METTLER TOLEDO M800 is a high-integrity, multi-parameter, multi-channel intelligent transmitter engineered for continuous, real-time monitoring and control of critical water quality and process parameters in pharmaceutical, biotechnology, food & beverage, power generation, and municipal water applications. Built upon the ISM (Intelligent Sensor Management) platform, the M800 leverages digital sensor communication to deliver deterministic measurement traceability, automated calibration validation, and predictive diagnostics—eliminating analog signal drift and manual interpretation errors. It supports up to four ISM-enabled sensors simultaneously—including pH/ORP, optical dissolved oxygen (DO), polarographic DO (for aqueous and gas-phase O₂), conductivity/resistivity, dissolved ozone (O₃), and flow—within a single compact housing. Its architecture adheres to fundamental principles of process analytical technology (PAT), enabling seamless integration into validated environments governed by FDA 21 CFR Part 11, EU Annex 11, and GMP/GLP frameworks.

Key Features

• ISM-enabled plug-and-play operation: Automatic sensor recognition, configuration transfer, and calibration data loading upon connection—reducing commissioning time by >70% versus conventional transmitters.
• Predictive sensor health monitoring: Real-time dynamic lifetime indication, remaining service life estimation, and pre-emptive maintenance alerts based on electrochemical degradation models and usage history.
• 5.7-inch color TFT touchscreen (320 × 240 pixels, 256 colors): Intuitive icon-driven navigation with context-sensitive help, multilingual UI support (English, German, French, Chinese, Japanese), and configurable home screens for operator-specific workflows.
• Robust industrial enclosure: IP66 and UL Type 4X (pending certification) rated for harsh wet or dusty environments; suitable for wall, panel, or pipe-mount installation.
• Flexible I/O architecture: Eight relay outputs (configurable as alarms, control actions, or status indicators); six digital inputs/outputs (five available on dual-channel variant); eight isolated 4–20 mA current outputs with HART® 7 compatibility.
• Secure system management: Password-protected access levels (Operator, Engineer, Administrator), audit trail logging for all configuration and calibration events, and USB service interface for firmware updates and backup/restore operations.

Sample Compatibility & Compliance

The M800 is designed exclusively for use with METTLER TOLEDO’s certified ISM sensor portfolio—including InPro™ 3250/3300 pH electrodes, InPro™ 6970/6950 optical DO probes, InPro™ 7250 conductivity cells, and FlowFlex™ electromagnetic flow sensors. All measurements comply with relevant ASTM standards (e.g., ASTM D1293 for pH, ASTM D888 for dissolved oxygen) and ISO 5667 series for water quality sampling protocols. The transmitter’s embedded calibration verification routines satisfy USP Analytical Instrument Qualification requirements. Full electronic records—including sensor serial numbers, calibration dates, slope/mV offset values, and diagnostic flags—are retained internally and exportable via USB for regulatory review.

Software & Data Management

The M800 operates autonomously but integrates natively with METTLER TOLEDO’s LabX® and iC software suites for centralized fleet monitoring, remote diagnostics, and electronic batch record generation. All measurement data—including timestamps, sensor health metrics, and alarm states—are stored with tamper-evident integrity. Audit trails meet FDA 21 CFR Part 11 requirements for electronic signatures, user authentication, and data immutability. Configuration files support version-controlled backups and rapid restoration during maintenance cycles. Firmware updates are digitally signed and verified prior to installation to ensure system integrity.

Applications

• Pharmaceutical purified water (PW) and water-for-injection (WFI) distribution systems: Continuous monitoring of resistivity (>18.2 MΩ·cm), TOC-correlated conductivity, and dissolved ozone residual for sterilization validation.
• Bioreactor and fermentation processes: Simultaneous tracking of pH, dissolved oxygen, and temperature to maintain optimal metabolic conditions.
• Power plant condensate polishing loops: Detection of low-level sodium breakthrough and cation conductivity excursions indicating resin exhaustion.
• Municipal drinking water treatment: Redox potential (ORP) monitoring for chlorine/chloramine dosing control and optical DO profiling in aeration basins.
• Food processing CIP rinse validation: Conductivity-based endpoint detection with automatic hold-time logging and pass/fail flagging.

FAQ

Can the M800 be integrated into a DCS or SCADA system?
Yes—the M800 supports Modbus TCP/IP and Profibus DP (via optional module) for direct integration into distributed control systems, with full mapping of all process variables, diagnostics, and alarm statuses.
Does the M800 support calibration verification without removing the sensor?
Yes—ISM-enabled sensors store full calibration history and electrode condition data onboard; the M800 performs automated verification using built-in reference checks and stability algorithms per USP .
Is password protection compliant with 21 CFR Part 11?
Yes—role-based access control, encrypted audit logs with immutable timestamps, and electronic signature capability fulfill Part 11 Subpart B requirements for closed systems.
What is the operating temperature range for the M800 housing?
The unit is rated for ambient operation between −20 °C and +60 °C, with derating applied above 50 °C for continuous relay actuation.
How is sensor lifetime calculated in ISM?
Lifetime estimation combines electrochemical impedance spectroscopy (EIS)-derived membrane health metrics, accumulated exposure time, temperature-weighted usage profiles, and historical calibration drift trends—validated against accelerated aging studies per IEC 61511.
