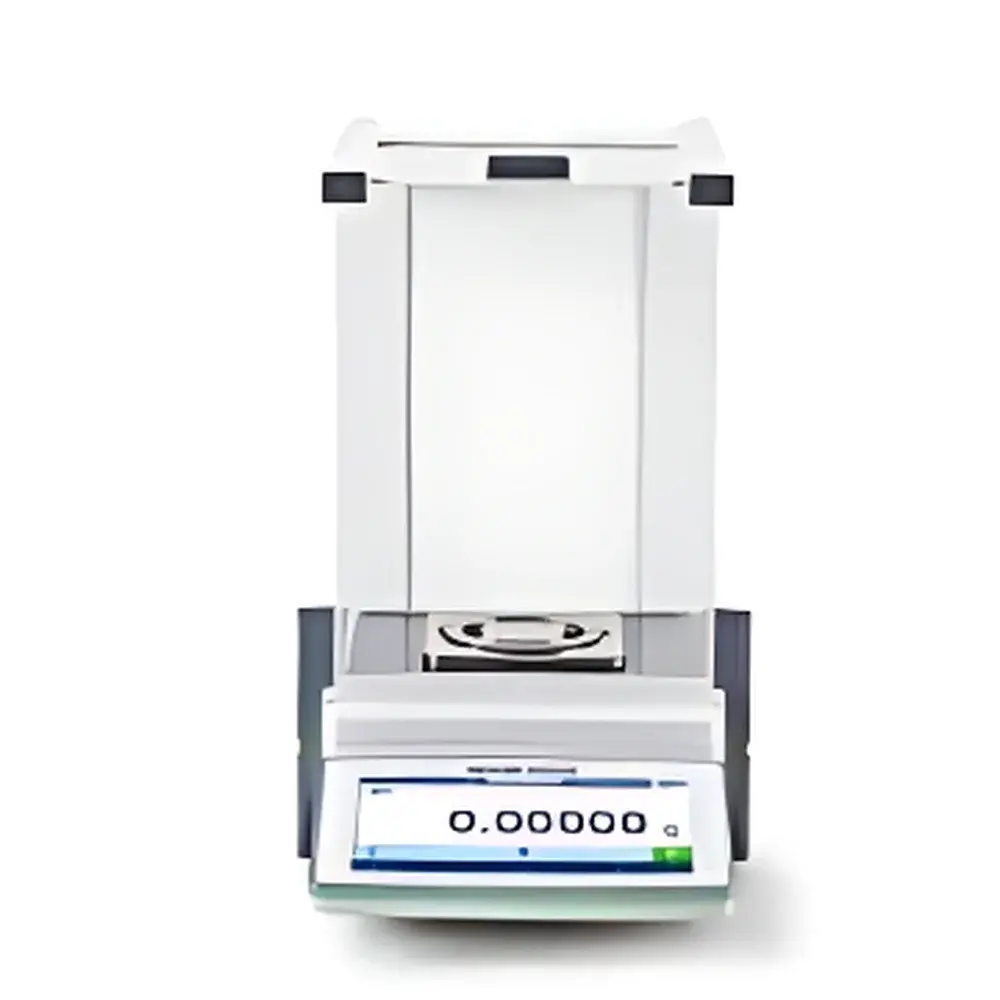

METTLER TOLEDO MX205DU Analytical Balance

Overview

The METTLER TOLEDO MX205DU Analytical Balance is an ISO/IEC 17025–aligned precision weighing instrument engineered for laboratories requiring traceable accuracy, regulatory compliance, and operational efficiency in routine and critical mass measurement tasks. Operating on electromagnetic force compensation (EMFC) principle, the MX205DU delivers high-resolution mass determination with 0.01 mg readability and a 220 g maximum capacity—optimized for pharmaceutical formulation, reference standard preparation, quantitative analytical chemistry, and quality control testing where uncertainty budgets demand sub-0.02 mg repeatability. Its monolithic sensor architecture, combined with real-time temperature compensation and factory-installed FACT (Fully Automatic Calibration Technology), ensures metrological stability across ambient fluctuations without manual recalibration. The balance conforms to international standards including OIML R76, USP , and ASTM E898, forming the physical foundation of GLP- and GMP-compliant weighing processes.

Key Features

• SmartPan™ draft shield platform: Reduces vibration-induced drift by up to 80% compared to conventional pans, enabling stable readings within ≤2 seconds—even on non-isolated lab benches or in HVAC-affected environments.
• StatusLight™ visual feedback system: A three-color LED ring provides immediate at-a-glance verification of operational readiness (green), calibration status (blue), or error condition (red), minimizing operator interpretation errors.
• ErgoDoor™ motorized draft shield: Fully automated, soft-closing doors eliminate manual handling fatigue during high-throughput workflows; programmable opening/closing logic integrates with SOP-driven sequences.
• LevelControl™ + LevelGuide™: Integrated inclinometer and illuminated bubble level ensure optimal horizontal alignment; deviation alerts trigger before measurement initiation, preventing systematic error from tilt-induced buoyancy shifts.
• FACT internal calibration: Temperature-triggered automatic recalibration maintains linearity and sensitivity across diurnal thermal cycles—no external weights or technician intervention required.
• EcoMode™ power management: Reduces standby power consumption by >60% versus legacy models while preserving full functionality upon wake-up; meets ENERGY STAR® v8.0 criteria for laboratory instrumentation.

Sample Compatibility & Compliance

The MX205DU supports diverse sample forms—including powders, granules, liquids in tared vessels, and small solid components—within its 220 g capacity and 120 mm pan diameter. Its hermetically sealed EMFC sensor housing resists dust ingress (IP54-rated enclosure), while optional anti-static ionizer integration mitigates electrostatic interference during low-mass polymer or API handling. For regulated environments, the balance natively supports 21 CFR Part 11 compliance via role-based user authentication (up to 100 users), electronic signature capture, and tamper-evident audit trails recording all weight events, parameter changes, calibration actions, and door operations. Data integrity is further reinforced through time-stamped, immutable export logs compatible with LIMS and ELN systems.

Software & Data Management

MX205DU operates with METTLER TOLEDO’s LabX™ software suite (optional license), enabling centralized method deployment, remote monitoring, and automated report generation compliant with ISO 17025 clause 7.7. All weighing data—including raw values, metadata (operator ID, timestamp, location tag), and environmental logs (temperature, humidity)—are exportable in CSV, PDF, or XML formats via RS232, USB host/device, or Ethernet TCP/IP. Built-in data filtering allows exclusion of transient outliers per USP criteria; configurable auto-save thresholds prevent accidental data loss. Audit trail records are encrypted and stored locally on the balance’s non-volatile memory for ≥12 months, satisfying FDA inspection expectations for data retention duration.

Applications

• Pharmaceutical QC: Active pharmaceutical ingredient (API) assay, tablet weight uniformity testing, and dissolution sample preparation per USP and .
• Academic research: Precise reagent dispensing for ICP-MS calibration standards, catalyst loading in heterogeneous catalysis studies, and gravimetric moisture analysis (ASTM D2231).
• Materials science: Nanoparticle mass quantification, thin-film deposition yield calculation, and density determination via pycnometry protocols.
• Food & beverage: Nutrient fortification verification, allergen cross-contamination assessment, and net content compliance per EU Directive 2007/45/EC.
• Environmental labs: Filter weighing for PM2.5/PM10 gravimetric analysis (EPA Method IO-4.3), and soil organic carbon determination (ISO 14235).

FAQ

What is the recommended calibration frequency for the MX205DU in a GMP environment?
Per Annex 15 of the EU GMP Guide and USP , calibration should occur prior to first use, after relocation, following any impact event, and at defined intervals validated against process risk assessment—typically daily or per-shift for critical applications.
Does the MX205DU support direct connection to ERP or MES systems?
Yes—via Ethernet or RS232, it supports Modbus RTU/TCP and ASCII protocol output; LabX enables bidirectional integration with SAP QM, Oracle Manufacturing Cloud, and other enterprise platforms using certified middleware.
Can the balance be used for dynamic (moving) sample weighing?
No—the MX205DU is designed exclusively for static, stabilized measurements; dynamic or conveyor-based weighing requires dedicated industrial belt scales or checkweighers.
Is FACT calibration traceable to national standards?
Yes—FACT uses internal reference masses calibrated traceably to NIST SRM 31a (or equivalent national metrology institute standards); full calibration certificates are available upon request.
How does SmartPan mitigate air current effects compared to conventional draft shields?
SmartPan’s aerodynamic geometry redirects laminar airflow around the weighing cell rather than trapping turbulence beneath the pan—reducing settling time by up to 40% under ISO 17025-defined draft conditions (0.5 m/s air velocity).
