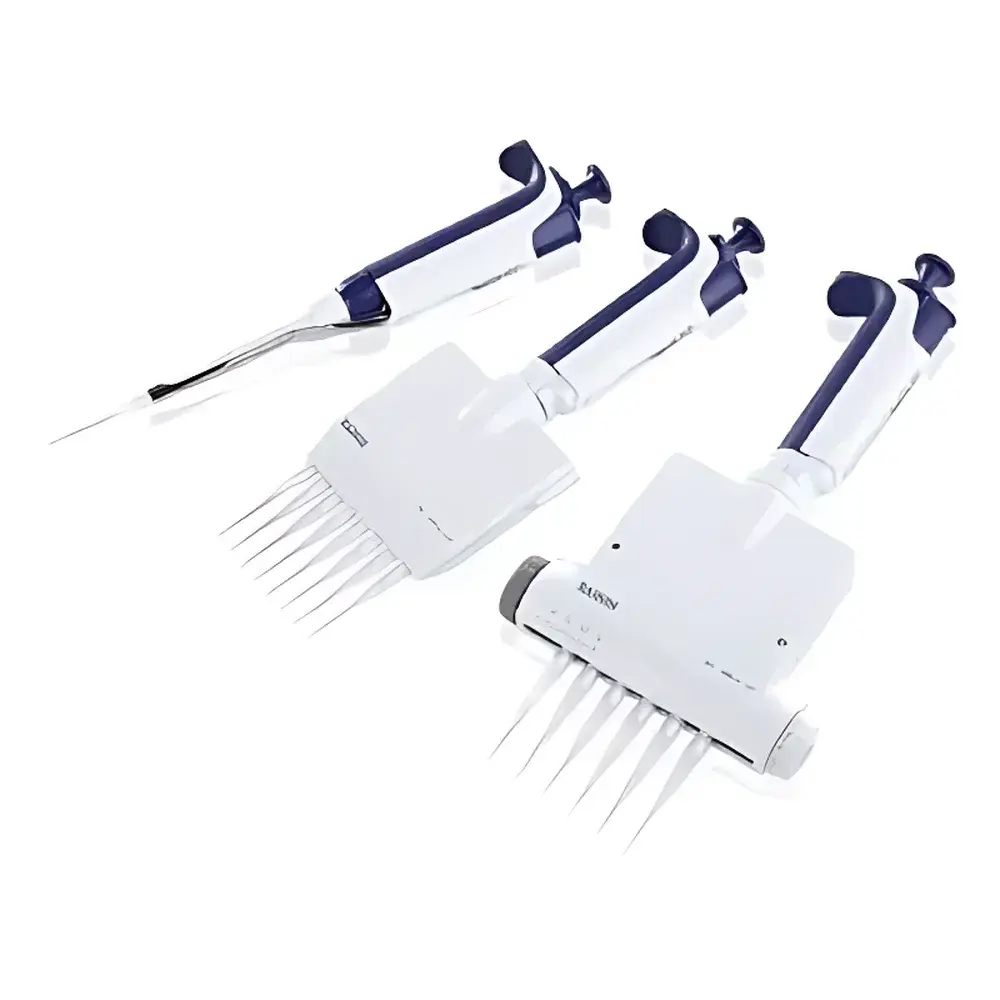

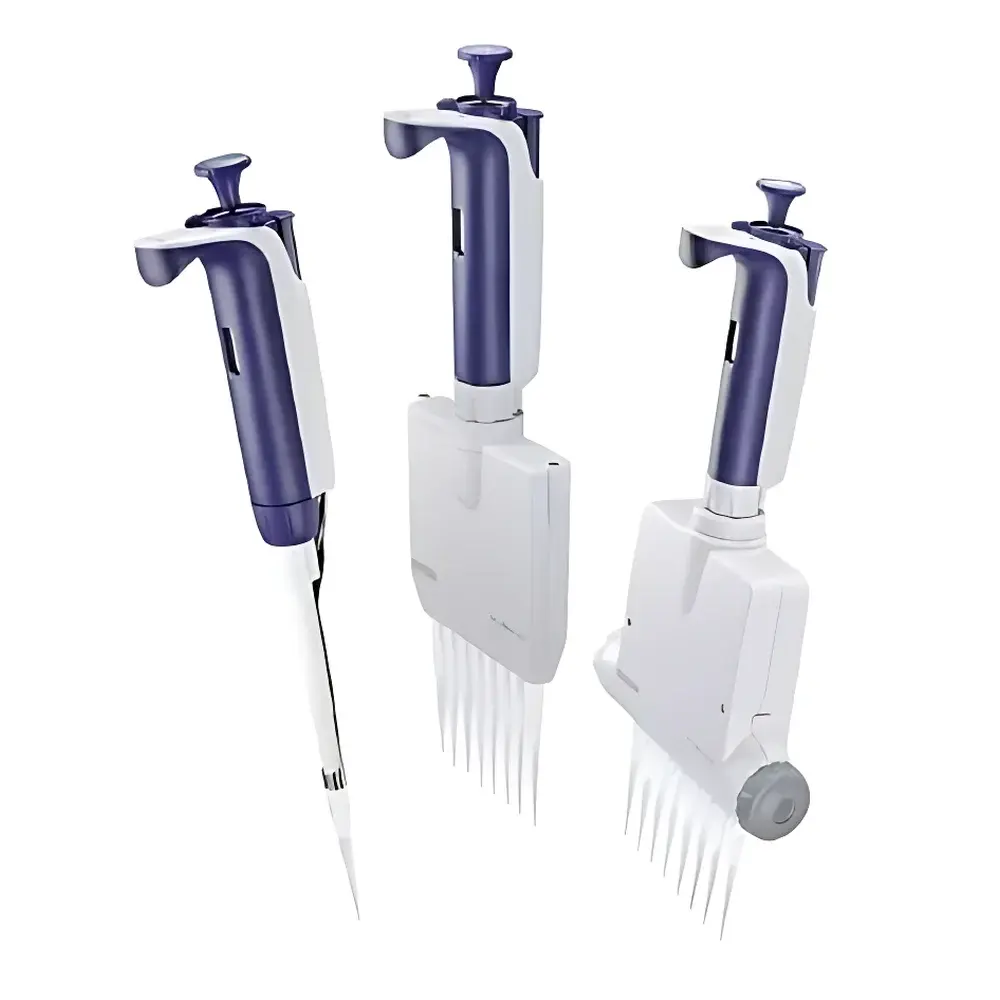

Mettler Toledo RAININ Pipettes – Manual, Electronic, Single-Channel, Multi-Channel, and Classic Series

Overview

The METTLER TOLEDO RAININ pipette portfolio represents a globally recognized standard in precision liquid handling for life science, pharmaceutical, clinical diagnostics, and academic laboratories. Engineered for traceable accuracy, long-term reproducibility, and operator safety, RAININ pipettes operate on the fundamental principle of air displacement—where piston-driven volume displacement ensures consistent aspiration and dispensing across defined ranges. Each model series—including manual single-channel (Pipet-Lite XLS), adjustable-spacing multi-channel (XLS+), and electronic (E4 XLS)—is designed to meet ISO 8655 compliance requirements for volumetric accuracy and repeatability. These instruments are calibrated and verified per ISO/IEC 17025-accredited procedures and support GLP/GMP workflows through integrated traceability features such as RFID-enabled calibration history and audit-ready service logs.

Key Features

• LTS (Low-Torque Tip Ejection) System: Reduces tip ejection force by up to 80% compared to conventional systems—minimizing hand fatigue and risk of repetitive strain injury (RSI) during high-volume workflows.
• Ergonomic Design: Pipet-Lite XLS features a lightweight spring mechanism, magnetic-assisted plunger action, and contoured grip geometry optimized for prolonged use without compromising control or precision.
• RFID Integration: Built-in radio-frequency identification tags enable automatic calibration tracking, instrument identification, and centralized asset management within laboratory information management systems (LIMS).
• Electronic Intelligence (E4 XLS): Equipped with a 4,000-step stepper motor, intuitive navigation interface, multilingual OLED display, and programmable protocols—including continuous dispensing, reverse pipetting, titration, dilution, and variable-speed aspiration/dispensing.
• Adjustable Spacing (XLS+ Multi-Channel): Enables rapid transition between tube racks, 24-, 48-, and 96-well plates without manual reconfiguration—ideal for genomics, proteomics, and cell culture applications.
• Battery & Charging: E4 XLS models include rechargeable Li-ion batteries; optional 3-position quick-charge station delivers full power in under 60 minutes.

Sample Compatibility & Compliance

RAININ pipettes accommodate standard conical and cylindrical universal tips (including LTS-compatible variants) and are validated for use with aqueous solutions, viscous liquids (e.g., glycerol, serum), cold or heated samples (4–40 °C), and low-surface-tension solvents. All models comply with ISO 8655 Parts 1–6 (volumetric performance), ISO 13485 (medical device quality management), and support adherence to FDA 21 CFR Part 11 when integrated with compliant LIMS or electronic lab notebook (ELN) platforms. Calibration certificates are available with NIST-traceable reference standards and include uncertainty budgets per ISO/IEC 17025.

Software & Data Management

The RAININ E4 XLS platform supports seamless data export via USB or Bluetooth to desktop applications such as Rainin Liquid Handling Software (RLHS). RLHS enables protocol creation, version-controlled method storage, user access levels, and automated report generation—including calibration summaries, usage statistics, and maintenance alerts. RFID-tagged instruments allow real-time inventory updates and facilitate audit-ready documentation for regulatory inspections (e.g., FDA, EMA, MHRA). All electronic models retain onboard service history and provide visual reminders for scheduled recalibration or preventive maintenance.

Applications

RAININ pipettes serve critical roles across diverse laboratory disciplines:

• Pharmaceutical QA/QC: Accurate preparation of reference standards, dissolution media, and assay dilutions under cGMP conditions.
• Molecular Biology: Reliable handling of PCR master mixes, nucleic acid quantification, and CRISPR reagent dispensing.
• Clinical Diagnostics: Reproducible sample transfer for ELISA, immunoassays, and hematology workflows requiring strict inter-operator consistency.
• Cell Culture & Bioprocessing: Gentle, low-force dispensing into sensitive monoclonal antibody production vessels or stem cell expansion plates.
• Academic Research: Flexible configuration options support exploratory assays where protocol adaptability and ergonomic sustainability are essential.

FAQ

Are RAININ pipettes compatible with third-party tips?

RAININ LTS tips are fully interoperable with all LTS-enabled pipettes. Non-LTS universal tips may be used but do not benefit from reduced ejection force or optimal sealing performance.

How often should RAININ pipettes be calibrated?

Calibration frequency depends on usage intensity, application criticality, and internal SOPs—typically every 3–6 months for routine use, or after impact events or maintenance interventions.

Can E4 XLS pipettes be connected to laboratory networks?

Yes—via optional Bluetooth or USB interfaces—and integrated with enterprise-level LIMS or ELN systems supporting HL7, ASTM E1384, or custom API configurations.

Do RAININ pipettes meet ISO 8655 requirements?

All RAININ pipettes are manufactured and tested to comply with ISO 8655 Parts 1–6 for accuracy, precision, linearity, and temperature dependence.

Is training available for RAININ pipette operation and maintenance?

METTLER TOLEDO offers certified instructor-led workshops, digital learning modules, and on-site technical support for both basic technique validation and advanced electronic protocol development.
