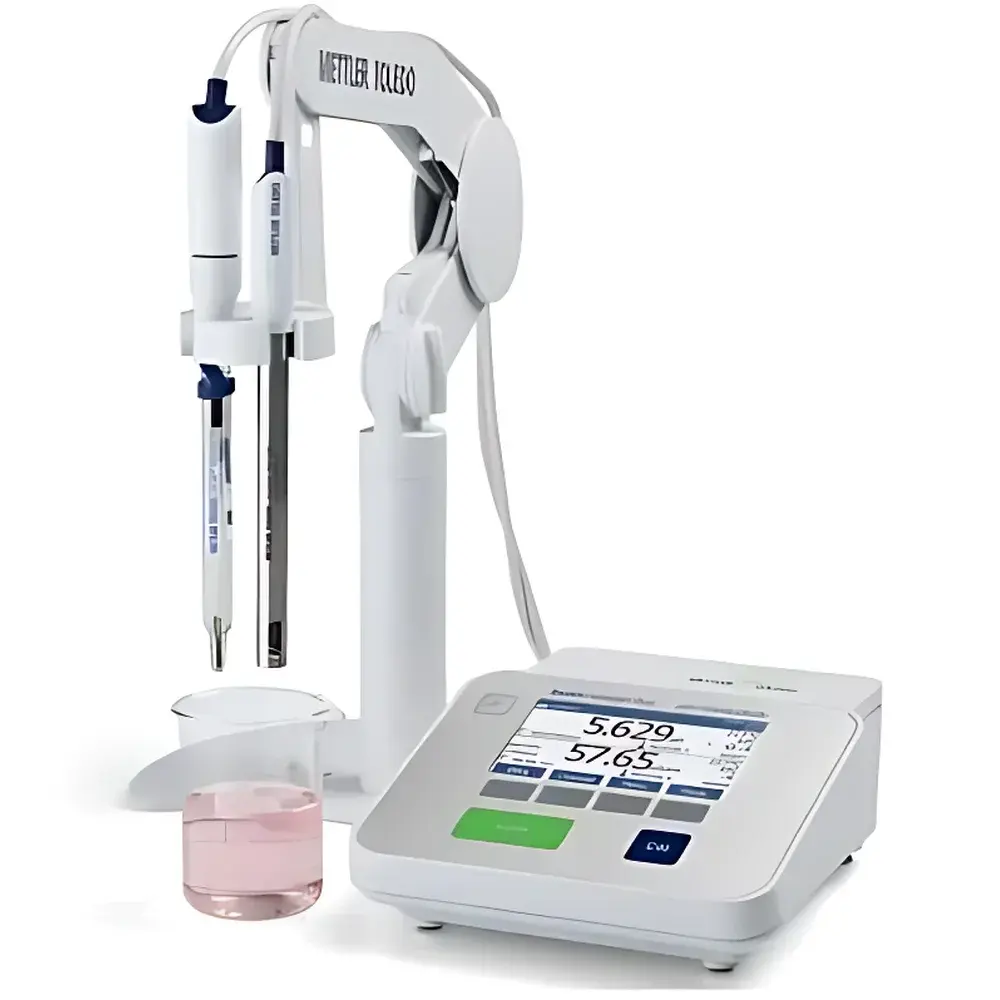

METTLER TOLEDO SevenCompact S210/S220/S230 Benchtop pH Meter

Overview

The METTLER TOLEDO SevenCompact S210, S220, and S230 benchtop pH meters represent a rigorously engineered platform for high-precision electrochemical measurement in regulated laboratory environments. Based on potentiometric principle—measuring the potential difference between a pH-sensitive glass electrode and a stable reference electrode—these instruments deliver traceable, reproducible results across an extended pH range of –2.000 to 20.000. The S210 serves as a dedicated pH/mV meter; the S220 adds ion concentration measurement capability via ISE (ion-selective electrode) mode; and the S230 integrates Bluetooth connectivity and advanced data handling for networked lab workflows. All models feature a 4.3-inch capacitive touchscreen interface with intuitive icon-driven navigation, eliminating reliance on complex menu trees while maintaining full configurability for method-critical applications.

Key Features

• High-resolution measurement with selectable resolution (0.001 / 0.01 / 0.1) and accuracy of ±0.002 pH at 25 °C—validated per ISO 7027 and ASTM E70.
• IP54-rated enclosure ensures protection against dust ingress and water splashes, supporting long-term reliability in demanding QC and R&D settings.
• Automatic buffer recognition during calibration (pH 1.68, 4.01, 6.86, 7.00, 9.18, 10.01, 12.45) reduces operator error and accelerates setup.
• On-screen real-time electrode diagnostics—including slope, offset, and asymmetry potential—enable proactive maintenance and compliance with ISO/IEC 17025 requirements for equipment verification.
• Integrated temperature compensation using either built-in Pt1000 sensor or external ISM (Intelligent Sensor Management) electrodes for automatic probe identification and calibration history recall.
• One-touch mode switching between pH, mV, rel. mV, ORP, and ion concentration—without interrupting active measurements or requiring reconfiguration.

Sample Compatibility & Compliance

The SevenCompact series is compatible with all METTLER TOLEDO InLab® and DL series electrodes—including refillable, gel-filled, and solid-state pH sensors—as well as third-party electrodes meeting DIN 19263 and IEC 62254 standards. Its design supports routine analysis of aqueous solutions, buffers, pharmaceutical formulations, food extracts, wastewater, and aggressive alkaline or acidic media (e.g., NaOH up to 1 mol/L, HCl up to 0.1 mol/L). For regulated industries, the system meets key documentation requirements: time-stamped calibration logs, user-specific access levels, electronic signatures (when paired with EasyDirect™ pH), and full audit trail generation compliant with FDA 21 CFR Part 11 and EU Annex 11. Routine performance verification aligns with USP , EP 2.2.3, and CLSI C3-A4 guidelines.

Software & Data Management

When connected to a Windows PC via USB-B, the SevenCompact functions as a fully integrated node within METTLER TOLEDO’s EasyDirect™ pH software suite. This validated application enables centralized instrument configuration, automated report generation (PDF/CSV), secure data archiving, and role-based user permissions. All measurements—including raw mV values, temperature, electrode status, and calibration parameters—are stored with metadata (operator ID, timestamp, location tag). The software supports export to LIMS and ELN systems via standard XML or ODBC protocols. For standalone operation, internal memory retains up to 2000 measurement records with full traceability—even after power loss—ensuring continuity during GLP audits or ISO 17025 assessments.

Applications

These instruments are routinely deployed in quality control laboratories for raw material release (e.g., excipients, APIs), stability-indicating assays in pharmaceutical development, titration endpoint verification, environmental monitoring of effluent pH per EPA Method 150.1, and food safety testing per AOAC 984.27. Academic researchers utilize them for kinetic studies involving proton transfer, enzyme activity profiling under varying pH conditions, and electrochemical characterization of novel sensor materials. In bioprocessing, they support in-line validation of buffer preparation and cell culture media conditioning where tight pH control (±0.02) directly impacts viability and productivity.

FAQ

What calibration buffers are supported?
The instrument recognizes seven standard IUPAC and NIST-traceable buffers (pH 1.68, 4.01, 6.86, 7.00, 9.18, 10.01, 12.45) automatically upon immersion; custom buffers may be defined with assigned nominal values.
Can the S210 perform ion concentration measurements?
No—ion concentration (ISE) functionality requires the S220 or S230 model, which includes dedicated ISE measurement circuitry and charge-balanced signal processing.
Is GLP-compliant data export possible without additional software?
Basic CSV export via USB-A drive is supported on all models; however, full GLP-compliant reporting—including electronic signatures, audit trails, and user authentication—requires EasyDirect™ pH software and a licensed PC installation.
How often should the instrument be verified for accuracy?
Per ISO/IEC 17025, daily system suitability checks using certified reference materials (e.g., pH 4.01 and 7.00 buffers) are recommended before critical measurements; formal calibration verification should occur at least once per shift in high-throughput environments.
Does the S230 support wireless printing or cloud synchronization?
The S230 supports Bluetooth 4.2 for pairing with compatible printers and PCs but does not include native cloud upload capability; data transmission to cloud-based LIMS or ELN platforms must be mediated through EasyDirect™ pH or enterprise middleware.
