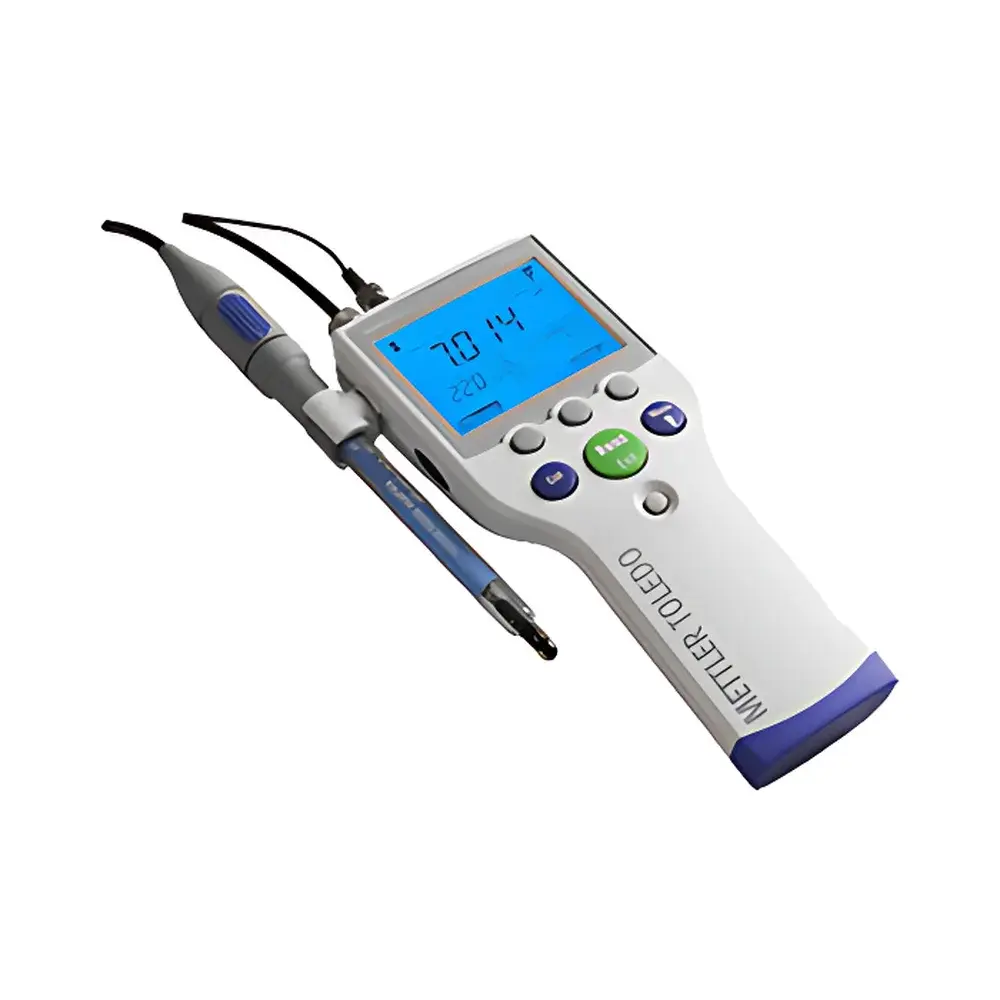

METTLER TOLEDO SevenGo Series Portable Water Quality Analyzers

Overview

The METTLER TOLEDO SevenGo Series represents a rigorously engineered family of handheld electrochemical analyzers purpose-built for field-deployable water quality assessment. Based on potentiometric, conductometric, and amperometric measurement principles, each instrument in the SevenGo platform delivers laboratory-grade accuracy under demanding environmental conditions. The series comprises dedicated models—SG2 (pH), SG3 (conductivity), SG6 (dissolved oxygen), SG7 (high-precision conductivity), and SG8 (pH/ion concentration)—all sharing a unified mechanical architecture, calibration logic, and data handling protocol. Designed and manufactured in Switzerland, the SevenGo instruments integrate solid-state sensor interfaces, temperature-compensated analog signal conditioning, and digital signal processing optimized for low-drift, high-reproducibility measurements in variable ambient environments. Their deployment supports routine compliance monitoring, source water characterization, wastewater effluent verification, and process control in decentralized or mobile laboratory settings.

Key Features

• IP67-rated enclosure ensuring full dust ingress protection and immersion resistance up to 1 m for 30 minutes—validated per IEC 60529
• Ergonomic, one-handed operation with tactile soft-key interface (Professional models) and intuitive menu navigation
• High-contrast backlit LCD display (Professional models) with adjustable brightness for low-light or direct-sunlight field use
• Integrated temperature sensor with automatic compensation across all measurement modes (pH, conductivity, DO, ion)
• Infrared (IR) wireless data transfer compliant with IrDA 1.1 standards—enabling secure, cable-free export to PCs or tablets
• Onboard memory storing up to 200 measurement records with timestamp, electrode ID, calibration history, and user-defined sample IDs
• ErGo Assistant software suite (Windows-based) supporting GLP-compliant data review, report generation (PDF/CSV), audit trail export, and instrument configuration backup
• Modular accessory ecosystem including rugged carrying cases, field-ready probe holders, rechargeable battery packs, and NIST-traceable calibration kits

Sample Compatibility & Compliance

The SevenGo Series is validated for aqueous matrices ranging from ultrapure water (≥18.2 MΩ·cm) to high-salinity brines (up to 200 mS/cm), municipal wastewater, surface runoff, groundwater, and industrial process streams. Each model conforms to international standard test methods: pH measurements align with ASTM D1293 and ISO 10523; conductivity adheres to ISO 7888 and EN 27888; dissolved oxygen follows ISO 5814 and EPA Method 360.5; ion concentration mode supports single-ion activity determination per ISO 17025-accredited protocols. All firmware and software modules are architected to support 21 CFR Part 11–compliant electronic record integrity when used with ErGo Assistant’s audit-trail-enabled configuration.

Software & Data Management

ErGo Assistant serves as the certified desktop application for full lifecycle data governance. It enables batch calibration verification, statistical trending (e.g., moving averages, standard deviation overlays), and customizable certificate-of-analysis (CoA) templates. Raw data files retain native metadata—including sensor serial numbers, calibration dates, temperature logs, and operator IDs—ensuring traceability required under ISO/IEC 17025 and GMP-aligned environmental QA/QC workflows. Data exports comply with LIMS interoperability standards (ASTM E1467, HL7) and support automated ingestion into enterprise environmental databases.

Applications

• Routine regulatory compliance sampling for drinking water utilities (e.g., EPA Safe Drinking Water Act Tier 1 parameters)
• Field validation of online analyzers during commissioning or troubleshooting
• Environmental site assessments (ESAs) and Phase II investigations requiring real-time parameter correlation
• Wastewater treatment plant influent/effluent monitoring per NPDES permit requirements
• Pharmaceutical water system qualification (PW, WFI) per USP and EU Annex 1
• Educational field labs and undergraduate environmental science coursework
• Emergency response deployments during chemical spills or algal bloom events

FAQ

Does the SevenGo Series support Good Laboratory Practice (GLP) documentation requirements?
Yes—when paired with ErGo Assistant, all models generate time-stamped, user-authenticated records with full calibration history, sensor diagnostics, and edit tracking, satisfying core GLP elements per OECD Principles and ISO/IEC 17025 Clause 7.7.
Can SG2, SG3, and SG6 units be upgraded to professional functionality?
No—hardware differentiation is fixed at manufacture; SG2/SG3/SG6 are standard models with basic display and no IR interface, while SG7/SG8 include enhanced processors, IR transceivers, and soft-key panels.
What is the operating temperature range for field use?
All SevenGo instruments operate reliably from 0 °C to 50 °C, with battery performance validated down to –10 °C using optional Li-ion packs.
Are calibration buffers included with purchase?
NIST-traceable calibration solutions (pH 4.01/7.00/10.01, 1413 µS/cm KCl, zero-oxygen and saturated DO standards) are available as configurable accessory kits—not bundled by default.
Is firmware update capability available in the field?
Yes—firmware updates are delivered via ErGo Assistant and installed through USB connection; no service center visit is required.
