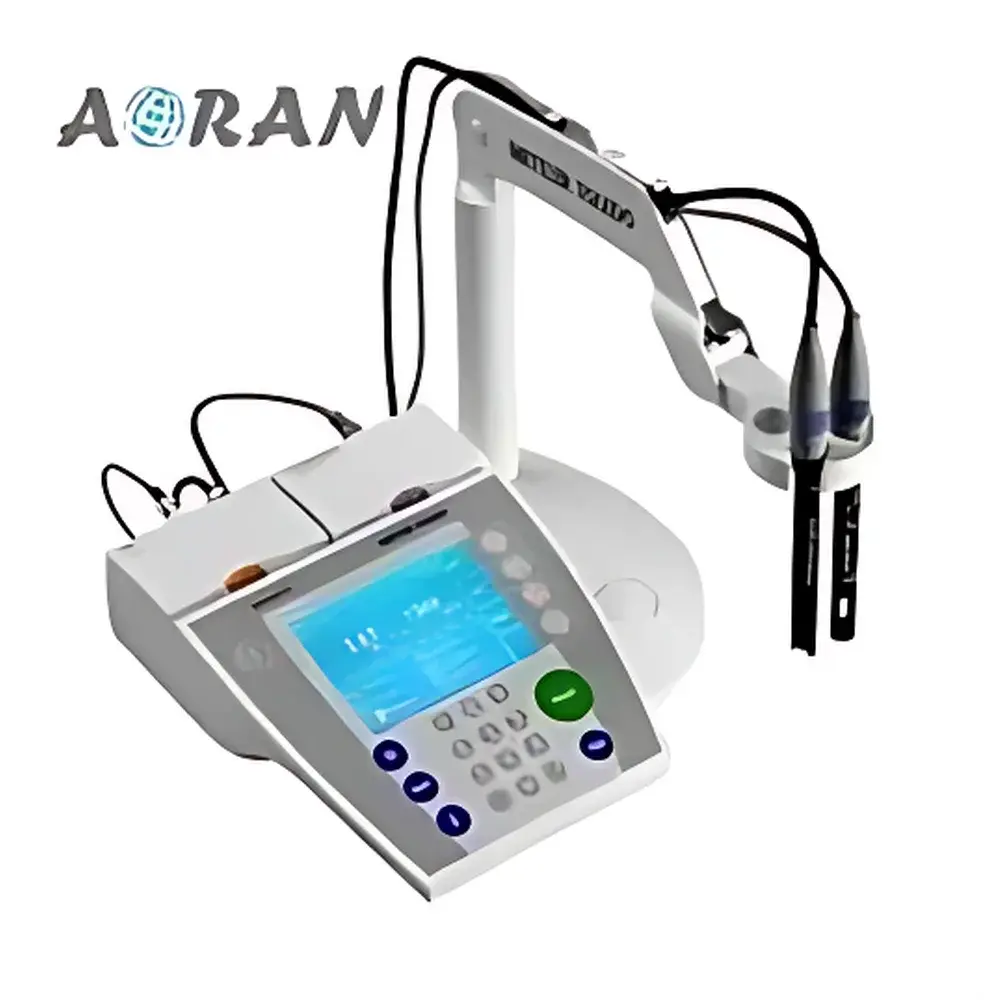

METTLER TOLEDO SevenMulti F40K Dual-Channel pH/ISE/MV Precision Benchtop pH Meter

Overview

The METTLER TOLEDO SevenMulti F40K is a modular, dual-channel benchtop electrochemical analyzer engineered for high-precision pH, redox (mV), relative mV, and ion-selective electrode (ISE) measurements in regulated laboratory environments. Built upon METTLER TOLEDO’s proven SevenMulti platform, the F40K configuration integrates two independent measurement channels—enabling simultaneous pH/pH, pH/mV, or pH/ISE analysis without cross-channel interference. Its core architecture implements high-stability analog signal conditioning, low-noise digital conversion, and temperature-compensated Nernst equation computation to ensure metrological traceability per ISO/IEC 17025 requirements. Designed for routine QC, R&D, and method validation workflows, the instrument supports both aqueous and non-aqueous sample matrices across pharmaceutical, food & beverage, environmental, and academic laboratories.

Key Features

• Dual-channel architecture with fully independent sensor inputs, allowing concurrent measurement of two parameters (e.g., pH and mV) or identical parameters on separate samples.
• Modular expansion capability: The base F40K unit accepts optional modules—including ISE, conductivity, and dissolved oxygen—without hardware replacement or firmware reinstallation.
• High-resolution 4.3-inch backlit TFT display with intuitive icon-based navigation and real-time graphical trend visualization.
• Three endpoint detection modes: automatic (slope-based), manual (user-triggered), and time-controlled (programmable intervals from 1 s to 24 h), optimized for kinetic studies or viscous/non-equilibrating samples.
• Comprehensive temperature compensation: Automatic temperature compensation (ATC) via integrated Pt1000 probe (-5 to 130 °C), plus manual temperature input (MTC) across -30 to 130 °C for non-probed setups.
• Full GLP compliance: Timestamped calibration logs, user-specific access levels, electronic signatures, and immutable data storage with checksum verification.
• Direct connectivity via RS232 and USB interfaces for integration with LabX software, LIMS, and ERP systems; supports barcode scanner input for sample ID traceability.

Sample Compatibility & Compliance

The SevenMulti F40K accommodates standard BNC, DIN, and mini-DIN pH electrodes, as well as ISEs with compatible reference junctions. It supports measurements in aqueous solutions, buffers, emulsions, and low-conductivity organic solvents when paired with appropriate electrodes (e.g., double-junction or polymer-junction probes). All calibration and measurement procedures adhere to ASTM D1293 (pH of water), ISO 7888 (water quality), and USP (pH measurement in pharmaceutical preparations). The system meets FDA 21 CFR Part 11 requirements when operated with LabX software, providing full audit trails, electronic signature enforcement, and data integrity safeguards required for GMP/GLP-regulated environments.

Software & Data Management

When connected to METTLER TOLEDO LabX laboratory software, the F40K functions as a networked node within a centralized data ecosystem. LabX enables automated report generation compliant with ISO 17025 Annex A.2, configurable pass/fail criteria, statistical process control (SPC) charting, and bidirectional LIMS synchronization. Raw data—including sensor diagnostics, calibration history, and environmental metadata—are stored in encrypted .mxl files with SHA-256 hash verification. Audit trails record all user actions (e.g., calibration edits, parameter changes, data exports) with timestamps, IP addresses (for networked units), and operator IDs—fully satisfying ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).

Applications

• Pharmaceutical manufacturing: Final product pH release testing per ICH Q5C and compendial monographs (USP, EP, JP).
• Bioprocess monitoring: Real-time pH tracking during fermentation and cell culture, including offline validation of in-line sensors.
• Environmental analysis: Field-deployable lab verification of wastewater, soil leachate, and drinking water samples per EPA Method 150.1.
• Food quality control: Titration endpoint confirmation, acidulant titration, and shelf-life stability profiling under varying thermal conditions.
• Academic research: Multi-parameter electrochemical characterization of novel electrolytes, corrosion inhibitors, and nanomaterial dispersions.

FAQ

Does the F40K support ISE measurements out of the box?
No—the ISE functionality requires installation of the optional S40-ISE module. Once installed, the instrument automatically recognizes and configures ISE parameters, including slope calculation, detection limit estimation, and charge correction algorithms.
Can calibration data be exported in CSV format for external statistical analysis?
Yes—calibration reports, measurement logs, and raw sensor output are exportable in CSV, PDF/A-1b, and XML formats via LabX or directly through the instrument’s USB port using the built-in file manager.
Is the F40K compatible with METTLER TOLEDO’s automated sample changers?
Yes—it natively interfaces with the EasyPlus and Rondolino series of autosamplers, enabling unattended sequential analysis of up to 96 samples with programmable rinse cycles and electrode conditioning protocols.
What temperature probe types are supported for ATC?
The F40K accepts Pt1000 resistance thermometers (standard), Pt100, and thermistor-based probes with appropriate adapter cables; all probe calibrations are stored per sensor ID to maintain traceability.
How does the system handle electrode drift during extended measurements?
The instrument continuously monitors electrode impedance and asymmetry potential, triggering configurable alerts when deviations exceed user-defined thresholds; drift compensation is applied algorithmically during real-time mV-to-pH conversion based on Nernstian slope stability.
