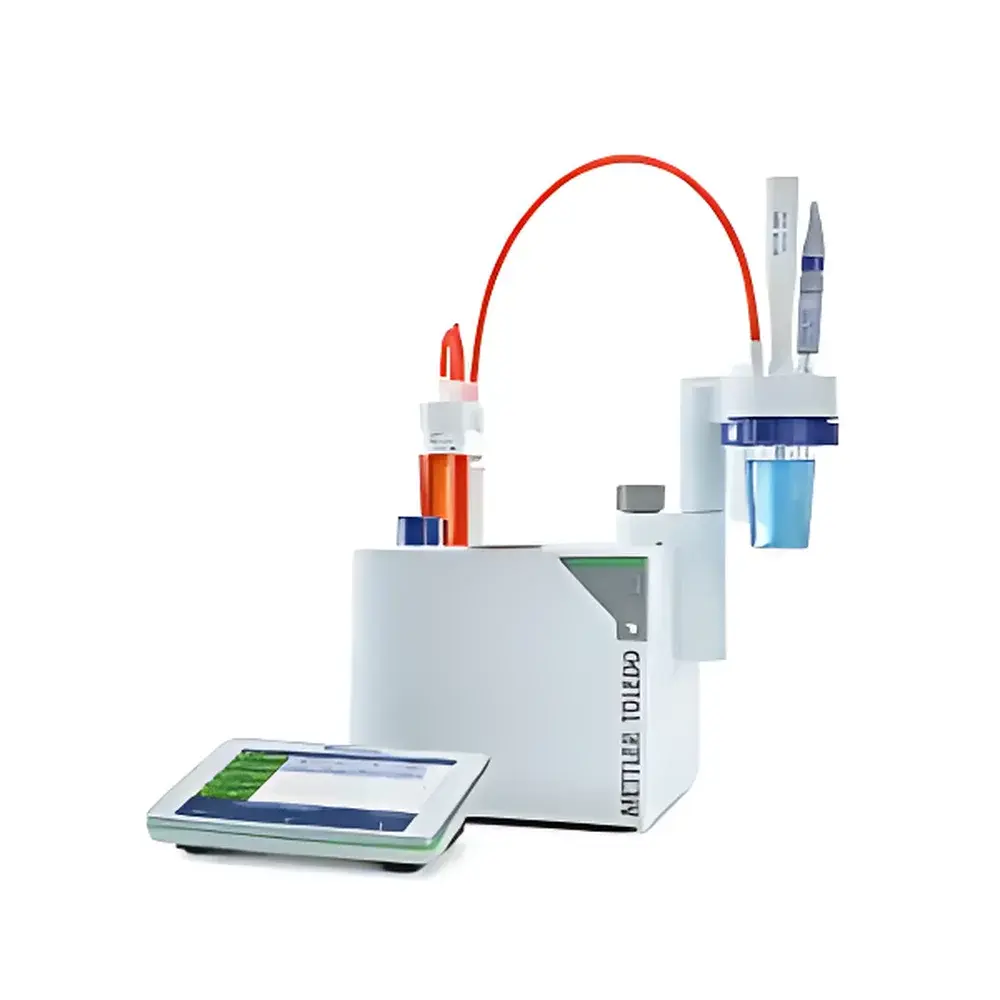

METTLER TOLEDO T5/T7/T9 New Classic Series Automatic Potentiometric Titrator

Overview

The METTLER TOLEDO T5/T7/T9 New Classic Series Automatic Potentiometric Titrator is a modular, GxP-compliant electrochemical platform engineered for precision, traceability, and method flexibility in regulated and research laboratories. Based on potentiometric endpoint detection—measuring potential difference between indicator and reference electrodes as titrant is incrementally added—the system delivers high reproducibility in acid-base, redox, precipitation, and complexometric titrations. Its architecture supports both volumetric and coulometric Karl Fischer moisture determination (1 ppm to 100% water content), pH-metric and conductometric titrations, and multi-parameter simultaneous analysis when equipped with optional electrode modules. Designed and manufactured in Switzerland, the instrument meets stringent requirements for ISO/IEC 17025, ASTM E202, USP , and FDA 21 CFR Part 11 compliance when used with LabX Titration software and appropriate audit trail configuration.

Key Features

• One Click™ intuitive touchscreen interface with customizable home screen and multi-angle adjustable high-resolution display terminal connected via shielded cable—enabling ergonomic placement and minimizing visual fatigue.
• StatusLight™ real-time status indication system provides immediate visual feedback on instrument readiness, method execution, and error conditions without requiring screen interaction.
• Hot-swappable SmartElectrode™ and SmartBurette™ technology: embedded RFID chips store calibration history, electrode type, titrant concentration, expiration date, and usage logs; automatic recognition prevents mismatched reagent/electrode pairing and enforces method integrity.
• Integrated SmartSample™ wireless sample weighing: METTLER TOLEDO analytical balances transmit mass data directly to the titrator via Bluetooth®; sample metadata (ID, weight, container code) is stored on disposable cup-integrated RFID tags to eliminate manual transcription errors and cross-contamination risks.

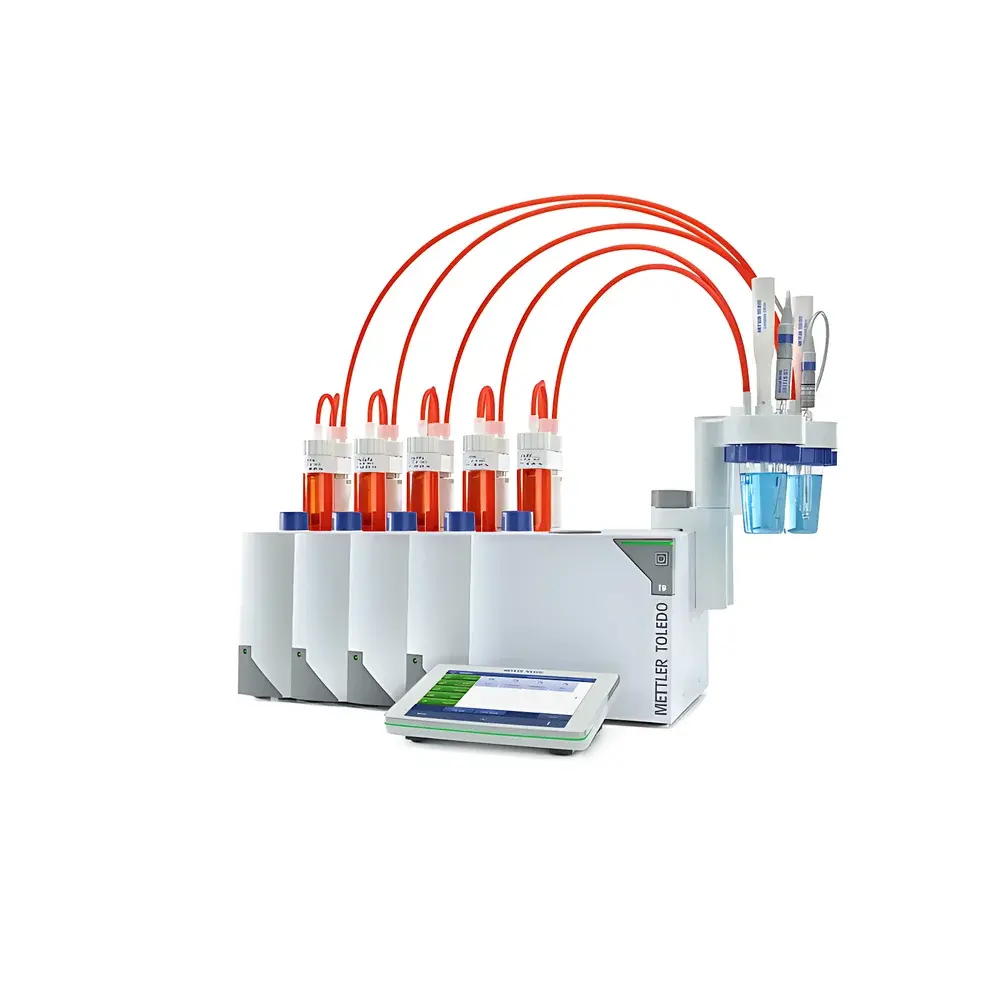

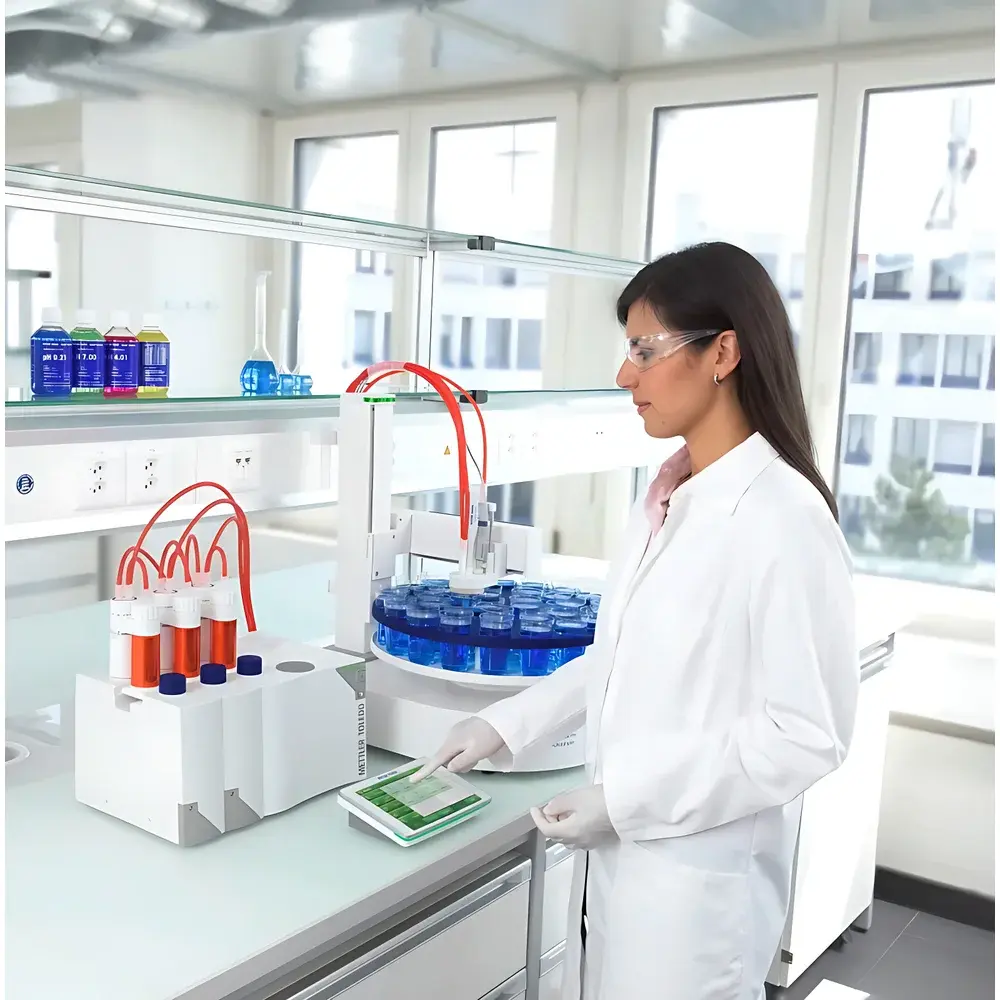

• Modular expansion capability: seamless integration of volumetric or coulometric Karl Fischer kits, pH electrode boards, conductivity modules, and InMotion™ automated sample changers with SmartCode™-enabled sample identification.
• LabX Titration-ready architecture supporting full electronic record management, role-based user access, electronic signatures, and configurable audit trails aligned with GLP/GMP documentation standards.

Sample Compatibility & Compliance

The T5/T7/T9 series accommodates liquid, solid, and viscous samples across diverse matrices—including pharmaceutical actives, food extracts, petrochemicals, polymers, and environmental waters—via interchangeable electrode configurations (e.g., combination pH, redox, ion-selective, non-aqueous, and double-junction reference electrodes). All hardware components comply with IEC 61000-4 electromagnetic compatibility standards and carry CE, UL, and CSA certifications. When deployed with validated methods and LabX software, the system satisfies regulatory expectations for data integrity per ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate) and supports inspection readiness for FDA, EMA, and PMDA audits.

Software & Data Management

LabX Titration software serves as the central control and data governance layer, enabling graphical method editor, automated sample series setup, dynamic report generation (PDF/CSV/XLSX), and secure cloud or local server storage. It enforces electronic signature workflows, time-stamped audit trails for all critical events (method edits, calibration, result approvals), and configurable retention policies. The software supports direct integration with LIMS and ERP systems via ODBC or RESTful API. All raw titration curves, derivative plots, equivalence point calculations, and metadata are archived with immutable timestamps and user attribution—ensuring full traceability from sample receipt to final report issuance.

Applications

• Pharmaceutical QC: assay of active ingredients (e.g., ibuprofen, paracetamol), chloride content in APIs, residual catalyst quantification in synthesis intermediates.
• Food & Beverage: titratable acidity (TA), free fatty acid (FFA) determination in oils, SO₂ in wine, sodium chloride in dairy products.
• Chemical Manufacturing: acid number (ASTM D974), base number (ASTM D2896), saponification value, peroxide value.
• Environmental Analysis: alkalinity, hardness, cyanide, fluoride, and sulfide in wastewater and surface water per EPA and ISO standard methods.
• Materials Science: proton exchange capacity in fuel cell membranes, carboxyl group density in functionalized polymers.

FAQ

What distinguishes the T5, T7, and T9 models?

The T5 is a compact entry-level system optimized for routine single-method workflows; the T7 adds dual burette capability and enhanced automation support (e.g., InMotion integration); the T9 is the fully featured platform with dual-channel potentiometry, integrated pH/conductivity measurement, and advanced LabX connectivity options including remote monitoring and predictive maintenance alerts.
Is the system compatible with non-METTLER TOLEDO electrodes or burettes?

While third-party electrodes may be physically connected, only SmartElectrode™ and SmartBurette™ devices enable automatic recognition, calibration data transfer, and method validation—ensuring full compliance and eliminating manual configuration errors.
How does the system ensure data integrity during power interruption?

All active titration sequences are continuously logged to non-volatile memory; upon recovery, the instrument resumes from the last stable state with timestamped interruption records included in the final audit trail.
Can LabX Titration be deployed on virtualized infrastructure?

Yes—LabX supports Windows Server 2016/2019/2022 in VMware vSphere and Microsoft Hyper-V environments, provided domain authentication, time synchronization, and database redundancy meet GxP validation requirements.
What validation documentation is provided with the instrument?

METTLER TOLEDO supplies IQ/OQ protocols, factory test reports, electrical safety certificates, and a comprehensive User Requirement Specification (URS) template to support site-specific PQ execution and regulatory submission.
