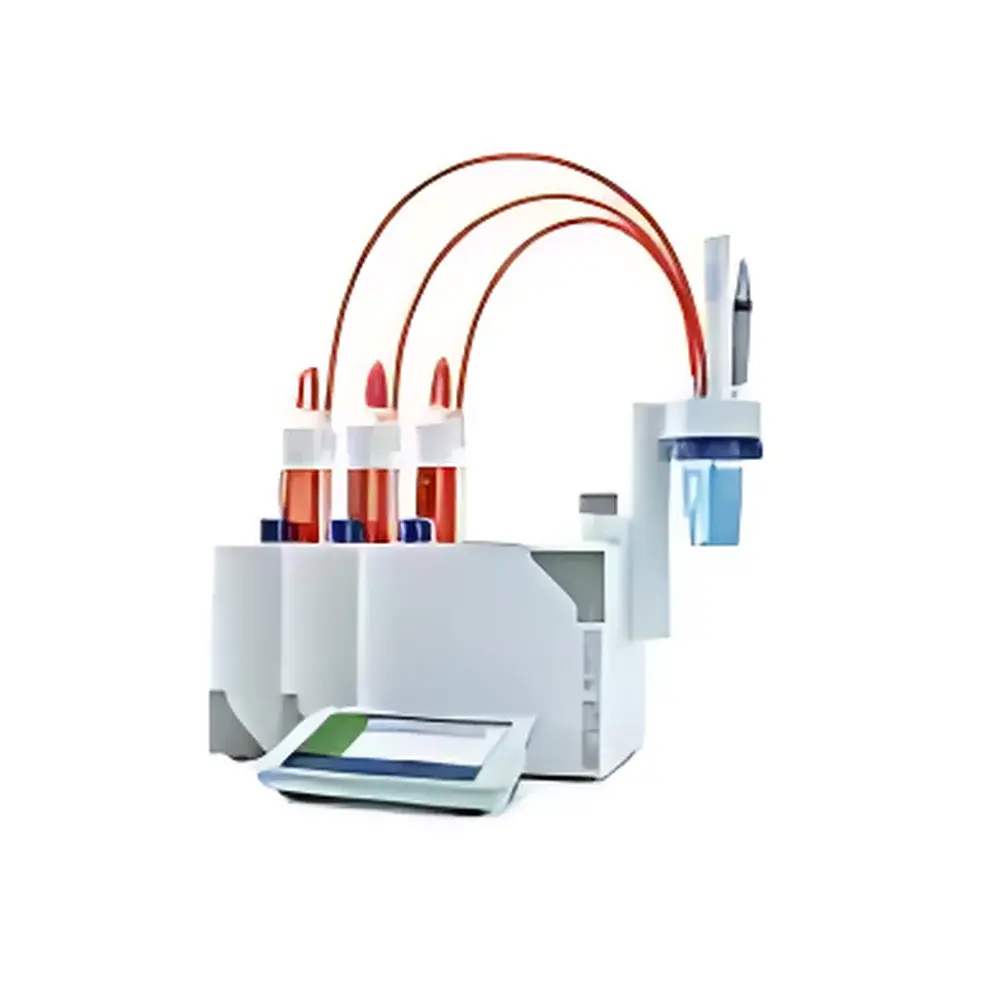

METTLER TOLEDO T7 Advanced Automatic Potentiometric Titrator

Overview

The METTLER TOLEDO T7 Advanced Automatic Potentiometric Titrator is a modular, GLP-compliant electrochemical platform engineered for precision, traceability, and long-term adaptability in regulated laboratory environments. Based on potentiometric endpoint detection—measuring potential difference across a reference and indicator electrode—the T7 delivers high reproducibility in acid-base, redox, complexometric, non-aqueous, precipitation, and photometric titrations. Its architecture supports dual-sensor integration (pH + conductivity or pH + coulometric Karl Fischer), enabling simultaneous multi-parameter analysis within a single method sequence. Designed in accordance with ISO/IEC 17025 and aligned with FDA 21 CFR Part 11 requirements for electronic records and signatures, the T7 provides auditable data trails, user-level access control, and full method validation support—making it suitable for QC labs operating under GMP, ISO 9001, or pharmacopeial standards (USP , EP 2.2.20).

Key Features

• Modular sensor architecture: Supports up to two interchangeable sensor boards—pH, conductometric, or coulometric Karl Fischer—enabling seamless expansion without hardware replacement.
• One Click Titration™ workflow: Predefined method shortcuts (up to 24 per user) reduce operator input errors and accelerate routine analysis.
• Firmware-upgradable to T9 specification: Future-proof investment—T7 units retain full compatibility with T9 software features, including enhanced method cycling, expanded task list concurrency (up to 7 parallel sequences), and advanced LabX integration.
• Precision liquid handling: Integrated titrant drive (1 built-in burette + 3 optional external drives) with automatic burette recognition and real-time volume compensation ensures volumetric accuracy per ISO 8655-3.
• GLP-compliant reporting: Auto-generated audit trails include user ID, timestamp, method version, raw electrode signals, equivalence point calculation parameters, and digital signature fields.
• Smart sample identification: Compatible with InMotion™, Rondolino, and Stromboli automated samplers; LabX SmartCodes enable barcode-driven sample registration and metadata association.

Sample Compatibility & Compliance

The T7 accommodates aqueous, non-aqueous, viscous, and suspended samples across pharmaceutical, chemical, food, and environmental testing applications. It meets IEC 61000-4 electromagnetic compatibility standards and carries CE marking for EU conformity. For moisture determination, the system integrates seamlessly with coulometric Karl Fischer modules (detection limit: 1 ppm H₂O), complying with ASTM E203 and ISO 760 methodologies. All pH and redox measurements adhere to NIST-traceable calibration protocols, while conductivity modules conform to ISO 7888. The instrument’s password-protected user management supports role-based permissions (administrator, analyst, reviewer), satisfying ALCOA+ data integrity principles.

Software & Data Management

Controlled exclusively via METTLER TOLEDO LabX titration software, the T7 enables centralized method deployment, remote monitoring, and secure cloud-enabled data backup. LabX enforces electronic signatures compliant with 21 CFR Part 11 through configurable approval workflows and immutable audit logs. Method templates include embedded uncertainty calculations, statistical evaluation (RSD, confidence intervals), and customizable report exports (PDF, CSV, XML). Data encryption at rest and in transit, combined with TLS 1.2–secured LabX server communication, ensures regulatory readiness during internal audits or external inspections.

Applications

• Pharmaceutical QC: Assay of active ingredients (e.g., amine titration in APIs), residual solvent quantification, excipient purity verification.
• Food & Beverage: Acidity (TA), salt content (argentometric), vitamin C (iodometric), free fatty acids in oils.
• Chemical Manufacturing: Catalyst activity assessment, acid number (ASTM D974), base number (ASTM D2896), chloride impurity screening.
• Environmental Testing: Alkalinity, hardness, cyanide, sulfide, and fluoride determination in wastewater per EPA methods.
• Research & Development: Kinetic titration profiling, multi-step reaction monitoring, pKa determination via Gran plot analysis.

FAQ

Can the T7 perform both volumetric and coulometric Karl Fischer titration?
Yes—via optional coulometric Karl Fischer module integration, supporting moisture quantification down to 1 ppm with full method traceability.
Is LabX software included with the T7 system?
LabX titration software is supplied as standard with perpetual license; LabX server deployment requires separate configuration for networked environments.
Does the T7 support ASTM or pharmacopeial method validation out of the box?
Pre-validated method templates for USP , EP 2.2.20, and ASTM E203 are available in the METTLER TOLEDO Method Library and can be deployed with documented IQ/OQ documentation packages.
What is the maximum number of simultaneous titration tasks supported?
The T7 supports up to 10 queued tasks in a list; up to 7 tasks may run concurrently when configured with multiple burettes and sensor modules.
How does the T7 ensure data integrity during power failure or unexpected shutdown?
All method execution states, raw sensor data, and intermediate calculations are auto-saved at 1-second intervals to non-volatile memory, enabling recovery without result loss.
