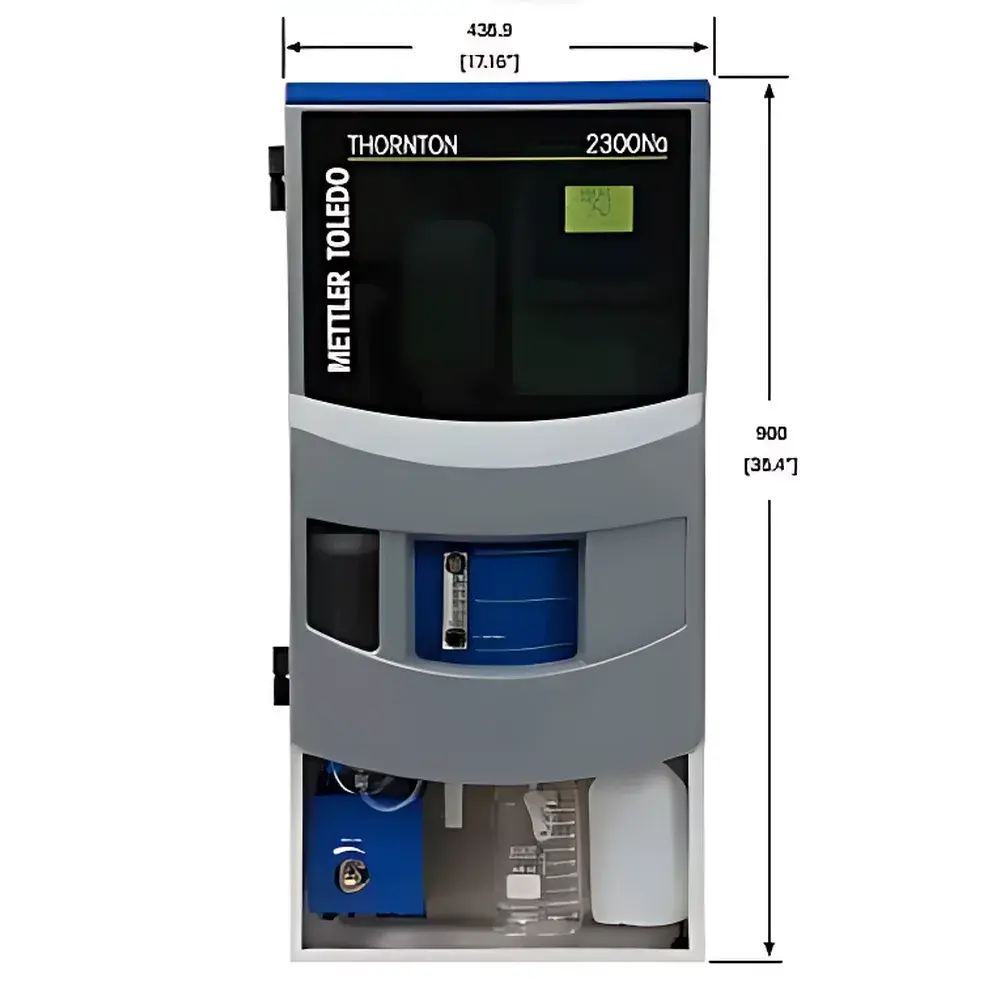

METTLER TOLEDO Thornton 2300Na Online Sodium Analyzer

Overview

The METTLER TOLEDO Thornton 2300Na Online Sodium Analyzer is a high-precision ion-selective electrode (ISE)-based instrument engineered for continuous, real-time monitoring of sodium ion concentration in ultrapure water systems. Operating on the principle of potentiometric measurement using a specially formulated sodium-selective glass membrane electrode, the 2300Na delivers stable, trace-level detection down to 0.001 ppb—critical for maintaining steam cycle integrity in power generation, semiconductor rinse water purity, and pharmaceutical water-for-injection (WFI) distribution loops. Unlike conventional conductivity-based proxies, direct sodium measurement eliminates interference from ammonium, lithium, or other cations, enabling early leak detection in cation exchange beds and reliable verification of demineralization performance. Its design adheres to the metrological rigor expected in regulated environments, supporting traceability through NIST-traceable calibration standards and documented electrode response validation.

Key Features

• Unattended 3-point incremental calibration with automatic electrode activation at each step—ensuring consistent membrane hydration and surface renewal without operator intervention.
• Integrated pH-synchronized alkalizing agent dosing control: The analyzer uses real-time pH feedback to determine optimal endpoint for sodium measurement, minimizing hydroxide interference and stabilizing ISE potential under low-conductivity conditions.
• Four configurable 0/4–20 mA analog outputs assignable to sodium concentration, pH, temperature, or calibration status—enabling seamless integration into DCS, SCADA, or PLC architectures per ISA-84 and IEC 61511 functional safety guidelines.

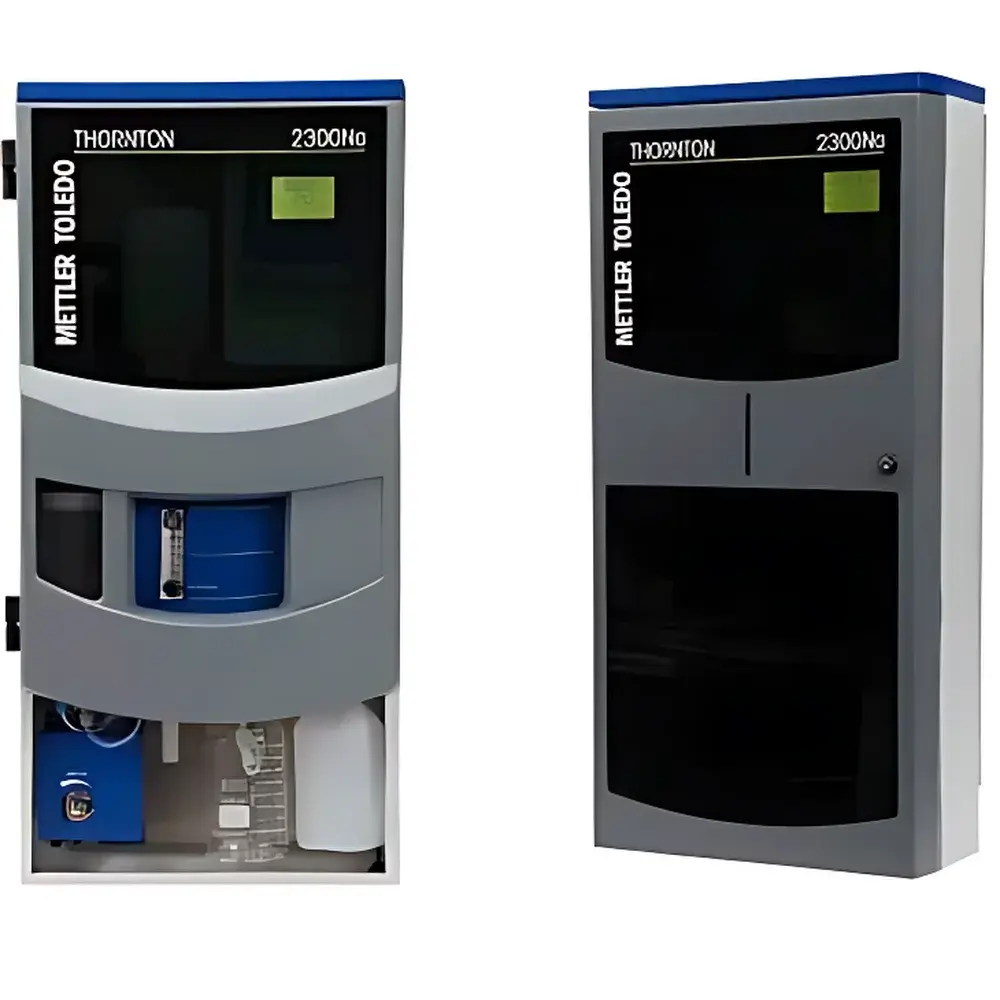

• Dual enclosure options: A fully sealed, lockable NEMA 4X-rated cabinet for harsh industrial settings (e.g., turbine halls, chemical dosing rooms), and a semi-enclosed version with hinged access panel for clean sample environments such as laboratory-grade water skids or pharmaceutical utilities.
• Onboard diagnostics including electrode impedance monitoring, reference junction resistance tracking, and slope/deviation alerts—supporting predictive maintenance and GLP-compliant audit trails.

Sample Compatibility & Compliance

The 2300Na is validated for use with deionized, reverse osmosis, and mixed-bed polished water streams exhibiting conductivity < 0.1 µS/cm and total dissolved solids < 10 ppb. It meets ASTM D4582–22 (Standard Practice for Measuring Sodium in Ultrapure Water), ISO 14687–2:2021 (Hydrogen fuel—Fuel quality—Part 2: Proton exchange membrane fuel cell applications), and EP/USP requirements for purified water testing. Its calibration protocol supports 21 CFR Part 11 compliance when deployed with METTLER TOLEDO’s iC software suite, providing electronic signatures, audit-ready calibration logs, and secure user role management.

Software & Data Management

The analyzer interfaces natively with Thornton iNet™ and LabX® platforms for centralized configuration, remote firmware updates, and trend analysis across multiple analyzers. All calibration events—including standard addition volumes, measured potentials, Nernstian slope calculations, and electrode offset values—are timestamped, digitally signed, and exportable in CSV or PDF formats. Data retention complies with FDA-defined “raw data” definitions, preserving original sensor readings alongside metadata (temperature compensation coefficients, flow rate, sample pressure). Optional OPC UA server enables bidirectional communication with MES systems for automated batch release decisions in biopharmaceutical water systems.

Applications

• Power Plant Chemistry Monitoring: Early detection of cation resin exhaustion in condensate polishing units—triggering regeneration before sodium breakthrough compromises turbine blade integrity or induces stress corrosion cracking (SCC) in austenitic steels.
• Pharmaceutical Water Systems: Continuous verification of sodium levels in purified water (PW) and water-for-injection (WFI) loops per USP , ensuring compliance during routine sanitization cycles and seasonal conductivity excursions.
• Semiconductor Fab Ultrapure Water (UPW): Monitoring final polish stages where sodium contamination > 10 ppt risks gate oxide defects; integrated with fab-wide fault detection and classification (FDC) systems.
• Research Reactor Coolant Loops: Ensuring sodium limits remain below 5 ppb in primary coolant to prevent neutron absorption anomalies and maintain thermal-hydraulic stability.

FAQ

How does the 2300Na differentiate sodium from interfering cations like lithium or ammonium?

It employs a proprietary aluminosilicate glass membrane with optimized ion-exchange selectivity (log K_Na,Li ≈ –3.2; log K_Na,NH4 ≈ –2.8), verified per ISO 17025-accredited interlaboratory studies.
Is offline sampling supported—and how is data reconciled with online measurements?

Yes: The analyzer includes a dedicated offline port with calibrated flow restrictor and temperature-compensated sample chamber; results are automatically time-stamped and cross-referenced against online trends in iNet™.
What maintenance intervals are recommended for long-term reliability?

Electrode replacement every 12–18 months under continuous operation; reference electrolyte refill every 6 months; annual verification of analog output linearity and NIST-traceable calibration standard recertification.
Can the 2300Na be validated for GMP environments?

Yes—full IQ/OQ/PQ documentation packages, including risk assessments per ICH Q9 and test scripts aligned with Annex 11, are available through METTLER TOLEDO’s Validation Services group.
