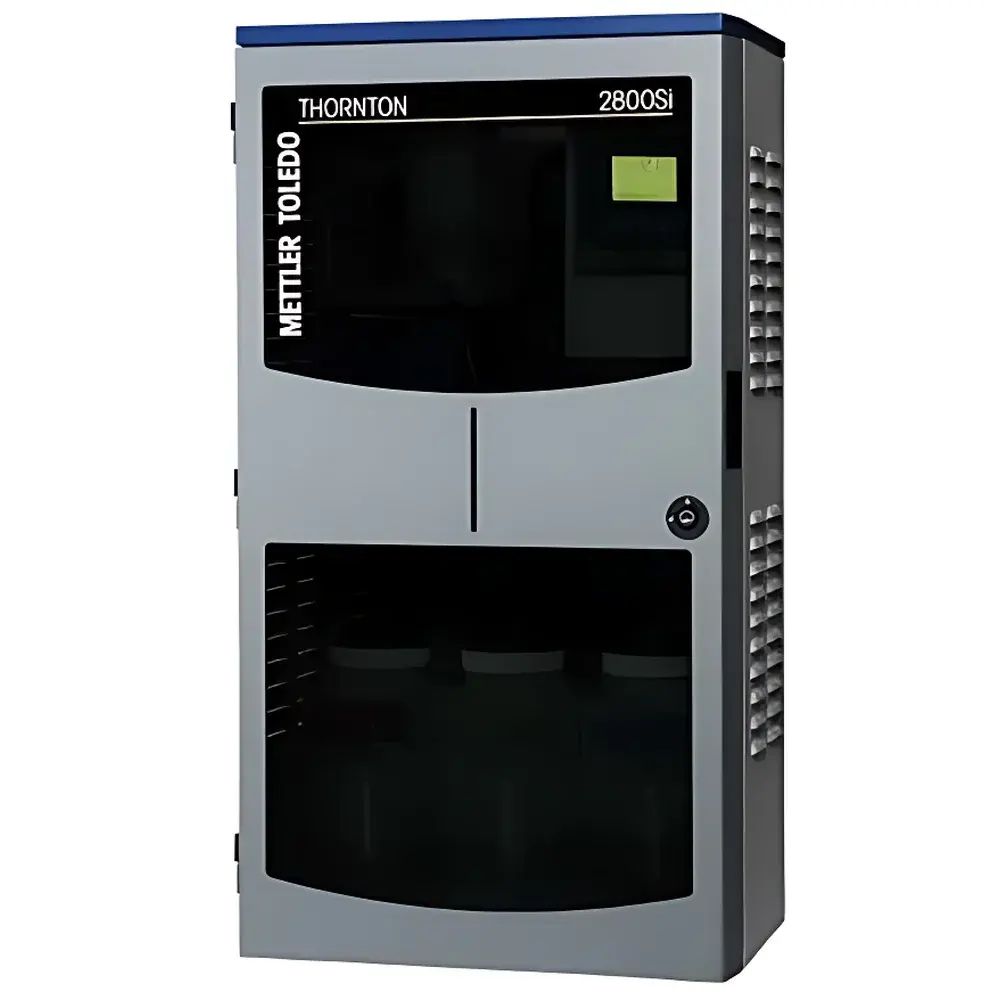

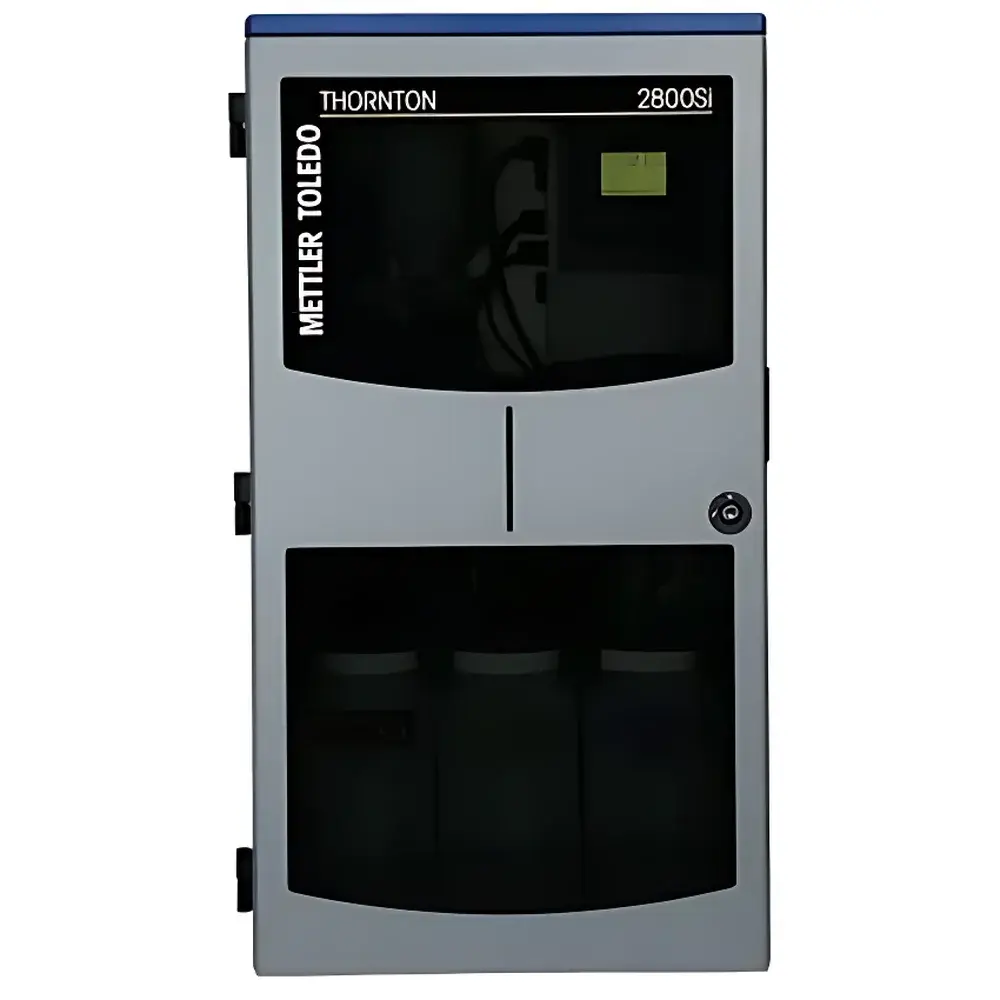

METTLER TOLEDO Thornton 2800Si Online Silicon Analyzer

Overview

The METTLER TOLEDO Thornton 2800Si Online Silicon Analyzer is a fully automated, colorimetric analytical instrument engineered for continuous, real-time monitoring of dissolved silica (SiO₂) in ultrapure water systems. It operates on the molybdenum blue method—where soluble silicate reacts with ammonium molybdate under acidic conditions to form a heteropoly acid complex, subsequently reduced to yield a stable blue-colored chromophore quantified spectrophotometrically at 815 nm. This principle delivers high selectivity for reactive silica in the sub-ppb range, making the 2800Si essential for critical applications in power generation, semiconductor manufacturing, and pharmaceutical water-for-injection (WFI) loops. Its design prioritizes long-term stability, minimal reagent consumption, and immunity to common interferences such as phosphate, iron, and turbidity—ensuring reliable data integrity across extended unattended operation.

Key Features

• Automated zero-point correction before every measurement cycle—eliminating baseline drift and enhancing long-term repeatability
• Integrated temperature-controlled reaction chamber with real-time monitoring—maintaining optimal reaction kinetics and minimizing thermal variability
• Sealed, modular reagent delivery system with large-capacity cartridges—enabling up to 90 days of maintenance-free operation under typical deployment conditions
• Onboard offline sampling port—supporting grab-sample verification, cross-validation with laboratory ICP-MS, and routine QC audits without interrupting online operation
• Simultaneous display of silicon concentration (ppb) and timestamped measurement history—facilitating rapid trend assessment and root-cause analysis during transient events
• Full enclosure compliant with NEMA 4X/IP66 standards—protecting internal optics, fluidics, and electronics from ambient moisture, dust, and chemical exposure in utility corridors and turbine halls

Sample Compatibility & Compliance

The 2800Si is validated for use with deionized (DI), reverse osmosis (RO), mixed-bed polishers, and condensate polishing units operating within conductivity ranges of 0.055–1 µS/cm. It meets the performance criteria specified in ASTM D4582 (Standard Test Method for Silica in Water by Molybdenum Blue Spectrophotometry) and aligns with ISO 14687-2 for high-purity water used in hydrogen production and fuel cell applications. For regulated environments—including pharmaceutical purified water (PW) and WFI distribution systems—the analyzer supports 21 CFR Part 11-compliant data logging when integrated with Thornton’s iNet™ software platform, enabling electronic signatures, audit trails, and user-access controls required under GMP/GLP frameworks.

Software & Data Management

The 2800Si interfaces seamlessly with METTLER TOLEDO’s iNet™ SCADA-ready communication suite via Modbus TCP or 4–20 mA analog output. All measurements, calibration logs, reagent status alerts, and diagnostic codes are time-stamped and stored locally for ≥30 days. When connected to iNet™ Cloud or on-premise servers, data can be exported in CSV or XML format for integration into enterprise LIMS, SAP PM modules, or predictive maintenance dashboards. Firmware updates and remote configuration changes are performed securely over TLS-encrypted channels, with full version control and rollback capability. Audit trail functionality records all operator-initiated actions—including manual calibrations, parameter adjustments, and sample overrides—with immutable timestamps and user IDs.

Applications

• Real-time detection of anion resin breakthrough in mixed-bed demineralizers—triggering timely regeneration before silica exceeds 5 ppb at turbine inlet
• Monitoring condensate return streams in fossil and nuclear power plants to prevent silica-induced turbine blade deposition per IAPWS RP-7 guidelines
• Guarding ultrapure water (UPW) distribution networks in semiconductor fabs against trace silica ingress that could compromise wafer cleaning efficiency
• Supporting steam purity assurance programs in combined-cycle plants where silica carryover risks boiler tube scaling and heat transfer inefficiency
• Verifying final polish performance in pharmaceutical PW/WFI systems prior to point-of-use distribution, per USP and EU Annex 1 requirements

FAQ

What is the recommended calibration frequency for the 2800Si under normal operating conditions?

Calibration is typically performed weekly using certified NIST-traceable silica standards; however, the instrument’s automatic zero correction and built-in stability diagnostics allow for extended intervals up to 14 days in highly stable UPW loops—subject to site-specific validation protocols.

Can the 2800Si measure total silica, or only reactive (dissolved) silica?

The 2800Si measures reactive (monomeric) silica only. Colloidal or particulate silica requires acid digestion pretreatment and is outside the scope of this analyzer’s standard configuration.

Is the 2800Si compatible with hazardous area classifications such as Class I, Division 1?

The standard 2800Si is rated for general-purpose industrial environments. For Zone 1/2 or Class I Div 1 installations, a custom ATEX/IECEx-certified variant must be specified at time of order.

How does the 2800Si handle interference from phosphate or iron in feedwater samples?

The analyzer incorporates proprietary masking agents and optimized digestion pH control to suppress spectral interference from orthophosphate and Fe³⁺ up to 500 ppb—validated per ASTM D5116 Annex A1.

What maintenance tasks require operator intervention beyond reagent replacement?

Annual optical path cleaning and flow cell inspection are recommended. No routine lamp replacement is required—the LED light source has a rated lifetime exceeding 50,000 hours.
