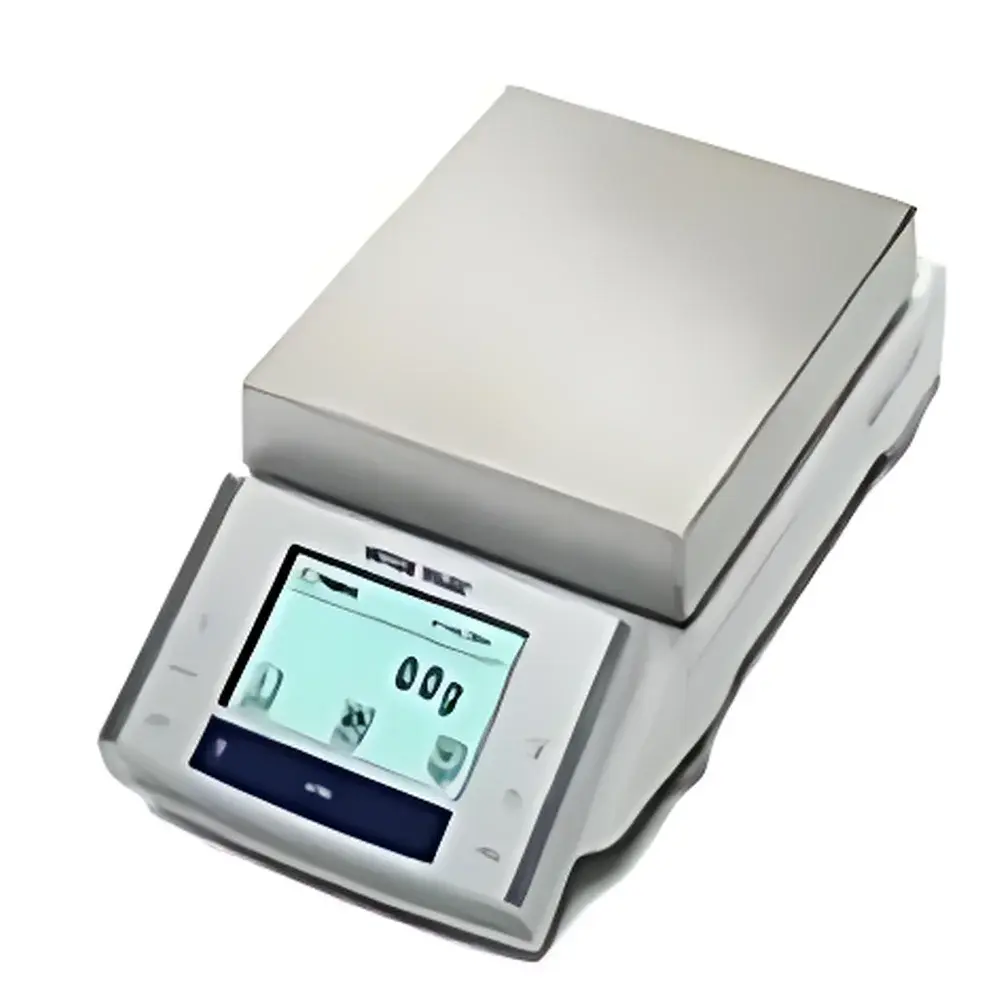

METTLER TOLEDO XS Precision Balance

Overview

The METTLER TOLEDO XS Precision Balance is an engineered solution for laboratories requiring high reproducibility, rapid stabilization, and long-term reliability in routine and regulated weighing tasks. Built upon the MonoBloc HighSpeed electromagnetic force compensation principle, the XS series employs a single-piece, monolithic sensor architecture that eliminates mechanical linkages and thermal drift pathways—ensuring exceptional stability across ambient temperature fluctuations and mechanical disturbances. Unlike traditional multi-component load cells, the MonoBloc design integrates the weighing pan, sensor core, and damping system into one thermally homogeneous structure, delivering consistent metrological performance without recalibration under typical lab conditions. The balance operates within a controlled magnetic field and uses digital signal processing to resolve mass changes at sub-microgram levels, supporting applications ranging from analytical sample preparation to formulation QA and reference standard handling. Its robust construction and intrinsic resistance to overload and shock make it suitable for environments where accidental impacts or transient overloads occur—such as shared instrumentation labs or production support areas.

Key Features

• High-speed MonoBloc HighSpeed sensor architecture enabling stabilization times as low as 1.2 seconds across most models, reducing throughput bottlenecks in high-volume workflows.
• Full-metal monocoque housing rated IP54—sealed interfaces, screw-in power socket, and smooth, corner-free surfaces minimize dust accumulation and facilitate cleaning per GLP-compliant laboratory hygiene protocols.
• Modular communication interface slot supporting optional plug-in modules: Bluetooth 5.0 for wireless data transfer to LIMS or ELN systems; Ethernet (TCP/IP) for network integration and remote diagnostics; LocalCAN for multi-device synchronization in automated workstations.
• GWP® Excellence™ built-in risk-based assessment framework—automatically evaluates calibration status, environmental influence, usage frequency, and maintenance history to generate compliance-ready reports aligned with ISO/IEC 17025 and FDA 21 CFR Part 11 requirements.
• Intuitive, detachable SmartScreen terminal with capacitive touch interface and customizable application shortcuts—enabling user-specific workflows without administrative privileges.
• Preloaded ISO/USP-compliant weighing applications including static/dynamic checkweighing, density determination (with optional kit), percent weighing, piece counting, formulation, and statistical process control (SPC) with real-time SD and CV calculation.

Sample Compatibility & Compliance

The XS Precision Balance accommodates diverse sample types—from volatile solvents in open vessels to dense metal alloys and hygroscopic powders—thanks to its draft shield compatibility (optional full- or half-height enclosures) and wide range of pan geometries (127×127 mm to 280×360 mm). All models meet international metrological standards including OIML R76-1 (Class I and II), NIST Handbook 44, and ANSI/NCSL Z540. For regulated industries, the balance supports audit-trail-enabled operation when paired with METTLER TOLEDO LabX software, fulfilling ALCOA+ data integrity principles and enabling full traceability of every weighing event—including operator ID, timestamp, environmental logs (temperature/humidity if connected to external sensors), and raw data export in CSV or PDF/A-2 format. The IP54-rated enclosure ensures operational continuity in non-sterile but particulate-prone environments such as QC labs, pilot plants, and material testing facilities.

Software & Data Management

LabX software integration provides centralized method management, electronic signature support, and automated report generation compliant with 21 CFR Part 11 and EU Annex 11. Weighing methods—including SOP-driven sequences with tolerance checks, pass/fail logic, and auto-print triggers—are deployed remotely and version-controlled. Raw data is stored in a secure SQL database with immutable audit trails; all modifications require dual authorization and are timestamped with reason-for-change fields. Optional connectivity to ERP or MES systems via OPC UA or RESTful API enables direct transfer of batch weight records into manufacturing execution workflows. Internal memory retains >10,000 weighing events with full metadata, and USB export supports offline verification without compromising data integrity.

Applications

• Pharmaceutical QC: USP uniformity of dosage units, content uniformity testing, and reference standard weighing per ICH Q5C.
• Chemical R&D: Accurate dispensing of catalysts, reagents, and polymer additives where repeatability ≤0.001% RSD is required.
• Materials Science: Density measurement of ceramics, composites, and metallic foams using Archimedes’ principle with integrated buoyancy correction.
• Food & Beverage: Batch ingredient verification, net content compliance (e.g., EU Directive 76/211/EEC), and nutritional labeling accuracy.
• Academic Research: Teaching labs requiring intuitive operation and GxP-readiness for student-generated data used in publications or regulatory submissions.

FAQ

What does “DR” denote in model numbers like XS603SDR?
DR stands for DualRange—the balance offers two distinct readability modes (e.g., 0.001 mg / 0.01 mg) within a single capacity, optimized for either ultra-high-resolution small-sample work or faster coarse weighing of larger masses.
Is calibration traceable to national standards?
Yes—each unit ships with a factory calibration certificate traceable to METTLER TOLEDO’s primary standards, which are themselves accredited to ISO/IEC 17025 by SAS (Swiss Accreditation Service) and linked to PTB (Physikalisch-Technische Bundesanstalt) through CIPM MRA mutual recognition agreements.
Can the XS balance operate in environments with significant air currents?
While not a microbalance, the XS series achieves stable readings in typical lab environments (≤0.5 m/s airflow); for turbulent settings, optional draft shields with anti-static coating and laminar flow compatibility are available.
Does the balance support automatic internal calibration?
No—XS models are externally calibrated instruments. However, the GWP® Excellence™ function guides users on optimal calibration intervals based on risk assessment, and optional motorized calibration kits (e.g., CAL ONE) enable semi-automated verification using certified weights.
How is data security ensured during wireless transmission?
Bluetooth connections use AES-128 encryption; Ethernet communications support TLS 1.2+ and can be configured within segregated VLANs. All transmitted data payloads are digitally signed and validated at the receiving endpoint.
