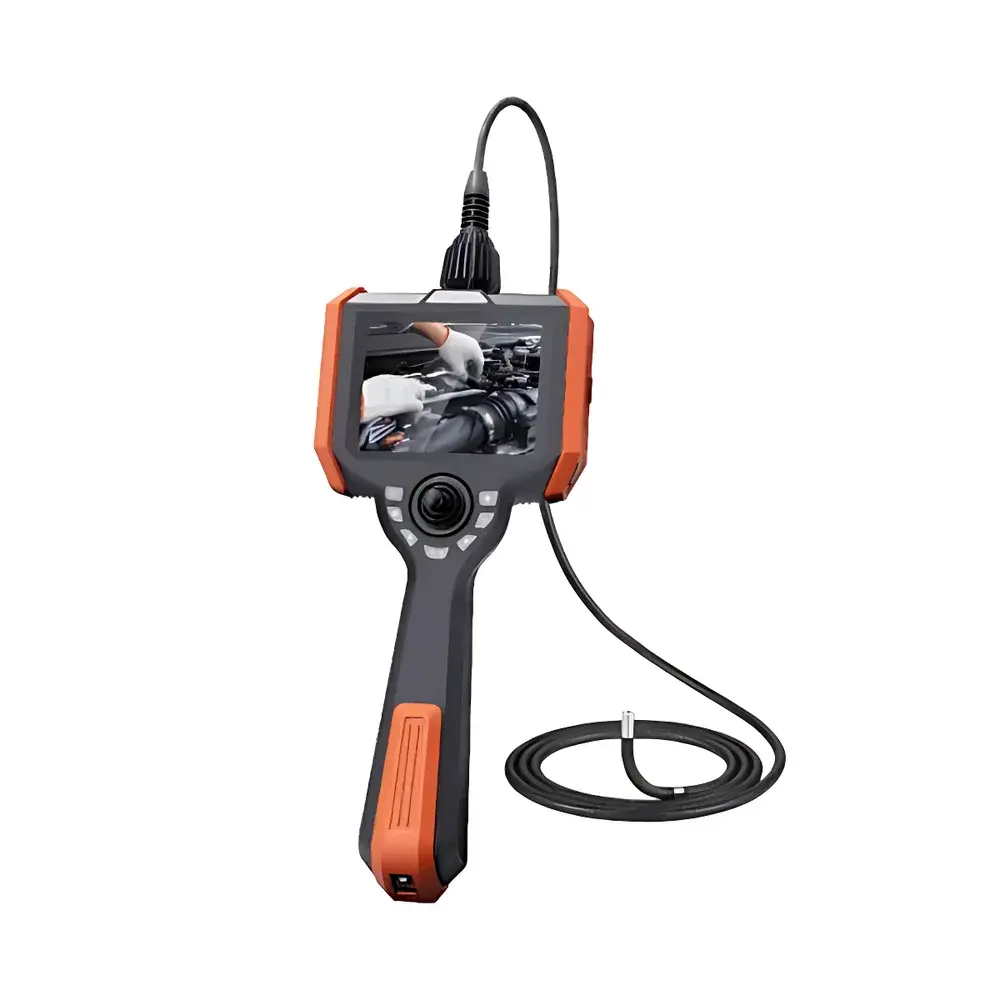

Micro-field K-Series Industrial Video Endoscope
| Brand | Micro-field / Guangzhou Micro-field Optical Technology Co., Ltd. |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model Series | K-Series |
| Pricing | Available Upon Request |
| Probe Diameter | 0.8–8 mm |
| Insertion Tube Length | Standard 0.5–10 m (Customizable up to 30 m) |
| Camera Resolution | ≥1.0 MP |
| Key Features | Quick-swap probe assembly |
Overview
The Micro-field K-Series Industrial Video Endoscope is a high-resolution, portable borescope engineered for non-destructive visual inspection in confined, inaccessible, or hazardous environments. Utilizing a complementary metal-oxide-semiconductor (CMOS) imaging sensor with ≥1.0 megapixel resolution and fiber-optic illumination, the system delivers sharp, low-noise imagery under variable lighting conditions. Its modular architecture supports rapid field replacement of insertion tubes—enabling seamless adaptation across diverse inspection tasks without requiring recalibration or software reconfiguration. Designed for compliance with ISO 17025-aligned laboratory practices and compatible with GLP/GMP documentation workflows, the K-Series serves as a primary visual assessment tool in aerospace engine maintenance, power generation turbine inspections, automotive cylinder bore evaluation, and pharmaceutical equipment validation.
Key Features
- Modular Quick-Swap Probe System: Interchangeable insertion tubes—from 0.8 mm ultra-thin for micro-bore applications to 8 mm rigid-flex configurations for structural integrity testing—mount via precision-machined bayonet coupling with electrical and optical continuity verification.
- 360° Full-Articulation Tip: Dual-directional (up/down/left/right) articulation driven by stainless-steel push-pull cables, enabling precise navigation around bends, behind weld seams, or within complex manifold geometries.
- Fiber-Optic Illumination Architecture: Cold-light delivery via dual-bundle silica fiber optics ensures uniform brightness without thermal loading at the distal tip—critical for temperature-sensitive components and explosive atmospheres (ATEX Zone 2 compatible when used with certified light sources).
- Robust Mechanical Design: IP67-rated housing; titanium-reinforced bending section; polyimide-coated cable sheath resistant to hydrocarbons, solvents, and abrasion per ASTM D2240 Shore D hardness standards.
- Real-Time Image Processing: On-device contrast enhancement, edge sharpening, and digital noise reduction algorithms optimized for metallic surface reflectivity and low-contrast defect recognition (e.g., hairline cracks, pitting, or coating delamination).
Sample Compatibility & Compliance
The K-Series accommodates a broad range of sample geometries and material classes—including ferrous and non-ferrous alloys, composite laminates, ceramic liners, and polymer-based piping systems. Its insertion tube diameters (0.8–8 mm) and customizable lengths (0.5–30 m) support inspection of gas turbine vanes (ISO 13715), heat exchanger tubing (ASTM E2339), and pharmaceutical bioreactor ports (USP <1058> qualification guidance). All probe assemblies undergo factory calibration traceable to NIST-traceable photometric standards. The system complies with IEC 60601-1 (Edition 3.1) for medical-grade electrical safety where applicable and meets EMC requirements per CISPR 11 Group 1, Class B.
Software & Data Management
The bundled Micro-field EndoView™ v4.2 software provides DICOM-compliant image capture, annotation, measurement (distance, area, angle), and report generation with embedded metadata (date/time, operator ID, probe serial number, magnification setting). Audit trails record all user actions—including image deletion, annotation edits, and configuration changes—in accordance with FDA 21 CFR Part 11 requirements. Export formats include PDF/A-2b, JPEG2000, and AVI-encoded video with timecode overlay. Integration with enterprise CMMS platforms (e.g., IBM Maximo, SAP PM) is supported via HL7 and RESTful API interfaces.
Applications
- Aerospace: Visual inspection of compressor blades, combustion chambers, and bleed air ducts per SAE AS5578 and ATA Spec 100 Chapter 71.
- Energy: Turbine blade root inspection, boiler tube wall thickness assessment, and nuclear fuel channel verification under ASME BPVC Section V, Article 9.
- Automotive: Cylinder head port analysis, transmission valve body examination, and EV battery module interconnect inspection.
- Manufacturing: In-process verification of weld penetration, casting porosity screening, and additive-manufactured part internal lattice integrity.
- Pharmaceutical & Biotech: Qualification of clean-in-place (CIP) nozzles, sterile barrier integrity checks, and lyophilizer shelf inspection per EU GMP Annex 11.
FAQ
Is the K-Series compatible with third-party measurement software?
Yes—via standardized USB-UVC video streaming and SDK support for C++/Python integration.
What is the maximum operating temperature for the standard insertion tube?
Standard probes are rated for continuous operation up to +80°C; high-temp variants (up to +200°C) are available upon request.
Does the system support stereo imaging or 3D reconstruction?
No—the K-Series is a monocular high-definition video endoscope; stereo capability requires the optional K-3D add-on module.
Can image timestamps be synchronized with external PLC or SCADA systems?
Yes—NTP client mode enables sub-second synchronization with industrial time servers.
Are calibration certificates provided with each probe shipment?
Yes—each probe includes a manufacturer’s certificate of conformance and optional ISO/IEC 17025-accredited calibration documentation.
