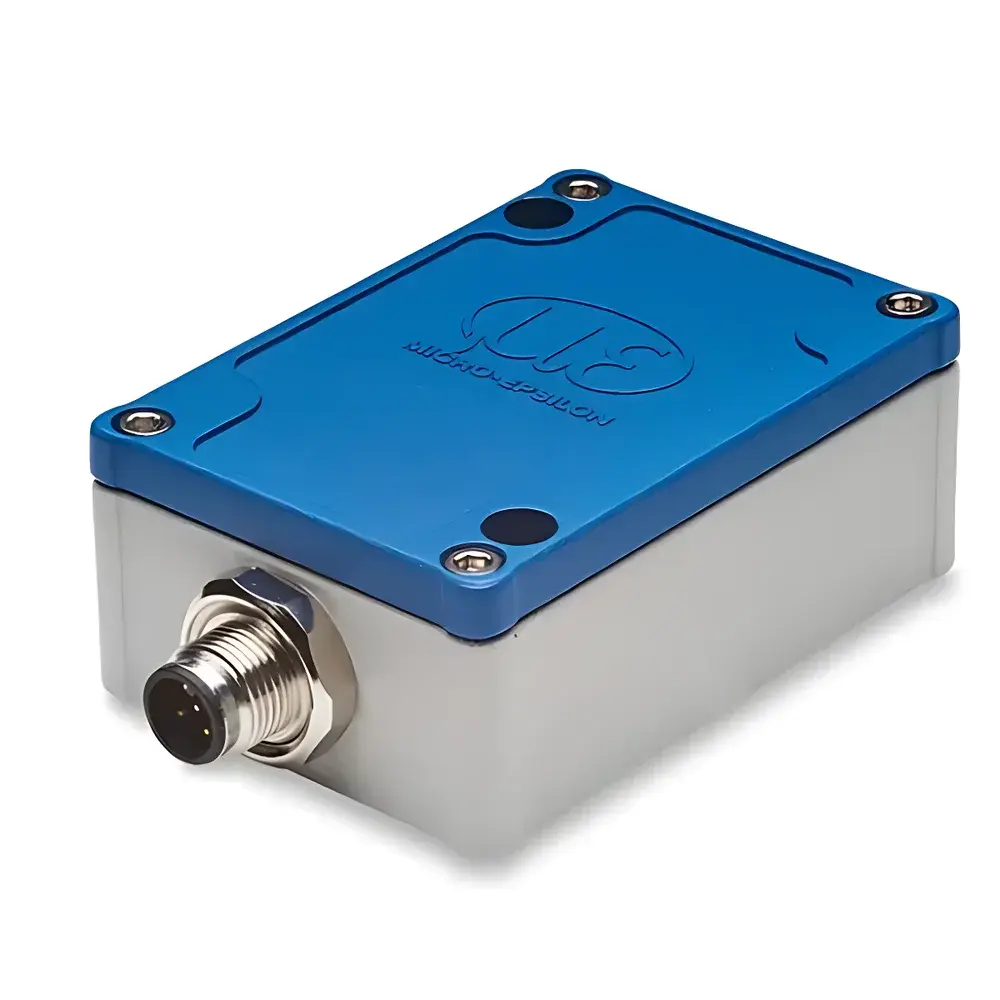

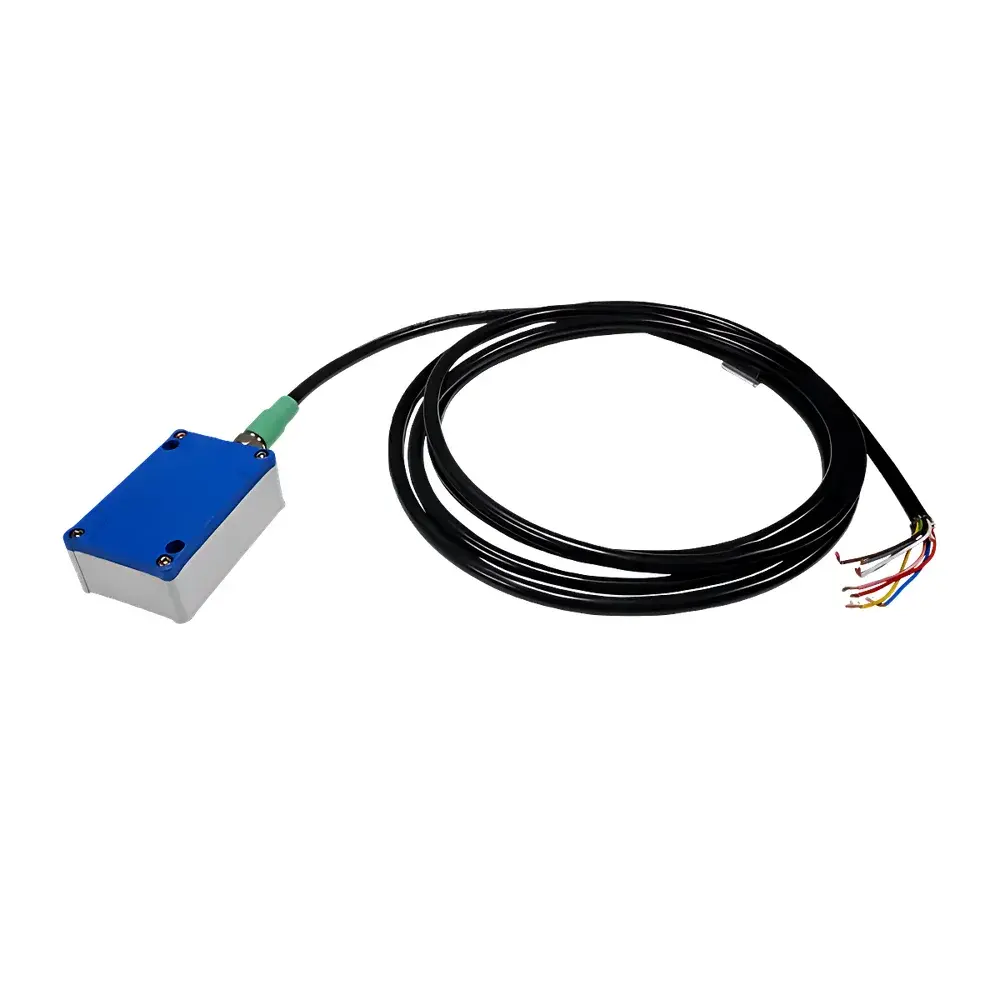

Micro-Hybrid INC5701D-360-SA-U/I High-Precision Rotary Angle Sensor

Overview

The Micro-Hybrid INC5701D-360-SA-U/I is a high-stability, industrial-grade rotary angle sensor engineered for precision angular position measurement across demanding mobile and fixed-mount applications. Based on contactless magnetic sensing technology, it employs a multi-pole magnet coupled with a high-resolution Hall-effect array and proprietary SensorFUSION signal processing to deliver true absolute angle output over a full 360° mechanical rotation. Unlike potentiometric or optical encoders, this sensor exhibits no mechanical wear, zero hysteresis, and immunity to dust, moisture, and vibration—making it suitable for long-term deployment in automotive chassis control, hydraulic actuation feedback, emergency vehicle stabilization systems, and portable environmental monitoring platforms where orientation integrity directly impacts data validity and system safety.

Key Features

• True absolute 360° angle measurement with no homing requirement upon power-up
• Dual-output architecture supporting simultaneous digital and analog interfaces for redundancy and legacy integration
• Sub-arcminute accuracy: < 0.04° typical error over temperature and lifetime (digital interface), verified per DIN EN 61000-6-2/6-4 EMC standards
• Rugged die-cast aluminum housing rated IP67 (IEC 60529), providing mechanical robustness and thermal stability in vehicle-mounted and outdoor environments
• Wide operating voltage range (5–32 V DC) compatible with 12 V and 24 V automotive and industrial power buses
• Embedded SensorFUSION algorithm dynamically compensates for temperature drift, magnet misalignment, and field distortion—ensuring consistent metrological performance without external calibration
• Configurable analog output modes (current or voltage) with programmable scaling and zero/span adjustment via digital interface

Sample Compatibility & Compliance

The INC5701D-360-SA-U/I is designed for direct integration into OEM assemblies requiring traceable angular feedback under harsh conditions. Its compact form factor (Ø42 mm × 28 mm height) and M12 or flying-lead connection options support rapid installation in space-constrained vehicle subsystems—including steering column modules, tilt-sensing mounts for mobile air quality analyzers, and gimbal-stabilized radiation detectors used in emergency response units. The device complies with ISO 16750-2 (electrical loads), ISO 16750-4 (climatic loads), and ECE R10 (EMC for vehicles). All firmware and configuration parameters adhere to IEC 61508 SIL2 functional safety principles for use in safety-related control loops when integrated within certified system architectures.

Software & Data Management

Configuration, diagnostics, and real-time monitoring are performed via standard industrial protocols: RS485 (Modbus RTU), Ethernet (TCP/IP), PROFINET IRT, or EtherNet/IP. Micro-Hybrid provides the free PC-based SensorStudio software suite, which enables parameterization of output ranges, filtering coefficients, diagnostic thresholds, and firmware updates. Logged angle data can be exported in CSV or HDF5 format for post-processing in MATLAB, Python (NumPy/Pandas), or LabVIEW. For regulated environments—including GLP-compliant environmental field labs—the sensor supports timestamped audit logs and user-access-controlled configuration changes, aligning with FDA 21 CFR Part 11 requirements when deployed with validated host systems.

Applications

• Real-time chassis inclination monitoring in autonomous off-road survey vehicles
• Feedback control of adjustable-height sensor masts in mobile meteorological stations
• Angle validation in deployable seismic sensor arrays during rapid-response earthquake assessment
• Position verification of rotating filter wheels in portable FTIR or UV-Vis spectrometers used for on-site contaminant screening
• Redundant attitude sensing in unmanned ground vehicles (UGVs) performing hazardous material detection
• Calibration reference for inertial measurement units (IMUs) in airborne environmental mapping platforms

FAQ

Is the INC5701D-360-SA-U/I suitable for outdoor long-term deployment in extreme temperatures?

Yes. Its −40 °C to +85 °C operating range, IP67-rated housing, and internal thermal compensation ensure stable performance across arctic winter conditions and desert summer exposure.
Can the analog and digital outputs operate simultaneously without interference?

Yes. The analog circuitry is galvanically isolated from the digital communication bus, and both channels share the same internal angle calculation—enabling synchronized, time-aligned measurements.
Does the sensor require periodic recalibration in the field?

No. The SensorFUSION algorithm continuously adapts to aging effects and environmental shifts; factory calibration remains valid over the full product lifetime under specified operating conditions.
What mounting configurations are supported?

Standard options include flange-mount (M4 threaded holes), through-hole shaft coupling (6 mm D-shaft), and adapter kits for OEM-specific brackets—documentation includes GD&T tolerancing guidance for optimal magnet alignment.
Is EtherNet/IP communication certified by ODVA?

Yes. The device holds ODVA conformance certification ID 102982 and supports explicit messaging, implicit I/O connections, and embedded CIP Safety objects up to Safety Integrity Level 2 (SIL2).
