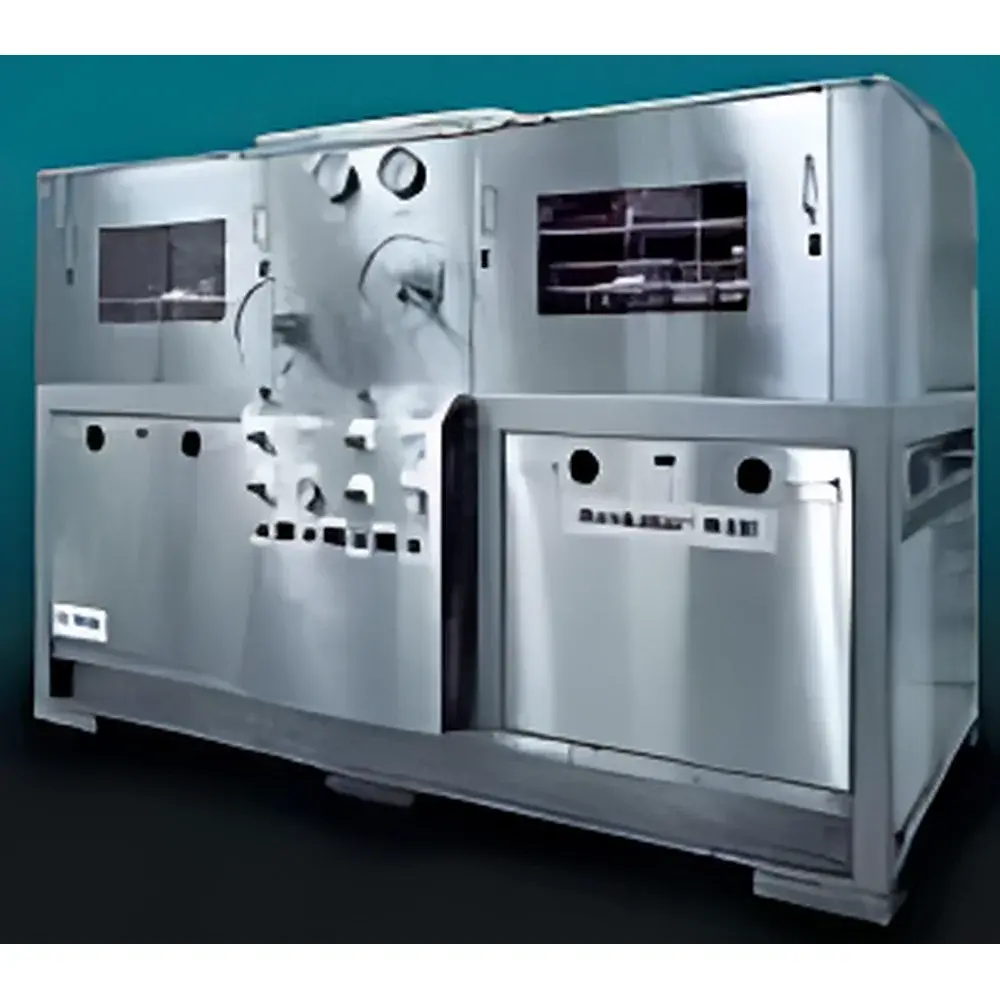

Microfluidics M-610 High-Pressure Microfluidizer® Homogenizer
| Origin | USA |
|---|---|
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Microfluidics M-610 |
| Pricing | Available Upon Request |
Overview
The Microfluidics M-610 High-Pressure Microfluidizer® Homogenizer is a production-scale, continuous-flow microfluidization system engineered for ultra-high-shear processing of complex dispersions, emulsions, suspensions, and biological samples. Unlike conventional valve-based homogenizers or rotor-stator mills, the M-610 operates on the principle of fixed-geometry interaction chamber (IXC) technology—where fluid is accelerated to supersonic velocities and subjected to controlled collision, cavitation, and intense shear within precisely machined microchannels. This physics-based mechanism ensures reproducible energy input per unit volume, enabling consistent submicron particle size reduction (typically 100–500 nm), narrow polydispersity, and high structural integrity retention in sensitive biologics. Designed for seamless scale-up from lab to pilot and manufacturing environments, the M-610 serves as a critical platform for formulation development under GMP-aligned workflows and process validation studies.
Key Features
- Patented Fixed-Geometry Interaction Chamber (IXC): Wear-resistant ceramic or diamond-coated chambers deliver consistent energy transfer without performance drift over time; no moving parts in the high-pressure zone.
- Dual-Stage Positive Displacement Pumping System: Ensures pressure stability ±0.5% across full operating range—critical for inter-batch reproducibility and regulatory compliance.
- Maximum Operating Pressure: Up to 40,000 psi (275.8 MPa), among the highest commercially available for microfluidization platforms.
- Flow Capacity: Up to 18 GPM (68 LPM) at rated pressure—adjustable via variable-frequency drive (VFD) to match rheological demands of diverse feedstocks.
- In-Place Cleaning (CIP) Capability: Integrated cleaning cycles eliminate disassembly requirements; validated protocols support FDA 21 CFR Part 11-compliant audit trails when paired with optional software modules.
- Modular Design: Configurable for single-pass or recirculation modes; compatible with sterile barrier systems, temperature-controlled jackets, and inline particle sizing sensors.
Sample Compatibility & Compliance
The M-610 processes a broad spectrum of challenging formulations—including oil-in-water and water-in-oil emulsions, nanoparticle suspensions (e.g., liposomes, polymeric NPs), cell lysates (E. coli, yeast, mammalian), and highly viscous or abrasive slurries. Its non-clogging architecture accommodates solids loading up to 40% w/w. The system meets mechanical safety standards per ANSI B11.1 and CE Machinery Directive 2006/42/EC. When integrated with validated control software and electronic logbooks, it supports GLP/GMP documentation requirements, including ALCOA+ data integrity principles and traceability of pressure/flow/time parameters per batch.
Software & Data Management
Optional Microfluidics Control Suite provides real-time monitoring of pressure, flow rate, temperature, and total processed volume. All operational parameters are timestamped and stored with user authentication and role-based access controls. Audit trail functionality complies with FDA 21 CFR Part 11 for electronic records and signatures. Export formats include CSV and PDF reports suitable for regulatory submissions (e.g., IND, BLA, DMF). Integration with LIMS and MES platforms is supported via OPC UA or Modbus TCP protocols.
Applications
- Preparation of stable nanoemulsions for pharmaceuticals, nutraceuticals, and cosmetics
- Production of uniform liposomal and lipid nanoparticle (LNP) formulations for mRNA delivery
- Cell disruption with high viability retention in protein purification workflows
- Deagglomeration of ceramic, metallic, and quantum dot nanoparticles
- Homogenization of vaccine adjuvants and virus-like particles (VLPs)
- Scale-down modeling for tech transfer between R&D, pilot plant, and commercial manufacturing sites
FAQ
What distinguishes the M-610 from conventional high-pressure homogenizers?
It employs fixed-geometry interaction chambers instead of adjustable valves—eliminating wear-induced variability and ensuring constant energy density per pass.
Can the M-610 be used for sterile processing?
Yes—when configured with sanitary tri-clamp connections, steam-in-place (SIP)-rated components, and validated CIP cycles, it meets ASME BPE and ISO 13485 requirements.
Is process validation support available?
Microfluidics provides IQ/OQ documentation templates, installation qualification checklists, and technical assistance for PQ protocol development.
What utility requirements must be confirmed prior to installation?
Three-phase 380 V AC power supply; compressed air (50–150 psi, dew point –17.7°C to +1.6°C); cooling water for hydraulic oil and optional heat exchanger circuits.
How is scalability ensured from laboratory to production?
All M-610 models share identical IXC geometry and fluid dynamics—enabling direct linear scale-up based on volumetric throughput, not empirical correlation.
