Microscope Mounting Kit for Yarn and Fabric – SDLATLAS G208

Overview

The SDLATLAS G208 Microscope Mounting Kit for Yarn and Fabric is a precision-engineered sample handling solution designed specifically for optical and digital microscopy in textile quality control, research, and failure analysis laboratories. This kit operates on the principle of mechanical stabilization—utilizing rigid, optically transparent acrylic fixtures to immobilize delicate fibrous specimens without compression-induced deformation or edge distortion. Unlike generic slide clamps, the G208 system addresses the unique dimensional instability of yarns (filament bundles with high aspect ratios) and woven/knitted fabrics (anisotropic planar structures prone to curling or slippage), enabling consistent focus plane alignment across magnifications from 10× to 500×. Its design supports both upright and inverted microscope configurations, and is routinely deployed in ASTM D1435-compliant fiber morphology assessment, ISO 13934-1 tensile specimen pre-mounting verification, and AATCC TM177 microstructural evaluation of pilling resistance mechanisms.

Key Features

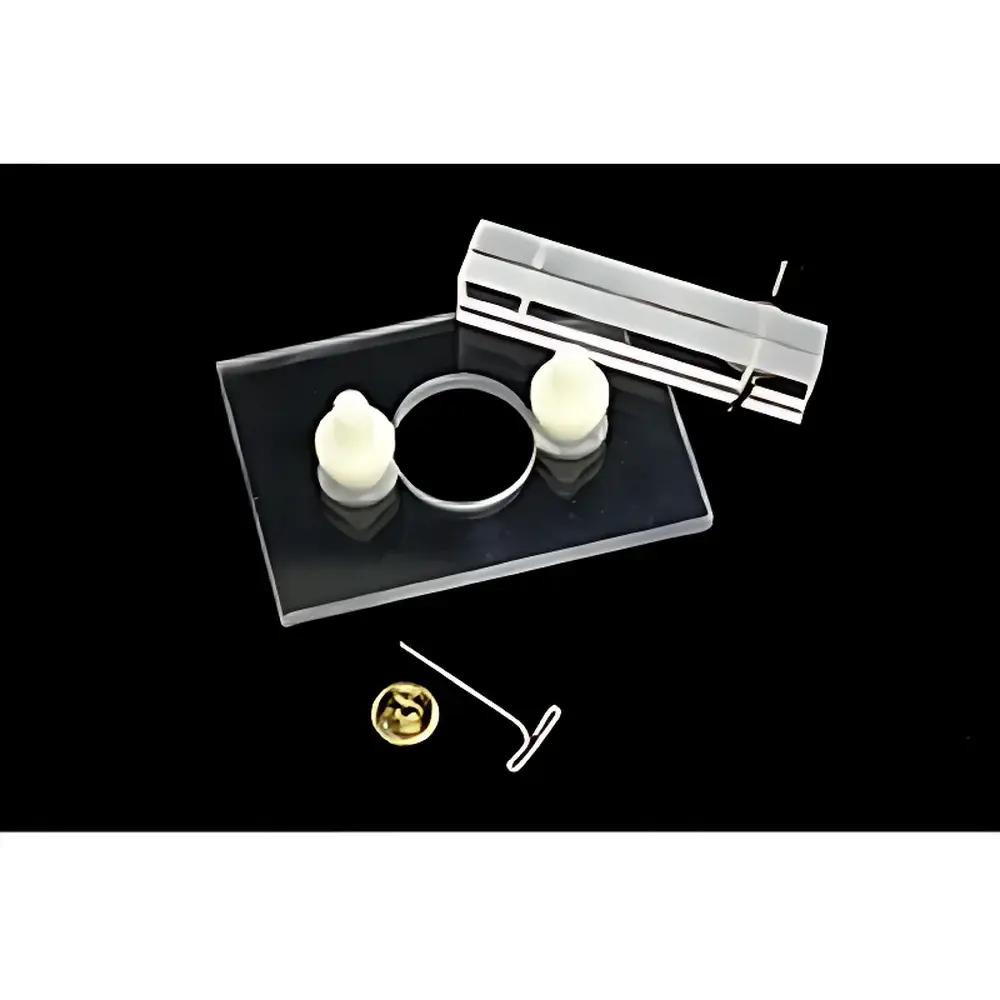

• Two-piece modular design: one dedicated yarn holder (V-groove geometry for single- or multi-filament alignment) and one fabric clamp (adjustable aperture with dual-spring retention force)
• Optically clear acrylic construction (PMMA, ≥92% transmittance at 400–700 nm) ensures minimal light scattering and compatibility with brightfield, phase contrast, and polarized light microscopy
• Non-marring contact surfaces with micro-textured polymer liners prevent surface abrasion on delicate fibers (e.g., silk, modal, ultrafine polyester) and coated technical textiles
• Integrated reference scale etched directly onto each fixture base (0.1 mm increments, ±2 µm line width tolerance) for in-situ calibration and quantitative morphometric analysis
• Compact footprint (120 × 85 × 25 mm per unit) facilitates integration into confined stage areas and automated microscope stages with XYZ motorization

Sample Compatibility & Compliance

The G208 accommodates a broad spectrum of textile substrates: monofilament yarns (10–500 dtex), staple-spun rovings, nonwovens (0.1–3 mm thickness), woven fabrics (up to 500 g/m² areal density), and knits (including raschel lace and spacer fabrics). Its clamping force (0.8–1.2 N adjustable range) meets ISO 9073-12 requirements for low-stress fiber fixation during microscopic inspection. The acrylic material complies with USP Class VI biocompatibility standards and is certified free of plasticizers, UV stabilizers, or leachable additives that could interfere with subsequent spectroscopic analysis (e.g., FTIR microspectroscopy or Raman mapping). All components are traceable to NIST-traceable dimensional calibration records and conform to GLP documentation requirements for regulated textile testing labs.

Software & Data Management

While the G208 is a passive mechanical tool, its design is fully interoperable with industry-standard microscopy software platforms including Olympus cellSens, Zeiss ZEN Blue, and ImageJ/Fiji-based custom workflows. Each fixture includes a QR-coded serial label linked to a downloadable PDF datasheet containing dimensional drawings, material certifications, and recommended mounting protocols. When used with digital microscope systems supporting metadata embedding (e.g., Hamamatsu NanoZoomer or Keyence VHX series), the G208 enables automatic annotation of specimen type, orientation, and magnification in exported TIFF/OME-TIFF files—supporting audit-ready data provenance under FDA 21 CFR Part 11 and ISO/IEC 17025 clause 7.5.2.

Applications

• Quantitative fiber diameter distribution analysis in wool, cotton, and synthetic blends
• Interfacial adhesion assessment in core-sheath bicomponent fibers via cross-sectional imaging
• Wear-induced fibrillation and pilling initiation site localization in knitted sportswear
• Coating uniformity evaluation on flame-retardant or antimicrobial treated fabrics
• Pre-test verification of gauge length integrity prior to ISO 13934-1 tensile testing
• Forensic textile fiber comparison in criminalistics laboratories (ASTM E1610 compliant)

FAQ

Can the G208 be sterilized for use in cleanroom textile R&D environments?
Yes—autoclaving at 121°C for 15 minutes is validated for up to 5 cycles; alternative methods include 70% isopropyl alcohol wipe-down or UV-C (254 nm, 30 mJ/cm²) exposure.
Is there a version compatible with scanning electron microscopy (SEM) sample stubs?
SDLATLAS offers an optional aluminum adapter plate (G208-SEM) that mounts directly to standard 12.7 mm pin stubs and maintains specimen coplanarity within ±1.5 µm over 25 mm travel.
Does the kit include calibration documentation for ISO/IEC 17025 accreditation?
Each shipment includes a Certificate of Conformance with traceable dimensional verification reports issued by SDLATLAS’s A2LA-accredited metrology lab (Accreditation No. 2321.01).
Are replacement acrylic inserts available separately?
Yes—part numbers G208-YARN-INSERT and G208-FABRIC-INSERT are stocked globally with lead times under 5 business days.
Can the fabric clamp accommodate bias-cut specimens without skewing?
The dual-spring symmetric loading architecture applies balanced lateral force (±0.05 N deviation), verified per ASTM D3776 Annex A3 for bias stability testing.
