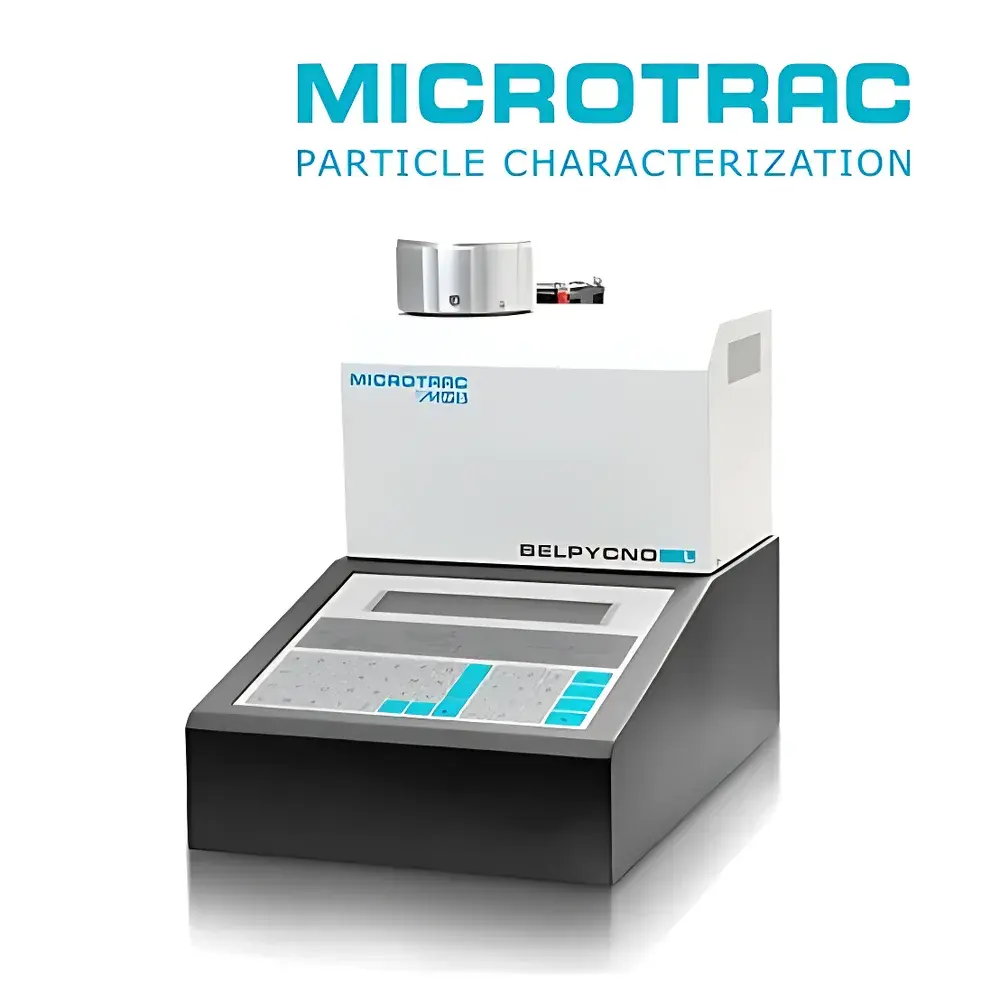

Microtrac BELPYCNO L Automatic True Density Analyzer

Overview

The Microtrac BELPYCNO L is a benchtop true density analyzer engineered for high-precision gas displacement pycnometry in research and quality control laboratories. It operates on the fundamental principle of Archimedes’ law applied to gas-phase volumetric displacement: by measuring the pressure differential between a known reference cell and a sample cell under controlled isothermal conditions, the instrument calculates the intrinsically non-porous volume occupied by a solid, powder, paste, or liquid sample. Helium is the default probe gas due to its small atomic diameter (2.6 Å), low polarizability, and near-ideal gas behavior at ambient temperatures—enabling complete penetration into interstitial voids smaller than 0.2 nm without adsorption artifacts. For materials with strong helium adsorption (e.g., activated carbon), nitrogen or sulfur hexafluoride may be substituted while maintaining traceable calibration integrity. The system’s dual-cell architecture, coupled with a 19-bit absolute pressure transducer and real-time thermal stabilization, ensures measurement traceability to SI units and compliance with international standards including ASTM D5550 (Standard Test Method for True Density of Solid Materials by Gas Pycnometry) and ISO 12154 (Determination of True Density of Solids by Gas Pycnometry).

Key Features

• Triple integrated reference cell design minimizes thermal drift and enhances long-term baseline stability during sequential measurements.
• Modular sample cell system with five standard/optional volumes (4 mL, 20 mL, 40 mL, 60 mL, 100 mL); all cells deliver identical accuracy without recalibration upon exchange.
• Peltier-based temperature control (optional) maintains sample chamber temperature within ±0.01 °C across 14–40 °C range, enabling thermally resolved density studies per ISO 4590 and ASTM D6226-10.
• Dedicated restricted exhaust port prevents powder fluidization and valve contamination during depressurization—critical for sub-10 µm particulates and aerogels.
• Adaptive inlet pressure regulation (160–240 kPa) mitigates compressibility errors in low-density foams and elastomers, satisfying method requirements for ASTM D6226-10.
• Three-point stainless steel calibration sphere set (certified volumes) supports daily verification and GLP-compliant audit trails.
• Gas handling manifold with three independent ports: regulated inlet, restricted exhaust (for fine powders), and vacuum exhaust—enabling inert-atmosphere purging or glovebox integration.

Sample Compatibility & Compliance

The BELPYCNO L accommodates dry, non-volatile solids ranging from dense ceramics (ρ > 6 g/cm³) to ultra-low-density polymer foams (ρ < 0.02 g/cm³). Its gas displacement methodology excludes closed pores and interparticle voids, reporting only the skeletal (true) density of the material matrix. This makes it indispensable for characterizing catalyst supports, pharmaceutical excipients, battery electrode materials, geological core samples, and refractory aggregates. Regulatory alignment includes full support for FDA 21 CFR Part 11-compliant data acquisition when paired with validated software (audit trail, electronic signatures, user access control). All pressure, temperature, and mass inputs are logged with timestamps and metadata, satisfying GLP/GMP documentation requirements per ISO/IEC 17025.

Software & Data Management

Instrument control and data processing are managed via the BELSoft v5.x platform (Windows-compatible), which provides automated sequence programming, real-time pressure/temperature monitoring, and ISO 17025-compliant certificate generation. Raw sensor outputs—including absolute pressure traces, thermal equilibration curves, and gas expansion profiles—are stored in open CSV format for third-party statistical analysis. The software enforces configurable pass/fail criteria based on user-defined repeatability thresholds (e.g., RSD ≤ 0.01%) and flags outliers using Grubbs’ test. Audit logs record operator ID, timestamp, calibration events, and parameter modifications—fully compliant with 21 CFR Part 11 when deployed with network authentication and encrypted storage.

Applications

• Pharmaceutical development: Quantifying crystalline vs. amorphous phase content via density deviation mapping (USP ).
• Catalyst R&D: Correlating metal dispersion and support porosity with true density shifts after thermal treatment.
• Geological surveying: Differentiating mineral phases (e.g., quartz vs. feldspar) in crushed rock samples without dissolution.
• Battery materials: Verifying tap density-independent electrode coating integrity and active material purity.
• Polymer science: Detecting crosslinking density changes in thermosets through microstructural compaction effects.
• Quality assurance: Batch-to-batch verification of sintered ceramic green bodies prior to firing.

FAQ

Why is helium the preferred gas for true density measurement?
Helium’s small kinetic diameter enables full access to nanoscale interstitial spaces without surface adsorption, ensuring accurate skeletal volume determination for most inorganic and organic solids.
Can the BELPYCNO L measure liquids?
Yes—using sealed, non-volatile liquid samples in dedicated low-volume cells; vapor pressure must remain below 1 kPa at measurement temperature.
Is temperature control necessary for routine testing?
While not mandatory for ambient-stable materials, Peltier regulation is essential for comparative studies across thermal gradients or when testing polymers with high coefficient of thermal expansion.
How does the system prevent contamination from fine powders?
A pressure-gradient-controlled exhaust path limits decompression rate to <10 mbar/s, eliminating particle entrainment and protecting solenoid valves and pressure sensors.
What validation documentation is supplied?
Each unit ships with factory calibration certificate (traceable to NIST), ASTM/ISO conformance statement, and IQ/OQ protocol templates for GxP environments.
