Microwave Digestion System with 41-Position TFM Digestion Vessels

Overview

The Binzhenghong Microwave Digestion System with 41-position TFM digestion vessels is an industrial-grade sample preparation platform engineered for high-throughput, reproducible acid digestion of solid and semi-solid matrices. Designed to meet the rigorous demands of environmental, geological, food safety, and clinical laboratories, this system operates on closed-vessel microwave-assisted acid digestion principles—leveraging controlled electromagnetic energy to rapidly elevate temperature and pressure within chemically inert TFM (perfluoroalkoxy alkane) vessels. The process enables complete decomposition of organic matter and dissolution of refractory inorganic compounds—including silicates, oxides, and alloys—while minimizing analyte loss, contamination risk, and reagent blank contribution. Its 230 °C maximum operating temperature and 1500 psi pressure rating align with established method requirements under EPA Method 3051A, ISO 15587-1, and ASTM D5511, supporting trace-level elemental analysis by ICP-OES, ICP-MS, and AAS.

Key Features

• Industrial-grade cavity constructed from reinforced stainless steel with multi-layer electromagnetic shielding, ensuring uniform field distribution and long-term operational stability under continuous high-power cycling.
• Single-magnetron microwave generator delivering up to 1800 W output power with dynamic power modulation for precise thermal ramping and hold control.
• 41-position rotor configuration accommodating 40 samples plus 1 reference/blank position—optimized for batch processing without compromising vessel-to-vessel temperature or pressure uniformity.

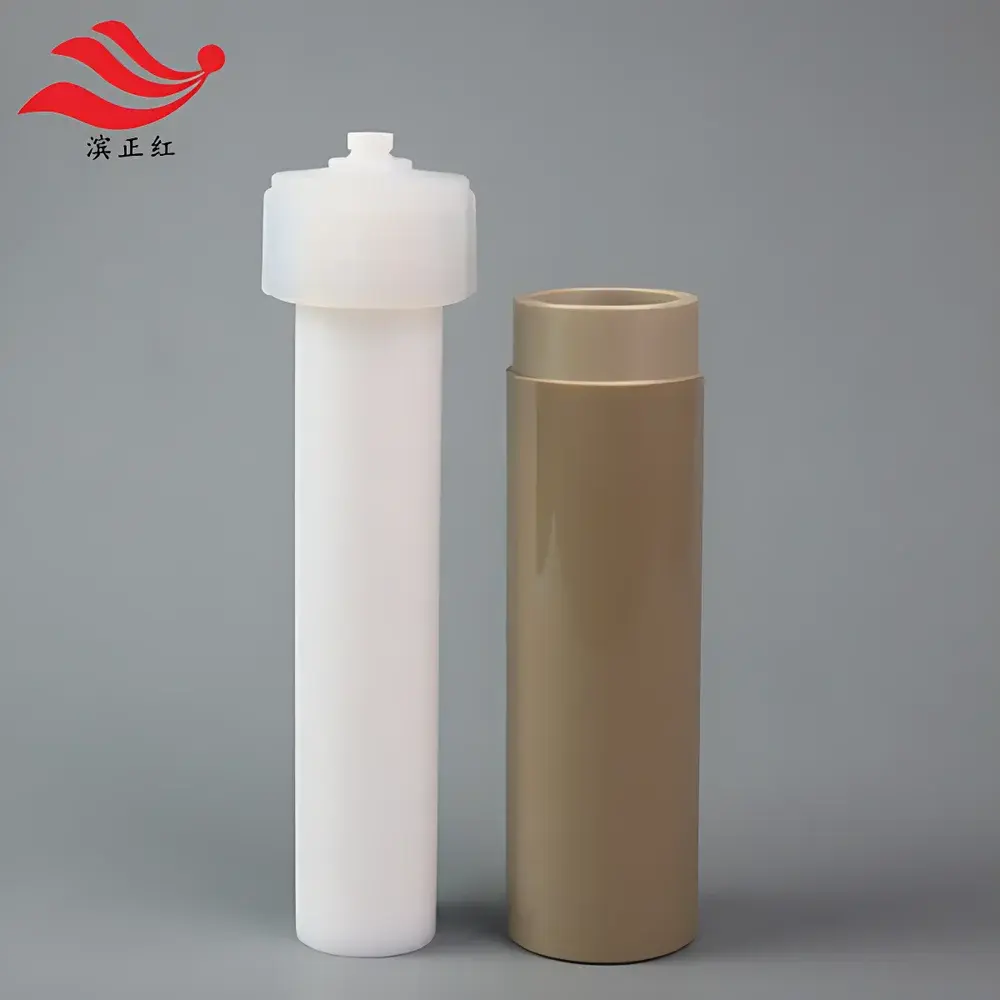

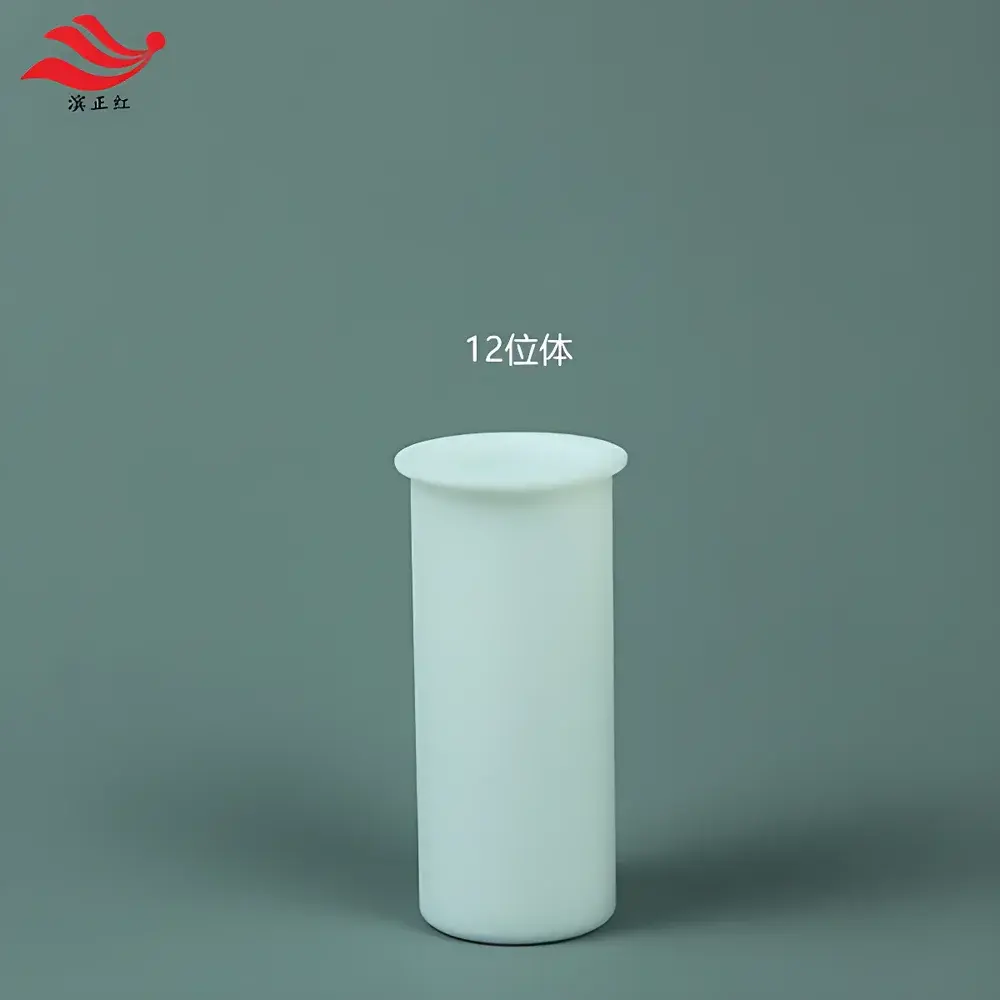

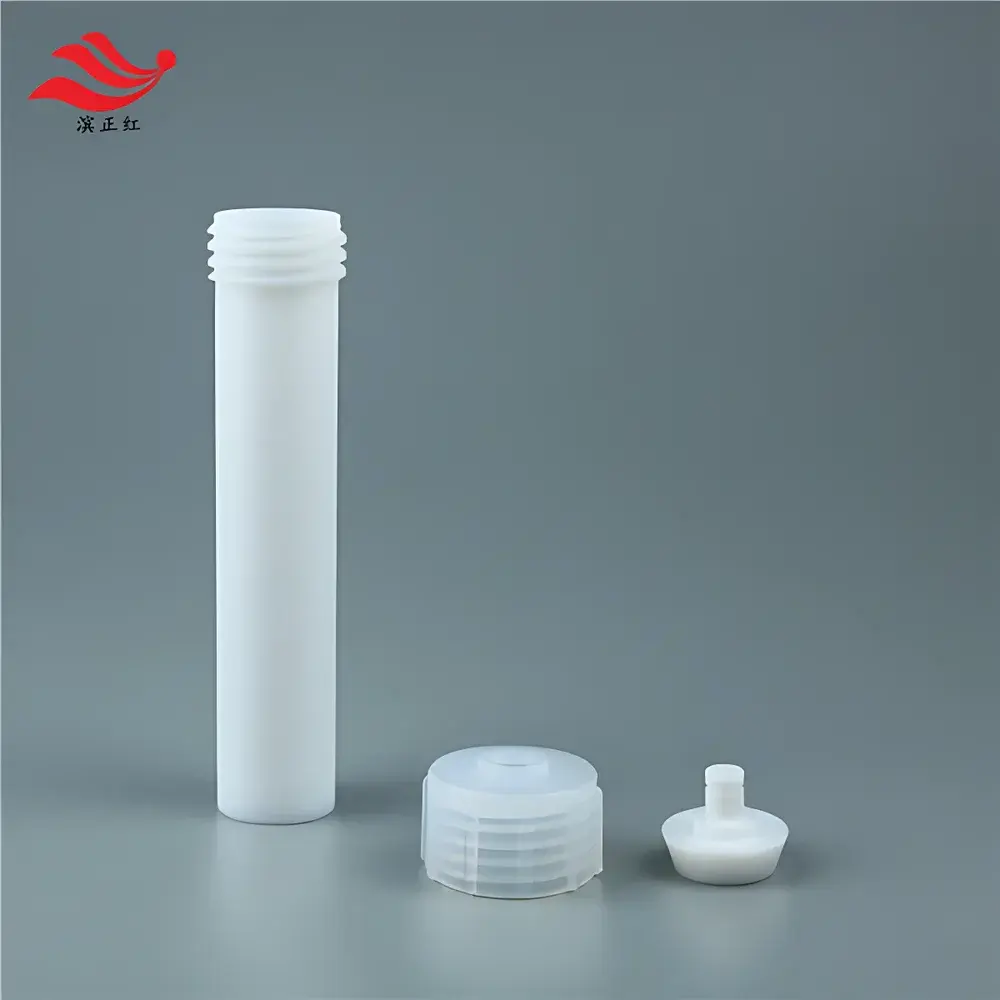

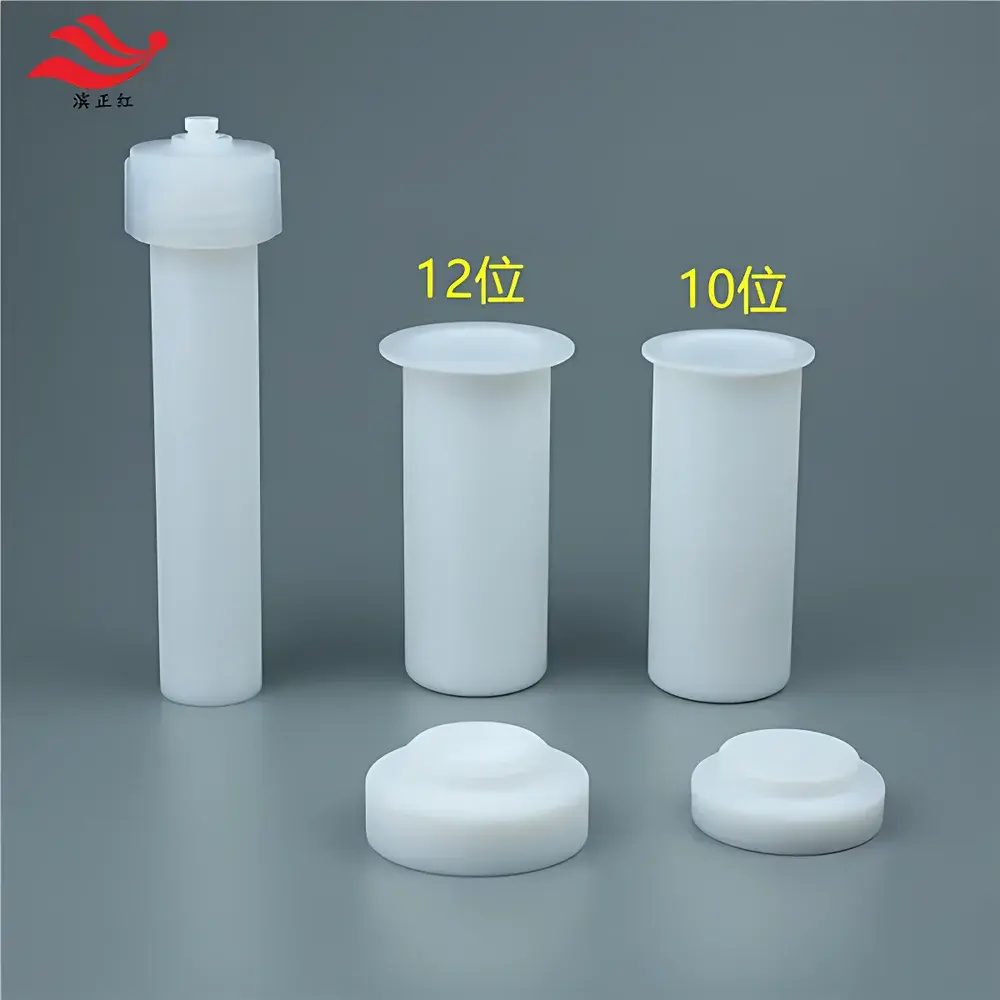

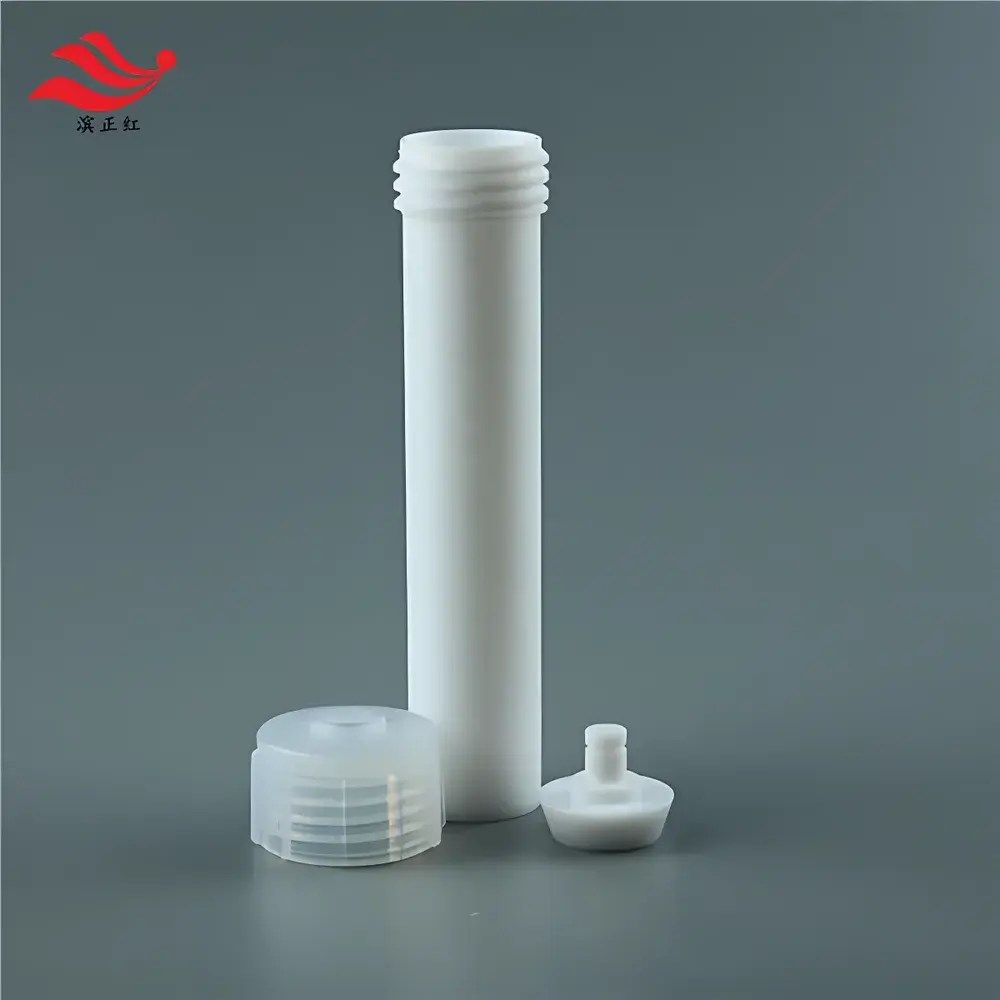

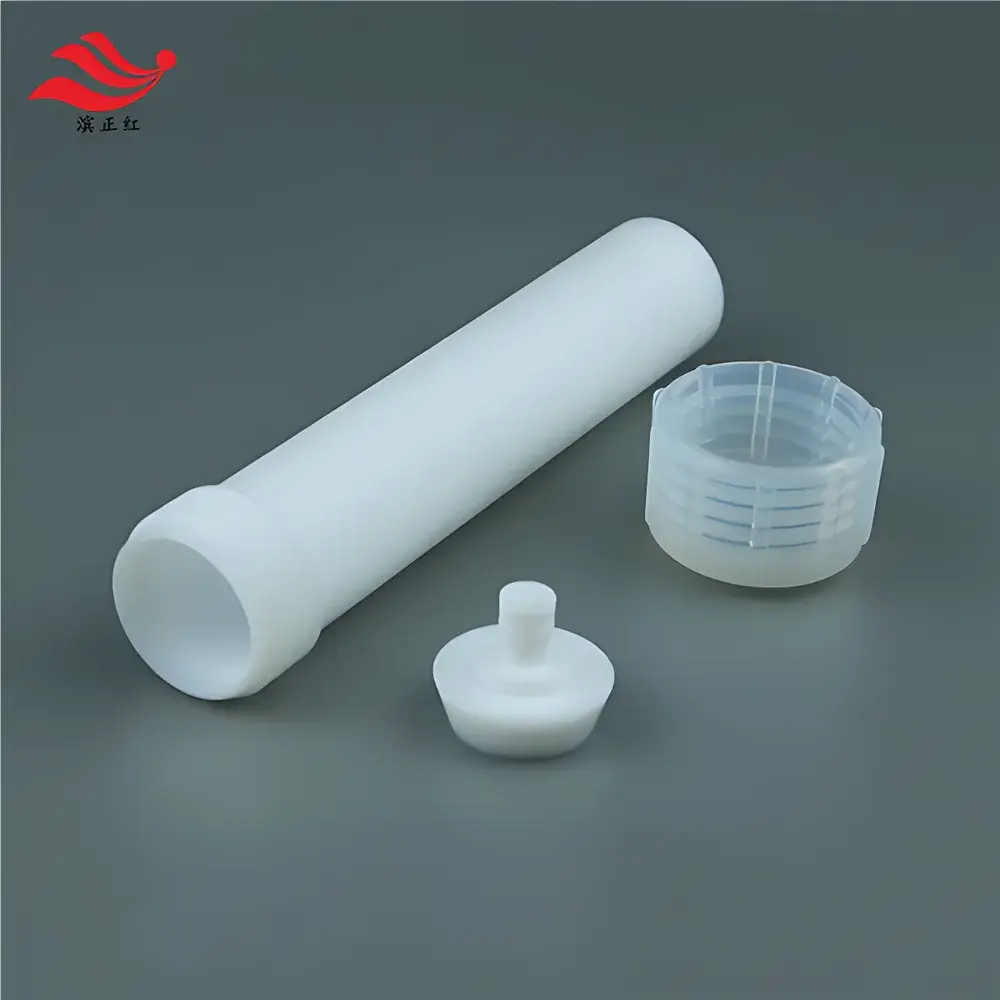

• TFM digestion vessels (60 mL nominal volume) featuring exceptional chemical resistance to HF, aqua regia, and hot concentrated acids; certified for repeated use up to 230 °C and 1500 psi with documented pressure-relief integrity.
• Real-time, non-invasive fiber-optic temperature monitoring and piezoresistive pressure sensors integrated into each vessel position, feeding data to the central control unit at 1 Hz sampling frequency.
• Automated safety interlocks including door position verification, overtemperature cutoff, overpressure venting, and magnetron current monitoring compliant with IEC 61000-6-4 and EN 61000-6-3 emission standards.

Sample Compatibility & Compliance

This system supports a broad spectrum of sample types—including soils, sediments, biological tissues, polymers, pharmaceutical excipients, and metal alloys—when prepared using HNO₃, HCl, HF, H₂O₂, or mixed acid protocols. All TFM vessels are manufactured to ISO 9001-certified quality control procedures and undergo individual burst testing prior to shipment. The digestion methodology is validated for compliance with US EPA SW-846 Methods 3050B, 3051A, and 3052; ISO 15587-1:2000; and ASTM D3682-18. Instrument operation logs—including time-stamped temperature/pressure profiles, power delivery history, and user authentication—support GLP/GMP audit readiness and 21 CFR Part 11-compliant electronic record retention when paired with optional secure software modules.

Software & Data Management

The embedded control interface provides intuitive method programming with up to 10 customizable digestion programs, each supporting multi-step ramps, holds, and cooldown sequences. Raw sensor data are exported in CSV format via USB or Ethernet; optional PC-based software enables advanced analytics—including kinetic curve fitting, pressure-temperature correlation mapping, and comparative batch trending. Audit trails record all parameter modifications, user logins, and system events with immutable timestamps. Data export formats conform to ASTM E1384 and ISO/IEC 17025 documentation requirements for accredited testing laboratories.

Applications

• Multi-element quantification in environmental monitoring (e.g., Pb, Cd, As, Hg in soil and sludge per EPA 6010D).
• Digestion of NIST SRM-certified reference materials (e.g., SRM 2711a, SRM 1573a) for laboratory proficiency testing.
• Preparation of food and feed samples for nutritional mineral analysis (Ca, Mg, Fe, Zn) under AOAC 999.10 and ISO 6497.
• Routine digestion of clinical specimens (urine, blood, hair) for toxic element screening aligned with CLIA and CAP guidelines.
• Support of R&D workflows in battery material characterization (LiCoO₂, cathode precursors) requiring total metal recovery prior to ICP-MS analysis.

FAQ

What is the maximum number of samples processed simultaneously?
The 41-position rotor accommodates 40 samples per run, with one dedicated position reserved for a process reference or blank.
Are TFM vessels compatible with hydrofluoric acid (HF)?
Yes—TFM exhibits superior resistance to HF across the full operational temperature and pressure range; however, HF usage requires strict adherence to OSHA 1910.1200 hazard communication protocols and secondary containment.
Does the system support remote monitoring or integration with LIMS?
Via optional Ethernet-enabled firmware, real-time status and exportable digestion reports can be routed to laboratory information management systems using standard TCP/IP protocols and configurable API endpoints.
Is validation documentation provided for regulatory submissions?
Binzhenghong supplies IQ/OQ documentation templates, vessel certification reports, and method verification checklists aligned with ISO/IEC 17025 and FDA guidance for instrument qualification in regulated environments.
What maintenance intervals are recommended for the magnetron and pressure sensors?
Magnetron performance verification is advised every 1,000 operating hours; pressure sensor calibration is required annually or after 500 digestion cycles—whichever occurs first—using NIST-traceable deadweight testers.
