MOCON Dansensor CheckMate 4 Headspace Gas Analyzer

Overview

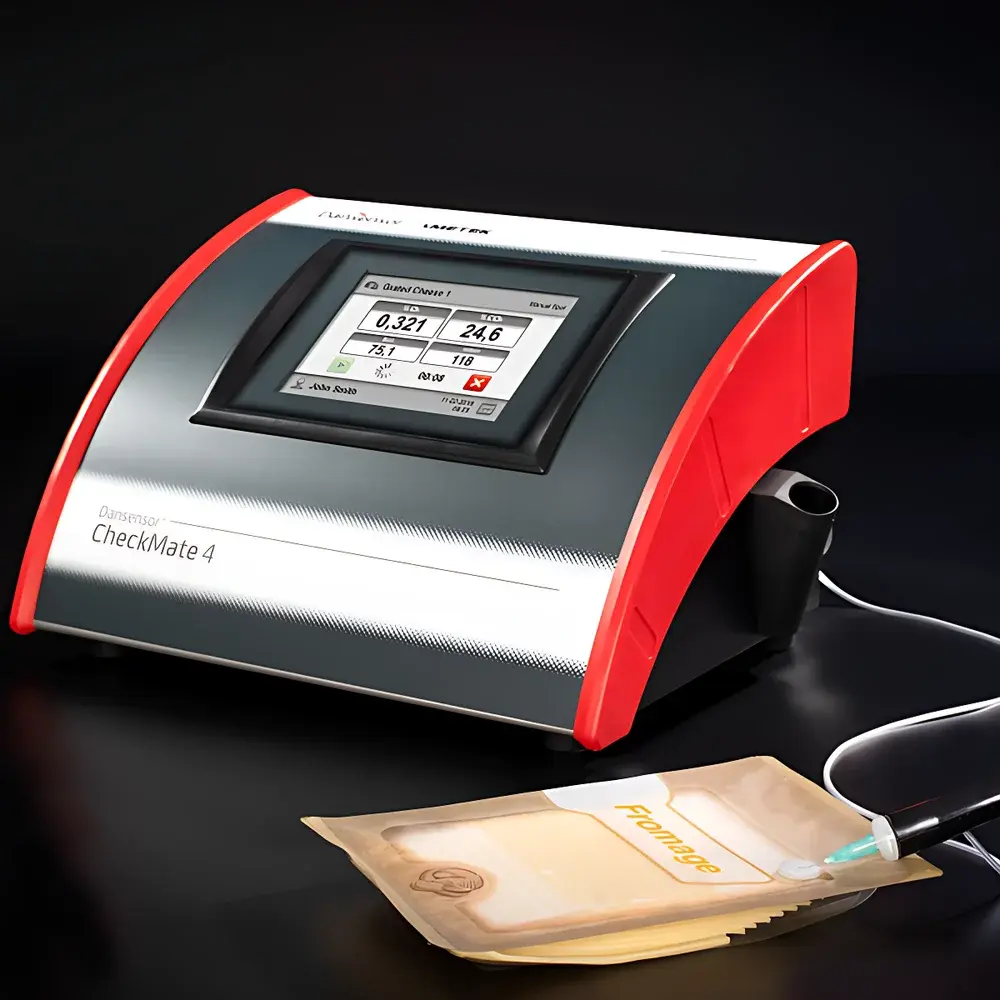

The MOCON Dansensor CheckMate 4 Headspace Gas Analyzer is a compact, benchtop analytical instrument engineered for precise, non-destructive quantification of residual oxygen (O₂) and carbon dioxide (CO₂) concentrations in the headspace of sealed food, pharmaceutical, and medical packaging. Utilizing industry-validated electrochemical sensing for O₂ and nondispersive infrared (NDIR) detection for CO₂, the CheckMate 4 delivers trace-level accuracy (<0.1% O₂, ±0.01% absolute; CO₂: 0–100%, ±0.3% full scale) under routine production conditions. Its measurement principle relies on controlled gas extraction via vacuum-assisted sampling, followed by real-time sensor response analysis within a thermally stabilized flow cell—ensuring minimal drift and high reproducibility across shifts and operators. Designed specifically for packaging integrity validation and modified atmosphere packaging (MAP) process control, the instrument supports regulatory-aligned quality assurance workflows in facilities operating under ISO 22000, IFS PACsecure, BRCGS Packaging, and FDA 21 CFR Part 11-compliant data governance frameworks.

Key Features

• Modular sensor architecture: Interchangeable, factory-precalibrated O₂-only or O₂+CO₂ dual-sensor modules enable rapid on-site replacement—typically completed in under 3 minutes without external service intervention.
• Intuitive 7-inch multi-touch interface with seven-language graphical UI (including English, Spanish, German, French, Portuguese, Russian, and Simplified Chinese), reducing operator training time and minimizing input errors.
• Secure user management system with individual login credentials, password protection, and configurable access levels—supporting separation of duties and electronic signature requirements per 21 CFR Part 11 Annex 11 guidelines.
• Onboard storage for up to 1,000 product-specific test configurations—including target gas thresholds, dwell times, purge cycles, and pass/fail criteria—enabling immediate method recall and cross-batch comparability.
• Integrated alarm logic: Visual and audible alerts trigger automatically when measured O₂ or CO₂ values exceed user-defined specification limits, facilitating real-time nonconformance identification.
• Robust sampling system featuring a maintenance-optimized diaphragm pump and low-dead-volume gas path, engineered to resist particulate ingress and moisture condensation—extending mean time between failures (MTBF) in high-humidity or dusty packaging line environments.

Sample Compatibility & Compliance

The CheckMate 4 accommodates a broad range of rigid and flexible packaging formats—including trays, pouches, blister packs, bottles, and thermoformed containers—via standardized septum-piercing or direct-port sampling interfaces. It complies with ASTM F2714–22 (Standard Test Method for Oxygen Transmission Rate of Plastic Film Using a Coulometric Sensor) for method correlation and supports internal validation against USP guidance on package integrity testing. All measurement data include embedded metadata: date/time stamp, operator ID, instrument serial number, sensor module lot ID, calibration status flag, and environmental temperature/pressure compensation values. Audit trails are immutable and exportable in CSV or XML format, meeting documentation requirements for ISO 9001:2015 clause 8.5.2 and EU Annex 11 computerized system validation.

Software & Data Management

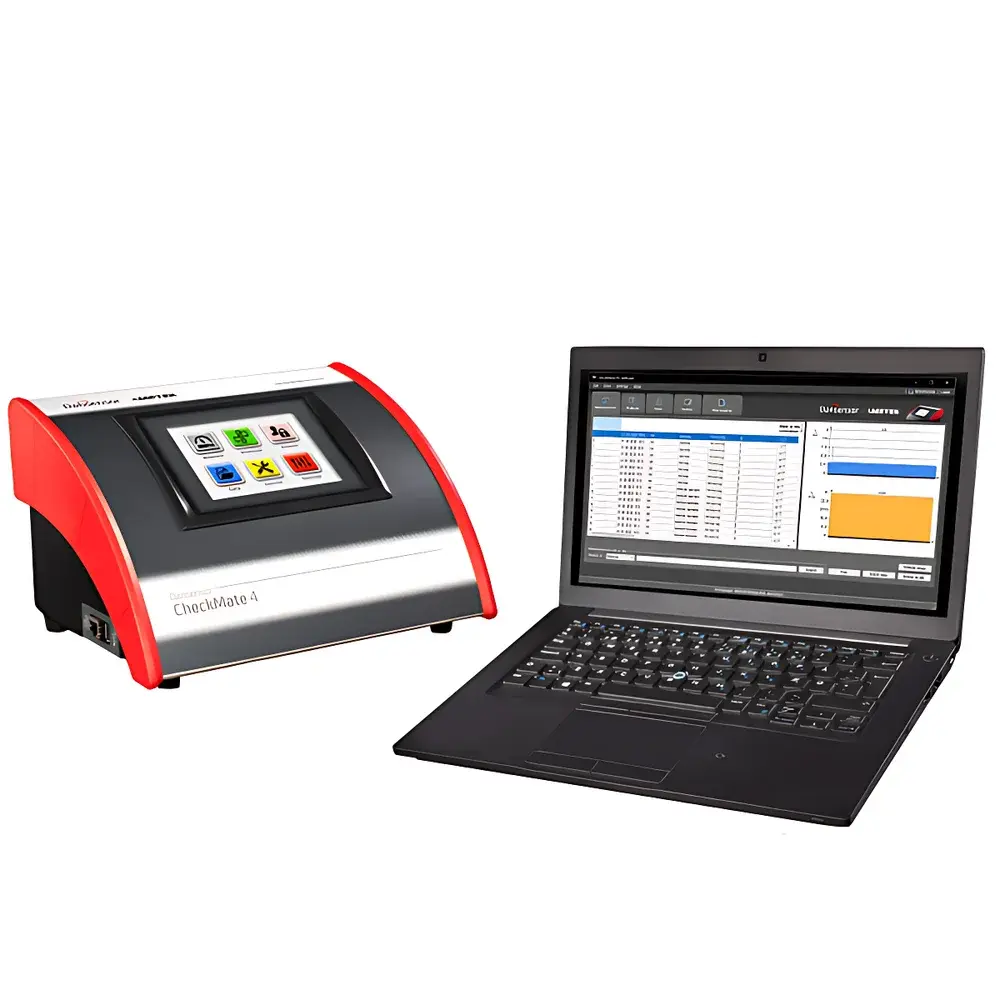

Raw and processed results are stored locally in encrypted binary format with SHA-256 hashing integrity verification. The instrument supports seamless LAN-based streaming to Dansensor’s optional PC-based DataMaster software (v5.2+), enabling centralized dashboard visualization, SPC charting (X̄-R, Cpk), automated report generation (PDF/Excel), and integration with MES or LIMS platforms via OPC UA or RESTful API. USB exports retain full metadata and digital signatures, ensuring chain-of-custody continuity during third-party review or regulatory inspection. Data retention policies can be configured to auto-archive or purge records based on organizational SOPs—fully aligned with 21 CFR Part 11 §11.10(e) record retention mandates.

Applications

• Modified atmosphere packaging (MAP) verification for fresh meat, cheese, baked goods, and ready-to-eat meals.
• Leak detection screening via headspace O₂ rise rate monitoring over time (e.g., ASTM F2338–22).
• Pharmaceutical blister pack integrity assessment for moisture-sensitive dosage forms.
• Medical device packaging validation per ISO 11607–1:2019 Annex D (gas composition stability).
• In-process quality control during form-fill-seal (FFS) line commissioning and changeover.
• Supplier qualification audits requiring objective, instrument-based headspace verification.

FAQ

What gases can the CheckMate 4 measure simultaneously?
The instrument supports either single-gas (O₂ only) or dual-gas (O₂ + CO₂) configurations. Both sensors operate concurrently with independent signal processing and real-time cross-interference compensation.
Is calibration traceable to NIST or other national standards?
Yes—factory calibration uses NIST-traceable gas standards (certified O₂ and CO₂ mixtures), and calibration certificates include uncertainty budgets compliant with ISO/IEC 17025:2017 requirements.
Can test data be exported directly to an ERP or SAP system?
Via DataMaster software or custom API integration, structured test records—including pass/fail status, raw sensor outputs, and metadata—can be mapped to enterprise systems using standard EDI or JSON payloads.
How often does the sensor module require recalibration?
Under typical use (≤10 tests/day), annual verification with certified gases is recommended; however, the modular design allows proactive replacement before performance degradation occurs—eliminating unplanned downtime.
Does the instrument support remote diagnostics or firmware updates?
Yes—when connected to a secured corporate LAN, authorized service personnel can initiate secure remote diagnostics and push validated firmware updates through encrypted TLS 1.2 channels.
