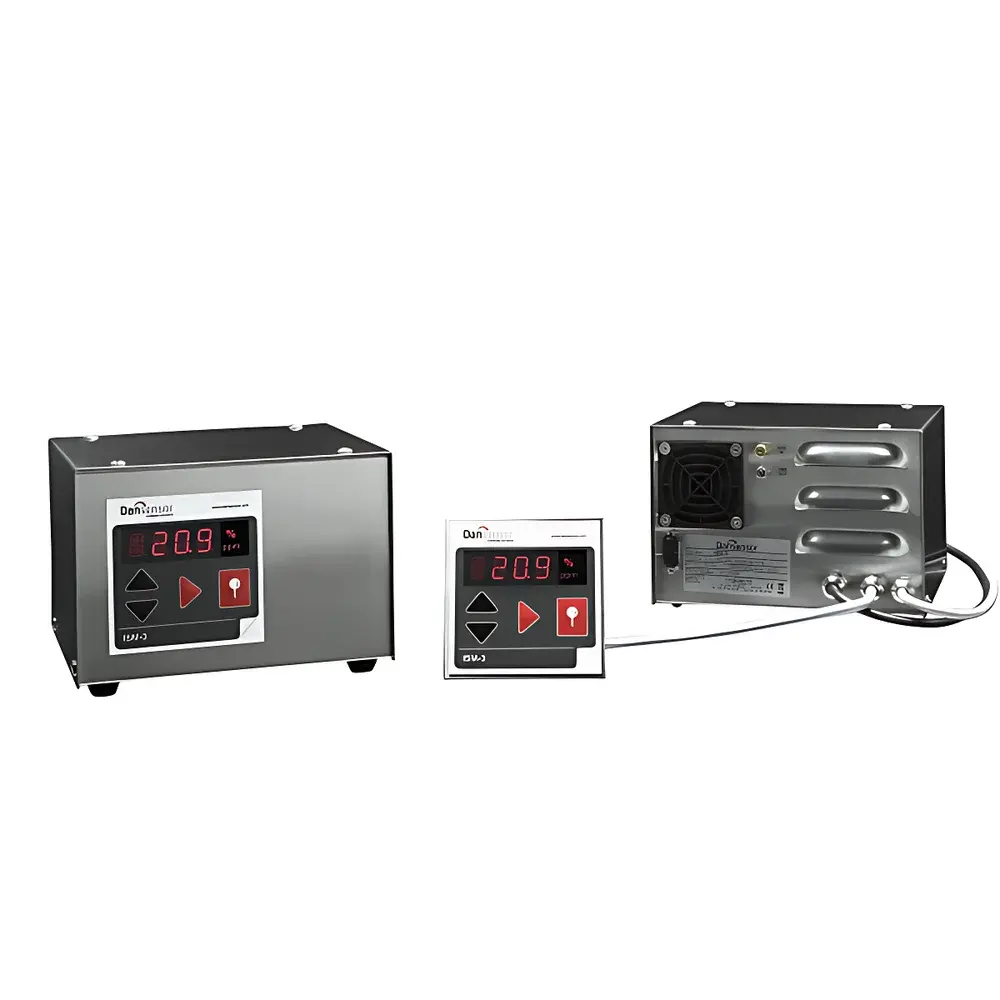

Mocon Dansensor ISM-3 Online Trace Oxygen Analyzer

Overview

The Mocon Dansensor ISM-3 Online Trace Oxygen Analyzer is a robust, industrial-grade electrochemical analyzer engineered for continuous, real-time monitoring of oxygen concentration in controlled atmosphere packaging (CAP), modified atmosphere packaging (MAP), nitrogen purge validation, and inert gas purity verification processes. Utilizing a temperature-stabilized ceramic solid-state oxygen sensor, the ISM-3 operates on the principle of potentiometric oxygen partial pressure measurement—delivering high selectivity, long-term baseline stability, and minimal cross-sensitivity to CO₂, N₂, Ar, or other common process gases. Designed for integration into production lines, gas generation systems, and storage environments, it supports both passive pressure-differential sampling and active sampling via an internal diaphragm pump (model-dependent), enabling reliable operation across low-flow (<100 mL/min) and pressurized (up to 1.5 bar g) gas streams. Its architecture meets the functional safety and repeatability requirements of ISO 8573-7 (compressed air purity), ASTM D3107 (oxygen permeation in packaging), and EU GMP Annex 1 guidance for environmental monitoring in sterile processing.

Key Features

• Trace-level detection capability down to 1 ppm O₂ with ±1% of reading accuracy across full 0–100% range (calibrated 0–20.9% standard)
• Ceramic solid-state electrochemical sensor with >24-month typical service life and no consumable electrolytes
• Self-diagnostic firmware continuously monitors sensor health, flow integrity, temperature drift, and signal noise—logging fault codes per IEC 61508 SIL 1 guidelines
• Dual independent O₂ concentration alarms with user-configurable thresholds and relay outputs (SPST, 48 V / 1 A max)
• Standard 4–20 mA analog output with HART-compatible option; configurable voltage output (0–10 V) available upon request
• Modular hardware variants: ISM-3i (integrated display), ISM-3x (external display interface), ISM-3i Pump & ISM-3x Pump (built-in sampling pump)
• Stainless-steel IP65 enclosure rated for washdown environments and Class II, Division 2 hazardous locations (non-incendive design)
• Power input flexibility: dual-voltage auto-sensing (115/230 VAC, 50–60 Hz) with transient surge protection

Sample Compatibility & Compliance

The ISM-3 is validated for use with dry, non-corrosive gas matrices including medical-grade nitrogen (ISO 8573-1 Class 1), food-grade CO₂ (EN 14757), argon, helium, and compressed air. It is not intended for use with condensing, acidic, or solvent-laden streams without prior conditioning (e.g., particulate filtration, coalescing, and desiccation). The analyzer complies with CE marking requirements under the EU Electromagnetic Compatibility Directive 2014/30/EU and Low Voltage Directive 2014/35/EU. Its calibration traceability follows ISO/IEC 17025-accredited procedures using NIST-traceable O₂ standards (e.g., Air Liquide CertiGas®). For pharmaceutical applications, the device supports 21 CFR Part 11-compliant data logging when paired with Mocon’s optional MAP DataLink software suite—including electronic signatures, audit trails, and user access controls aligned with ALCOA+ principles.

Software & Data Management

While the ISM-3 operates as a standalone field instrument, its analog outputs integrate seamlessly with PLCs (Siemens S7, Allen-Bradley ControlLogix), SCADA systems (Ignition, WinCC), and MES platforms via standard 4–20 mA loop interfaces. Optional MAP DataLink software enables periodic data export in CSV or Excel format, time-stamped trend visualization, and automated report generation for QA documentation. All configuration parameters—including alarm setpoints, zero/span calibration dates, and flow compensation factors—are stored in non-volatile memory with write-protection to prevent unauthorized modification. Firmware updates are performed via USB port using Mocon-certified binaries, maintaining version control and change management logs required under ISO 9001:2015 Clause 8.5.1.

Applications

• Residual oxygen quantification during MAP line validation (e.g., red meat, cheese, ready meals)
• Nitrogen generator outlet purity verification (ISO 8573-7 Class 2 compliance)
• Inert gas blanketing monitoring in pharmaceutical vial filling isolators
• Leak rate estimation in hermetically sealed blister packs via headspace O₂ rise rate analysis
• CO₂ laser cutting assist gas purity assurance in precision metal fabrication
• Controlled atmosphere storage monitoring for horticultural post-harvest facilities (CA rooms)

FAQ

What is the recommended calibration frequency?
The ISM-3 is factory-calibrated with NIST-traceable gases and requires recalibration every 12 months under normal operating conditions. More frequent calibration may be necessary if exposed to extreme temperature cycling (>30 °C/h), mechanical shock, or gas streams containing silicone vapors or halogenated hydrocarbons.
Can the ISM-3 measure oxygen in high-CO₂ environments such as MAP headspace?
Yes—the ceramic sensor exhibits negligible interference from CO₂ concentrations up to 100%, making it suitable for direct headspace analysis of coffee, baked goods, and snack foods packaged under 30–100% CO₂ mixtures.
Is the built-in pump version suitable for vacuum sampling?
No. The internal diaphragm pump is rated for positive-pressure sampling only (up to 1.5 bar g). Vacuum or sub-atmospheric sampling requires external vacuum pumps and flow regulators to maintain stable 125 mL/min inlet flow.
Does the ISM-3 support Modbus RTU or Ethernet/IP communication protocols?
Not natively. Communication is analog-only (4–20 mA / 0–10 V). Digital protocol integration requires third-party analog-to-Modbus gateways certified for industrial automation use.
How does the self-diagnostic system alert users to sensor degradation?
The firmware continuously evaluates signal-to-noise ratio, zero drift rate, and response time decay. When degradation exceeds predefined thresholds, it triggers a “Sensor Health Warning” on the display and activates the system fault alarm output—prompting scheduled replacement before measurement uncertainty exceeds ±2% of reading.
