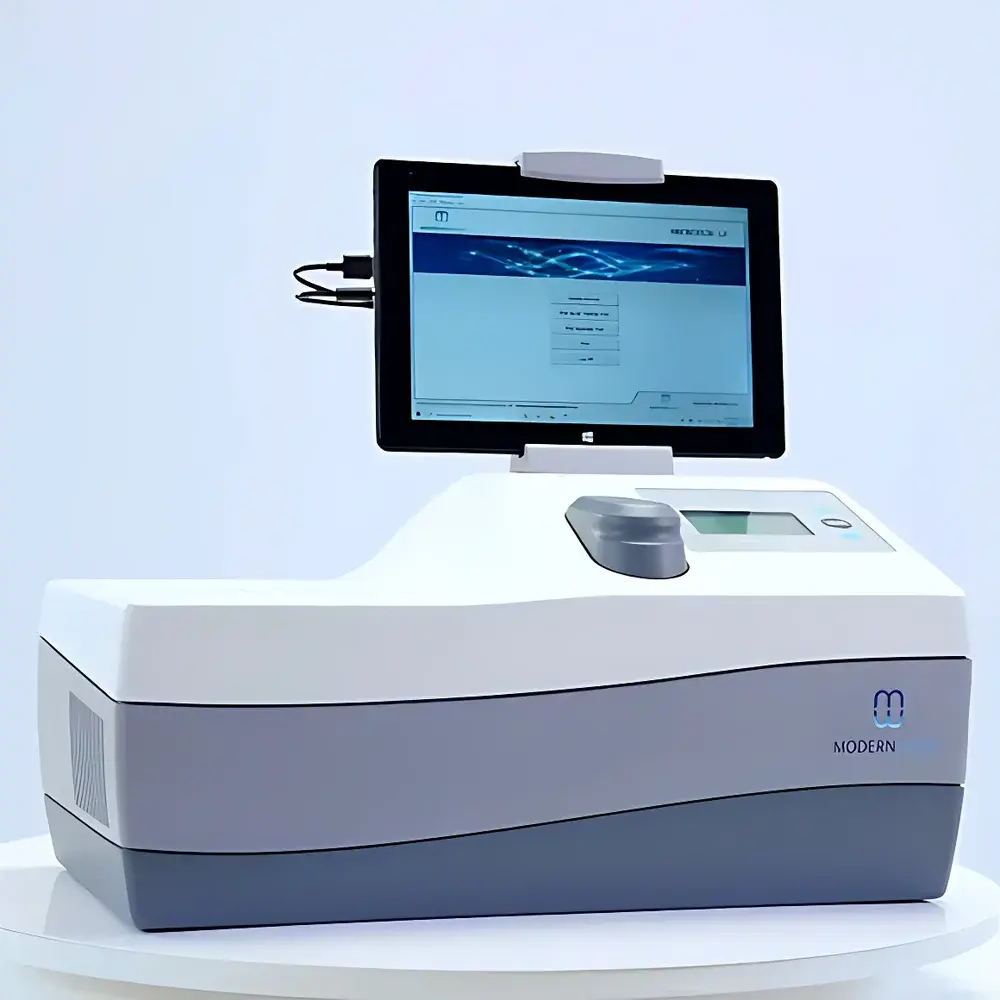

Modern Water Microtox® LX Laboratory Bioluminescent Toxicity Analyzer

Overview

The Modern Water Microtox® LX Laboratory Bioluminescent Toxicity Analyzer is a precision-engineered instrument for rapid, quantitative assessment of acute aquatic toxicity using the standardized bioluminescence inhibition method. It leverages the metabolic response of the marine bacterium Aliivibrio fischeri—a well-characterized, non-pathogenic, freeze-dried bioluminescent organism—to detect toxicants in water and aqueous extracts. Upon exposure to toxic compounds, cellular respiration in the bacteria is impaired, resulting in a measurable, dose-dependent reduction in light output. This photonic signal is captured by a full-dynamic-range photomultiplier tube (PMT) with high quantum efficiency and low dark current, enabling detection of sub-lethal stress responses within minutes. Unlike traditional bioassays requiring 24–96 hours (e.g., Daphnia or fish lethality tests), the Microtox® LX delivers statistically robust EC₅₀ or % inhibition values in as little as 5 minutes for acute assays—making it ideal for emergency response, regulatory compliance screening, and routine quality assurance in drinking water, wastewater, and industrial effluent laboratories.

Key Features

• High-sensitivity PMT detection system: Full-dynamic-range photomultiplier tube optimized for low-light quantification across five orders of magnitude (0.1–100,000 relative light units), minimizing saturation and improving linearity at both low- and high-toxicity extremes.
• Active dual-zone thermal regulation: Independently controlled cooling systems maintain reagent storage at 5.5 °C ± 1.0 °C and sample/read chambers at 15.0 °C ± 0.5 °C—critical for preserving bacterial viability and assay reproducibility across ambient lab conditions.
• Automated chromatic correction: Real-time optical compensation for sample color and turbidity using dual-wavelength referencing, eliminating manual dilution corrections and reducing inter-operator variability.
• Integrated touchscreen workflow: Preloaded Windows 10-based Microtox LX software guides users through calibration, sample loading, kinetic measurement, and statistical analysis—including built-in ISO 11348-3-compliant data reduction, outlier rejection, and confidence interval estimation.
• Regulatory-grade traceability: Audit-ready electronic records with time-stamped operator logins, instrument calibration history, reagent lot tracking, and raw luminescence curves—all compliant with GLP and aligned with FDA 21 CFR Part 11 requirements for electronic signatures and data integrity.
• Low operational cost & minimal sample volume: Requires only 100–500 µL per test; proprietary lyophilized A. fischeri reagents are manufactured under ISO 13485-certified processes, ensuring batch-to-batch consistency and validated sensitivity to >5,000 organic and inorganic toxicants.

Sample Compatibility & Compliance

The Microtox® LX supports direct analysis of filtered or centrifuged aqueous samples—including raw and treated drinking water, municipal and industrial wastewater, leachates, surface runoff, seawater, drilling fluids, and aqueous extracts from soils, sediments, and solid matrices. Sample preparation follows ISO 11348-3 and ASTM D5660-22 protocols for acute toxicity testing with bioluminescent bacteria. The system is routinely cited in national monitoring programs (e.g., UK Environment Agency, U.S. EPA Method 1002.0) and has been deployed for real-time water safety verification at major international events since the 1996 Atlanta Olympics. All hardware and firmware comply with IEC 61010-1 (safety), IEC 61326-1 (EMC), and CE/FCC regulatory frameworks. Reagent manufacturing adheres to ISO 13485:2016, ensuring full product traceability from raw material sourcing to final release testing.

Software & Data Management

The embedded Microtox LX software provides a complete analytical environment compliant with laboratory information management system (LIMS) integration standards. It supports automated report generation in PDF and CSV formats, customizable templates for regulatory submissions (e.g., ISO, USP , EU Water Framework Directive), and configurable pass/fail thresholds based on site-specific action limits. Raw luminescence kinetics (0–60 min), normalized inhibition curves, and EC_x confidence intervals are stored with metadata including environmental chamber temperature, reagent lot number, operator ID, and instrument serial number. Data export interfaces include USB mass storage, encrypted Wi-Fi transfer, and Bluetooth pairing with external printers or barcode scanners. Software updates are delivered via secure HTTPS channels with cryptographic signature validation.

Applications

• Drinking water source protection and early-warning monitoring for accidental or intentional contamination
• Wastewater treatment plant influent/effluent compliance verification against local discharge permits (e.g., NPDES, IPPC)
• Rapid screening of industrial process waters, cooling tower fluids, and pharmaceutical manufacturing rinse waters
• Toxicity profiling of mining leachates, fracking fluids, and dredged sediment elutriates
• Regulatory testing of consumer products (food packaging, cosmetics, household cleaners) per OECD 201 and ISO 11348 series
• Academic and R&D studies on mixture toxicity, bioavailability, and structure–activity relationships (SAR)
• Validation of advanced oxidation processes (AOPs), membrane filtration, and activated carbon adsorption efficacy

FAQ

What biological endpoint does the Microtox® LX measure?
It quantifies the inhibition of bioluminescence in Aliivibrio fischeri following 5-, 15-, or 30-minute exposures—a proxy for metabolic disruption and acute cytotoxicity.
Is the Microtox® LX method internationally standardized?
Yes. It is formally recognized in ISO 11348-3:2022, ASTM D5660-22, and several national regulations as a validated alternative to vertebrate bioassays.
Can the system analyze colored or turbid samples without pretreatment?
Yes. Its integrated chromatic correction algorithm compensates for absorbance and scattering effects up to 1.5 AU at 450 nm and NTU ≤ 200, reducing reliance on dilution or filtration.
How is reagent stability ensured between uses?
Lyophilized A. fischeri vials are stored at 2–8 °C and retain full activity for ≥18 months; the instrument’s refrigerated reagent chamber maintains optimal storage conditions during operation.
Does the software support multi-user environments with role-based access control?
Yes. Administrator, analyst, and reviewer roles enforce separation of duties, with password-protected method editing, result modification logging, and electronic signature workflows.
