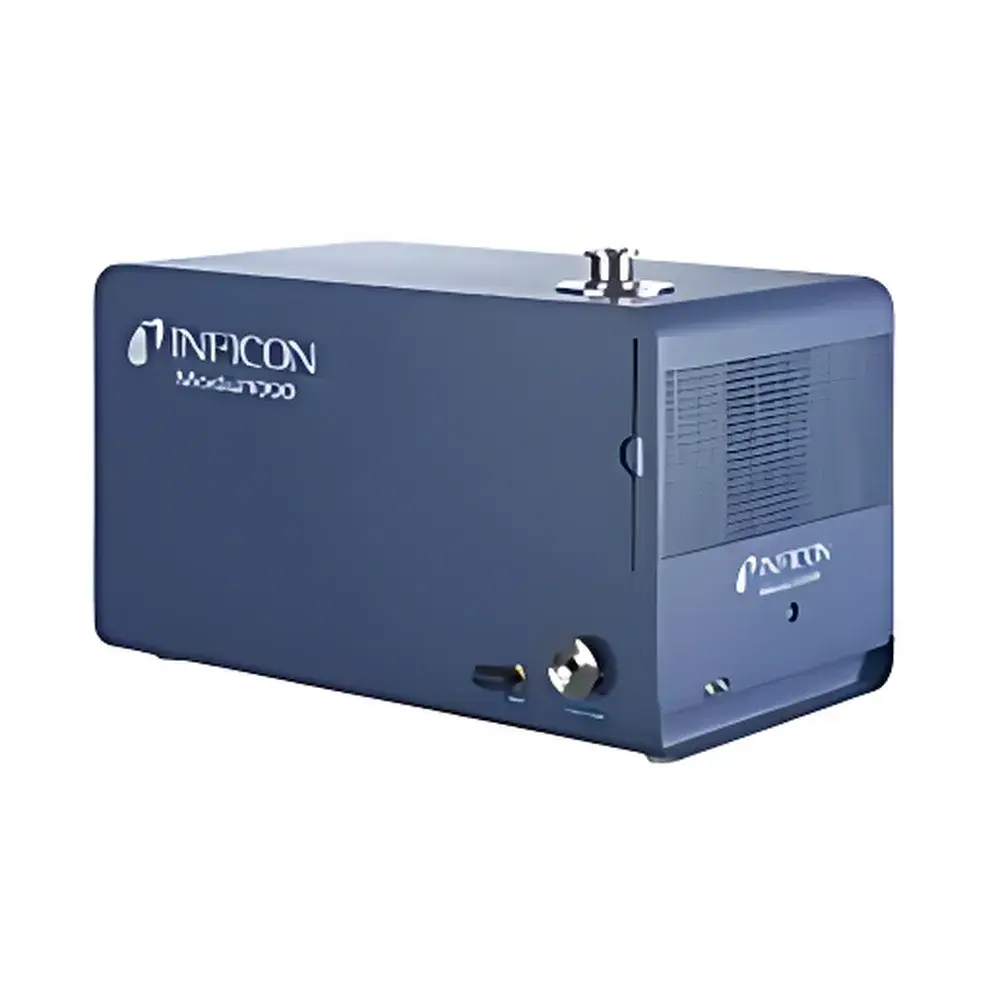

Modul1000 Helium Leak Detector

Overview

The Modul1000 Helium Leak Detector is a high-performance, modular mass spectrometer–based leak detection system engineered for precision quantitative measurement of helium tracer gas in industrial vacuum and sniffer-mode applications. Utilizing quadrupole mass spectrometry (QMS) with optimized ion optics and a cold cathode ion source, the Modul1000 detects helium (mass-to-charge ratio m/z = 4) with exceptional selectivity against background gases such as hydrogen, water vapor, and nitrogen. Its operational principle relies on the differential pumping architecture and calibrated response factor methodology compliant with ISO 10648-2 and ASTM E493 standards for helium leak testing. Designed for integration into automated production lines, R&D laboratories, and quality assurance environments, the Modul1000 supports test volumes ranging from 0.01 L to 1000 L — enabling reliable leak rate quantification across small electronic enclosures, automotive brake components, medical device packaging, and large HVAC heat exchangers.

Key Features

• Wide dynamic detection range: 1 × 10⁻¹² to <5 × 10⁻¹² mbar·L/s (helium), validated per ISO 20487 calibration protocols
• Modular vacuum architecture compatible with all standard forepumps (rotary vane, dry scroll, and turbomolecular), eliminating pump-specific reconfiguration
• Integrated I-CAL adaptive algorithm — automatically compensates for pressure drift, temperature fluctuation, and sensor aging to maintain measurement linearity across full scale
• 3.5-inch full-color resistive touchscreen interface with intuitive icon-driven navigation and multilingual UI support (English, German, French, Chinese)
• Flexible control options: local HMI, wired RC1000C controller (daisy-chainable up to 4 units), wireless RC1000WL remote (100 m range, >8 h battery life, 2.4 GHz ISM band)
• Self-diagnostic firmware with real-time status reporting for filament health, detector gain, vacuum integrity, and calibration validity
• Low total cost of ownership: no consumables required; service intervals extended to 12 months under normal operation; minimal helium consumption (<15 mL/min during continuous sniffing)

Sample Compatibility & Compliance

The Modul1000 accommodates diverse sample geometries and materials — including metallic, polymer, ceramic, and laminated barrier structures — without requiring surface preparation or coating. It complies with ISO 10648-1 (leak detection terminology), ISO 10648-2 (performance requirements), and EN 15090 (leak testing of medical devices). For regulated industries, its firmware supports audit-ready operation: event logging with timestamped operator ID, configuration change tracking, and GLP/GMP-compliant data export via USB or Ethernet. Optional 21 CFR Part 11 compliance package includes electronic signature capability, role-based access control, and immutable audit trail generation.

Software & Data Management

The embedded operating system enables seamless data handling through multiple interfaces: USB host port for I-STICK flash drive (FAT32 formatted) to save setup profiles, calibration logs, and test reports; RS-232/RS-485 serial output for PLC integration; Ethernet TCP/IP stack supporting Modbus TCP and custom SCADA protocols. All measurement data are stored internally with time-stamped metadata (test ID, operator, date/time, ambient conditions). Export formats include CSV (for Excel analysis), PDF (formatted test certificates), and XML (for MES/LIMS ingestion). Remote firmware updates and diagnostic telemetry are supported via secure HTTPS endpoint.

Applications

• Automotive: EV battery module sealing verification, fuel rail integrity testing, airbag inflator housing inspection
• Medical Devices: Sterile barrier packaging validation (ISO 11607), implantable device hermeticity screening, IV bag leak rate certification
• Vacuum Technology: UHV chamber component qualification, sputtering target mounting integrity, cryogenic seal verification
• Energy & Power: Heat exchanger tube sheet weld inspection, transformer oil tank leakage screening, solar thermal absorber manifold testing
• Aerospace: Avionics enclosure pressurization checks, satellite propulsion system component leak mapping, composite fuel tank structural integrity assessment

FAQ

What vacuum level is required for optimal sensitivity?
The Modul1000 achieves its specified minimum detectable leak rate at ≤1 × 10⁻³ mbar base pressure; recommended ultimate vacuum is ≤5 × 10⁻⁴ mbar using a suitable forepump and backing line.
Can the Modul1000 be used in sniffer mode without a vacuum chamber?
Yes — it supports dedicated sniffer probe operation with integrated helium background suppression and real-time concentration display (ppm He in air), fully compliant with ASTM E1417 Annex A3.
Is helium calibration traceable to national standards?
Calibration is performed using NIST-traceable helium permeation standards (e.g., Vici Metronics P-10 series) with documented uncertainty budgets per ISO/IEC 17025.
Does the unit support multi-point sequential testing?
Yes — programmable test sequences (up to 99 steps) can be defined and stored locally or loaded via I-STICK, enabling automated scanning across multiple ports or zones.
What is the mean time between failures (MTBF) under continuous operation?
MTBF exceeds 12,000 hours based on field data from 2020–2023 deployments in Tier-1 automotive and medical OEM facilities.
