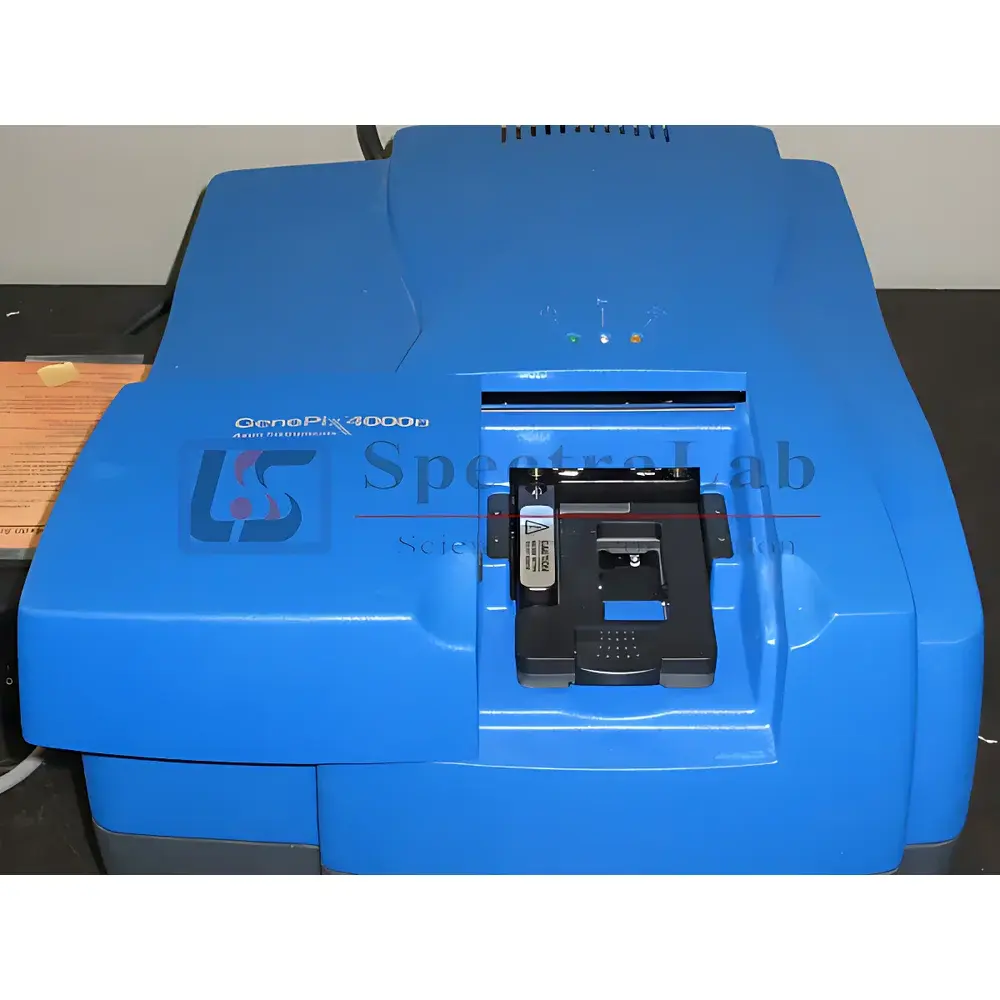

Molecular Devices GenePix 4000B Microarray Scanner

Overview

The Molecular Devices GenePix 4000B Microarray Scanner is a high-performance, non-confocal epifluorescence imaging system engineered for quantitative, reproducible detection of nucleic acid, protein, tissue, and cell-based microarrays. Unlike confocal scanners optimized for thick-sectioned histological samples, the GenePix 4000B employs a wide-field epifluorescence optical architecture specifically designed for planar microarray substrates—including glass slides, membrane-coated supports, and embedded arrays—where uniform illumination and consistent signal capture across variable surface topographies are critical. Its dual-laser excitation system (532 nm and 635 nm) enables simultaneous two-color fluorescence acquisition without mechanical wavelength switching, eliminating temporal misalignment between channels and ensuring pixel-registered ratiometric quantification. This architecture directly supports differential gene expression profiling, comparative genomic hybridization (CGH), antibody microarray screening, and spatial proteomics workflows under standardized laboratory conditions.

Key Features

• Dual-wavelength synchronous scanning: Simultaneous excitation and detection at 532 nm and 635 nm ensures true real-time ratio imaging, minimizing photobleaching artifacts and inter-channel registration drift.
• Motorized focus control with manual Z-axis override: Enables precise focal plane adjustment for non-planar substrates such as nitrocellulose membranes or recessed microarray wells—critical for maintaining signal fidelity across heterogeneous slide chemistries.
• Auto-PMT gain optimization: GenePix Pro software dynamically calculates optimal photomultiplier tube gain per channel based on pilot scan intensity histograms, delivering balanced signal-to-noise ratios without user intervention.
• Resolution flexibility: Adjustable scan resolution from 5 µm to 100 µm permits trade-offs between spatial detail and file size—validated at factory level to maintain ≤5 µm optical resolution across full field-of-view.
• Onboard laser power stabilization: Integrated feedback loops continuously monitor and compensate for diode output fluctuations, ensuring per-pixel signal stability over extended acquisition sessions (>8 hours).

Sample Compatibility & Compliance

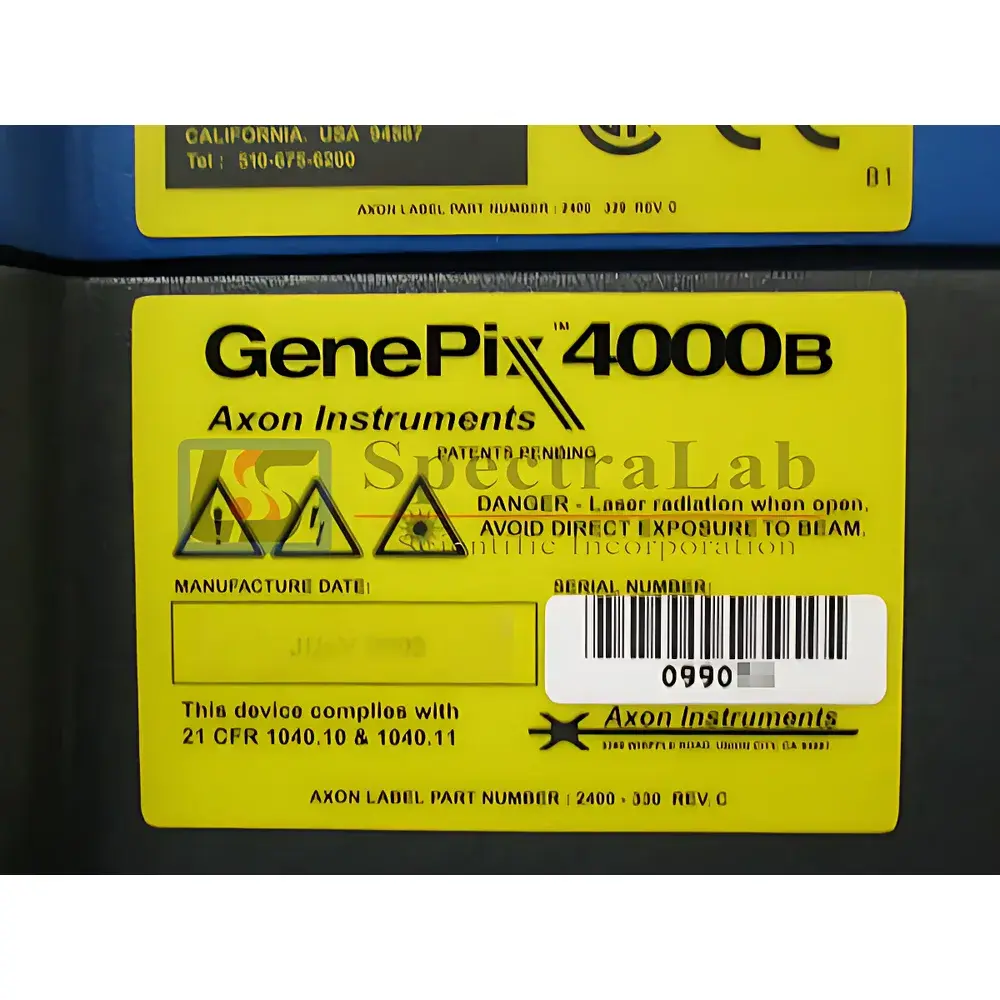

The GenePix 4000B accommodates standard 25 × 75 mm microscope slides and custom-format arrays with thicknesses ranging from 0.9 mm to 1.5 mm. Its non-confocal design eliminates depth-of-field constraints inherent in confocal systems, enabling reliable imaging of uneven surfaces including epoxy-coated, aldehyde-silanized, and hydrogel-embedded substrates. All units undergo performance verification per ASTM E2535-21, which defines metrics for scanner linearity, uniformity, sensitivity, and inter-instrument reproducibility. Calibration reports include NIST-traceable reference slide measurements (e.g., CodeLink Control Slides) and are archived for GLP/GMP audit readiness. The instrument meets ISO/IEC 17025 requirements for testing laboratories when operated within validated SOPs.

Software & Data Management

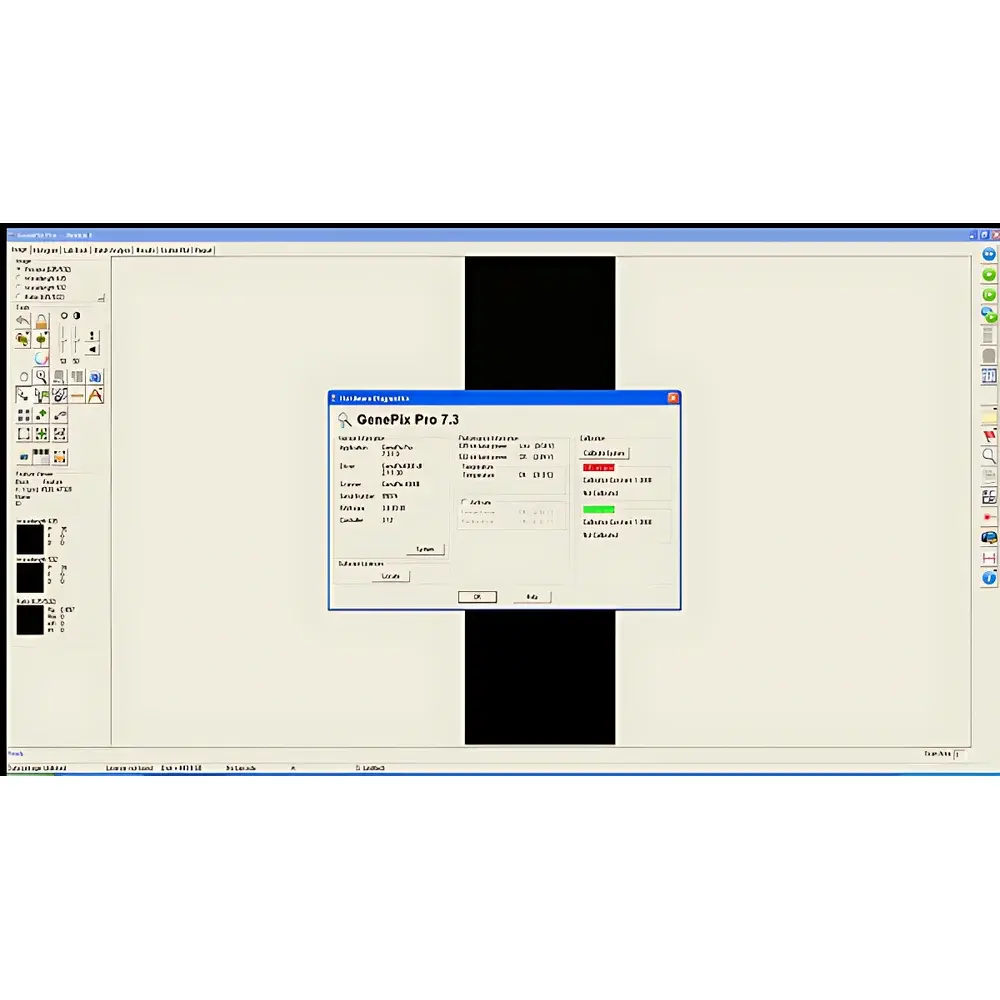

The GenePix 4000B ships with GenePix Pro 7.x—the industry-standard acquisition and analysis platform for microarray data. It provides one-click hardware calibration, automated grid alignment, spot quality flagging (based on morphology, background uniformity, and saturation thresholds), and export to MIAME-compliant formats (e.g., GPR, GAL, TIFF). Optional Acuity software extends functionality with relational database storage, hierarchical clustering (average linkage, Pearson correlation), ANOVA-based significance testing, and interactive heat map visualization. Both applications support FDA 21 CFR Part 11 compliance via electronic signature logging, audit trail generation, and role-based access controls—enabling deployment in regulated environments requiring full data integrity documentation.

Applications

The GenePix 4000B serves core applications in translational research and diagnostic development, including: (1) Two-color cDNA and oligonucleotide microarray experiments for transcriptome profiling; (2) Antibody and lectin microarrays for post-translational modification mapping; (3) Tissue microarray (TMA) fluorescence imaging with multiplexed immunofluorescence labeling; (4) miRNA and methylation array quantification requiring high dynamic range (>4 orders of magnitude); and (5) Quality control of spotted or in situ synthesized arrays during manufacturing. Its >6,000 peer-reviewed citations reflect broad adoption in academic genomics cores, biopharma biomarker discovery groups, and CLIA-certified molecular pathology labs.

FAQ

Is the GenePix 4000B compatible with third-party microarray designs?
Yes—it supports all standard spotting chemistries (poly-L-lysine, amino-silane, NHS-ester) and substrate types (glass, PVDF, nitrocellulose) without hardware modification.
Does the 6-month warranty cover laser recalibration?
Yes—warranty includes full optical recalibration using NIST-traceable standards and functional validation against ASTM E2535-21 criteria.
Can the scanner be integrated into automated liquid handling workflows?
It features RS-232 and USB 2.0 interfaces for bidirectional communication with LIMS and robotic deck controllers; API documentation is available under NDA.
What is the typical throughput for a 44K oligo array at 10 µm resolution?
Approximately 6.5 minutes per slide in dual-channel mode, scalable to <3 minutes at 25 µm resolution without loss of quantitative accuracy.
Are original consumables and service contracts still available?
SpectraLab Scientific maintains inventory of OEM PMT modules, laser diodes, and alignment kits; extended service plans (1–3 years) are offered with priority response SLAs.
