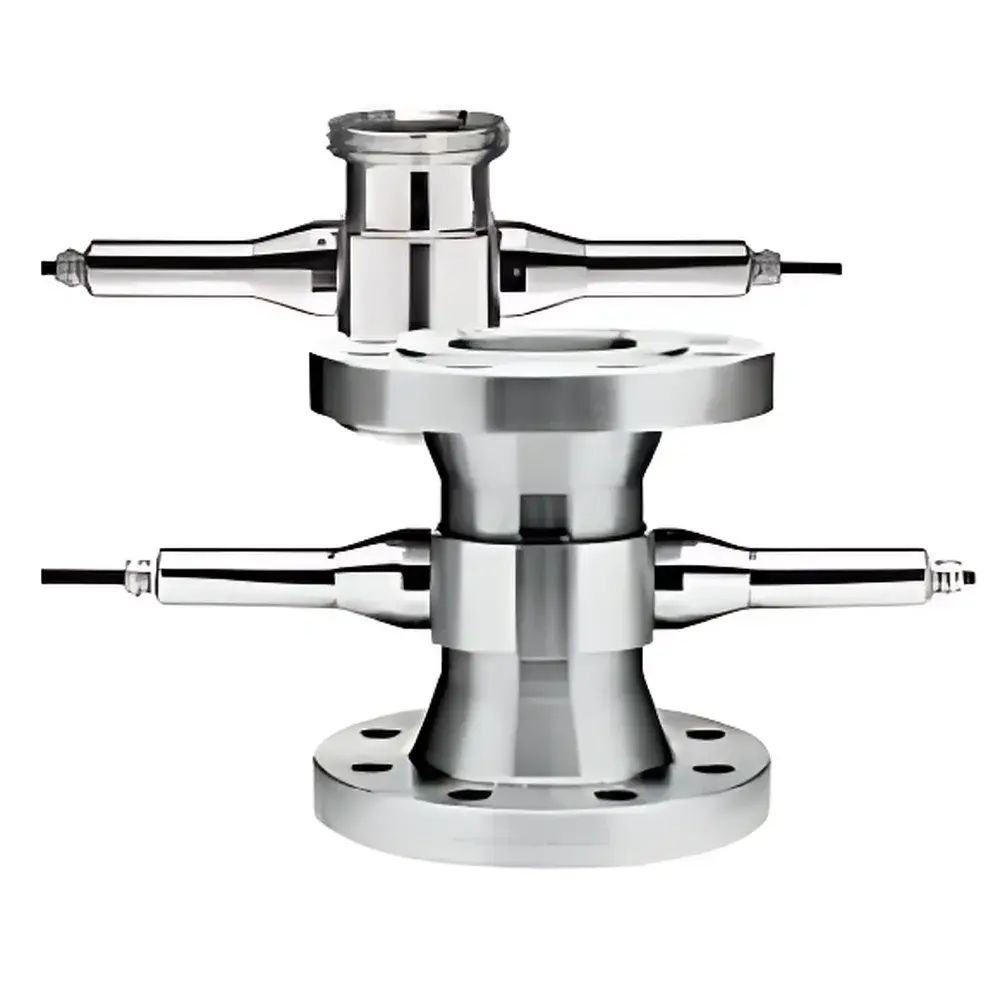

Monitek Zinc Ion Online Analyzer
| Brand | Galvanic |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Monitek Zinc Ion Online Analyzer |
| Price Range | USD 14,000 – 28,000 |
Overview
The Monitek Zinc Ion Online Analyzer is a high-stability, spectrophotometric process analyzer engineered for continuous, real-time quantification of dissolved zinc ion (Zn²⁺) concentration in industrial water, effluent, plating bath, and hydrometallurgical process streams. It operates on the principle of visible-light absorbance spectroscopy—specifically utilizing a stabilized, gas-filled tungsten-halogen lamp emitting across a broad spectral range (380–1100 nm) to enable selective detection via zinc-specific colorimetric reagent chemistry. Unlike discrete laboratory methods requiring sample extraction and manual analysis, this system integrates inline flow cells with automated reagent dosing, mixing, and optical measurement—delivering robust, interference-resistant results under varying turbidity and background color conditions. Designed for 24/7 operation in demanding plant environments, it meets the functional safety and environmental resilience requirements of modern process analytical technology (PAT) frameworks.
Key Features
- Optical measurement cell with sapphire observation window (standard), offering exceptional scratch resistance and chemical inertness; optional borosilicate glass or acrylic for cost-sensitive applications
- Flow path components constructed from 316 stainless steel (standard); titanium and PTFE-wetted variants available for highly corrosive media
- Sealing system using FKM elastomer gaskets (standard); FFKM, EPDM, or silicone options support extended thermal and chemical compatibility
- IP65/NEMA 4X-rated enclosure for all electronic and optical modules—ensuring protection against dust ingress and low-pressure water jets
- ATEX-certified explosion-proof housing (Ex d IIC/T6) suitable for non-hazardous zones (Zone 2 / Division 2) and safe installation outside Zone 1/21 boundaries
- Modular transmitter with menu-driven interface, onboard help system, and full configuration via PC/laptop using RS-232C or RS-485 (Modbus RTU)
- Dual independent cleaning cycles—programmable by time interval or event trigger—to maintain optical path integrity without process interruption
- Integrated data logger storing up to 8,000 timestamped measurements per sensor channel, with backup/restore capability via USB or serial export
Sample Compatibility & Compliance
The analyzer accommodates aqueous samples with pH 2–12 and suspended solids content ≤ 100 mg/L (with optional filtration). It is compatible with standard zinc chelation chemistries (e.g., zincon or PAR-based reagents), and its optical architecture compensates for baseline drift caused by sample color, turbidity, or fouling via dual-beam referencing. Regulatory alignment includes compliance with ISO 7027 (turbidity), ASTM D1209/D5391 (colorimetric analysis), and USP guidelines for spectrophotometric instrumentation validation. The system supports audit-ready operation under GLP and GMP environments through configurable user access levels, electronic signature capability (via external HMI integration), and full measurement traceability—including reagent lot tracking and calibration history logs.
Software & Data Management
The embedded firmware enables full programmability of output units—including ppm Zn, mg/L, g/L, % w/w, NTU, EBC, Hazen, and ASTM color scales—without hardware modification. Each connected sensor operates autonomously, supporting simultaneous multi-parameter monitoring (e.g., Zn²⁺ + turbidity + absorbance at fixed wavelength). Data export follows standard Modbus RTU register mapping, facilitating seamless integration into DCS, SCADA, or MES platforms. Optional panel-mounted industrial PC provides local visualization, trend logging, and alarm management with configurable thresholds and hysteresis. All configuration changes are logged with timestamps and operator IDs, satisfying FDA 21 CFR Part 11 requirements when deployed with validated third-party software layers.
Applications
- Real-time monitoring of zinc concentration in electroplating bath replenishment control loops
- Effluent compliance verification prior to discharge in metal finishing and PCB manufacturing facilities
- In-line quality assurance during zinc leaching and solvent extraction in zinc hydrometallurgy plants
- Corrosion inhibitor dosage control in closed-loop cooling water systems
- Regulatory reporting support for EPA NPDES permits and EU IPPC directives
- Process optimization in galvanizing line rinse water recycling circuits
FAQ
What is the typical calibration interval for the Monitek Zinc Ion Analyzer?
Calibration verification is recommended every 12 months under normal operating conditions; however, the system is engineered for stable performance over 24-month intervals between full recalibrations—subject to application-specific validation protocols.
Can the analyzer operate in high-turbidity wastewater streams?
Yes—its dual-beam optical design and built-in turbidity compensation algorithm minimize interference from particulate scattering, enabling reliable Zn²⁺ measurement in samples with turbidity up to 200 FTU.
Is remote diagnostics supported?
Remote configuration, real-time parameter viewing, and diagnostic log retrieval are fully supported via Modbus TCP/IP gateways or optional Ethernet-enabled transmitters.
Does the system meet cybersecurity standards for industrial networks?
While the base RS-485/Modbus RTU interface requires network segmentation per IEC 62443-3-3 recommendations, optional secure communication modules support TLS 1.2 encryption and role-based authentication when integrated with enterprise IT infrastructure.
