Monode BRAVO IV Laser Marking System

Overview

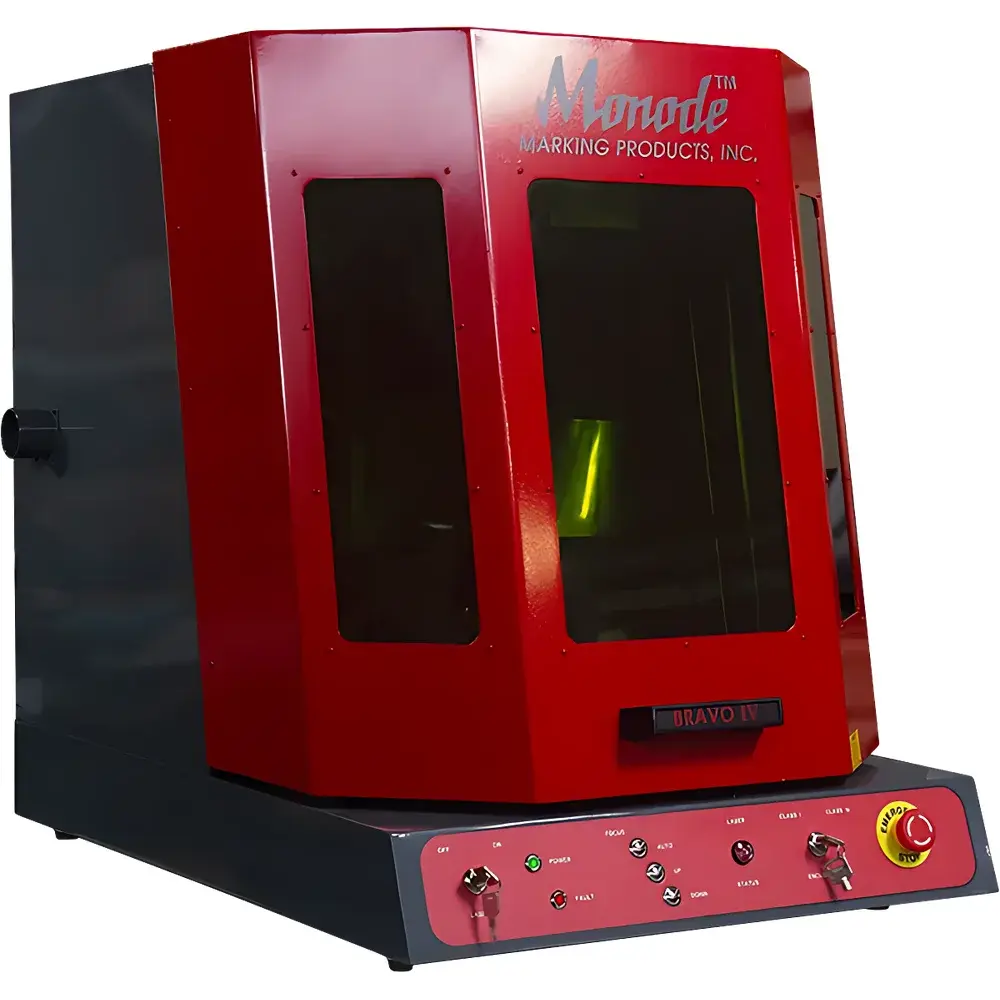

The Monode BRAVO IV Laser Marking System is an industrial-grade, Class 1–4 configurable fiber laser marking platform engineered for high-precision, permanent surface marking on semiconductor components, electronic subassemblies, and precision metal/plastic parts. Operating at a standard wavelength of 1064 nm, the system utilizes a Q-switched pulsed fiber laser source to deliver controlled thermal interaction with target materials—enabling annealing, engraving, ablation, and color-change marking without substrate damage or micro-cracking. Its design adheres to IEC 60825-1:2014 safety standards, with interlocked Class 1 enclosure as default configuration; optional field conversion to Class 4 operation permits direct-beam access for large-part marking under controlled environmental conditions (e.g., dedicated laser rooms with beam path containment and operator PPE protocols). The BRAVO IV is purpose-built for cleanroom-compatible integration in front-end and back-end semiconductor packaging lines, supporting traceability requirements per SEMI S2/S8, ISO 9001:2015, and JEDEC J-STD-020.

Key Features

• Configurable safety classification: Factory-installed Class 1 enclosure with certified interlocks; field-upgradable to Class 4 via authorized service kit and safety audit documentation.
• Motorized Z-axis with ±12 mm travel range and 1 µm repeatability, enabling dynamic focus compensation across uneven or stacked substrates.
• 4″ × 4″ (102 mm × 102 mm) standard marking field with optional F-theta lens upgrades supporting up to 8″ × 8″ (203 mm × 203 mm) work area.
• 12″ × 18″ (305 mm × 457 mm) mechanical worktable with T-slot mounting surface and integrated vacuum chuck compatibility for wafer carriers and leadframes.

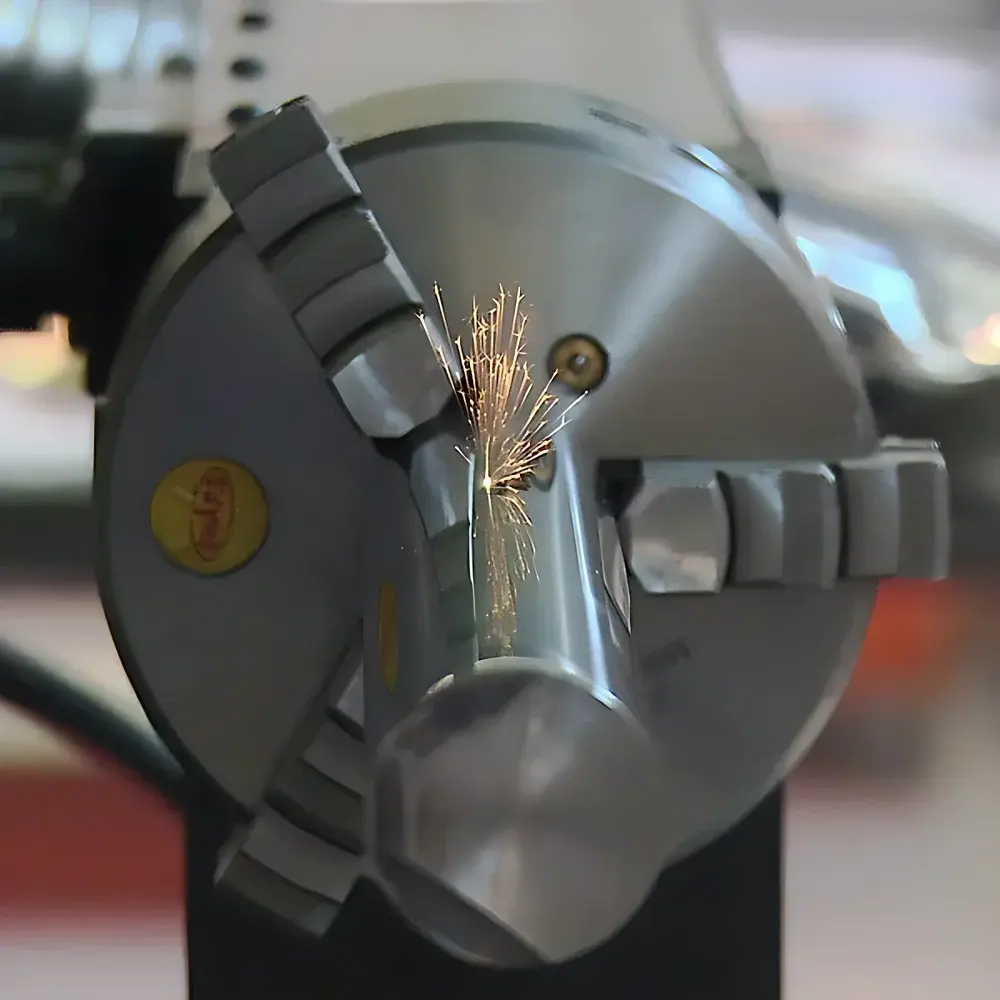

• Standard rotary axis (4″ capacity) with 0.001° angular resolution and bidirectional repeatability ≤ ±0.005°, suitable for cylindrical semiconductor packages (TO-cans, SOT-23, DFN).
• Integrated industrial PC (Intel Core i5, 8 GB RAM, 256 GB SSD), 19″ touchscreen display, and preloaded Monode MarkStudio v5.2 software with native support for DXF, PLT, BMP, and SVG vector formats.
• Built-in fume extraction module compliant with OSHA 29 CFR 1910.1200 and ANSI Z9.2–2018 ventilation guidelines, featuring HEPA + activated carbon filtration and real-time airflow monitoring.

Sample Compatibility & Compliance

The BRAVO IV reliably marks silicon wafers (bare and passivated), ceramic substrates (Al₂O₃, AlN), molded IC packages (PQFP, QFN, BGA substrates), metal leads (Cu, NiPdAu-plated), and polymer encapsulants (EMC, silicone gels). It meets material compatibility requirements for RoHS-compliant marking (no halogenated solvents or heavy-metal inks) and supports UDI compliance per FDA 21 CFR Part 830 and EU MDR Annex I §18.1. All marking parameters—including pulse width (20–200 ns), frequency (20–200 kHz), and scan speed (1–12 m/s)—are logged with timestamp and operator ID for GLP/GMP audit trails. System validation documentation includes IQ/OQ protocols aligned with ASTM F2740–18 (Standard Guide for Laser Marking of Medical Devices) and semiconductor-specific PQ templates.

Software & Data Management

MarkStudio v5.2 provides deterministic marking job sequencing, barcode/2D data matrix generation (ISO/IEC 15415, AIM DPM-1-2022), and real-time process parameter logging. The software supports network deployment via Ethernet/IP or Modbus TCP for MES integration (Siemens Opcenter, Camstar, FactoryTalk). All marking logs—including laser power calibration history, focus offset corrections, and user authentication events—are stored in encrypted SQLite databases with SHA-256 hashing. Audit trail functionality complies with FDA 21 CFR Part 11 requirements, including electronic signatures, role-based access control (admin/operator/maintainer), and immutable log archiving.

Applications

• Semiconductor device traceability: Permanent UID marking on die, wafers, and leadframes per MIL-STD-130 and SEMI E142.
• Package-level identification: Laser-etched lot codes, date codes, shift identifiers, and revision markers on plastic and ceramic IC packages.
• Calibration and metrology assets: Non-contact marking of gauge blocks, reference standards, and probe cards without dimensional distortion.
• ESD-sensitive component labeling: Low-heat-input annealing marks on copper traces and solder mask layers.
• Medical electronics: UDI-compliant marking on implantable device housings (titanium, stainless steel) meeting ISO 13485:2016 requirements.
• Automotive AEC-Q200 qualified parts: High-contrast, abrasion-resistant markings on power modules and sensor housings.

FAQ

Is the BRAVO IV certified for use in ISO Class 5 cleanrooms?
Yes—the system’s sealed optical path, low-outgassing enclosure materials, and optional HEPA-filtered air purge kit meet ISO 14644-1 Class 5 particulate limits when installed per Monode Cleanroom Integration Guide.
Can marking parameters be locked to prevent unauthorized changes?
Yes—MarkStudio supports parameter password protection, firmware-level write-protection for critical settings, and hierarchical user profiles with configurable edit permissions.
What maintenance intervals are recommended for the laser source and galvanometer?
Laser diode lifetime exceeds 100,000 hours; galvo mirror alignment verification is required every 6 months or after 500 operational hours, documented in the included PM checklist per ISO 13374-2.
Does the system support direct integration with factory automation systems?
Yes—native Ethernet/IP, PROFINET, and OPC UA server modules are available as factory options; PLC handshake signals (start/stop/ready/error) are hardwired via 24 VDC I/O terminal block.
Is technical support available outside North America?
Monode provides global Tier-2 support through certified regional partners, with remote diagnostics, firmware updates, and on-site service contracts available in APAC and EMEA regions.
