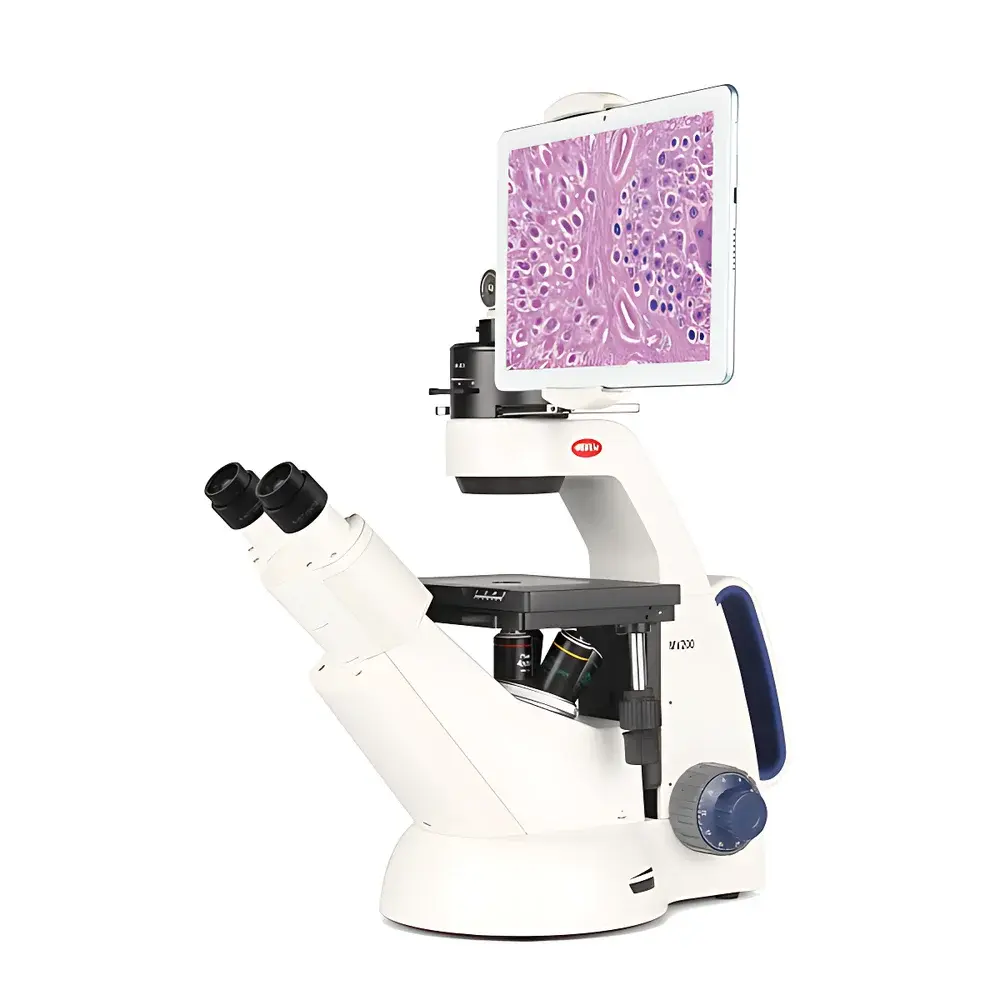

Motic MV200 Inverted Biological Microscope

Overview

The Motic MV200 is a high-performance inverted biological microscope engineered for routine and advanced life science applications requiring stable, high-contrast observation of living specimens in culture vessels. Its inverted optical configuration positions the objective lenses beneath the specimen stage—enabling direct access to Petri dishes, flasks, and multi-well plates—while maintaining optimal working distance and ergonomic sample manipulation. The system operates on the principle of transmitted brightfield and phase contrast microscopy, optimized for label-free visualization of unstained, transparent, or low-contrast biological structures such as adherent and suspension cells, tissue explants, embryonic models, and microbial colonies. Designed for reproducible imaging in both educational and research environments, the MV200 delivers consistent optical fidelity across visual and digital modalities without geometric distortion, thanks to its fully corrected optical train and plan-apochromatic tube lens assembly.

Key Features

• Inverted platform with reinforced mechanical stage accommodating standard cultureware (e.g., 35 mm–150 mm dishes, T-flasks, 6–96-well plates)
• Plan phase contrast objectives (4×, 10×, 20×, 40×) featuring multi-layer broadband anti-reflection coating for enhanced transmission efficiency (>95% at 450–650 nm) and superior contrast in phase imaging
• Integrated 12 V / 3 W high-stability LED illumination with continuous intensity control and thermal management ensuring >10,000 hours of service life and minimal phototoxicity during prolonged live-cell observation
• Adjustable aperture diaphragm (N.A. 0.1–0.3) enabling precise control of Köhler illumination parameters to maximize resolution, depth of field, and signal-to-noise ratio
• Dual-path optical design supporting simultaneous eyepiece viewing and high-fidelity digital capture via built-in CMOS sensors (model-dependent), with native support for HDMI output and USB 3.0 data transfer
• Modular architecture compatible with optional accessories including motorized Z-focus drive, environmental chamber integration (CO₂, temperature, humidity), and fluorescence filter cubes (upon request)

Sample Compatibility & Compliance

The MV200 is validated for use with a broad spectrum of biological samples cultured under standard in vitro conditions—including primary cell lines, stem cell colonies, organoids, zebrafish embryos, and bacterial biofilms. Its open-stage design facilitates rapid sample exchange and real-time intervention during time-lapse experiments. All optical components comply with ISO 8578:2017 (Microscopes — Requirements for optical performance) and meet CE marking requirements under Directive 2014/30/EU (EMC) and 2014/35/EU (LVD). For laboratories operating under regulated quality frameworks, the MV200 supports documentation workflows aligned with GLP and GMP principles; digital imaging variants include timestamped metadata logging and user-accessible audit trails suitable for basic 21 CFR Part 11 compliance when deployed with validated third-party software.

Software & Data Management

Digital variants (MV200-D, MV200-i, MV200-S) ship with Motic Images Plus 3.0 software—a Windows-based application certified for image acquisition, measurement (length, area, particle count), annotation, multi-channel overlay, and time-series export in TIFF, JPEG2000, and AVI formats. The software enables DICOM-compliant export for integration into institutional PACS environments and supports batch processing via macro scripting (VBScript-compatible). Raw sensor data is stored unprocessed, preserving bit-depth integrity (12-bit dynamic range) for downstream quantitative analysis. Optional cloud synchronization and LMS integration (e.g., Moodle, Canvas) are available through Motic’s Education Suite, facilitating remote teaching and collaborative annotation in undergraduate and graduate laboratory curricula.

Applications

• Long-term live-cell imaging in academic and industrial cell biology labs
• Quality control of mammalian and insect cell cultures in bioproduction facilities
• Immunocytochemistry workflow validation prior to confocal or super-resolution analysis
• Microbial morphology assessment and antibiotic susceptibility screening in clinical microbiology training
• Interactive histopathology instruction using digitized slide libraries and synchronized student workstation feeds
• Developmental biology studies involving embryo staging, gastrulation tracking, and neurite outgrowth quantification

FAQ

Is the MV200 compatible with third-party cameras or software?
Yes—via C-mount adapter (optional), the MV200 supports industry-standard 1/2″ and 2/3″ sensors from manufacturers including Basler, FLIR, and Thorlabs. SDKs for LabVIEW, MATLAB, and Python (OpenCV) are available upon request.
Can the MV200 be used for fluorescence imaging?
Standard configurations do not include fluorescence excitation sources or emission filters. However, the optical path accepts modular filter cubes and external LED or mercury lamp illuminators, subject to mechanical clearance verification and safety certification.
What maintenance protocols are recommended for long-term reliability?
Annual calibration of illumination uniformity and focus repeatability is advised. LED intensity drift is monitored via built-in photodiode feedback; cleaning of objectives and condenser surfaces should follow ISO 10934-1 guidelines using lens-grade solvents and non-abrasive wipes.
Does Motic provide installation qualification (IQ) or operational qualification (OQ) documentation?
Yes—custom IQ/OQ packages compliant with ISO/IEC 17025 and ASTM E2500-13 are available for purchase, including traceable test reports, equipment logs, and user training records.
