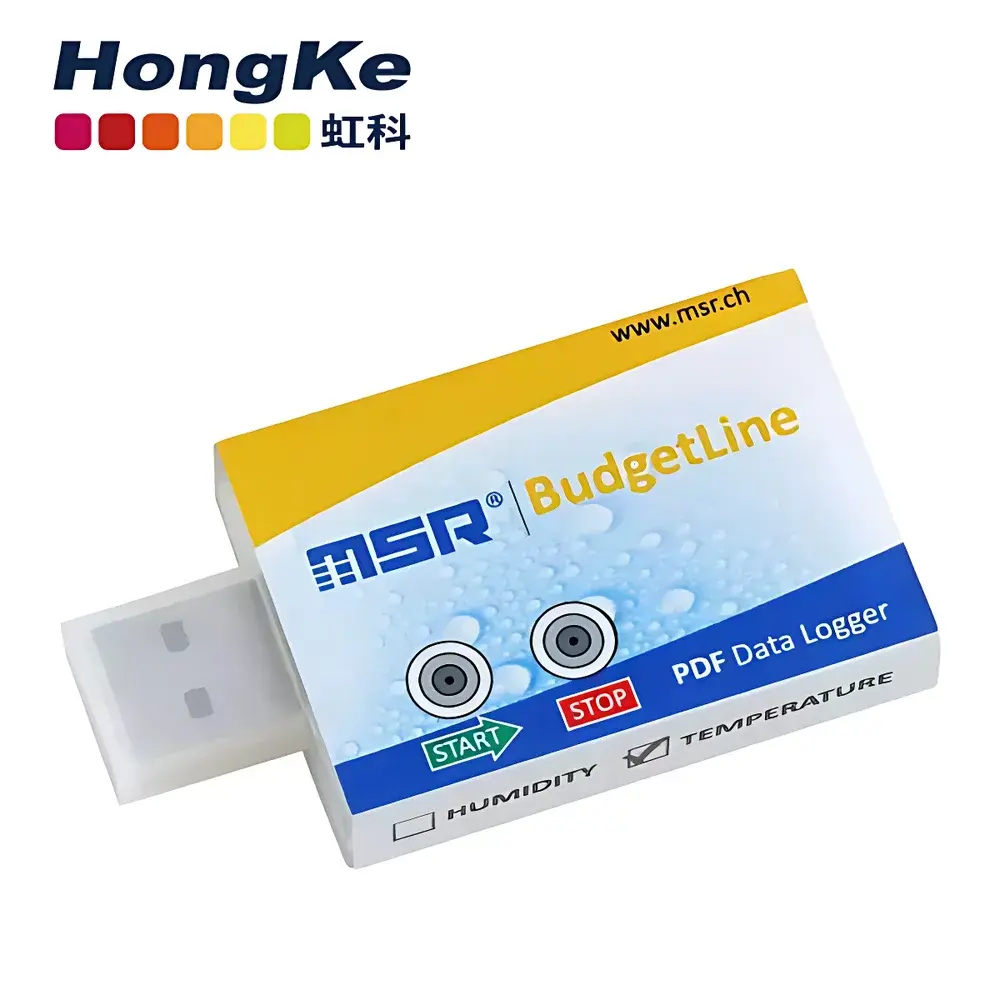

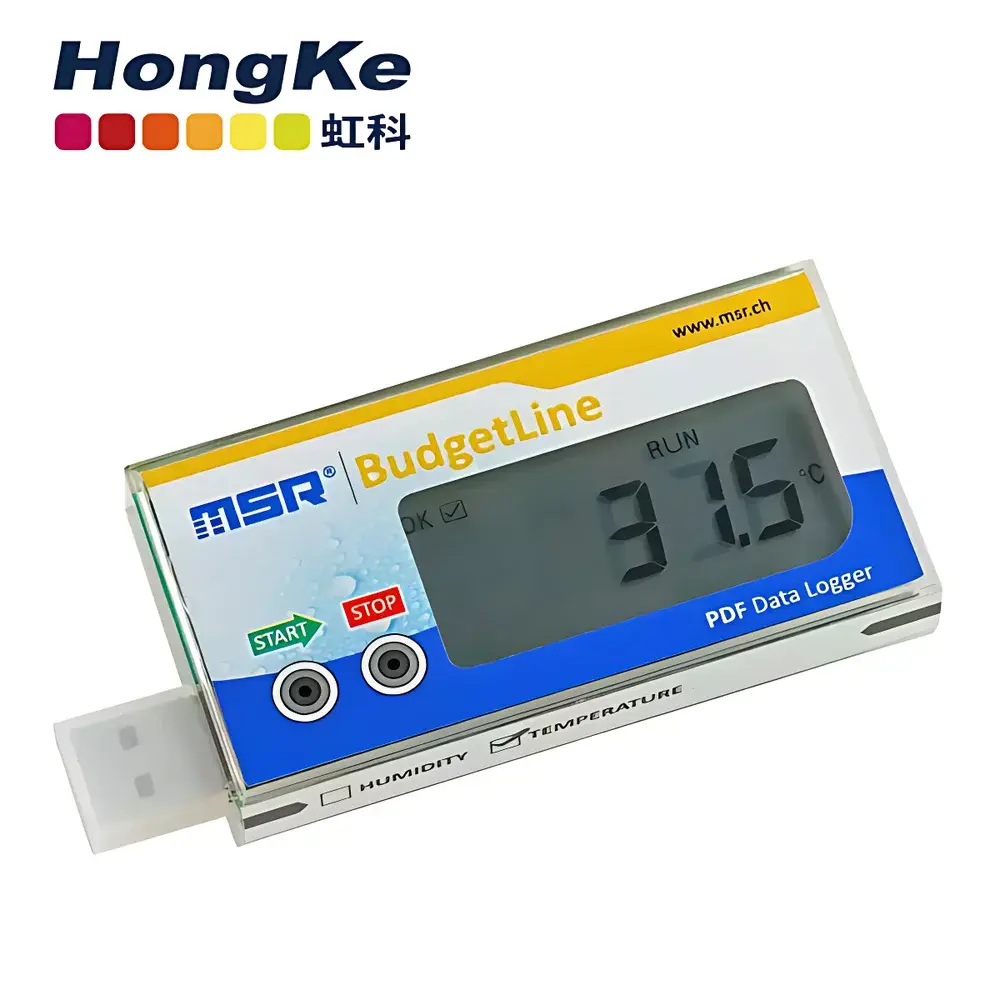

MSR BudgetLine Reusable PDF Temperature & Humidity Data Logger

Overview

The MSR BudgetLine series comprises a family of reusable, cost-optimized PDF data loggers engineered for continuous, regulatory-compliant monitoring of temperature and relative humidity in critical logistics and storage environments. Designed and manufactured in Switzerland, these devices operate on a self-contained, embedded measurement architecture—featuring high-stability thermistor-based temperature sensing and capacitive polymer humidity sensors—ensuring traceable, repeatable performance across the full operational range (–30 °C to +70 °C; 0–98 %RH). Unlike cloud-dependent or proprietary-format loggers, BudgetLine units generate fully self-contained, digitally signed PDF reports directly onboard—eliminating post-acquisition software conversion, external dependencies, or format obsolescence risks. Each unit is pre-calibrated at six reference points across its operating range, with the certificate embedded in the generated report and archived in device memory. This architecture supports audit-ready documentation without requiring real-time connectivity or third-party validation tools—making it especially suitable for GDP-compliant cold chain monitoring in pharmaceutical distribution, food logistics, and chemical warehousing.

Key Features

• On-device PDF report generation: All measurement data, timestamps, alarms, calibration metadata, and digital signature are compiled into a single, non-editable PDF file upon USB connection—no external rendering required.
• Dual-sensor variants: MSR64 and MSR84 integrate both temperature and humidity sensors with independent 16,000-point storage allocation per parameter; MSR63 and MSR83 provide dedicated temperature-only logging with 16,000-point capacity.
• Regulatory-grade firmware: Built-in compliance with DIN 12830 (requirements for temperature recorders used in medical product transport) and FDA 21 CFR Part 11 (electronic records and signatures), including audit trail support, user access control, and tamper-evident reporting.
• Visual status feedback: Dual-color LED indicators provide immediate visual confirmation of operational state (green = normal logging), alarm condition (red flash), and low-battery warning (amber pulse).
• Field-replaceable battery: Sealed 3.0 V lithium cell supports up to 12 months of continuous 1-minute interval logging; replacement service available directly from MSR authorized service centers.
• USB 2.0 interface with plug-and-play enumeration: No drivers required on Windows, macOS, or Linux systems—device appears as a standard mass-storage class device for direct PDF retrieval.

Sample Compatibility & Compliance

The BudgetLine logger family is validated for use with temperature- and humidity-sensitive commodities subject to Good Distribution Practice (GDP), ICH guidelines, and HACCP protocols—including but not limited to pharmaceuticals (e.g., vaccines, biologics, APIs), perishable foods (chilled/frozen produce, dairy), and hygroscopic chemicals. Its IP54-rated enclosure provides protection against dust ingress and water splashes during handling and transit. All models comply with DIN 12830:2015-12 for accuracy, stability, and reporting requirements in medical refrigeration applications. Firmware implements electronic signature mechanisms aligned with 21 CFR Part 11 Subpart B—supporting role-based authentication, secure audit logs, and immutable report generation. Each unit ships with a NIST-traceable, six-point calibration certificate issued by MSR’s ISO/IEC 17025-accredited calibration laboratory.

Software & Data Management

Two free, platform-independent software packages are provided: MSR BudgetLine Configuration Tool enables full setup—including logging interval, start/stop triggers, alarm thresholds (high/low temp/RH), and device labeling—via intuitive GUI. TLog Explorer supports advanced post-retrieval analysis: overlay plots, statistical summaries (min/max/mean/deviation), export to CSV or Excel, and batch comparison across multiple loggers. Both applications maintain full compatibility with GLP/GMP documentation workflows—generating timestamped operation logs, user action records, and version-controlled configuration archives. No cloud upload or subscription is required; all processing occurs locally, preserving data sovereignty and simplifying internal IT security review.

Applications

• Pharmaceutical cold chain validation: Continuous monitoring of temperature excursions during clinical trial kit distribution, vaccine transport, and warehouse ambient storage.
• Food safety compliance: Real-time verification of refrigerated/frozen cargo integrity across multi-leg shipments, supporting FSMA Rule 21 CFR Part 117 and EU Regulation (EC) No 852/2004.
• Chemical stability testing: Long-term environmental profiling of hygroscopic reagents and reference standards under controlled warehouse conditions.
• Medical device logistics: Monitoring of sterilization packaging integrity during transit where humidity exposure may compromise barrier properties.
• Contract manufacturing oversight: Third-party verification of environmental conditions during outsourced production or storage phases subject to quality agreements.

FAQ

Does the PDF report include a digital signature and calibration certificate?
Yes—each PDF contains an embedded digital signature verifying report integrity and authenticity, along with the full six-point calibration certificate linked to the specific sensor serial number.
Can the logging interval be adjusted after deployment?
No—the interval is fixed at 1 minute per factory configuration to ensure consistent storage capacity and battery life; this design choice prioritizes regulatory predictability over field configurability.
Is the device suitable for freezer applications below –20 °C?
Yes—the specified temperature range extends to –30 °C, and units are routinely deployed in ultra-low temperature (–70 °C) shipping containers when placed inside insulated thermal shippers that maintain internal ambient within the operational envelope.
How is data security maintained during USB transfer?
The device operates in read-only mass-storage mode; no executable code or writable system partitions are exposed—preventing malware injection or accidental firmware overwrite.
What happens if the battery depletes mid-mission?
The logger retains all stored data indefinitely without power; however, no new measurements are recorded after battery exhaustion—users are advised to implement proactive battery replacement based on usage history and ambient temperature profile.
