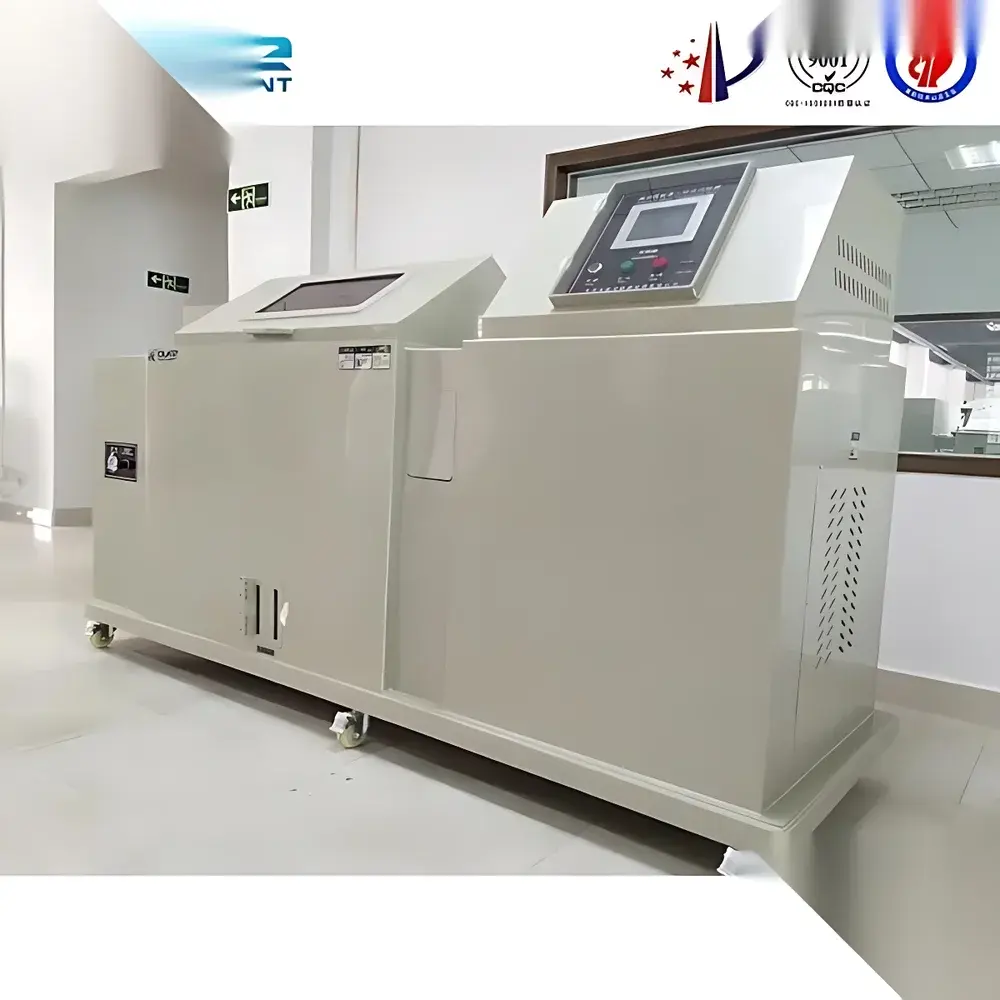

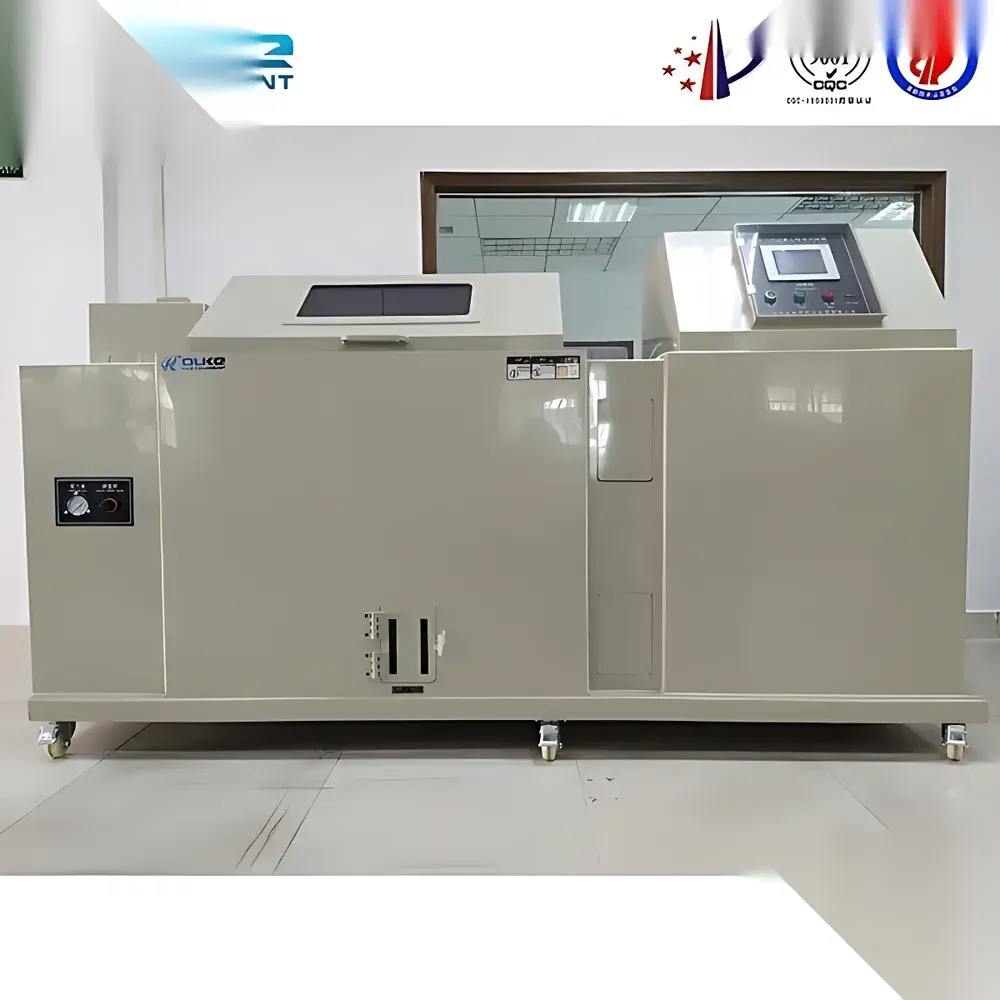

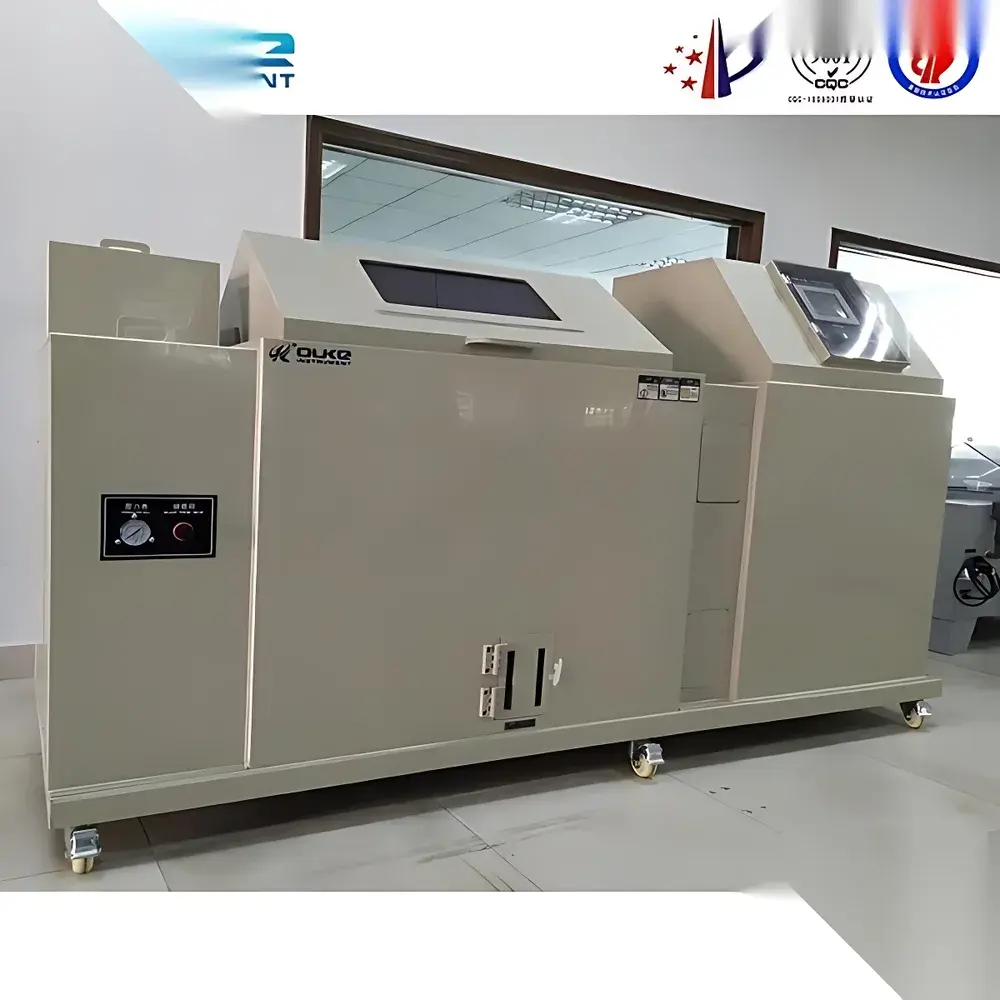

Multi-Environment Corrosion Test Chamber for Temperature, Humidity, and Salt Spray Aging

Overview

The Multi-Environment Corrosion Test Chamber for Temperature, Humidity, and Salt Spray Aging is an integrated environmental stress testing system engineered for accelerated corrosion evaluation of metallic and coated materials under controlled, repeatable conditions. It combines three critical aging stressors—elevated temperature, high relative humidity, and continuous or cyclic salt fog exposure—within a single chamber architecture. Unlike standalone salt spray cabinets, this system enables synchronized or sequential application of thermal-hygrometric-saline stresses, simulating real-world service environments such as coastal marine atmospheres, industrial chemical exposure zones, or automotive under-hood conditions. The chamber operates on the principle of saturated air atomization via Bernoulli-effect nozzles, ensuring consistent droplet size distribution (typically 1–10 µm) and uniform deposition across test specimens. Its design conforms to the core physical requirements of standardized corrosion acceleration protocols, including precise control of air saturation temperature, solution pH (6.5–7.2), and chloride ion concentration (5 wt% NaCl unless otherwise specified).

Key Features

• Triple-stress capability: Independent yet coordinated regulation of temperature (RT+10 to 55 °C), relative humidity (up to 98% RH), and salt fog generation within a single test volume.
• Bernoulli-type salt雾 nozzle system with tempered glass construction, enabling adjustable spray angle and volumetric output (1–2 mL/80 cm²·h), verified per ASTM B117 calibration methodology.
• Titanium alloy immersion heaters provide rapid thermal response and long-term resistance to chloride-induced pitting and stress corrosion cracking.
• SUS304 stainless steel saturated air tank with integrated low-voltage water level sensing and auto-refill logic, eliminating manual intervention during extended tests.
• Siemens PLC-based controller with 32-bit automotive-grade processor, supporting programmable spray cycles (1 s to 9999 h), dual-mode operation (auto/manual), and power-loss recovery with timestamped event logging.
• Dual overtemperature protection circuitry and fail-safe dry-run prevention ensure compliance with IEC 61000-6-2 EMC and UL 61010-1 safety requirements.

Sample Compatibility & Compliance

This chamber accommodates flat, cylindrical, or irregularly shaped specimens up to 116 m³ in total test volume, supporting standard coupon racks (ASTM G101), full-size automotive components, electronic enclosures, and painted metal assemblies. All internal wetted surfaces—including chamber walls, lid, and collection funnels—are fabricated from 8 mm high-temperature PVC, resistant to 5% NaCl solution at 50 °C for >5000 h without degradation. The system meets the metrological traceability requirements of ISO/IEC 17025-accredited laboratories when paired with external calibration certificates for temperature, humidity, and deposition rate sensors. It supports audit-ready documentation for GLP and GMP-regulated corrosion validation studies, including full data integrity features aligned with FDA 21 CFR Part 11 (electronic signatures, audit trails, and user-level access control).

Software & Data Management

The embedded controller provides real-time visualization of chamber parameters via a backlit LCD interface with intuitive menu navigation. All operational data—including setpoints, actual values, spray duration, elapsed time, and alarm history—are stored locally with non-volatile memory retention (>10 years). Optional Ethernet or RS485 connectivity enables integration into centralized lab information management systems (LIMS) or SCADA platforms. Exportable CSV logs include timestamps synchronized to UTC, supporting statistical process control (SPC) analysis of corrosion onset time, blistering progression, or rust creepage per ISO 4628 standards. Firmware updates are performed via secure USB interface with cryptographic signature verification.

Applications

• Qualification testing of protective coatings (epoxy, zinc-rich primers, powder coatings) per ASTM D1654 and ISO 12944.
• Corrosion resistance validation of fasteners, chassis components, and heat exchangers in automotive OEM supply chains.
• Accelerated life assessment of printed circuit board (PCB) conformal coatings under combined thermal-humidity-salt stress per IPC-TM-650 2.6.25.
• Material screening for offshore wind turbine structural elements per DNV-RP-B401.
• Regulatory conformance testing for medical device housings (ISO 10993-15) and aerospace aluminum alloys (AMS 2700).

FAQ

What standards does this chamber fully support out-of-the-box?

It is factory-configured to meet ASTM B117 (neutral salt spray), ISO 9227 (NSS, AASS, CASS variants), and IEC 60068-2-11, with preloaded test profiles and calibration templates.

Can the chamber perform cyclic corrosion testing (CCT)?

Yes—via programmable multi-step sequences combining salt spray, drying, and high-humidity phases, compliant with GMW 14872, VDA 621-415, and SAE J2334.

Is remote monitoring supported?

Optional Modbus TCP or OPC UA integration allows real-time parameter readout and alarm notification via enterprise network infrastructure.

What maintenance intervals are recommended for sustained accuracy?

Weekly inspection of nozzle integrity and saturation tank water quality; quarterly calibration of temperature/humidity sensors using NIST-traceable references; annual verification of deposition rate uniformity per ASTM B117 Annex A1.

Does the system include test report generation tools?

Basic pass/fail reporting is built-in; advanced PDF report generation with graphical trend overlays requires optional software module compliant with ISO/IEC 17025 clause 7.8.2.
