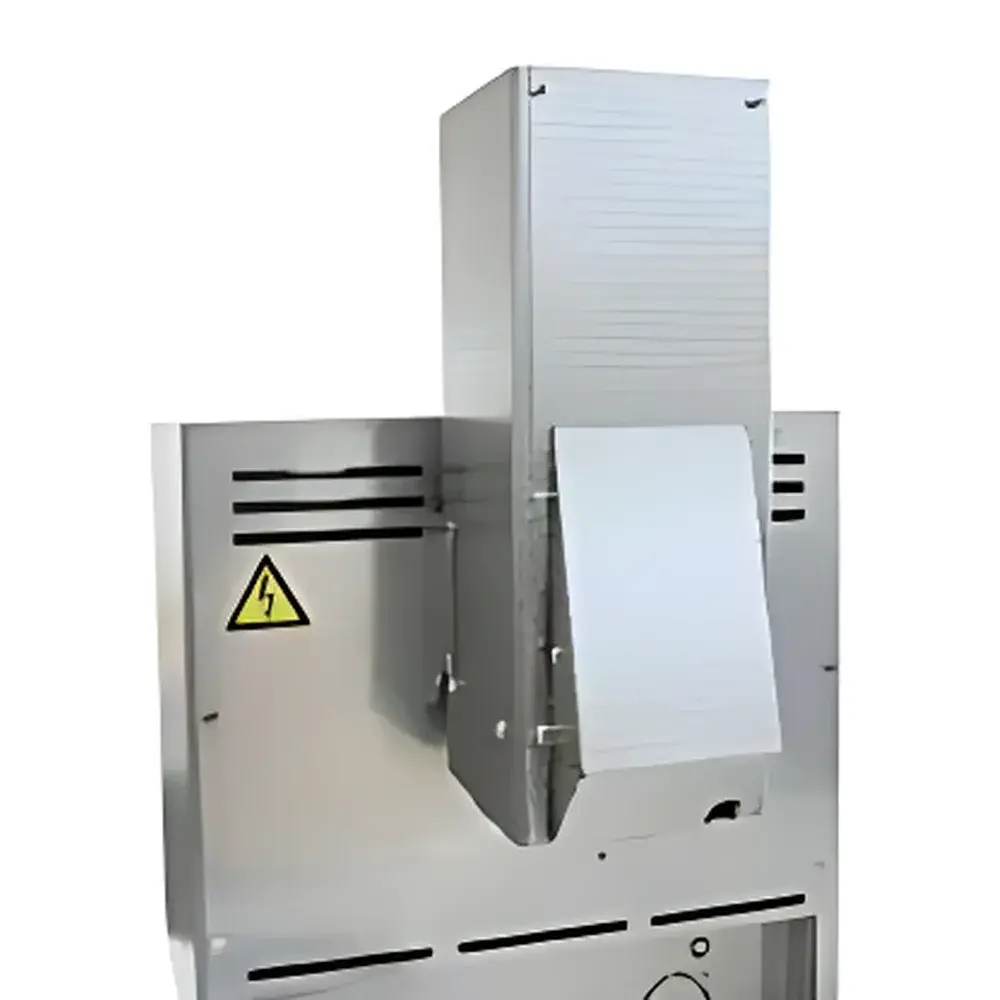

Nabertherm Catalytic Afterburner Assembly (Part No. 631000166)

Overview

The Nabertherm Catalytic Afterburner Assembly (Part No. 631000166) is a purpose-engineered accessory designed for integration with Nabertherm muffle furnaces operating in high-temperature thermal processing applications requiring controlled off-gas treatment. This catalytic afterburner functions on the principle of low-temperature catalytic oxidation, enabling complete mineralization of volatile organic compounds (VOCs) and residual hydrocarbons present in furnace exhaust streams. Unlike thermal incineration—which demands sustained temperatures above 800 °C—the catalytic unit achieves efficient decomposition at approximately 600 °C via platinum-group metal catalysts supported on ceramic monolith substrates. This significantly reduces energy demand while maintaining stoichiometric conversion to CO₂ and H₂O vapor. The assembly is engineered for seamless mechanical and control-system integration with Nabertherm’s P330 programmable temperature controller, supporting automated start-up, ramp-hold sequences, and safety interlocks aligned with furnace operational cycles.

Key Features

• High-efficiency ceramic-based catalyst bed optimized for continuous VOC abatement across thermal annealing, ashing, and calcination workflows
• Precise thermal coupling with Nabertherm muffle furnaces—designed for direct flue gas routing without pressure drop compromise
• Integrated thermocouple monitoring at catalyst inlet and outlet for real-time temperature profiling and catalyst health assessment
• Compatible with P330 controller firmware v4.2+, enabling synchronized ramp/soak profiles and automatic afterburner activation based on furnace temperature thresholds
• Robust stainless-steel housing rated for continuous service up to 750 °C ambient exposure; includes insulation layer compliant with EN 60519-2 safety standards
• No external power supply required—the unit operates passively via exothermic reaction heat recovery and furnace exhaust thermal energy

Sample Compatibility & Compliance

This catalytic afterburner is intended exclusively for use with Nabertherm muffle furnaces equipped with dedicated exhaust ducting and compatible P330 controller interfaces. It supports treatment of exhaust gases generated during routine laboratory processes including but not limited to: gravimetric ash analysis (ASTM D3174, ISO 1171), ceramic sintering, catalyst pre-conditioning, and polymer residue burn-off. The catalyst formulation meets EU REACH Annex XIV restrictions and carries CE marking under the Machinery Directive 2006/42/EC. While not a standalone emission compliance device, its performance aligns with requirements outlined in VDI 3478 (Guideline for Thermal Waste Gas Treatment) and supports adherence to institutional occupational exposure limits (OELs) per ACGIH TLVs® for formaldehyde, benzene, and total hydrocarbons.

Software & Data Management

Operation is fully coordinated through the Nabertherm P330 controller interface. The afterburner does not incorporate embedded firmware or data logging capabilities; instead, it relies on the P330’s analog/digital I/O architecture to trigger activation logic (e.g., “enable afterburner when furnace chamber ≥550 °C and exhaust flow >15 L/min”). Temperature data from integrated Type K thermocouples are displayed as auxiliary channels within the P330’s multi-zone monitoring screen. For GLP/GMP environments, audit trails—including afterburner activation timestamps, duration, and associated furnace program IDs—are retained within the P330’s internal event log (accessible via USB export). Full traceability complies with FDA 21 CFR Part 11 requirements when used with validated P330 configuration files and electronic signature-enabled user accounts.

Applications

• Residue-free ashing of biological tissues, foodstuffs, and pharmaceutical excipients where odor suppression and VOC abatement are critical for lab air quality
• Thermal cleaning of crucibles and boats following high-carbon-content sample processing (e.g., coal, activated carbon, carbon black)
• Pre-treatment of catalyst supports prior to impregnation, minimizing carbonaceous contamination in downstream synthesis
• Compliance-supporting operation in accredited testing laboratories performing ASTM E1662 (determination of volatile content in refractories) or ISO 14403 (ash content in plastics)
• Reduction of maintenance frequency for downstream exhaust scrubbers and activated carbon filters in shared facility ventilation systems

FAQ

Is this catalytic afterburner certified for use in Class 100 cleanrooms?

No—it is not rated for cleanroom environments due to non-sealed housing design and absence of particle-shedding controls.
Can it be retrofitted to non-Nabertherm furnaces?

Retrofitting is not supported. Mechanical mounting dimensions, flange specifications (DIN 2576), and P330 communication protocols are proprietary to Nabertherm systems.
What is the expected catalyst lifetime under typical lab usage?

Under continuous operation at ≤600 °C with non-halogenated organics, service life exceeds 12,000 hours. Catalyst deactivation may occur prematurely if exposed to silicones, phosphines, or heavy-metal vapors.
Does the unit require periodic calibration?

No calibration is required for the catalyst itself. However, the integrated Type K thermocouples must be verified annually per ISO/IEC 17025 calibration procedures.
Is replacement catalyst available as a spare part?

Yes—catalyst cartridges are supplied as Nabertherm OEM part no. 631000167, sold separately and field-replaceable without disassembly of the housing.
