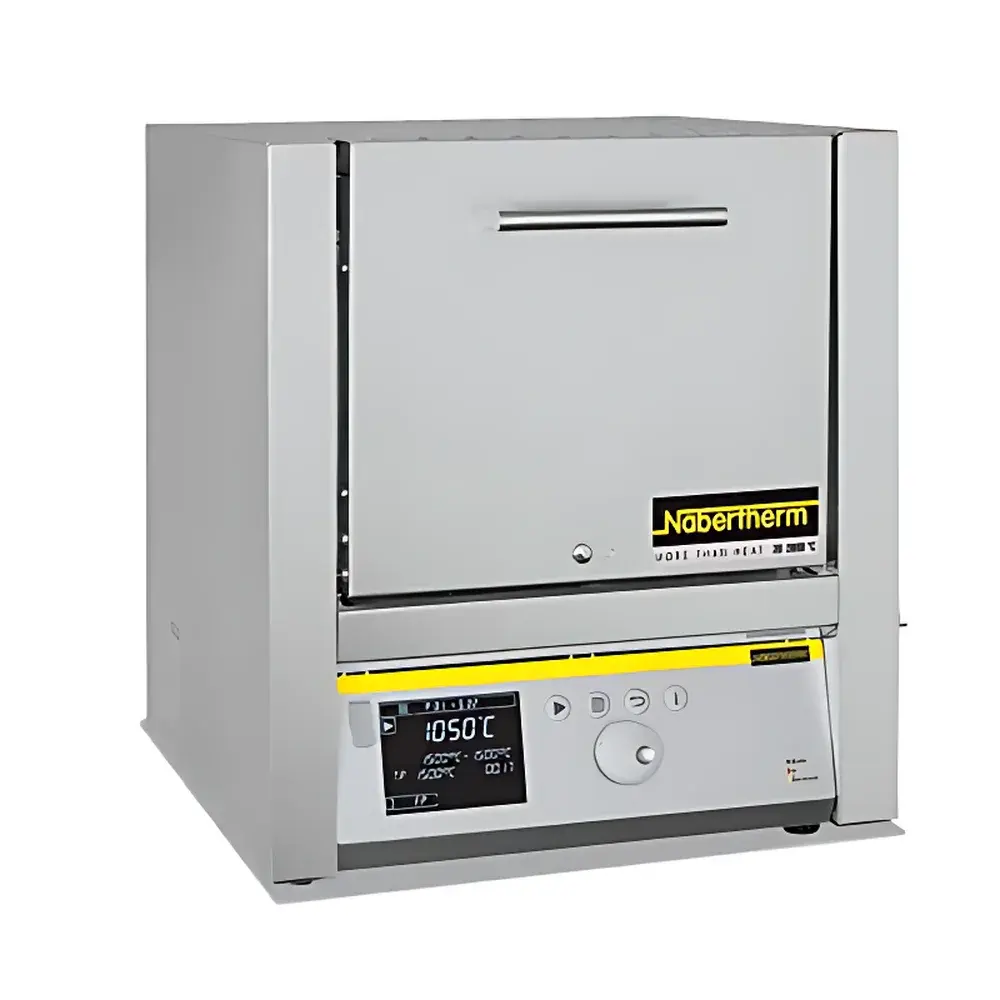

Nabertherm L5 11 B410 Benchtop Muffle Furnace

Overview

The Nabertherm L5 11 B410 is a compact, benchtop muffle furnace engineered for precision thermal processing in research laboratories, quality control environments, and academic institutions. Designed in accordance with EN 60519-2 safety standards for industrial electroheating equipment, it employs a dual-sided ceramic heating plate configuration—each plate embedding high-stability resistance wire—to ensure uniform radiant heat distribution across the chamber while isolating the heating elements from volatile or corrosive process byproducts. The muffle principle—where the sample is thermally isolated from direct contact with heating elements and combustion gases—is maintained through a fully enclosed, gas-tight ceramic fiber insulated chamber housed within a double-walled stainless steel shell. This architecture minimizes external surface temperature rise (<60 °C at ambient conditions), enhances energy efficiency, and supports repeatable, contamination-free thermal treatments up to 1100 °C.

Key Features

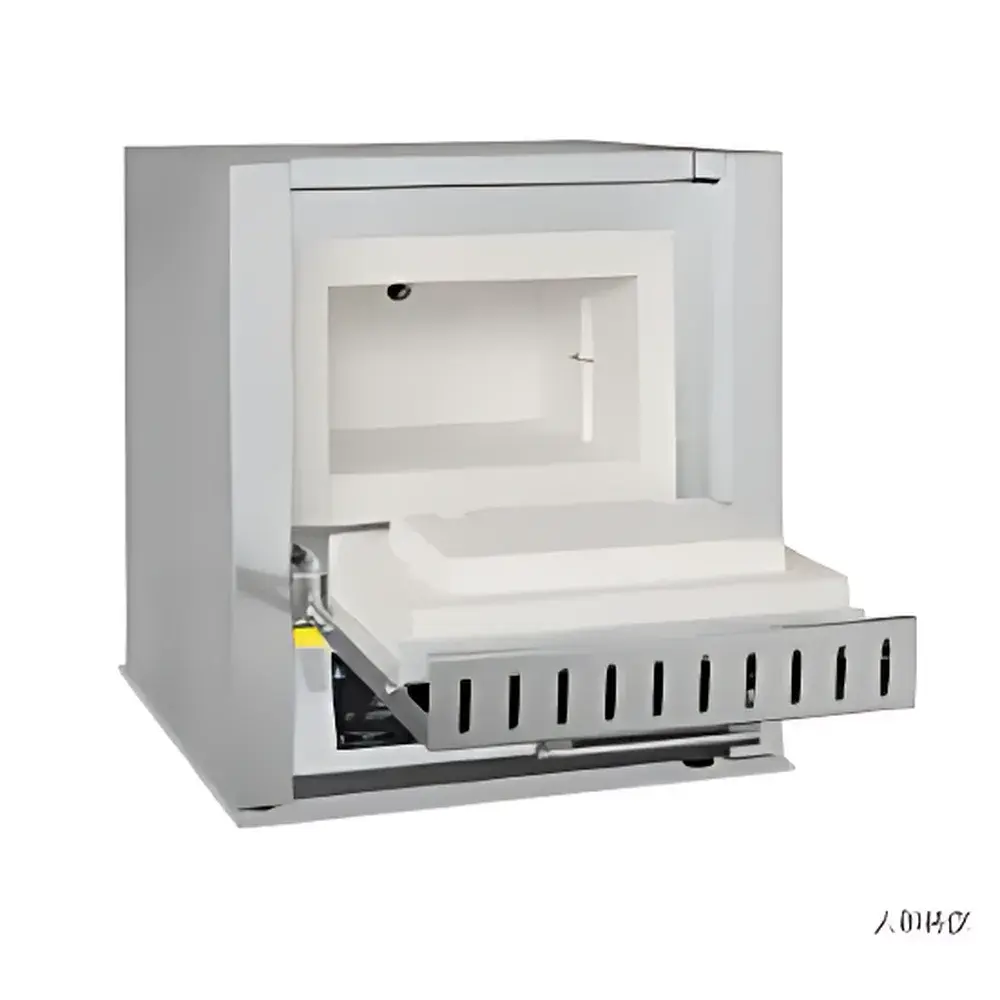

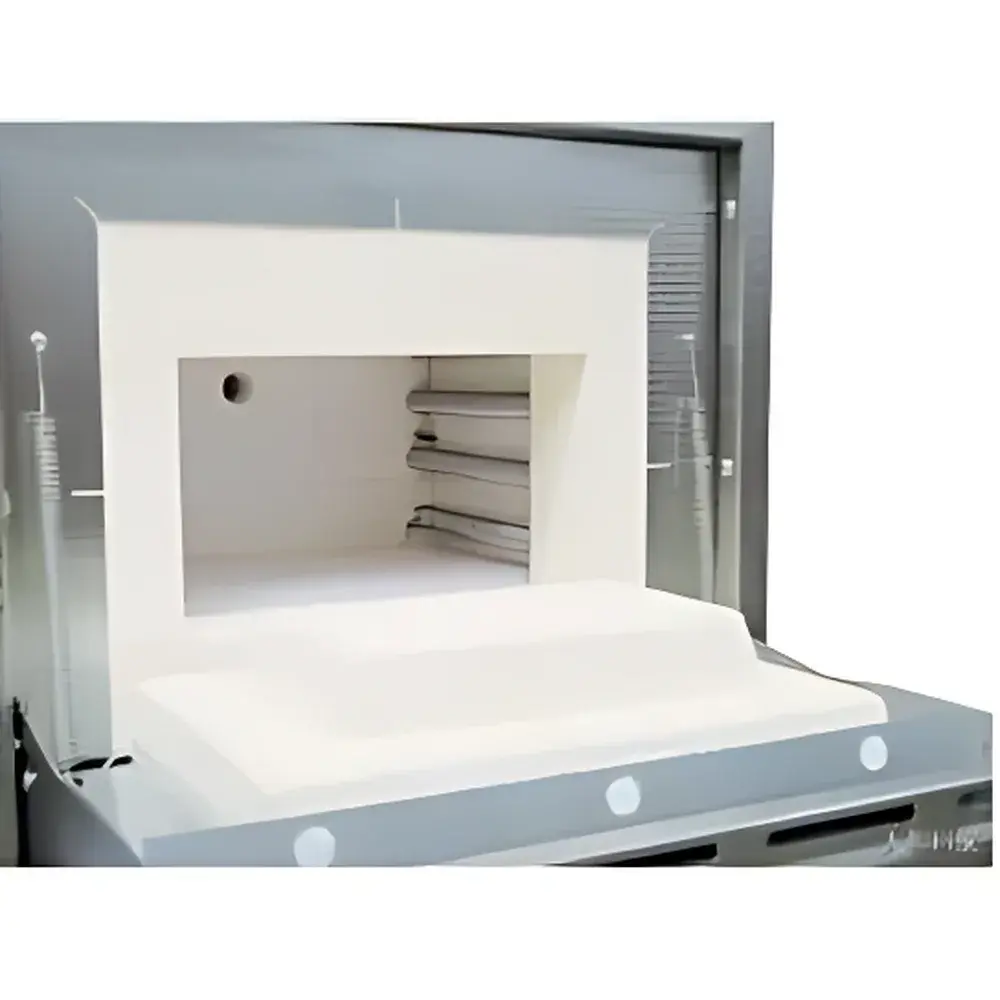

• Dual-ceramic heating plates with embedded resistance wire provide symmetrical heat flux and eliminate hot spots; plates are field-replaceable without disassembly of insulation.
• Ceramic fiber insulation (non-combustible, low thermal conductivity) ensures rapid heat-up, low standby losses, and long service life under cyclic operation.
• Double-walled brushed stainless steel housing (V2A / 1.4301) delivers structural rigidity, corrosion resistance, and passive cooling—reducing outer casing temperature during extended operation.
• Adjustable air inlet on door and rear-mounted exhaust port enable controlled atmosphere management for oxidative, inert, or mildly reducing processes.
• B410 four-segment programmable controller with USB data logging (NTLog basic function) supports reproducible ramp-soak profiles and audit-ready process documentation.
• Integrated overtemperature protection (Class 2 thermal cut-off per EN 60519-2) triggers independent mechanical limit switch at user-defined threshold—separate from main control loop.
• Low-noise solid-state relay switching eliminates audible relay chatter and extends switching reliability over >1 million cycles.

Sample Compatibility & Compliance

The L5 11 B410 accommodates standard crucibles (alumina, silica, platinum), ceramic boats, and small metal samples up to 5 L volume. Its sealed muffle design prevents cross-contamination between successive runs—critical for ashing food, pharmaceuticals (USP , AOAC 942.05), or environmental samples (EPA Method 3010A). Optional purge gas interface (N₂, Ar, forming gas) allows inert or reactive atmosphere processing—compatible with ISO 8501-3, ASTM E1111, and GLP-compliant workflows when paired with VCD software for electronic signature and 21 CFR Part 11–compliant audit trails. All electrical components meet CE marking requirements; thermal insulation conforms to EU Construction Products Regulation (CPR) classification A1 (non-combustible).

Software & Data Management

Process monitoring and parameter archiving are enabled via Nabertherm’s VCD (Virtual Control Device) software suite. When connected via USB, the B410 controller streams real-time temperature, setpoint, power output, and alarm status to a Windows-based host. VCD supports multi-furnace synchronization, automated report generation (PDF/CSV), and secure user access levels (operator, supervisor, administrator). Data integrity is preserved through timestamped, tamper-evident logs with checksum validation—meeting requirements for ISO/IEC 17025 accreditation and FDA-regulated stability studies. NTLog functionality permits standalone recording onto USB flash drives without PC dependency, with file encryption and cyclic overwrite options.

Applications

This furnace serves routine and method-driven thermal tasks including: quantitative ash determination in foodstuffs and feedstuffs (AOAC, DIN 51718); pre-treatment of catalysts and sorbents; calcination of ceramic precursors (e.g., BaTiO₃, YSZ); annealing of thin-film substrates; thermal gravimetric analysis (TGA) sample preparation; metallographic specimen conditioning; and residue testing in cosmetics and polymers. Its compact footprint (385 × 390 × 460 mm) and single-phase 2.4 kW draw make it suitable for shared lab spaces with limited utility infrastructure.

FAQ

What atmosphere options are supported?
The L5 11 B410 accepts inert (N₂, Ar), oxidizing (air), or mildly reducing (5% H₂/N₂) atmospheres via its dedicated purge gas inlet. Combustible gas purging requires separate risk assessment and cannot be combined with exhaust chimney accessories.
Can the furnace operate continuously at 1100 °C?
Yes—rated for continuous duty at maximum temperature, provided ambient conditions remain within 15–35 °C and relative humidity ≤80% non-condensing. Recommended maintenance interval is 500 operating hours or annually, whichever occurs first.
Is the B410 controller compliant with 21 CFR Part 11?
Full Part 11 compliance (electronic signatures, audit trail, role-based access) is achieved only when used with validated VCD software and configured on a domain-controlled Windows system meeting NIST SP 800-53 controls.
What optional accessories require additional cabling?
Exhaust chimneys with integrated fans or catalytic converters require a separately ordered 2-meter control cable (PN: 631000813) to interface with the B410’s auxiliary output socket—enabling synchronized activation with heating programs.
How is temperature uniformity verified?
Nabertherm provides factory calibration certificates traceable to PTB (Physikalisch-Technische Bundesanstalt) standards. Users may perform in-house uniformity mapping using a 5-point thermocouple array per ASTM E220 or IEC 60584-2, with typical radial deviation ≤±2.5 °C at 1100 °C.
