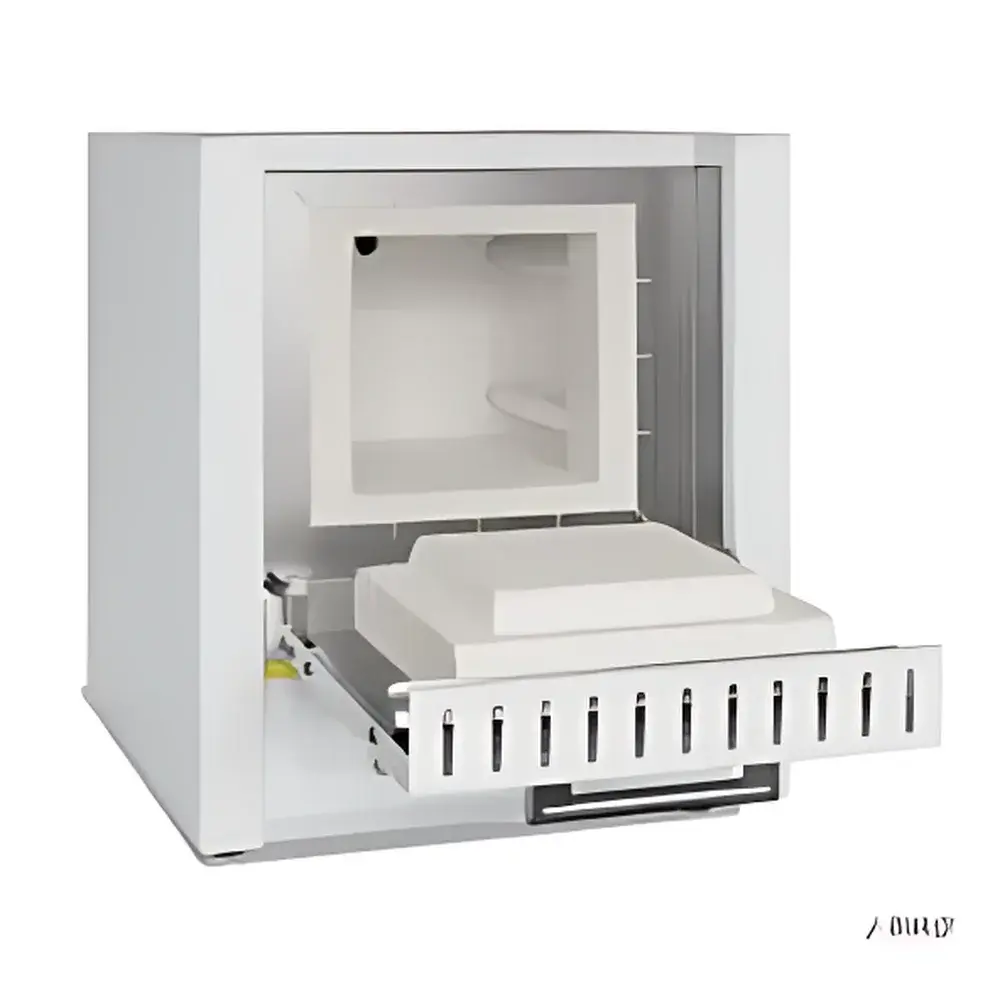

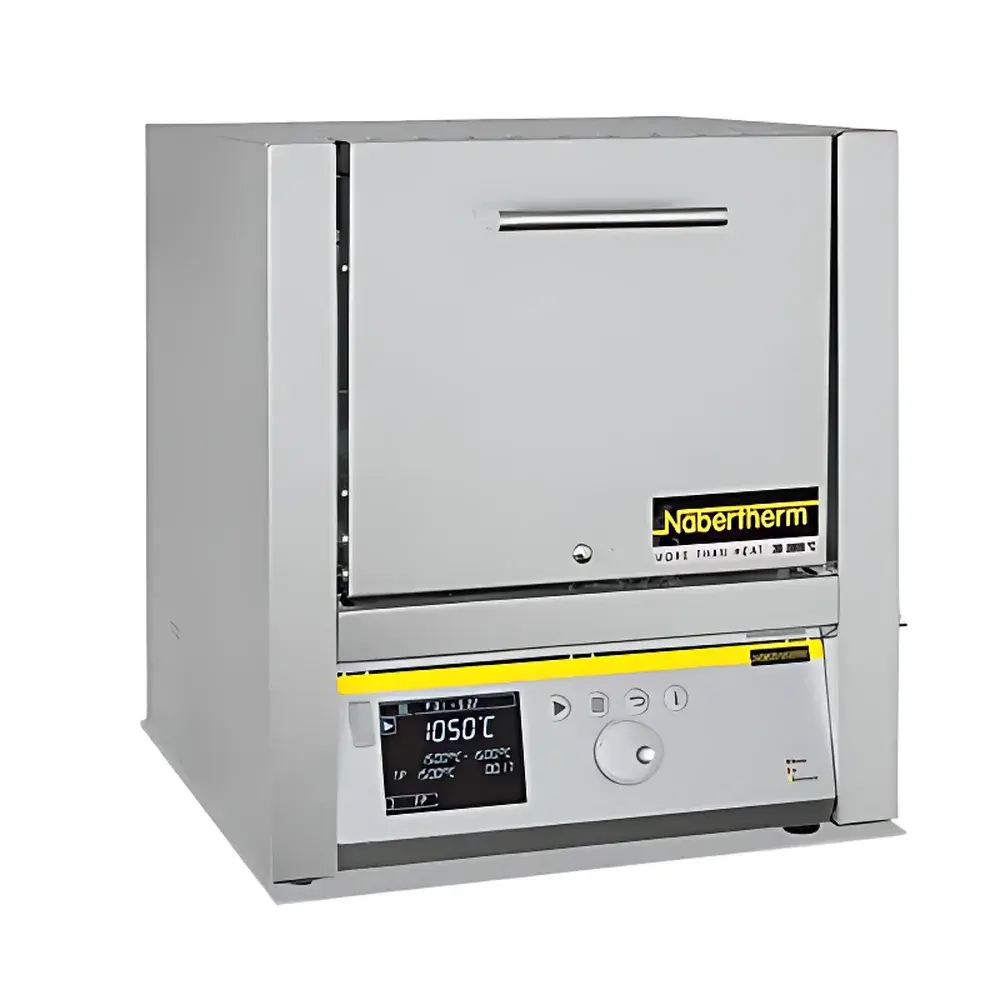

Nabertherm L9 11 B410 Benchtop Muffle Furnace

Overview

The Nabertherm L9 11 B410 is a precision-engineered benchtop muffle furnace designed for routine thermal processing in academic, pharmaceutical, food safety, and materials research laboratories. It operates on the principle of radiant heat transfer within an electrically heated, fully insulated chamber—ensuring thermal isolation between the heating elements and the process zone. The furnace achieves stable, repeatable temperature profiles up to 1100 °C using dual-sided ceramic heating panels embedded with high-stability resistance wire. This configuration minimizes thermal gradients across the chamber while protecting heating elements from volatile byproducts or sample splatter. Its double-walled stainless steel housing maintains external surface temperatures below 60 °C during operation, enhancing operator safety and lab ergonomics. The L9 11 B410 complies with EN 60519-2 for industrial electroheating equipment safety, incorporating redundant thermal protection including a Class 2 overtemperature limiter that independently interrupts power if the controller fails.

Key Features

• Dual-sided ceramic heating panels with integrated resistance wire—resistant to chemical attack and mechanical abrasion, enabling long-term stability and easy replacement.
• High-efficiency ceramic fiber insulation—low thermal conductivity, low heat storage, and non-combustible per DIN 4102-A1 classification.
• Nabertherm B410 programmable controller with 4-segment ramp/soak capability—supports precise thermal profile execution and repeatability across batches.
• NTLog data logging function via USB flash drive—records time-stamped temperature, setpoint, and power status at user-defined intervals (e.g., every 1–60 seconds), compliant with GLP documentation requirements.
• Adjustable air inlet on door and rear exhaust port—enables controlled atmosphere management for oxidation, inerting, or mild reduction protocols.
• Optional external door (type L) with horizontal opening—facilitates loading of flat or oversized samples without vertical clearance constraints.
• Integrated solid-state relay—ensures silent, contact-free switching and extended service life under cyclic thermal loads.

Sample Compatibility & Compliance

The L9 11 B410 accommodates standard crucibles (alumina, silica, platinum), ceramic boats, and metal trays up to 230 mm wide × 240 mm deep × 170 mm high. Its uniform temperature distribution (±3 °C at 1100 °C per DIN EN 1538) supports applications requiring strict thermal consistency—including ASTM E1529 for fire-test-response evaluation, ISO 1171 for ash content determination in fuels and biomass, and USP for residue on ignition in pharmaceutical excipients. The furnace meets CE marking requirements under the EU Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU. Optional gas purge fittings allow introduction of nitrogen, argon, or forming gas (N₂/H₂) for controlled-atmosphere treatments—compatible with ISO 8501-1 surface preparation standards and ASTM F2298 for thermal desorption validation.

Software & Data Management

Process monitoring and archival are enabled through Nabertherm’s VCD (Visual Control & Documentation) software suite. When connected via RS485 or optional Ethernet interface, VCD provides real-time visualization of temperature curves, alarm history, and controller diagnostics. All logged data (.csv or .txt format) include timestamps traceable to system clock—supporting 21 CFR Part 11 compliance when deployed with user access controls, electronic signatures, and audit trail configuration. NTLog recordings retain metadata such as firmware version, controller ID, and calibration date—essential for ISO/IEC 17025 accredited testing laboratories. No cloud dependency: all data remain locally stored unless explicitly exported.

Applications

• Gravimetric ash analysis (food, feed, soil, polymers) per AOAC 942.05 and EPA Method 1695.
• Pretreatment of catalysts, battery electrode materials, and ceramic precursors prior to sintering.
• Heat treatment of small metal specimens (annealing, stress relieving) in metallurgy education and R&D.
• Residue-on-ignition testing in QC labs for active pharmaceutical ingredients (APIs) and excipients.
• Thermal decomposition studies of composites, coatings, and nanomaterials under static air or inert gas.
• Calibration of thermocouples and reference materials in metrology labs (traceable to PTB/NIST standards).

FAQ

What safety certifications does the L9 11 B410 hold?

It conforms to EN 60519-2 (electroheating equipment), EN 61000-6-3 (EMC emissions), and EN 61000-6-2 (immunity), and carries full CE marking.
Can the furnace operate under inert or reducing atmospheres?

Yes—via optional gas inlet fitting (not compatible with exhaust chimney configurations). Flow rate and pressure must be externally regulated per DIN EN ISO 857-2.
Is the B410 controller upgradeable to multi-segment programming?

No—the B410 is fixed at 4 segments. For >4 segments, Nabertherm recommends upgrading to the T300 or T400 series controllers.
What maintenance is required for long-term accuracy?

Annual verification of thermocouple calibration against a certified reference (e.g., PtRh10-Pt) and inspection of ceramic fiber integrity—no routine lubrication or consumable replacement needed.
Are exhaust accessories included by default?

No—exhaust chimney (631000140), fan-integrated chimney (631000812), catalytic converter (631000813), and gas-fired torch (631000814) are optional and require separate ordering and dedicated control cabling.
