Nabertherm L9 11 C450 Benchtop Muffle Furnace

Overview

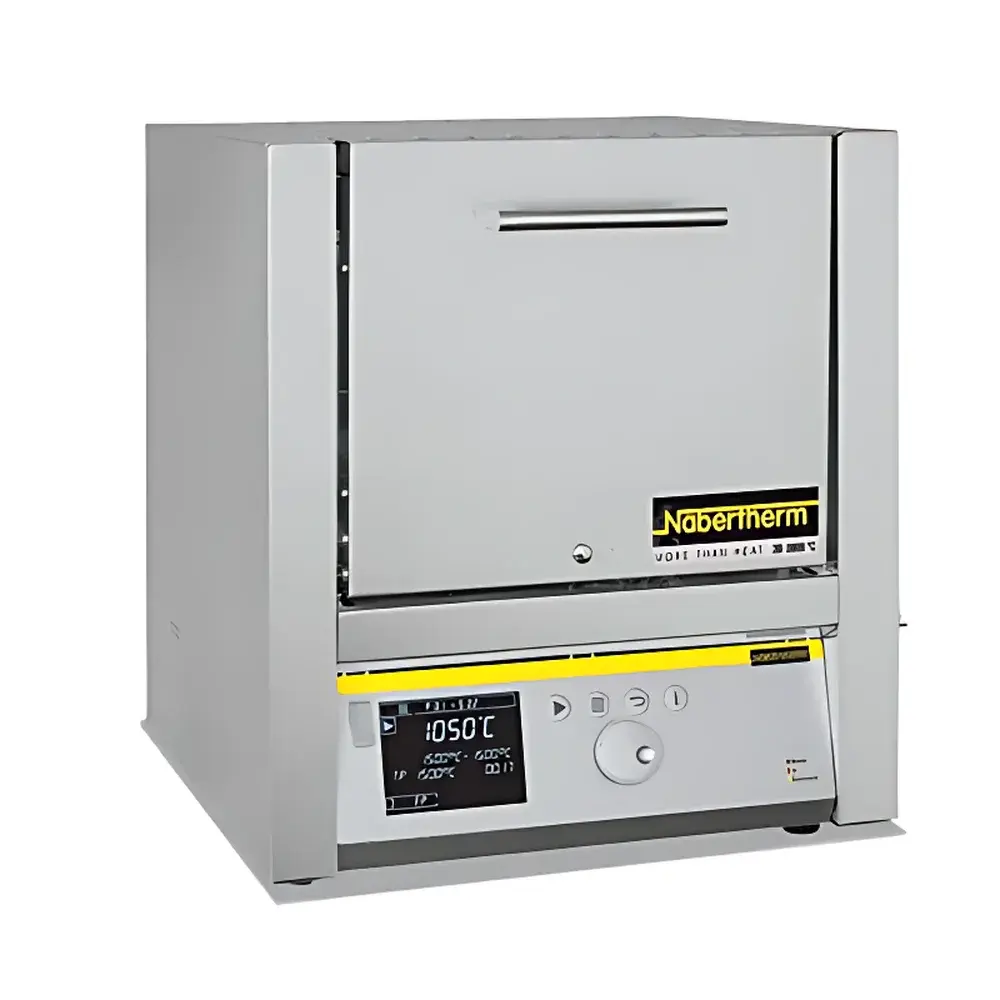

The Nabertherm L9 11 C450 is a precision-engineered benchtop muffle furnace designed for routine laboratory thermal processing up to 1100 °C. It operates on the principle of radiant and conductive heat transfer within an electrically heated, fully insulated chamber—ensuring thermal isolation between the heating elements and the process zone. The dual-sided ceramic heating plates integrate high-stability resistance wires, minimizing thermal gradients and eliminating direct exposure of heating elements to volatile or corrosive process byproducts. This architecture supports reproducible thermal profiles across repeated cycles, critical for applications requiring strict adherence to standardized calcination, ashing, sintering, or heat-treatment protocols. Its compact footprint (415 × 455 × 515 mm), 9-liter chamber volume, and robust dual-layer stainless steel housing make it suitable for shared lab environments where space efficiency, operator safety, and long-term operational stability are prioritized.

Key Features

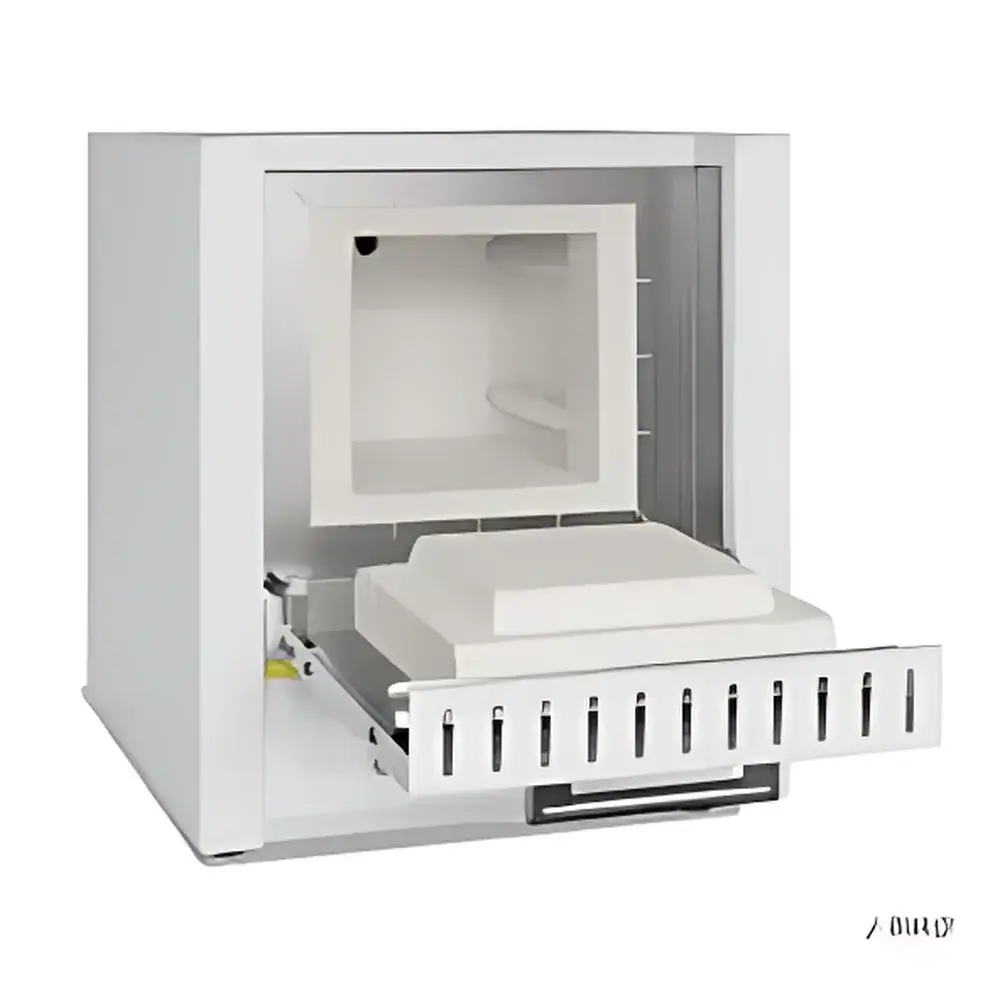

• Dual-sided ceramic heating plates with embedded resistance wires—resistant to chemical attack and mechanical degradation from splashes or vapors
• High-density ceramic fiber insulation—low thermal conductivity, low heat loss, and rapid cooldown characteristics
• Dual-layer brushed stainless steel outer casing—reduces external surface temperature during operation and enhances structural rigidity
• Adjustable air inlet on door and rear exhaust port—enables controlled atmosphere management for oxidative, inert, or reducing conditions
• C450 20-segment programmable controller—with USB data logging (NTLog), real-time temperature profiling, and user-defined ramp/soak sequences
• Integrated overtemperature protection per EN 60519-2 (Thermal Protection Class 2)—independent limit controller cuts power if setpoint deviation exceeds safe thresholds
• Low-noise solid-state relay switching—eliminates mechanical contact wear and ensures silent, jitter-free power modulation

Sample Compatibility & Compliance

The L9 11 C450 accommodates crucibles, boats, and trays made from alumina, silicon carbide, quartz, or stainless steel (up to 1100 °C). Its sealed muffle design prevents cross-contamination between samples and protects heating elements from volatilized organics or halogenated residues—making it suitable for USP , AOAC 943.01, and ASTM E121–22 ashing procedures. Optional gas purge fittings allow introduction of nitrogen, argon, or forming gas (e.g., 5% H₂ in N₂) for controlled-atmosphere treatments, compliant with ISO 8501-1 pre-treatment standards for metallographic sample preparation. All electrical and thermal safety systems conform to IEC 61000-6-3 (EMC) and EN 61000-6-4, while the controller firmware supports audit-trail-enabled operation under GLP and GMP frameworks when paired with VCD software.

Software & Data Management

Process monitoring and documentation are supported via Nabertherm’s VCD (Virtual Control Device) software suite—a Windows-based application enabling remote supervision, multi-furnace synchronization, and FDA 21 CFR Part 11-compliant electronic records. VCD logs timestamped temperature, power consumption, and alarm events directly to encrypted .csv or .pdf files. NTLog functionality on the C450 controller permits standalone USB flash drive recording without PC dependency—ideal for unattended overnight runs. Data export supports integration into LIMS platforms via standard OPC UA or Modbus TCP interfaces. Firmware updates are delivered via secure HTTPS download and validated using SHA-256 checksums.

Applications

• Residue ashing of food, pharmaceutical, and environmental samples per EPA Method 3050B and ISO 11885
• Pre-sintering of ceramic green bodies and glass frit densification
• Heat treatment of metallurgical specimens—including annealing, stress relieving, and tempering of non-ferrous alloys
• Calcination of catalyst precursors and battery electrode materials (e.g., LiCoO₂, Ni-rich NMC)
• Thermogravimetric sample conditioning prior to XRD or SEM-EDS analysis
• Standardized testing per DIN 51062 (ash content in lubricants) and ASTM D5630 (polymer residue analysis)

FAQ

What inert gases are compatible with the optional purge system?
Nitrogen, argon, and forming gas (5% H₂ in N₂) are supported; helium is not recommended due to high thermal conductivity and potential leakage risks.
Can the furnace be operated continuously at 1100 °C?
Yes—continuous operation is permitted per manufacturer specifications, provided ambient temperature remains below 35 °C and ventilation meets minimum 0.5 m³/min airflow requirements.
Is the C450 controller compatible with Ethernet or RS485 networks?
No—the C450 features USB and analog 0–10 V output only; network connectivity requires external VCD host PC or optional B410 controller upgrade.
What is the maximum recommended load mass for uniform heating?
For optimal temperature uniformity (±3 °C), total sample + fixture mass should not exceed 2.5 kg; heavier loads require extended soak times and may reduce repeatability.
Are replacement heating plates field-serviceable?
Yes—ceramic heating plates are modular and replaceable using standard tools; full service manual and spare part diagrams are available upon registration at nabertherm.com/en/support.
