Nabertherm Muffle Furnace Support Blocks

Overview

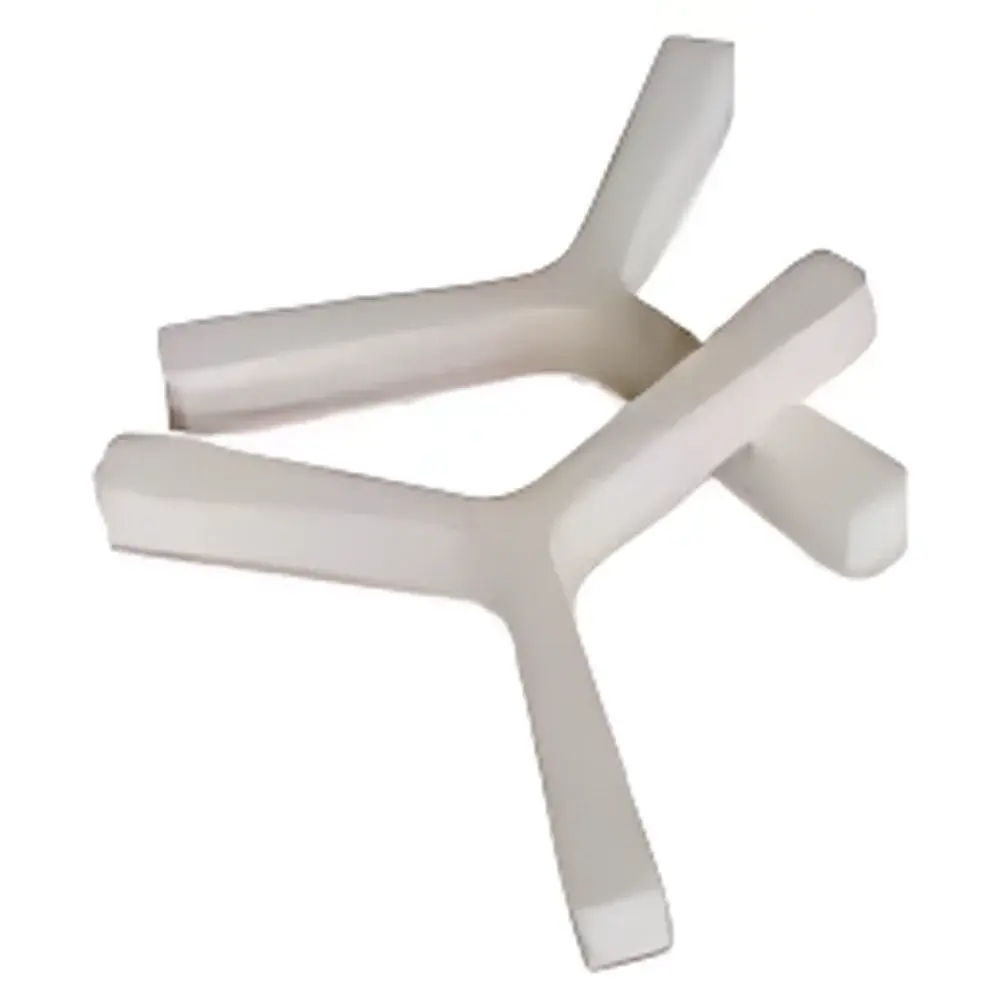

Nabertherm muffle furnace support blocks are precision-engineered ceramic or high-purity alumina spacers designed to ensure stable, uniform thermal distribution and mechanical protection within Nabertherm muffle furnaces. These components are not consumables but critical structural accessories that maintain proper air gap clearance between the furnace floor and the bottom of crucibles, boats, or other sample carriers. By elevating the load above the furnace base, they promote consistent convective heat transfer, minimize localized thermal stress on both the container and furnace chamber lining, and prevent direct contact with residual ash or condensed volatiles—thereby extending both sample integrity and furnace service life. Their use aligns with standard laboratory practices for gravimetric analysis, ash content determination (e.g., ASTM D3174, ISO 1171), and high-temperature calcination protocols where reproducible positioning and thermal homogeneity are essential.

Key Features

• Manufactured from high-alumina ceramic (Al₂O₃ ≥ 95%) with continuous use temperature rating up to 1600 °C — compatible with Nabertherm’s HT series furnaces
• Dimensionally stable under repeated thermal cycling; low coefficient of thermal expansion ensures minimal warping or cracking after >100 cycles at 1200 °C
• Flat, ground top and bottom surfaces guarantee level load support and uniform weight distribution across the furnace hearth
• Chemically inert in oxidizing and mildly reducing atmospheres; resistant to alkali metal vapors and common flux residues encountered during ashing procedures
• Available in standardized height increments (10 mm, 15 mm, 20 mm) and footprint dimensions matching Nabertherm’s standard crucible trays (e.g., 120 × 120 mm, 150 × 150 mm)

Sample Compatibility & Compliance

These support blocks are intended exclusively for use with Nabertherm muffle furnaces and associated certified sample containers—including porcelain, platinum, and high-purity alumina crucibles. They comply with DIN EN 60519-12 (safety requirements for industrial electroheating equipment) and support adherence to ISO/IEC 17025:2017 clause 6.4.2 regarding environmental condition control during thermal testing. When used in regulated environments (e.g., pharmaceutical QC labs performing USP ash residue testing), the blocks contribute to method robustness by eliminating positional variability—a recognized source of measurement uncertainty in gravimetric workflows. No calibration is required; however, visual inspection for surface crazing or dimensional deviation is recommended prior to each use in GLP/GMP settings.

Software & Data Management

As passive mechanical components, Nabertherm support blocks do not interface with furnace control software (e.g., Nabertherm THERMOCOM® or LabVIEW-based automation systems). However, their consistent geometry and thermal behavior enable reliable integration into validated thermal processes documented under FDA 21 CFR Part 11-compliant electronic records. Laboratories maintaining traceable furnace qualification protocols (IQ/OQ/PQ) routinely include support block specifications—including batch number, material certificate (EN 14067), and dimensional verification reports—in their equipment master files to ensure audit readiness.

Applications

• Ash content analysis per AOAC 942.05, ASTM E1755, and ISO 21668 for food, feed, and biomass samples
• Residue-on-ignition (ROI) testing in cement and mineral processing QA/QC laboratories
• Preparation of reference materials requiring precise thermal history control during calcination
• Supporting quartz or fused silica boats in semiconductor-grade impurity profiling workflows
• Enabling multi-level stacking configurations in high-throughput ashing applications without compromising airflow or thermocouple accuracy

FAQ

Are these support blocks compatible with non-Nabertherm furnaces?
They are dimensionally and thermally optimized for Nabertherm muffle furnace hearth layouts and load-bearing specifications; compatibility with third-party furnaces requires independent verification of clearance, weight capacity, and thermal expansion match.
Do the blocks require periodic recalibration or certification?
No—these are static, non-measuring components. However, periodic visual inspection and documentation of physical condition are recommended as part of preventive maintenance in accredited laboratories.
Can they be cleaned in an ultrasonic bath?
Yes, using deionized water or mild neutral detergent; avoid acidic or alkaline solvents that may degrade surface glaze over time.
Is a material test report (MTR) available upon request?
Yes—certificates of conformance including bulk density, Al₂O₃ content, and thermal shock resistance data are provided with each shipment per EN 10204 3.1.
