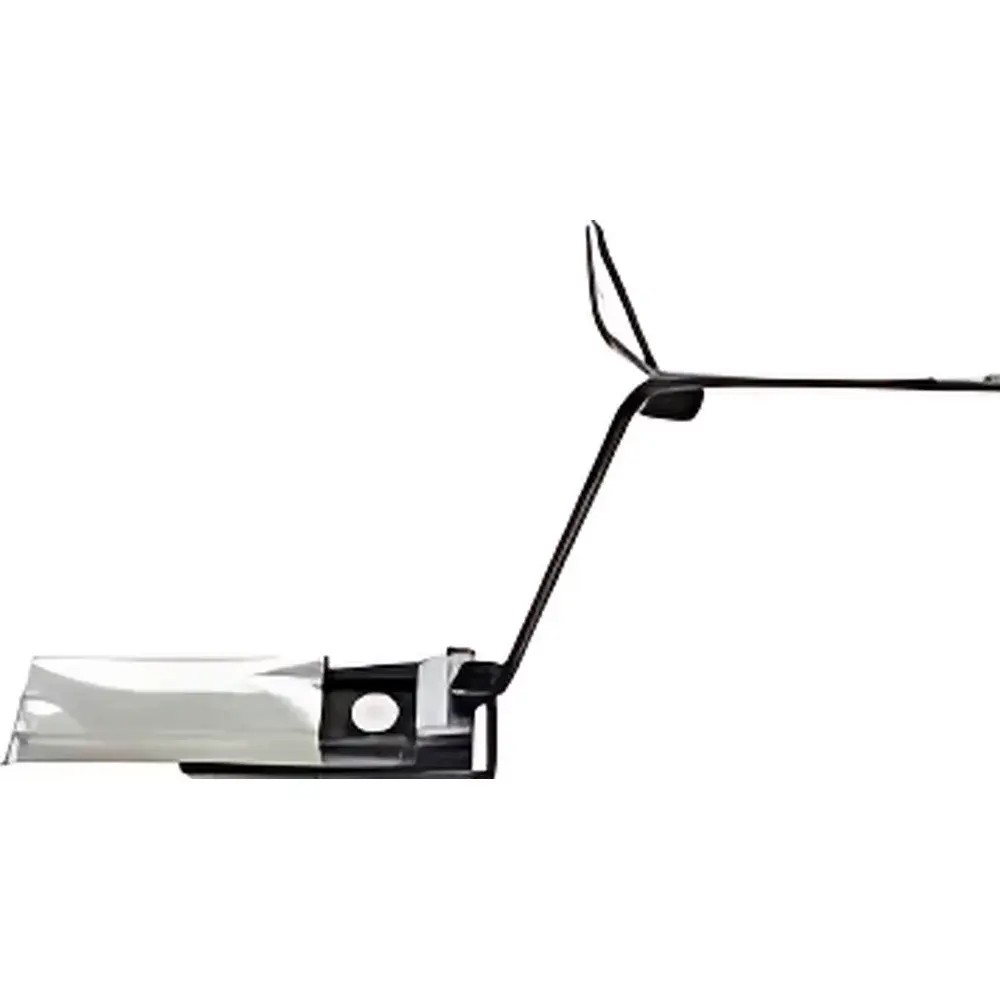

Nabertherm Quenching Auxiliary Device / Handle-Fitted Annealing Cover

Overview

The Nabertherm Quenching Auxiliary Device — a handle-fitted annealing cover — is a precision-engineered furnace accessory designed for controlled thermal processing in laboratory and pilot-scale muffle furnaces. It functions as a removable, thermally stable lid assembly with an integrated handle and dedicated inert gas inlet port, enabling reproducible heat treatment under defined atmospheric conditions. Unlike standard furnace covers, this device facilitates rapid transition between protective atmosphere annealing/hardening and open-air quenching without requiring furnace door modification or external gas manifolds. Its design conforms to the mechanical and dimensional specifications of Nabertherm’s N-series horizontal muffle furnaces (models N 7/H through N 61/H), ensuring secure fitment, uniform thermal boundary conditions, and minimal heat loss during operation. The unit operates within the full temperature range of compatible furnaces (up to 1200 °C for N 61/H, per Nabertherm technical documentation), and is constructed from high-purity alumina-silica refractory material resistant to thermal shock and oxidation.

Key Features

• Integrated ergonomic handle for safe, one-handed placement and removal at elevated temperatures
• Dedicated 6 mm BSP threaded gas inlet port compatible with standard stainless-steel tubing and pressure-regulated inert gas supply systems (e.g., N₂, Ar)
• Refractory ceramic body with low thermal conductivity and high emissivity surface finish for uniform radiative heat transfer
• Dimensionally matched to Nabertherm N-series furnace chamber openings — ensures gas-tight seal when seated and eliminates edge hot spots
• No internal moving parts or electrical components; fully passive operation compliant with IEC 61000-6-2 electromagnetic immunity requirements
• Surface-treated to resist scaling and metal oxide adhesion during repeated thermal cycling

Sample Compatibility & Compliance

This auxiliary device supports crucibles, quartz boats, and metallic sample holders up to Ø120 mm × H80 mm (dependent on base furnace model). It is suitable for annealing of thin-film substrates, sintering of ceramic preforms, stress-relief of precision machined components, and martensitic hardening of tool steels. The inert gas interface enables compliance with ASTM E831 (standard practice for thermal analysis of materials under controlled atmospheres) and ISO 11358-1 (polymer thermogravimetry in non-oxidizing environments). When used with Nabertherm furnaces certified to EN 60519-12 (safety requirements for industrial electroheating equipment), the assembly maintains full conformity under Category 3 risk assessment per Machinery Directive 2006/42/EC.

Software & Data Management

As a purely mechanical furnace accessory, the Quenching Auxiliary Device requires no firmware, driver installation, or software integration. All process parameters — including ramp rates, dwell times, and gas flow rates — are managed via the host furnace’s native control system (e.g., Nabertherm THERMOCOMFORT or THERMOCONTROL software suite). When paired with Nabertherm’s optional data logging modules, atmospheric conditions (gas flow, pressure differential across cover seal) may be recorded alongside temperature profiles for full GLP-compliant audit trails. The device itself contributes no electronic signal; therefore, it imposes zero impact on furnace calibration validity or 21 CFR Part 11 electronic record integrity.

Applications

• Controlled-atmosphere annealing of semiconductor wafers and MEMS devices to prevent surface oxidation
• Hardening of high-speed steel (HSS) and cold-work tool steels under nitrogen blanket prior to oil or polymer quenching
• Debinding and sintering of metal injection molded (MIM) parts under low-oxygen conditions
• Thermal stabilization of reference standards (e.g., Pt–Rh thermocouples, fixed-point cells) prior to calibration
• Rapid thermal cycling experiments where sequential annealing and quenching steps must occur within a single furnace cavity

FAQ

Is this device compatible with non-Nabertherm furnace models?
No — dimensional tolerances, flange geometry, and gas port alignment are specific to Nabertherm N-series horizontal muffle furnaces (N 7/H to N 61/H). Interchangeability with other brands is not supported.
Does the cover include a built-in gas flow meter or pressure regulator?
No — it provides only a standardized gas inlet port. External flow control must be implemented upstream using calibrated mass flow controllers or needle valves.
Can the handle be replaced if damaged?
Yes — the stainless-steel handle is secured with two M6×20 hex socket screws and is available as spare part #NA-AC-HDL-01 from authorized Nabertherm distributors.
What maximum operating temperature does the cover support?
The refractory composition is rated to 1300 °C continuous use; however, operational limits follow those of the host furnace — e.g., 1100 °C for N 30/H, 1200 °C for N 61/H.
Is cleaning required between uses?
Yes — residual oxides or carbon deposits should be removed using non-abrasive ceramic brushes and compressed dry air; chemical solvents are not recommended due to potential refractory degradation.
