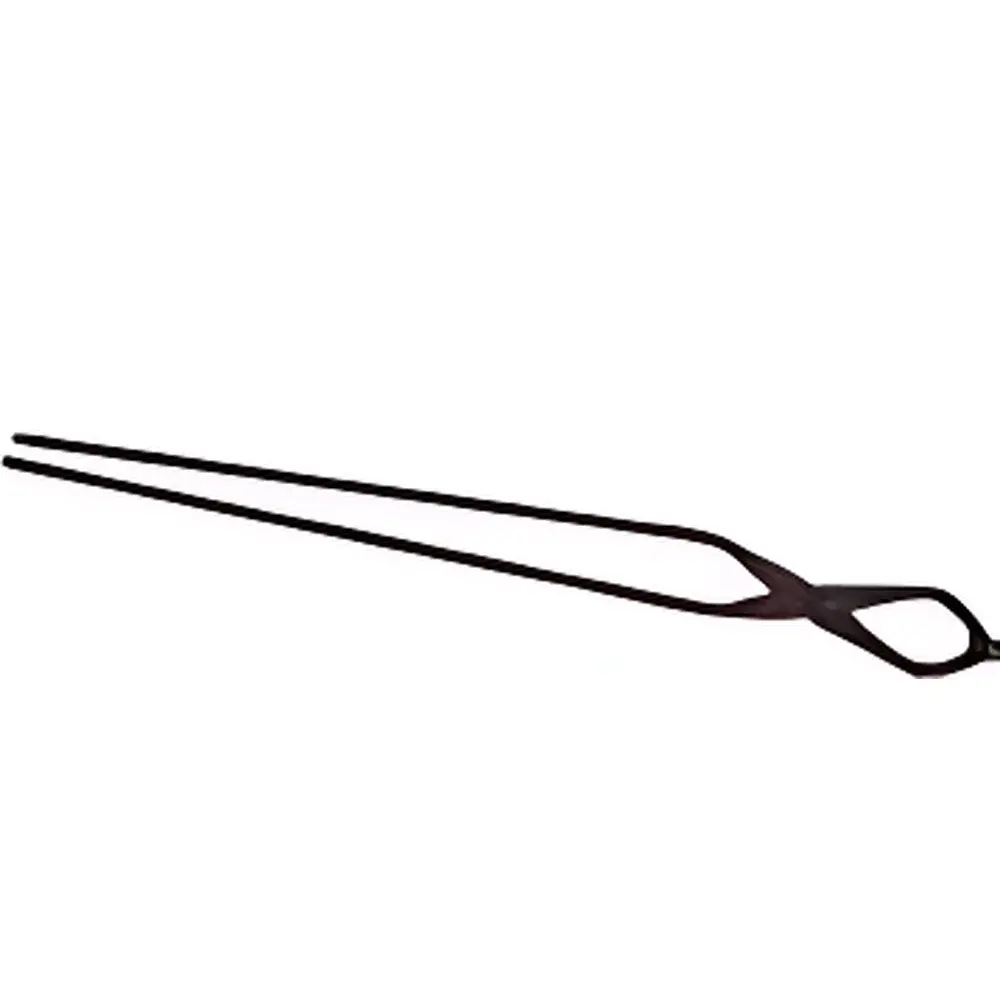

Nabertherm Quenching Tongs
| Brand | Nabertherm |
|---|---|
| Origin | Germany |
| Supplier Type | Authorized Distributor |
| Origin Category | Imported |
| Model | Not Applicable |
| Pricing | Upon Request |
Overview
Nabertherm quenching tongs are precision-engineered handling tools designed for safe, repeatable, and thermally stable specimen transfer during heat treatment processes—particularly annealing, tempering, and quenching operations in laboratory-scale muffle furnaces and high-temperature ovens. These tongs operate as critical interface components between the thermal processing chamber and the quenching medium (e.g., oil, polymer solution, or water baths), ensuring operator safety while preserving sample integrity and process repeatability. Constructed from high-grade austenitic stainless steel (typically AISI 310S or equivalent), they resist oxidation and creep deformation at continuous service temperatures up to 1200 °C—fully compatible with Nabertherm’s standard muffle furnace operating envelopes. Unlike generic laboratory forceps, Nabertherm quenching tongs are dimensionally calibrated to match standard crucible and sample holder geometries, minimizing slippage and thermal shock-induced cracking during rapid extraction.
Key Features
- Heat-resistant construction using forged austenitic stainless steel (AISI 310S) with optimized grain structure for long-term dimensional stability under thermal cycling
- Ergonomic, insulated handle design featuring dual-layer silicone-rubber overmolding rated to 250 °C surface temperature, compliant with EN 61326-1 for laboratory equipment safety
- Interchangeable jaw inserts available in flat, V-groove, and crucible-grip configurations—each precisely machined to ±0.1 mm tolerance for consistent clamping force distribution
- Integrated thermal mass balancing: tapered shank geometry reduces thermal gradient across the tool, limiting conductive heat transfer toward the operator zone
- Corrosion-resistant surface finish (electropolished to Ra ≤ 0.4 µm) prevents contamination of sensitive metallurgical samples and facilitates ISO 14644-1 Class 5 cleanroom-compatible cleaning protocols
Sample Compatibility & Compliance
Nabertherm quenching tongs accommodate standard laboratory crucibles (Al₂O₃, SiC, Pt–Rh), quartz boats, graphite holders, and metallic sample trays with dimensions ranging from Ø10 mm to Ø120 mm and heights up to 80 mm. Jaw opening range is mechanically limited to 95 mm maximum, preventing over-extension and spring fatigue. All materials comply with RoHS Directive 2011/65/EU and REACH Regulation (EC) No. 1907/2006. Tool geometry conforms to DIN 51742 for laboratory heat treatment accessories, supporting traceability in GLP and GMP environments where instrument qualification (IQ/OQ/PQ) documentation is required.
Software & Data Management
As a passive mechanical handling device, Nabertherm quenching tongs do not incorporate embedded electronics or digital interfaces. However, they are fully interoperable with Nabertherm’s control ecosystem—including the THERMOCOMFORT software suite and HTL-2000 series programmable controllers—enabling synchronized logging of quench timing relative to furnace temperature profiles. When used within validated heat treatment workflows, tong usage events can be manually annotated in electronic lab notebooks (ELNs) compliant with FDA 21 CFR Part 11 requirements. Calibration records (including jaw parallelism verification and torque retention testing per DIN EN ISO 9001:2015 Annex A.7) are maintained by authorized distributors and provided upon delivery.
Applications
- Controlled cooling of alloy specimens (e.g., Fe–C, Al–Si, Ti–6Al–4V) following austenitization in inert-atmosphere muffle furnaces
- Transfer of ceramic green bodies during binder burnout cycles without mechanical distortion
- Handling of calibration standards (e.g., SRM 720a, NIST-traceable metal coupons) in metrology-grade heat treatment validation
- Quench interruption experiments requiring sub-second timing accuracy between furnace egress and medium immersion
- High-temperature phase transformation studies where sample surface oxide layer preservation is critical to subsequent XRD or SEM–EDS analysis
FAQ
Are Nabertherm quenching tongs supplied with calibration certificates?
Yes—each unit shipped by authorized distributors includes a manufacturer-issued conformity statement referencing DIN 51742 and material test reports (MTRs) for base alloy composition and tensile yield strength.
Can these tongs be used in vacuum or controlled atmosphere furnaces?
They are suitable for use in inert gas (Ar, N₂) and reducing atmospheres (H₂/N₂ mixtures); however, prolonged exposure to vacuum below 10⁻² mbar is not recommended due to potential outgassing from handle insulation materials.
What maintenance is required to ensure long service life?
After each use, wipe jaws with ethanol and inspect for microcracks or pitting; annual torque verification of pivot joints is advised using a calibrated beam-type torque wrench (range: 0.5–5 N·m).
Do you offer custom jaw geometries for non-standard sample carriers?
Yes—Nabertherm’s engineering support team accepts dimensional drawings for OEM-style customization, subject to minimum order quantities and lead time assessment.
Is chemical resistance data available for the handle coating?
The silicone-rubber overmolding demonstrates resistance to common quench media including mineral oil (ASTM D6749), PAG polymer solutions (ISO 20492), and aqueous nitrite inhibitors (MIL-PRF-26552)—full compatibility reports available upon request.
