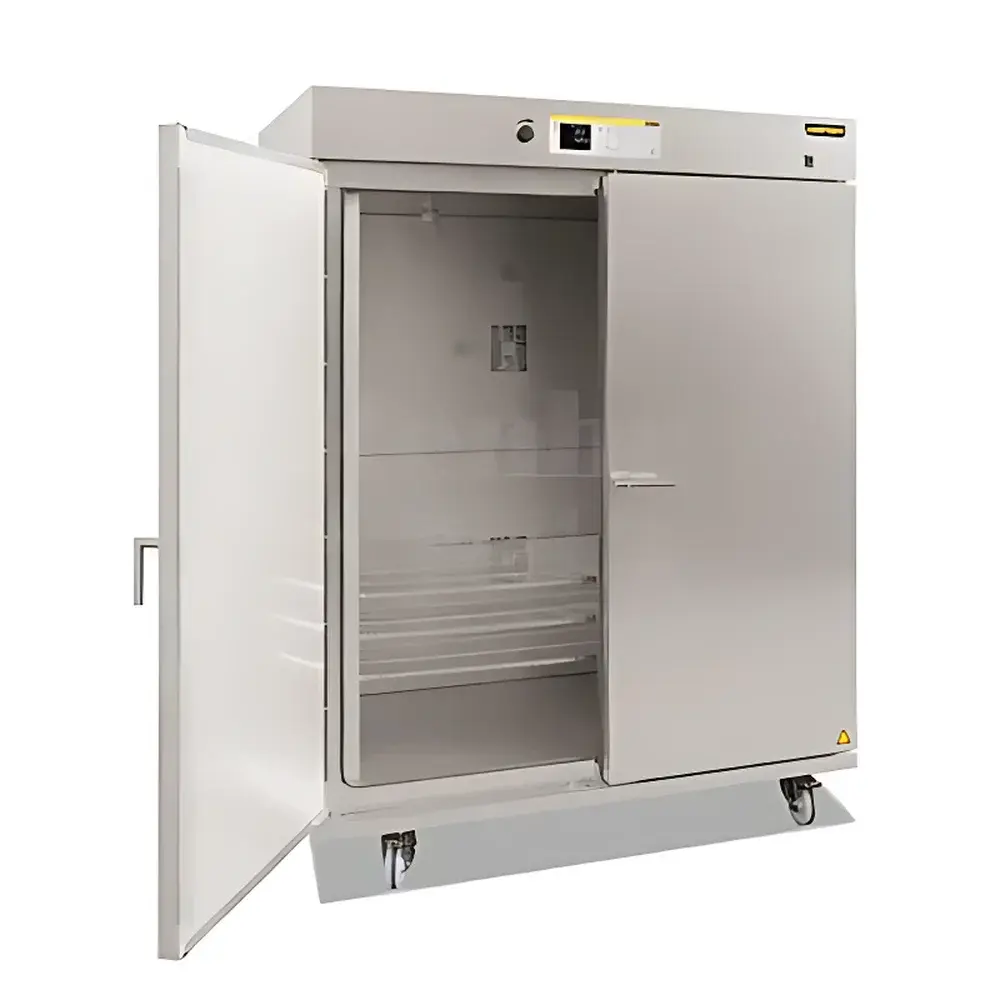

Nabertherm TR1050 Forced-Convection Drying Oven

Overview

The Nabertherm TR1050 is a high-capacity, horizontally ventilated forced-convection drying oven engineered for precision thermal processing in research laboratories, quality control environments, and industrial R&D settings. Its core operating principle relies on a horizontally oriented, variable-speed centrifugal fan system that ensures uniform air distribution across the full chamber volume—minimizing vertical and horizontal thermal gradients. Designed and manufactured in Germany to stringent DIN and EN standards, the TR1050 delivers exceptional temperature stability (±1 °C at 100 °C under no-load conditions per DIN 12880) and repeatable thermal performance across its full operating range of +5 °C to 300 °C. The oven’s structural integrity is reinforced by a heavy-duty base plate compliant with EN 1539 for safe operation with solvent-laden samples, while its double-wing rotating door with quick-release hinges enables ergonomic access without compromising thermal sealing or mechanical durability.

Key Features

• Horizontally aligned forced-air circulation system with continuously adjustable fan speed—enabling precise control over convective heat transfer rates and minimizing stratification effects.
• 1050 L internal chamber constructed entirely from AISI 304 stainless steel (DIN 1.4301), offering superior corrosion resistance, non-reactivity with common solvents, and ease of decontamination.
• Integrated dual-stage safety architecture: primary PID microprocessor controller with self-diagnostic capability, plus an independent EN 60519-2 Class 2 overtemperature limiter set to disconnect heating elements before critical thermal thresholds are exceeded.
• Ergonomic design including wide-grip handles, front-mounted leveling feet, transport rollers (standard), and side-mounted air intake ducts for optimized airflow dynamics and reduced recirculation of heated exhaust.
• Removable perforated wire shelves (4 standard, up to 15 optional) with slot-and-rail mounting—supporting flexible sample configuration and easy cleaning; each shelf rated for ≤30 kg, total load capacity 250 kg.
• Large observation window with removable inner grid panel for real-time visual monitoring without opening the chamber; integrated stainless-steel drip tray protects chamber walls from condensate or spillage.

Sample Compatibility & Compliance

The TR1050 accommodates a broad spectrum of sample types—including glassware, metal components, polymer substrates, pharmaceutical excipients, and moisture-sensitive powders—without risk of cross-contamination or material degradation. Its EN 1539-compliant construction ensures safe operation with volatile organic compounds (VOCs), while the sealed chamber and rear-mounted adjustable exhaust port support integration with external fume extraction systems where required. All electrical and thermal safety systems conform to IEC/EN 61000 electromagnetic compatibility standards and carry CE marking under the EU Machinery Directive 2006/42/EC. Optional VCD process control software enables full audit-trail compliance with FDA 21 CFR Part 11 and GLP/GMP documentation requirements when paired with NTLog-enabled controllers.

Software & Data Management

Equipped with Nabertherm’s NTLog-capable PID controller as standard, the TR1050 supports time-stamped process data logging directly to USB flash media—including setpoint, actual temperature, fan speed, and alarm status—with resolution down to 1 second. For advanced validation workflows, the optional VCD (Validation & Control Data) software package provides real-time remote monitoring, multi-channel graphing, automated report generation (PDF/CSV), and electronic signature functionality aligned with FDA 21 CFR Part 11 Annex 11 and ISO/IEC 17025 traceability frameworks. Calibration certificates and IQ/OQ documentation kits are available upon request to support AMS 2750E pyrometric system qualification.

Applications

• Moisture content determination and gravimetric drying per ASTM D229, ISO 758, and USP .
• Pre- and post-weighing thermal conditioning of reference standards and calibration weights.
• Thermal stabilization of electronic components prior to soldering or encapsulation.
• Drying of filter papers, chromatography media, and ceramic precursors in materials science labs.
• Heat treatment of coated substrates, powder metallurgy compacts, and composite preforms under controlled convection.
• Residual solvent removal from pharmaceutical intermediates under GMP-aligned environmental controls.

FAQ

What is the maximum permissible load weight per shelf?
Each perforated wire shelf is rated for a maximum static load of 30 kg. With four standard shelves installed, the total recommended load remains within 250 kg to preserve airflow integrity and thermal uniformity.
Does the TR1050 meet FDA or ISO 17025 requirements for validated thermal processes?
Yes—when configured with the VCD software suite and NTLog-enabled controller, the system supports full electronic recordkeeping, user access control, and audit trails compliant with FDA 21 CFR Part 11 and ISO/IEC 17025 clause 5.8.1.
Can the oven be integrated into a central building management system (BMS)?
Optional analog 0–10 V or 4–20 mA output interfaces are available for external temperature and status signal transmission; Modbus RTU communication is supported via add-on gateway modules.
Is the chamber interior accessible for cleaning without tools?
Yes—the entire stainless-steel chamber, including side walls, ceiling, floor, and shelf rails, is fully accessible after removing the four standard shelves; no fasteners or tools are required for routine maintenance.
What validation documentation is supplied with the instrument?
Standard delivery includes factory calibration certificate (temperature uniformity and accuracy at three points), CE declaration of conformity, EN 1539 safety assessment summary, and DIN 12880 test report. Full IQ/OQ/PQ protocols are available as optional service packages.
