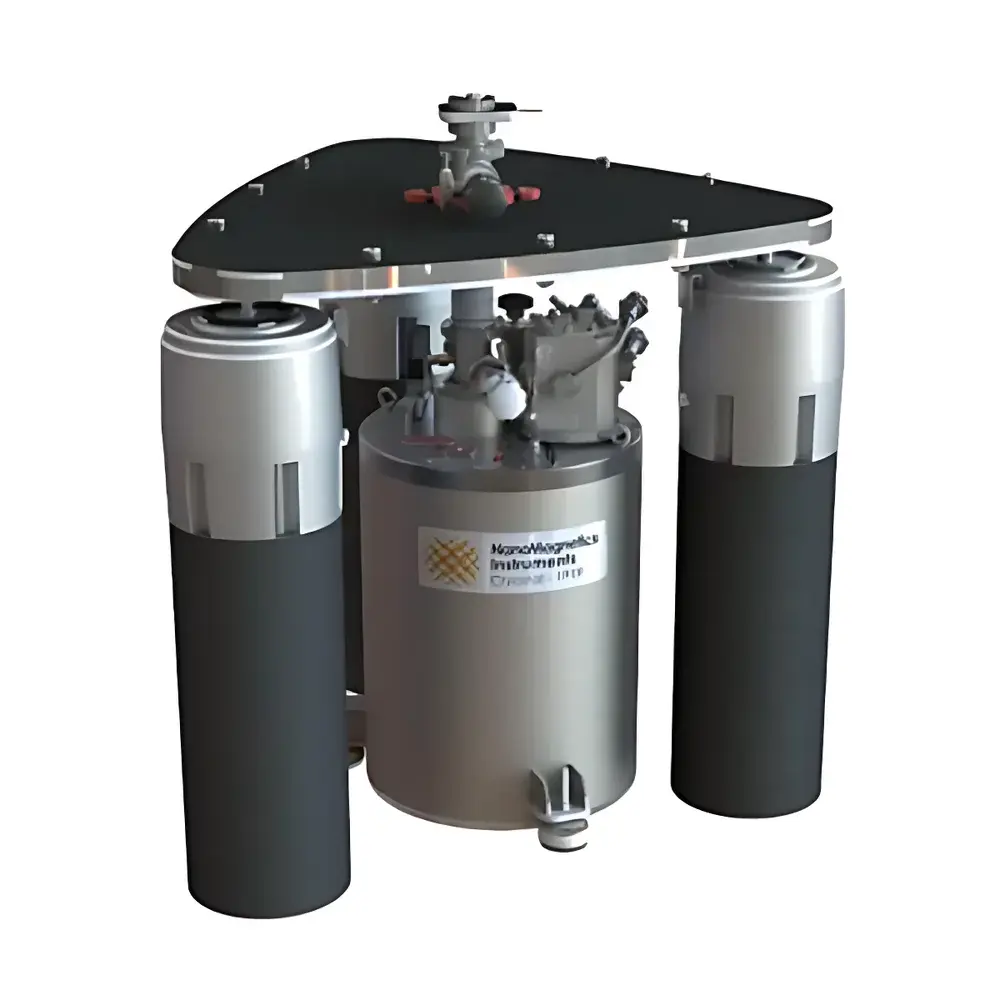

NanoMagnetics Instruments NMI CryoStat: Cryogen-Free Ultra-Low-Vibration Cryostat

Overview

The NanoMagnetics Instruments NMI CryoStat is a fully cryogen-free, top-loading ultra-low-vibration cryostat engineered for high-precision physical property measurements under extreme thermal and magnetic conditions. Unlike conventional liquid-helium-based systems, this platform employs a closed-cycle pulse-tube cryocooler coupled with high-temperature superconducting (HTS) current leads and active vibration isolation architecture to eliminate helium dependency while delivering exceptional mechanical stability. Its core measurement principle relies on thermally anchored sample positioning within a magnetically shielded, vacuum-isolated environment where temperature is regulated via precise helium mass flow control and feedback-stabilized thermal anchoring. Designed for applications demanding sub-micron spatial resolution and sub-millikelvin thermal drift—such as scanning probe microscopy (SPM), confocal magneto-optical spectroscopy, and quantum transport studies—the NMI CryoStat maintains a base temperature of 1.4 K with long-term stability better than ±1 mK over 24 hours, enabling reproducible low-noise data acquisition without cryogenic logistics overhead.

Key Features

• Complete cryogen-free operation: No liquid helium handling, storage, or replenishment required—reducing operational risk and total cost of ownership.
• Ultra-low mechanical vibration: Pulse-tube cryocooler mechanically decoupled from the measurement stage via proprietary passive–active hybrid isolation, achieving <5 nm RMS vibration amplitude at the sample position across 0.1–100 Hz bandwidth.
• Integrated top-loading variable-temperature insert (VTI): Enables rapid sample exchange without breaking vacuum or warming the magnet; supports continuous temperature sweeps from 1.3 K to 300 K under field.
• High-field compatibility: Certified integration with superconducting magnets up to 14 T, including selectable vector rotatable configurations (6-1-1 T and 9-1-1 T) and homogeneity-optimized 1 cm DSV (≤0.1%).
• Intelligent thermal management: Mass-flow-controlled helium circulation with real-time pressure/flow telemetry, combined with 7-channel calibrated Cernox® and RuO₂ sensor monitoring for multi-point thermal mapping and gradient compensation.
• Full automation suite: Unified software interface for synchronized ramping of temperature, magnetic field, and auxiliary parameters (e.g., bias voltage, laser power), compliant with IEEE 488.2 and SCPI command protocols.

Sample Compatibility & Compliance

The NMI CryoStat accommodates samples up to 49 mm in diameter and 25 mm in height, with customizable sample holders for electrical transport (4-wire, Hall bar, van der Pauw), optical access (side-view, bottom-view, or confocal coupling), and SPM-compatible mounting (piezo-driven XYZ stages, qPlus sensors). All internal components are fabricated from oxygen-free high-conductivity (OFHC) copper, stainless steel 316L, and G10 fiberglass—materials selected for low outgassing, high thermal conductivity, and non-magnetic performance. The system meets ISO 14644-1 Class 5 cleanroom compatibility standards when operated under controlled ambient conditions and complies with IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emission) for electromagnetic compatibility. For regulated environments, optional audit-trail-enabled firmware supports 21 CFR Part 11-compliant electronic records and signature workflows.

Software & Data Management

Control is executed through CryoSoft™ v4.x—a cross-platform application built on Qt and Python 3.9 with native support for Windows, Linux (Ubuntu LTS), and macOS (Intel/Apple Silicon). The software provides real-time visualization of all monitored parameters (temperature, field, pressure, flow, vibration FFT), automated script execution (via embedded Python interpreter), and export to HDF5, MAT, or CSV formats with metadata embedding per ASTM E2915-21 guidelines. Data integrity is ensured through hardware-synchronized timestamping (PTPv2 over Ethernet), cyclic redundancy checksums for all acquired buffers, and optional encrypted local storage with AES-256 encryption. Remote operation is supported via TLS-secured WebSocket API, enabling integration into laboratory-wide orchestration frameworks such as LabVIEW, MATLAB, or custom Python-based experiment managers.

Applications

• Quantum transport characterization: Hall effect, Shubnikov–de Haas oscillations, and quantum Hall regime studies under simultaneous ultra-low-T and high-B conditions.
• Low-temperature scanning probe microscopy: STM, AFM, and MFM imaging with atomic resolution at 1.4 K and fields up to 14 T—enabled by sub-nanometer mechanical stability.
• Magneto-optical spectroscopy: Faraday/Kerr rotation, photoluminescence excitation (PLE), and time-resolved PL under tunable field and temperature.
• Single-photon source testing: Cryogenic characterization of quantum dots, color centers (NV⁻, SiV), and 2D material emitters with spectral stability tracking.
• Superconductivity research: Critical field mapping, vortex dynamics imaging, and Josephson junction IV-curve analysis with microvolt-level voltage resolution.

FAQ

Does the NMI CryoStat require any consumables or periodic cryogen refills?
No. It operates entirely without liquid helium, nitrogen, or other cryogens. The only maintenance items are scheduled compressor oil changes (every 24 months) and helium gas purity verification (annually).

Can the system perform field-cooling protocols without thermal drift?
Yes. Its active temperature stabilization loop maintains ±0.5 mK setpoint accuracy during field ramps up to 1 T/min, enabling reliable zero-field-cooled (ZFC) and field-cooled (FC) magnetization protocols.

Is remote operation and monitoring supported out of the box?
Yes. Standard Ethernet connectivity includes full web-based dashboard access, RESTful API endpoints, and secure SSH tunneling for CLI-based diagnostics and scripting.

What vacuum performance is guaranteed during continuous operation?
The integrated turbomolecular pump achieves and sustains ≤1×10⁻⁷ mbar base pressure; bake-out capability supports ≤5×10⁻⁹ mbar for ultra-high-vacuum applications upon request.

How is magnetic field homogeneity verified and documented?
Each delivered system includes a NIST-traceable field map report covering the 1 cm DSV, generated using a calibrated 3-axis Hall probe and validated against ASTM D7896-20 Annex A2 procedures.
