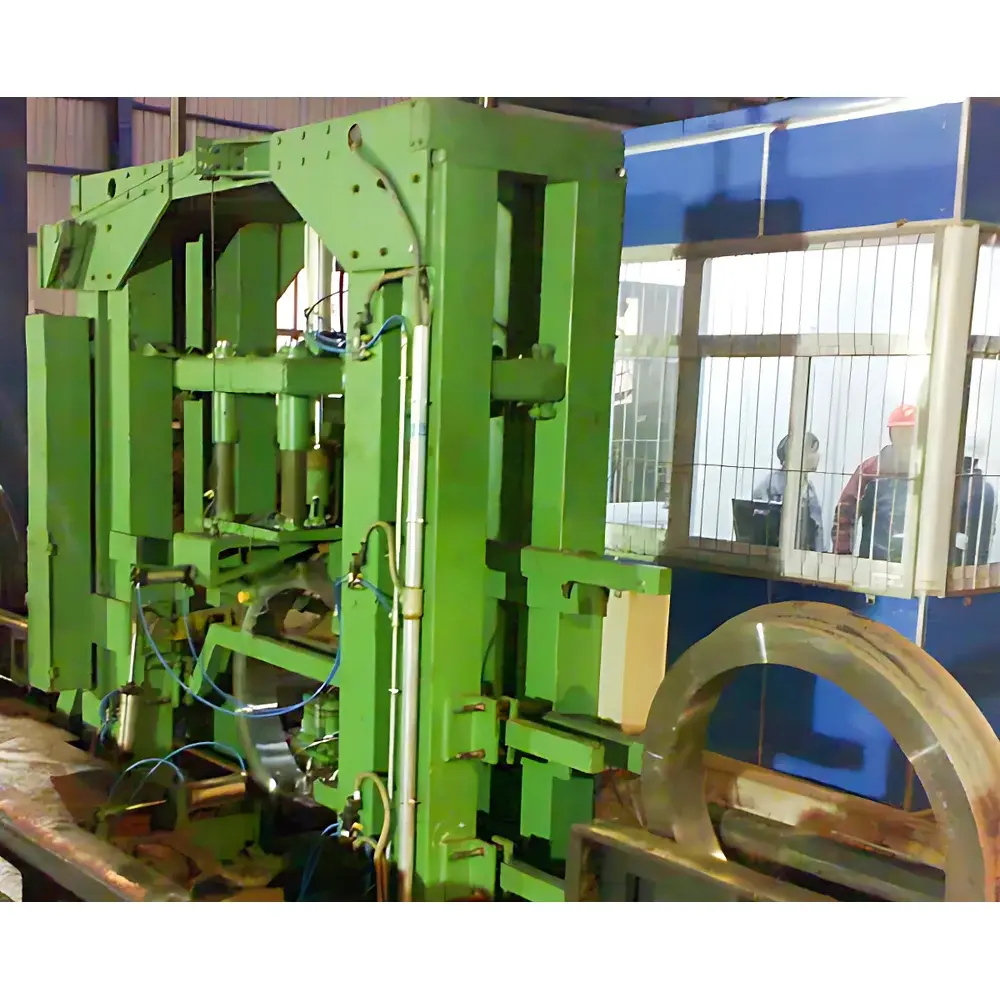

NC-HUT Series Ultrasonic Testing System for Wheel Rims and Ring Forgings
| Brand | NCS (China Iron & Steel Research Institute Group) |
|---|---|
| Origin | Beijing, China |
| Manufacturer | NCS |
| Country of Origin | China |
| Model | NC-HUT Series |
| Pricing | Available Upon Request |
Overview
The NC-HUT Series Ultrasonic Testing System is an industrial-grade, fully automated non-destructive testing (NDT) platform engineered for high-reliability ultrasonic inspection of rotationally symmetric forged components—specifically railway wheel rims, locomotive and metro wheel hubs, and seamless ring forgings used in aerospace, energy, and heavy machinery applications. Built upon pulse-echo and through-transmission ultrasonic principles, the system employs high-frequency broadband transducers (typically 2–10 MHz) operating in immersion or water-membrane coupling modes to detect volumetric discontinuities—including internal porosity, shrinkage cavities, inclusions, and forging laps—with sensitivity compliant with ISO 10893-4, ASTM E114, and EN 12680-3. Its modular mechanical architecture integrates servo-controlled rotary indexing, multi-axis robotic manipulation, and real-time echo processing to ensure full circumferential and radial coverage without dead zones—a critical requirement for safety-critical rotating components subject to cyclic fatigue loading.
Key Features
- Multi-channel ultrasonic acquisition (up to 32 channels configurable) enabling simultaneous A-scan, B-scan, and C-scan data generation per inspection cycle
- Adaptive water-membrane coupling and immersion scanning modes with dynamic water-level tracking and automatic nozzle alignment to maintain consistent acoustic coupling across curved surfaces
- Integrated six-degree-of-freedom robotic arm with precision repeatability (< ±0.05 mm) and programmable trajectory planning for complex geometry adaptation
- Single-system compatibility with >12 standard wheel rim and ring forging configurations—from 600 mm to 1300 mm outer diameter and 50–300 mm cross-sectional thickness
- Ruggedized industrial enclosure rated IP54, designed for continuous operation in workshop environments with ambient temperature range of 5–40 °C and relative humidity ≤85% non-condensing
- Real-time flaw characterization engine supporting amplitude-based sizing, time-of-flight diffraction (TOFD) analysis, and DAC/TCG compensation per ASME Section V Article 4
Sample Compatibility & Compliance
The NC-HUT Series accommodates both hot-forged and heat-treated ring forgings (e.g., AISI 4140, 42CrMo4, 34CrNiMo6) and railway wheel materials (e.g., ER8, CL60, R7T), including those meeting UIC 812-2, TB/T 2943, and GB/T 8601 specifications. All inspection procedures are traceable to documented calibration standards (IIW Type II blocks, GS block sets) and support formal validation per ISO/IEC 17025 requirements. The system’s inspection protocols are structured to satisfy quality assurance mandates under ISO 9001, IATF 16949, and CRCC certification frameworks for rail vehicle component suppliers.
Software & Data Management
Control and analysis are executed via NCS-UTS v3.2 software—a Windows-based application compliant with FDA 21 CFR Part 11 for electronic records and signatures. It provides full audit trail logging (user actions, parameter changes, report generation), encrypted data storage (AES-256), and export capability to XML, PDF/A-2, and industry-standard .udx formats. Inspection programs are stored as version-controlled templates with built-in parameter locking for certified methods. Raw RF data is retained for retrospective analysis, and reporting modules generate ASNT Level II–certified inspection reports with embedded C-scan maps, depth-encoded B-scans, and pass/fail evaluation against user-defined acceptance criteria aligned with EN 1369 or ASTM E273.
Applications
- In-process inspection of forged wheel blanks prior to machining and heat treatment
- Final acceptance testing of finished railway wheel rims and hub assemblies in OEM wheel manufacturing facilities
- Periodic in-service inspection of wheels removed during scheduled maintenance at rolling stock depots and EMU maintenance centers
- Quality surveillance of seamless rings for wind turbine gearboxes, nuclear reactor pressure vessel supports, and gas turbine casings
- Research-grade microstructure characterization via ultrasonic velocity and attenuation mapping for grain size and anisotropy assessment
FAQ
What ultrasonic methods does the NC-HUT Series support?
Pulse-echo, through-transmission, and TOFD—configurable per inspection standard and material thickness.
Can the system integrate with a factory MES or QMS?
Yes—via OPC UA or RESTful API interfaces for bidirectional data exchange with Siemens Opcenter, Rockwell FactoryTalk, or custom ERP/QMS platforms.
Is operator certification required to run inspections?
Operators must hold ASNT Level II UT certification or equivalent; system software enforces method-locking and credential-based access control.
How is calibration maintained across shifts and operators?
Automated daily calibration verification using reference blocks; all calibrations are timestamped, digitally signed, and archived with full traceability.
Does the system support remote diagnostics and firmware updates?
Yes—secure TLS-encrypted remote connectivity enables predictive maintenance alerts and over-the-air updates validated against NCS digital signature certificates.
