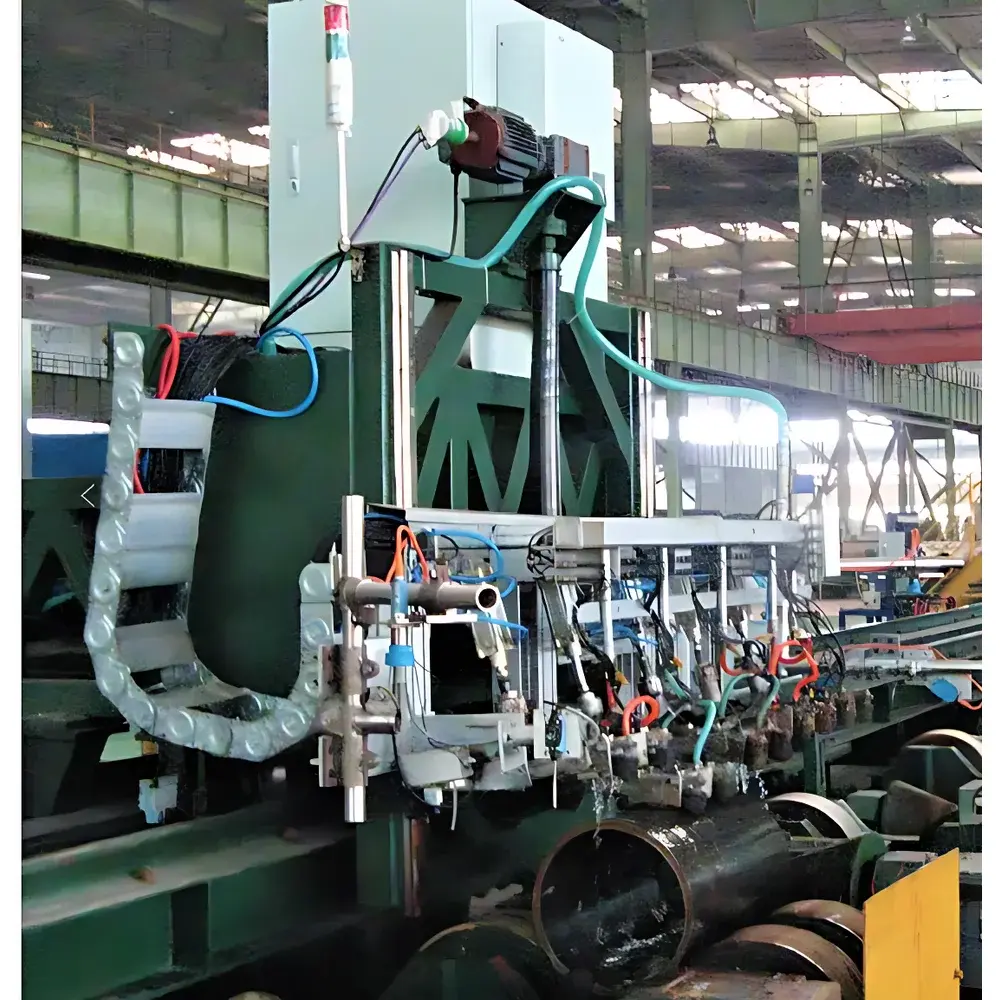

NC-GET Large-Diameter Ultrasonic and Eddy Current Testing System

Overview

The NC-GET Large-Diameter Ultrasonic and Eddy Current Testing System is an integrated, fully automated non-destructive testing (NDT) platform engineered for high-throughput, high-fidelity inspection of large-diameter metallic tubular products. Designed specifically for seamless and welded pipes with outer diameters exceeding 325 mm (up to 1600 mm), the system combines pulse-echo ultrasonic testing (UT) and multi-frequency eddy current testing (ET) in a single synchronized scanning configuration. UT channels operate in through-transmission and immersion modes to detect volumetric flaws—including laminations, lack-of-fusion, internal voids, and longitudinal/transverse defects—while ET subsystems employ differential and absolute probe arrays to identify surface-breaking discontinuities, near-surface cracks, and conductivity variations in conductive materials such as carbon steel, stainless steel, aluminum, copper, titanium, and nickel alloys. The dual-method architecture ensures orthogonal verification, minimizing false calls and maximizing probability of detection (POD) per ISO 12718 and ASTM E213/E309 requirements.

Key Features

• Fully automated rotary scanning mechanism with programmable rotational speed (0.5–10 rpm) and axial translation (0.1–2 m/s), enabling precise helical or raster scan patterns over variable pipe lengths (up to 18 m)
• Modular transducer carriage supporting up to 16 UT channels (5–10 MHz immersion probes) and 8 independent ET channels (10 kHz–10 MHz frequency range), configurable per material grade and wall thickness
• Real-time signal processing with digital filtering, adaptive gain control, and time-of-flight diffraction (TOFD)-capable acquisition for enhanced flaw sizing accuracy
• Robust mechanical architecture with heavy-duty gantry, hydrostatic bearing rotation system, and IP54-rated environmental enclosure for shop-floor deployment
• Compliance-ready data logging with timestamped A-scan, C-scan, and impedance plane outputs; all raw data stored in industry-standard .utd and .etd formats

Sample Compatibility & Compliance

The NC-GET system accommodates round, square, and rectangular hollow sections with outer diameters from 325 mm to 1600 mm and wall thicknesses ranging from 6 mm to 120 mm. It supports both ferromagnetic and non-ferromagnetic alloys without magnetic saturation requirements for ET operation. All test procedures are validated against internationally recognized standards including API RP 5L (for line pipe), ASTM A578/A578M (straight-beam UT of steel plates), ASTM A53/A500 (welded and seamless pipe), ASME BPVC Section V Article 4 (UT) and Article 8 (ET), JIS G3444 (carbon steel pipes), GB/T 5777 (UT of stainless steel tubes), and Q/SY GJX101 (CNPC specification for pipeline girth weld inspection). System validation reports include traceable calibration certificates per ISO/IEC 17025-accredited laboratories and support GLP/GMP audit readiness.

Software & Data Management

The NC-GET Control Suite is a Windows-based application built on a deterministic real-time kernel, supporting synchronized multi-channel acquisition, dynamic threshold mapping, and AI-assisted defect classification (optional module). Software features include customizable inspection recipes, automatic report generation in PDF and XML (compatible with SAP QM and SPC systems), electronic signature workflows compliant with FDA 21 CFR Part 11, and full audit trail functionality for all parameter changes, calibrations, and pass/fail decisions. Raw data archives are encrypted and indexed by batch ID, heat number, and operator credentials, ensuring full traceability across production lots. Integration with enterprise MES via OPC UA is supported.

Applications

This system serves critical inspection needs across upstream and midstream energy infrastructure—including OCTG (oil country tubular goods), subsea flowlines, and refinery piping—as well as aerospace-grade titanium tubing, nuclear steam generator tubes, and high-pressure boiler tubes in power generation. End users include metallurgical rolling mills, pipe mills (e.g., seamless hot-finish lines), third-party inspection agencies (such as SGS, Bureau Veritas, and TÜV), and OEM suppliers serving the petrochemical, nuclear, and defense sectors. Its dual-method capability eliminates the need for sequential UT and ET stations, reducing floor space and cycle time while maintaining full compliance with customer-specific quality plans (QPs) and contractually mandated acceptance criteria.

FAQ

What pipe diameter and wall thickness ranges does the NC-GET system support?
Standard configuration covers OD 325–1600 mm and WT 6–120 mm; custom configurations available upon engineering review.
Is the system certified for use in hazardous areas (e.g., Zone 1 or Class I Div 1)?
Yes—ATEX and IECEx-certified variants are available with explosion-proof enclosures and intrinsically safe signal conditioning.
Can the system perform weld seam inspection per API 1104 or ISO 17640?
Yes—dedicated weld inspection mode includes phased array UT (PAUT) add-on and encoded ET scanning aligned to weld centerline with ±0.5 mm positional repeatability.
Does the software support automated defect characterization per ASTM E2737?
Yes—the optional Defect Intelligence Module applies rule-based algorithms for length, depth, and orientation estimation using multi-angle UT data and phase-resolved ET signatures.
What calibration standards are supplied with the system?
NIST-traceable reference blocks per ASTM E127/E317, including notched tube standards (GB/T 5777 Type A/B), EDM notches, and artificial pit sets for ET sensitivity verification.
