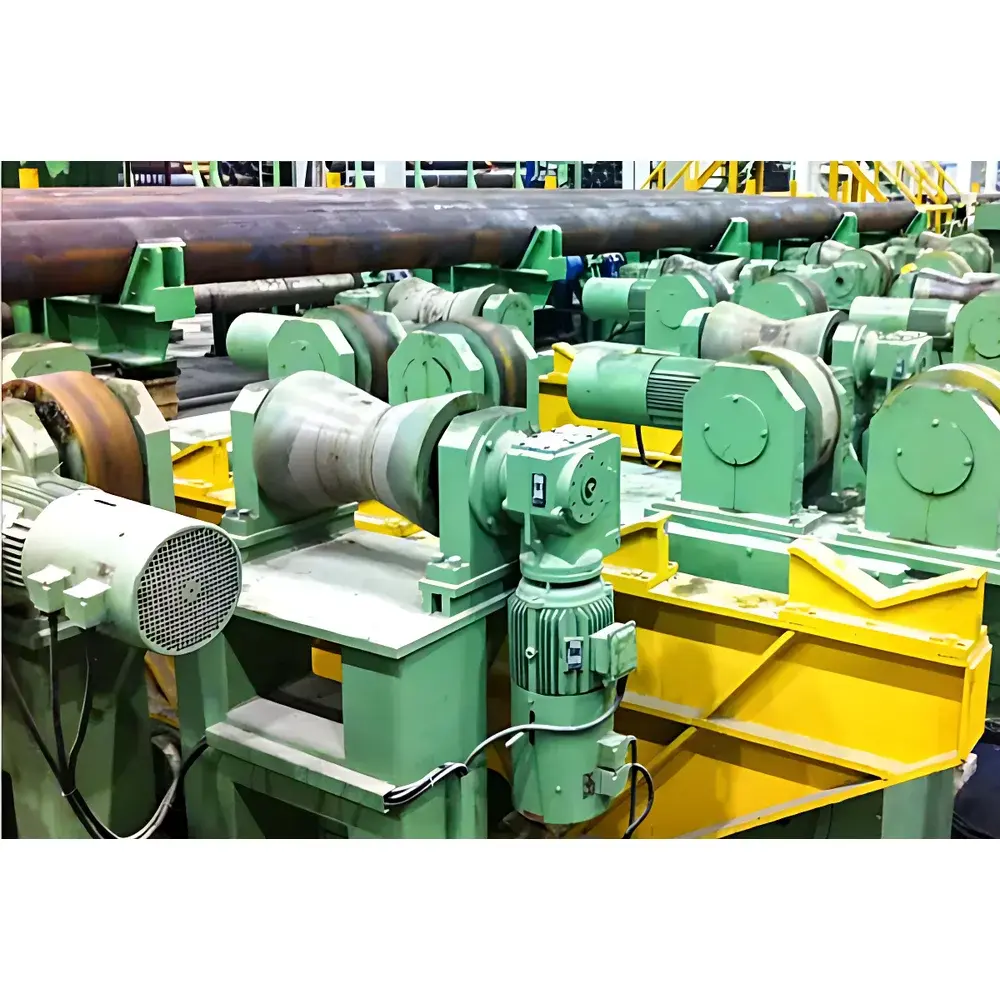

NCS NC-DMT Series End-Section Magnetic Particle Testing System
| Brand | NCS |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | Domestic (China) |
| Model | NC-DMT Series |
| Pricing | Available Upon Request |
Overview
The NCS NC-DMT Series End-Section Magnetic Particle Testing System is a specialized electromagnetic non-destructive testing (NDT) instrument engineered for high-sensitivity surface and near-surface discontinuity detection in the end sections of tubular components. It operates on the principle of magnetic particle inspection (MPI), wherein a controlled magnetic field is induced in ferromagnetic materials—typically carbon steel, alloy steel, or nickel-based alloys—and fine ferrous particles (dry or wet suspension) are applied to reveal leakage fields at flaw sites. Unlike general-purpose MPI units, the NC-DMT series is purpose-built for axial and circumferential magnetization of tube ends—including beveled, threaded, or machined termini—where conventional yoke or coil configurations fail to deliver uniform field distribution. Its design addresses the geometric constraints and flux path interruption inherent in tubular end geometry, ensuring reliable detection of longitudinal cracks, transverse laps, grinding burns, and heat-affected zone (HAZ) discontinuities down to sub-millimeter lengths.
Key Features
- End-specific magnetization architecture: Integrated multi-pole electrode assembly with adjustable contact pressure and rotational alignment capability ensures consistent field penetration across variable tube diameters (Φ10 mm to Φ320 mm) and wall thicknesses (up to 40 mm).
- Programmable magnetization modes: Supports both AC (for surface-breaking flaws) and half-wave DC (HWDC) current outputs (up to 6,000 A peak), enabling optimized sensitivity for subsurface indications per ASTM E1444/E1444M requirements.
- Dual-intensity UV-A illumination: Built-in 365 nm UV-A lamp (≥1,000 µW/cm² at 38 cm) compliant with ISO 3059 and ASTM E1417 standards for fluorescent particle inspection; includes visible light mode for dry-particle applications.
- Robust industrial enclosure: IP54-rated housing with corrosion-resistant stainless-steel electrodes and integrated coolant channels for sustained duty-cycle operation in workshop or field environments.
- Real-time demagnetization verification: On-board gaussmeter input supports post-inspection residual field measurement (0–10 mT range) to confirm compliance with ISO 9934-1 demagnetization thresholds.
Sample Compatibility & Compliance
The NC-DMT system accommodates seamless and welded tubes per ASTM A213, A312, A513, and EN 10216-2 specifications. It is validated for use with standard MPI media—including AS 5282-certified fluorescent particles and MIL-STD-1949A-compliant non-fluorescent powders—as well as aqueous and oil-based carriers meeting ASTM E1382 viscosity and settling rate criteria. Regulatory alignment includes full conformance with GB/T 15822.1–2018 (equivalent to ISO 9934-1:2015), JB/T 8290–2011 (Chinese industry standard for MPI equipment), and GB 3721–1983 (legacy national specification superseded but retained for legacy calibration traceability). The system’s electrical safety design meets GB/T 5226.1–2019 (IEC 60204-1) requirements for industrial machinery.
Software & Data Management
While the base NC-DMT configuration operates via tactile control panel with analog ammeter and timer, optional NCS-MPI Manager software (v3.2+) enables digital workflow integration. This Windows-based application supports automated test parameter logging (current amplitude, duration, polarity, UV intensity), image capture from integrated USB microscopy (optional 10×–50× magnification lens), and generation of PDF inspection reports compliant with ASME BPVC Section V, Article 7 record retention guidelines. Audit trail functionality satisfies GLP/GMP documentation needs, including user authentication, electronic signatures, and 21 CFR Part 11–compliant data integrity controls when deployed with validated server infrastructure.
Applications
Primary deployment sectors include heat exchanger tube manufacturing (power generation, petrochemical), aerospace hydraulic line quality assurance, nuclear fuel cladding end inspection, and automotive exhaust manifold tube validation. Specific use cases encompass verification of end-face machining integrity prior to welding, post-weld heat treatment (PWHT) crack screening, and in-service inspection of steam generator tubing during outage maintenance. The system is routinely specified in OEM supplier quality manuals requiring MPI coverage of tube ends per customer-specific engineering drawings (e.g., GEK 105724, Siemens TL 9000-002).
FAQ
What tube diameter and wall thickness ranges does the NC-DMT support?
Standard configuration covers outer diameters from 10 mm to 320 mm and wall thicknesses up to 40 mm; custom electrode sets available for diameters beyond 500 mm.
Is the system certified for use in classified nuclear or aerospace environments?
Yes—units supplied to nuclear vendors include ASME NQA-1 QA program documentation; aerospace deliveries include Nadcap AC7114/3 audit package and material traceability certificates.
Can the NC-DMT perform both wet and dry magnetic particle inspection?
Yes—dual-carrier compatibility is built-in; fluid circulation system supports recirculation and filtration per ASTM E1444 section 6.3.2.
Does it meet international MPI equipment calibration requirements?
All production units undergo factory calibration against NIST-traceable shunt resistors and Hall-effect gaussmeters; calibration certificate issued per ISO/IEC 17025 accredited procedures.
Is remote diagnostics or predictive maintenance supported?
Optional IoT module enables secure TLS 1.2 telemetry transmission of operational parameters (coil temperature, current waveform harmonics, UV lamp aging) to NCS Cloud Analytics Platform for failure mode trend analysis.
