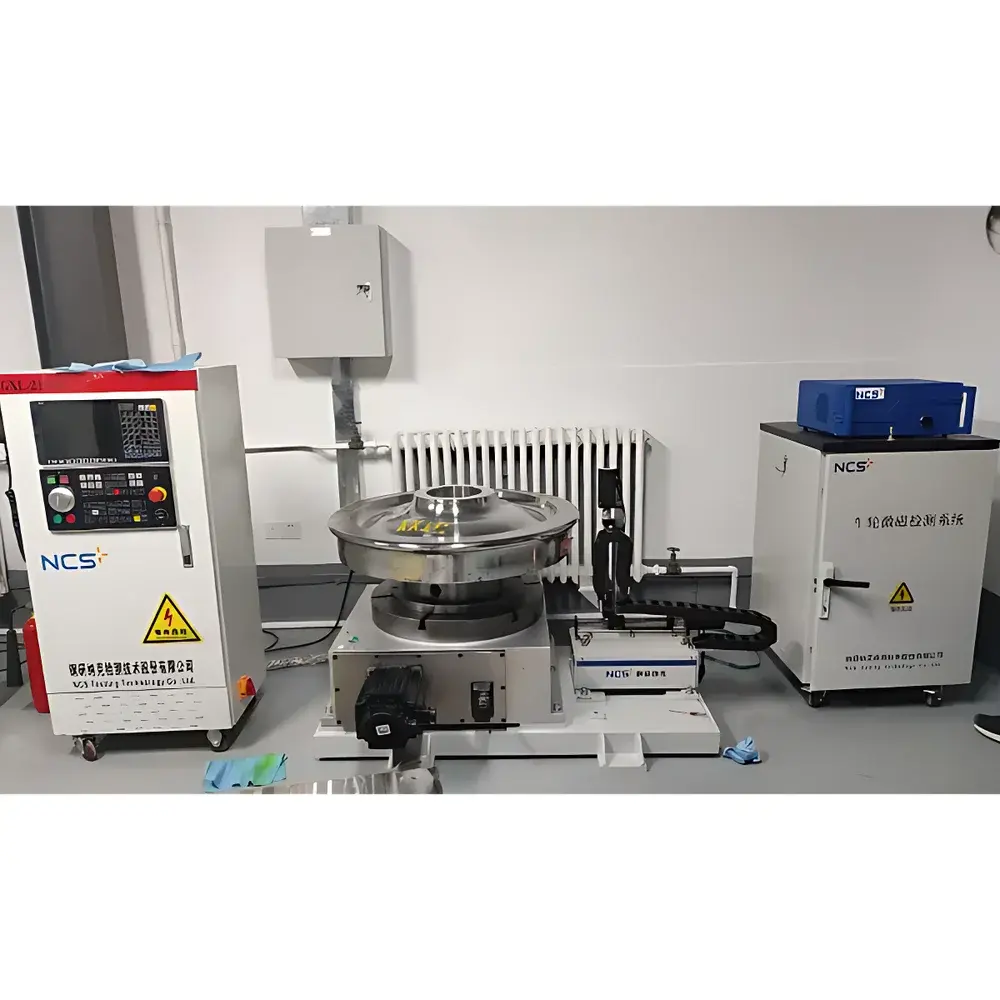

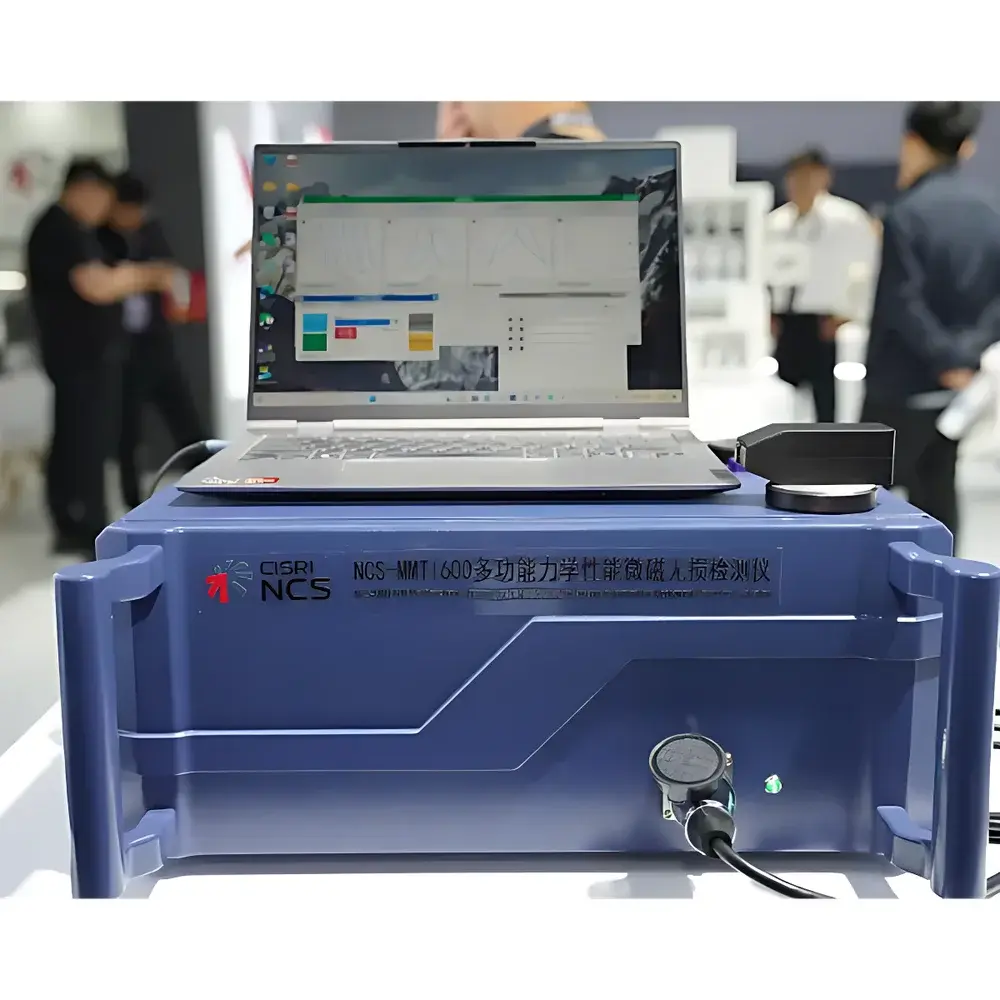

NCS NCS-MMTI600 Multifunctional Micromagnetic Mechanical Property Tester
| Brand | NCS |
|---|---|
| Origin | Beijing, China |
| Manufacturer | Producer |
| Country of Origin | Domestic (China) |
| Model | NCS-MMTI600 |
| Price | USD 1 (Reference Only) |
Overview
The NCS NCS-MMTI600 Multifunctional Micromagnetic Mechanical Property Tester is an advanced non-destructive evaluation (NDE) system engineered for quantitative assessment of mechanical properties in ferromagnetic materials without physical sampling or surface alteration. It operates on the fundamental principle that microstructural features—including grain size distribution, phase composition, dislocation density, and residual stress fields—induce measurable perturbations in local magnetic permeability, coercivity, remanence, and higher-order harmonic responses under controlled excitation. By applying low-frequency alternating magnetic fields and analyzing the resulting micromagnetic signatures via multi-channel sensor arrays and spectral decomposition algorithms, the instrument correlates magnetic hysteresis parameters with empirically validated material property models. This enables direct, in-situ quantification of surface hardness, case depth of hardened layers, yield strength (Rp0.2), tensile strength (Rm), uniform elongation (Agt), residual stress magnitude and direction (σ₁, σ₂), and impact energy proxies—all compliant with established micromagnetic metrology frameworks used in industrial quality assurance and failure analysis laboratories.
Key Features
- Non-contact and non-destructive measurement architecture suitable for serial inspection of finished components.
- Integrated multi-parameter micromagnetic probe with adjustable excitation frequency (1 Hz–10 kHz) and field amplitude control (0.1–100 A/m).
- Simultaneous acquisition of B-H loop derivatives, Barkhausen noise (BN) statistics, and incremental permeability spectra.
- Onboard calibration library supporting steel grades per ASTM A370, ISO 6892-1, and GB/T 228.1, with traceable reference standards for hardness and residual stress.
- Ruggedized industrial housing rated IP54, designed for shop-floor deployment near rolling mills, heat treatment lines, and automotive assembly stations.
- Real-time signal processing engine enabling sub-second measurement cycles per test point, compatible with robotic scanning integration.
Sample Compatibility & Compliance
The NCS-MMTI600 is validated for use on carbon steels, alloy steels, stainless steels (ferritic and martensitic), and cast irons exhibiting sufficient magnetic permeability (μᵣ > 30). Typical applications include flat-rolled products (hot/cold rolled plates, strips), seamless and welded tubulars, forged gears and crankshafts, bearing races, and structural automotive components (e.g., A-pillars, suspension arms). All measurement protocols align with draft technical specifications referenced in ISO/TC 135/WG 12 (Micromagnetic NDT) and support audit-ready documentation per ISO/IEC 17025 requirements. Data integrity complies with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) for regulated environments operating under GLP or GMP frameworks.
Software & Data Management
The proprietary NCS-Micromag Suite v4.2 provides full control of hardware configuration, measurement sequence definition, and statistical post-processing. It includes automated curve fitting for hysteresis parameter extraction (Hc, Br, μₘₐₓ), BN pulse counting and amplitude distribution analysis, and machine-learning-assisted regression models trained on certified reference materials. Export formats include CSV, XML, and PDF reports conforming to ASTM E2375-22 Annex A1 for NDT data interchange. Audit trail functionality records all user actions, parameter changes, and calibration events with time stamps and operator IDs—fully compliant with FDA 21 CFR Part 11 electronic record and signature requirements when configured with optional digital certificate authentication.
Applications
- Quantitative verification of case hardening depth and gradient in gear teeth and camshafts.
- In-process monitoring of tempering consistency in quenched-and-tempered bars and forgings.
- Residual stress mapping across weld seams and heat-affected zones (HAZ) in pressure vessels and pipelines.
- Early-stage detection of fatigue damage accumulation in railway axles and wind turbine shafts.
- Correlation of micromagnetic response with Charpy V-notch impact energy for high-strength structural steels.
- Support for material certification under EN 10204 Type 3.1/3.2 and ASME Section II Part A.
FAQ
What types of materials can be tested with the NCS-MMTI600?
Ferromagnetic metallic materials only—primarily carbon, low-alloy, and tool steels; austenitic stainless steels and non-ferrous metals are not supported.
Does the instrument require surface preparation before testing?
Minimal preparation is needed: removal of thick oxide scale, paint, or conductive coatings is recommended; surface roughness Ra < 6.3 µm ensures optimal probe coupling.
Can measurements be performed on curved or complex geometries?
Yes—modular probe heads with adaptive contact geometry and real-time lift-off compensation enable reliable readings on radii down to R10 mm and compound contours.
How is traceability maintained for calibration and measurement results?
Each unit ships with NCS-certified magnetic reference blocks traceable to NIM (National Institute of Metrology, China); annual recalibration is recommended per ISO/IEC 17025 Clause 6.6.
Is the system compatible with existing factory MES or QMS platforms?
Yes—OPC UA and RESTful API interfaces allow bidirectional data exchange with SAP QM, Siemens Opcenter Quality, and Rockwell FactoryTalk modules.
