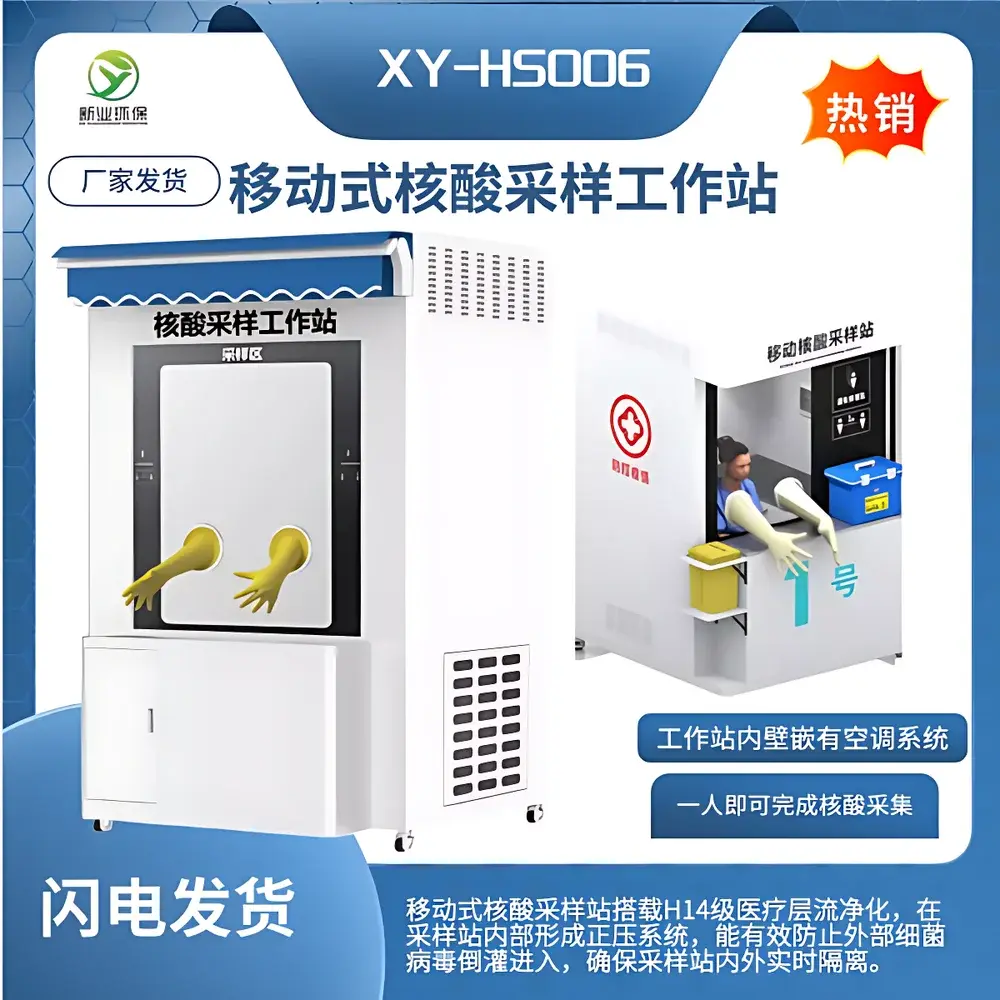

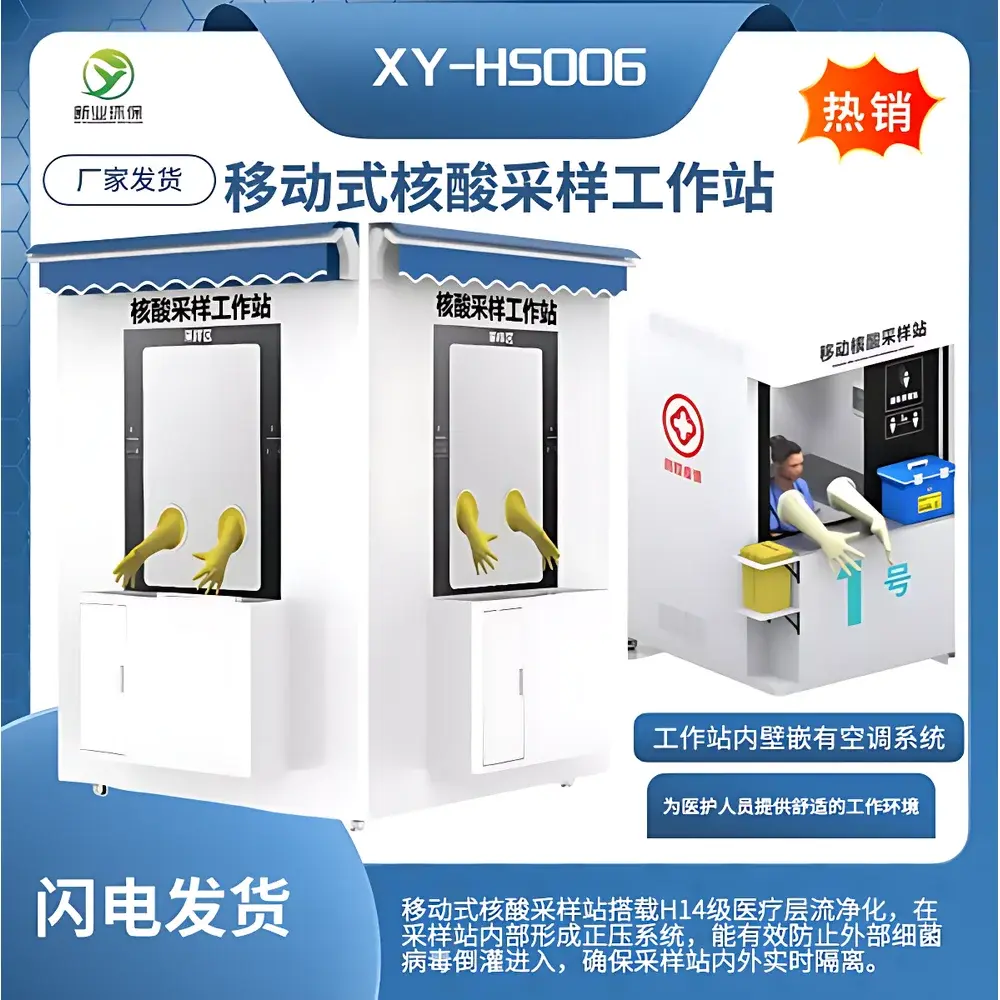

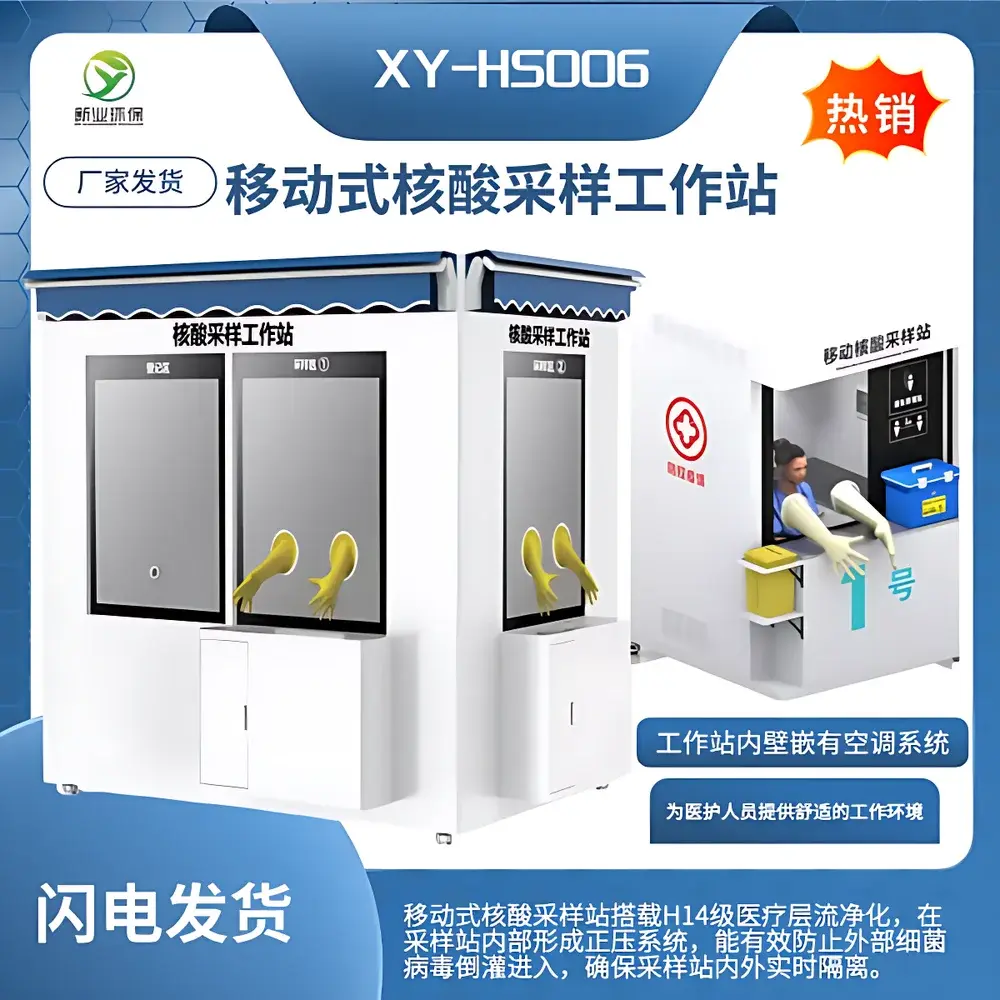

New Environmental Protection Industry in Qingdao XY-HS006 Positive-Pressure Nucleic Acid Sampling Workstation

Overview

The New Environmental Protection Industry in Qingdao XY-HS006 Positive-Pressure Nucleic Acid Sampling Workstation is an engineered biosafety enclosure designed for standardized, contactless upper respiratory specimen collection—primarily nasopharyngeal and oropharyngeal swabbing—in high-traffic public health settings. It operates on the principle of controlled positive-pressure ventilation, maintaining a stable overpressure (≥30 PaG) relative to ambient environment to prevent unfiltered air ingress. Airflow is directed from interior to exterior through a multi-stage filtration train—including G4 pre-filters and H14 HEPA filters—ensuring continuous recirculation and supply of ISO Class 5 (Class 100) clean air within the operator compartment. Integrated UV-C irradiation (254 nm) complements mechanical filtration by inactivating airborne viruses, bacteria, and residual aerosolized nucleic acid fragments. The workstation complies with fundamental engineering controls outlined in WHO Laboratory Biosafety Manual (4th ed.), CDC/NIH Biosafety in Microbiological and Biomedical Laboratories (BMBL), and national Chinese standards GB/T 25915.1–2021 (Cleanrooms) and YY/T 0567.1–2022 (Biological Safety Cabinets). Its sealed monocoque architecture eliminates exposed seams or crevices, supporting routine decontamination under GLP-aligned cleaning protocols.

Key Features

• Positive-pressure cabin maintained at ≥30 PaG via dedicated centrifugal blower with real-time differential pressure monitoring and audible/visual low-pressure alarm
• H14 high-efficiency particulate air (HEPA) filtration system achieving ≥99.995% removal efficiency for 0.3 µm challenge particles per EN 1822-1:2019
• Dual-zone UV-C disinfection: primary irradiation in supply air ducts and secondary localized irradiation inside pass-through window and operator zone
• Ergonomic dual-layer glove ports (medical-grade nitrile-lined stainless steel flanges) enabling full dexterity while preserving barrier integrity
• Electronically interlocked pass-through window (400 × 400 × 400 mm internal volume) with antimicrobial coating and automatic door sequencing to prevent simultaneous opening
• Integrated LED lighting delivering ≥350 lx uniform illuminance across sampling surface per CIE S 008/E:2020 photometric guidelines
• Modular HVAC subsystem featuring 1.5 HP variable-speed inverter-driven air conditioner (Midea or Gree OEM) with independent cooling/heating capacity
• Smart control panel with touch interface for real-time display of pressure differential, filter service life, UV lamp status, and temperature/humidity

Sample Compatibility & Compliance

The XY-HS006 supports all standard clinical swab types used in molecular diagnostics—including flocked nylon, polyester, and rayon-tipped nasopharyngeal/oropharyngeal swabs—and accommodates specimen transfer into universal transport media (UTM), viral transport media (VTM), or dry collection tubes. Its physical configuration enables concurrent operation by one to three trained personnel: one for identity verification and data entry, one for specimen collection, and optionally a third for logistics coordination or quality assurance oversight. The workstation meets structural and electrical safety requirements per GB 4706.1–2005 (Household and Similar Electrical Appliances), electromagnetic compatibility per GB/T 17626 series, and fire resistance rating B1 per GB 8624–2012. All filtration media are certified to ISO 14644-1 Class 5 performance benchmarks and validated against ASTM F1975–22 for aerosol penetration resistance.

Software & Data Management

The embedded controller does not perform data acquisition or analysis but provides audit-ready operational logs compliant with ISO/IEC 17025:2017 clause 7.11.1 (Records of Activities). Log entries include timestamped records of pressure excursions, UV lamp runtime, filter replacement alerts, door open/close events, and HVAC operational cycles. Optional integration modules support RS-485 or Ethernet-based connectivity for centralized fleet monitoring in municipal health infrastructure deployments. When equipped with optional peripherals—such as ID card readers, thermal imaging cameras (non-contact forehead temperature measurement), or dual-display kiosks—the system generates anonymized metadata compatible with HL7 v2.x messaging standards for downstream LIS/HIS interoperability. No local storage of PII or PHI occurs on-device; all sensitive data processing occurs within external HIPAA- or GDPR-compliant health information systems.

Applications

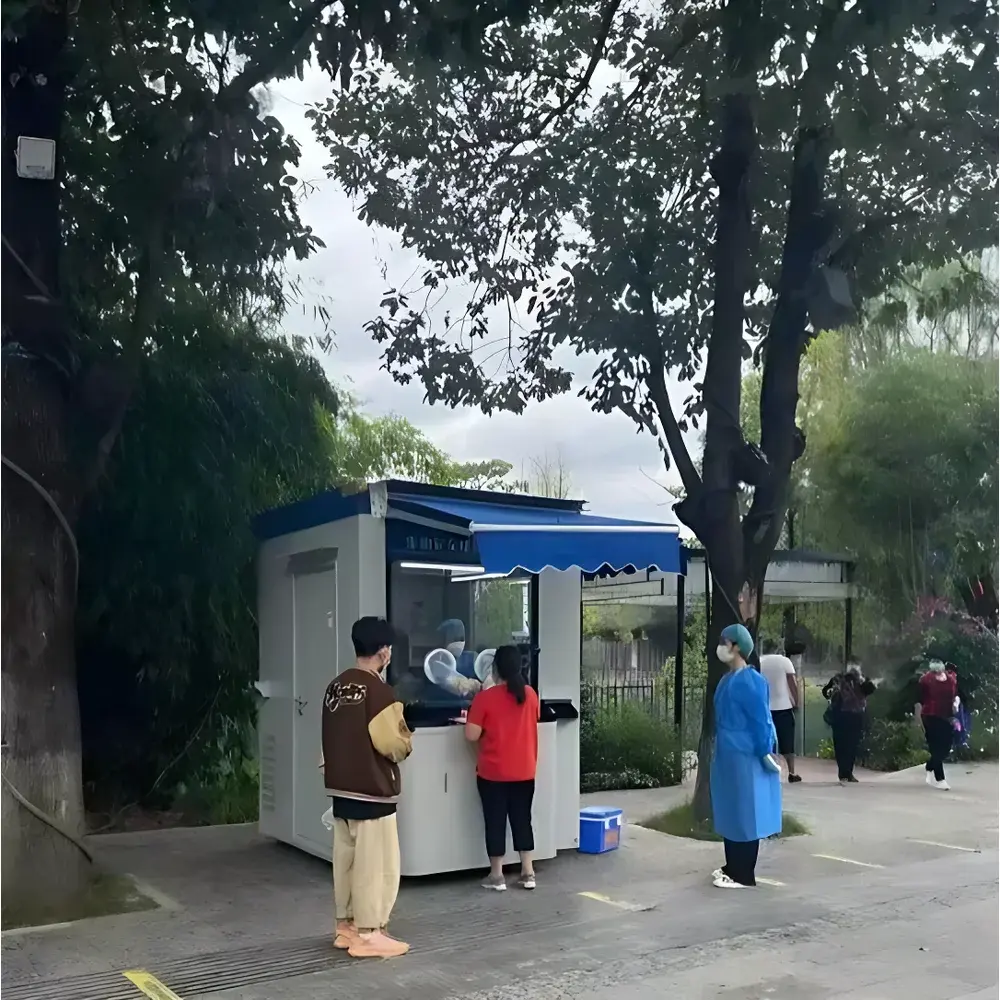

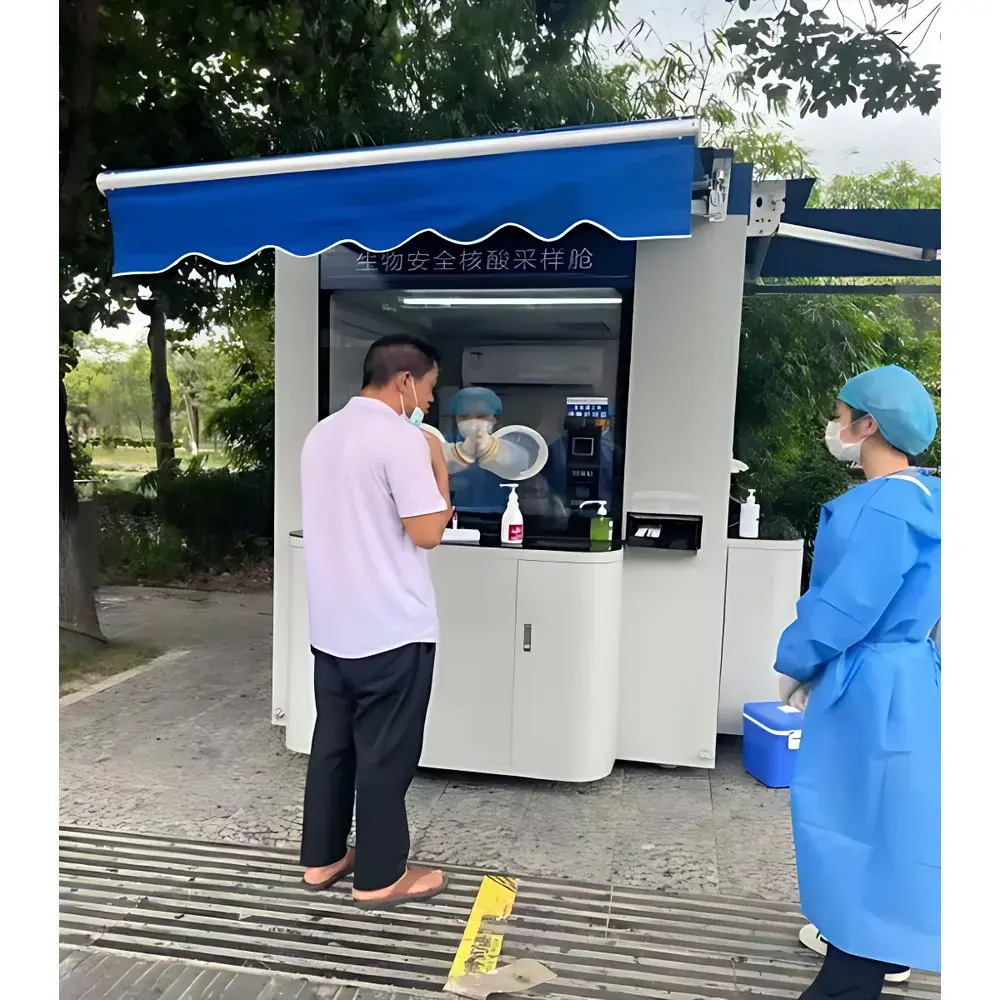

This workstation is deployed in environments requiring sustained, scalable, and operator-protected specimen intake without compromising diagnostic fidelity or occupational safety. Primary use cases include: frontline screening at tertiary hospitals and community health centers; point-of-entry surveillance at international airports, railway hubs, and border checkpoints; surge-capacity deployment during mass gatherings (e.g., exhibitions, sporting events, cultural festivals); and longitudinal occupational health monitoring in manufacturing plants, logistics parks, and educational campuses. Its mobility—enabled by recessed industrial casters and optional anchoring kits—supports rapid repositioning between fixed sites or temporary field clinics. The unit’s thermal insulation, IP54-rated electrical enclosure, and wide ambient operating range (−10 °C to +45 °C) ensure functional reliability across diverse climatic zones.

FAQ

What biosafety level (BSL) equivalency does the XY-HS006 provide?
It functions as an engineering control equivalent to BSL-2 containment for aerosol-generating procedures, when operated per manufacturer instructions and integrated into facility-level risk assessments.
Can the filtration system be validated per ISO 14644-3 protocols?
Yes—filter integrity testing (e.g., DOP/PAO scanning) and airflow velocity mapping can be conducted using third-party accredited laboratories following ISO 14644-3:2019 Annex B.
Is remote firmware update capability supported?
Firmware updates require physical USB access and are performed offline to maintain cybersecurity integrity per IEC 62443-3-3 requirements.
How frequently must the H14 filter be replaced?
Under continuous 8-hour daily operation, recommended replacement interval is every 6–12 months depending on ambient PM2.5 concentration and usage intensity; system alerts trigger at 90% estimated service life.
Does the unit meet FDA or CE regulatory requirements for medical devices?
It is classified as Class I non-invasive medical auxiliary equipment under China NMPA registration (Category II filing pending); it is not CE-marked nor FDA-cleared as a diagnostic device, but conforms to applicable EMC and safety directives for general-purpose laboratory infrastructure.
